Bottom-Mount Refrigerator

Model # PDW22SISASS Official GE refrigerator - s series

Here are the diagrams and repair parts for Official GE PDW22SISASS refrigerator - s series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

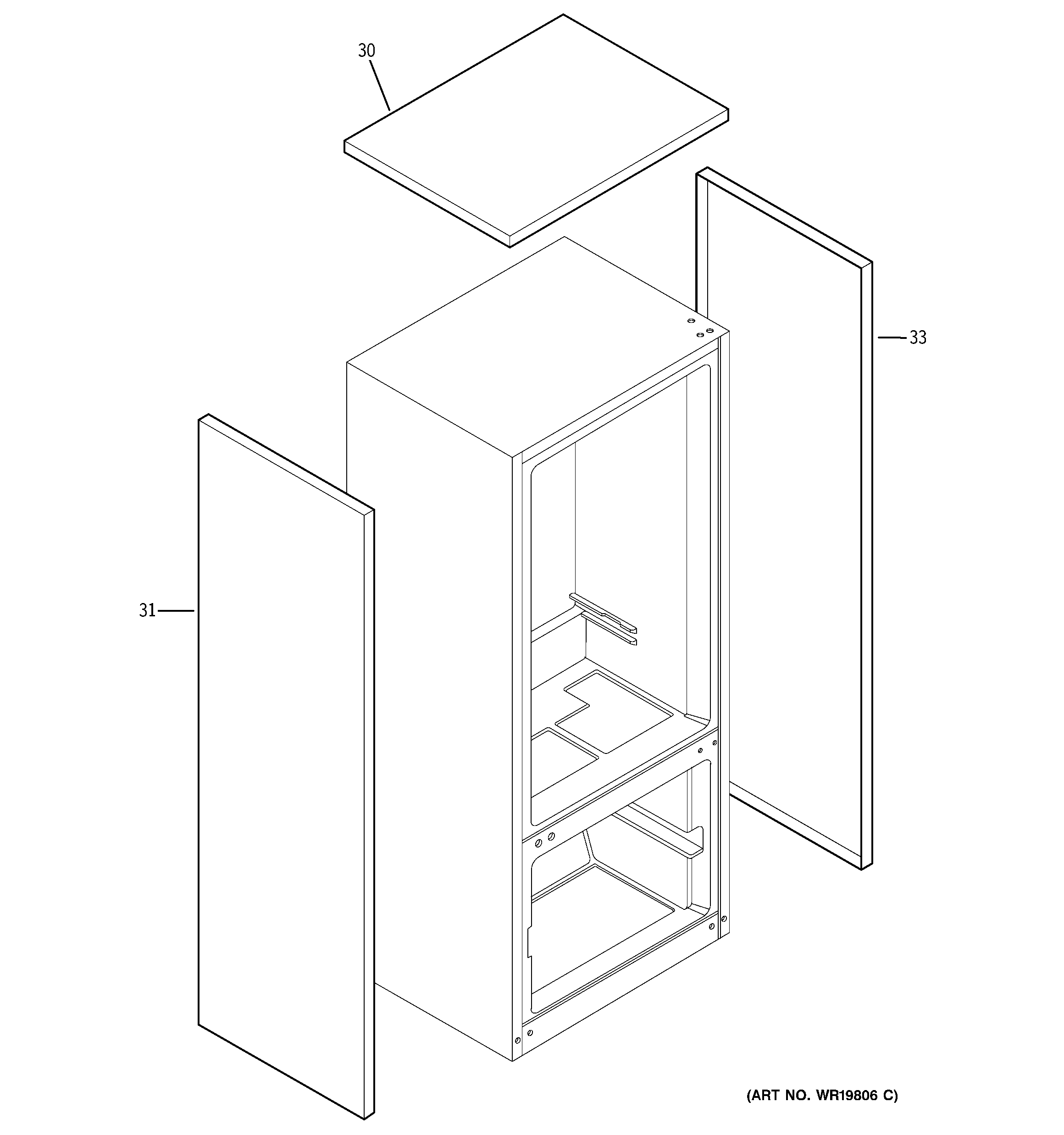

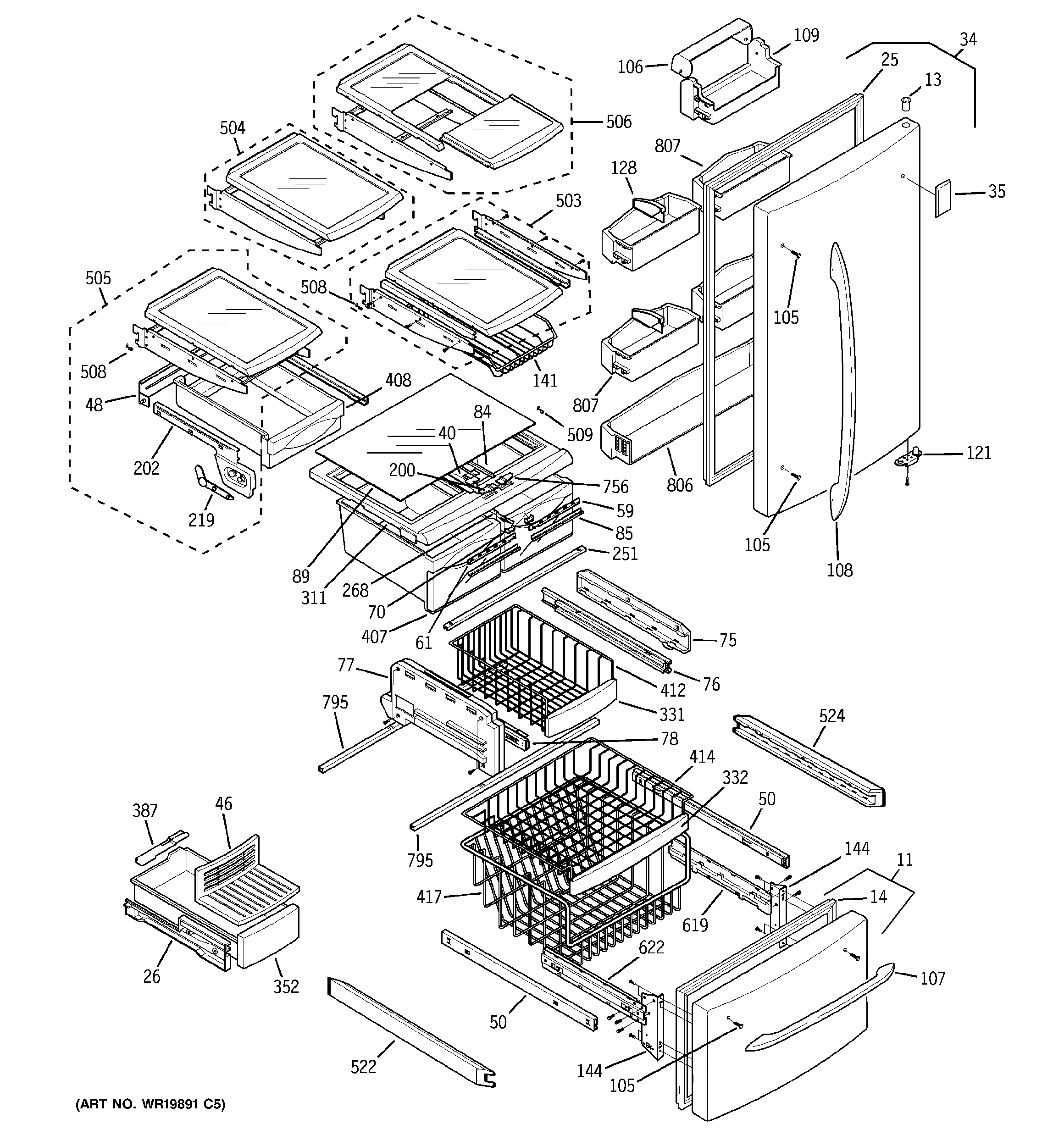

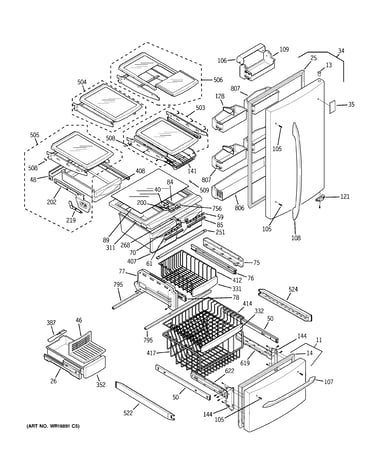

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 149 parts  |
Ge Profile Refrigerator Temperature Sensor WR55X10025
#241

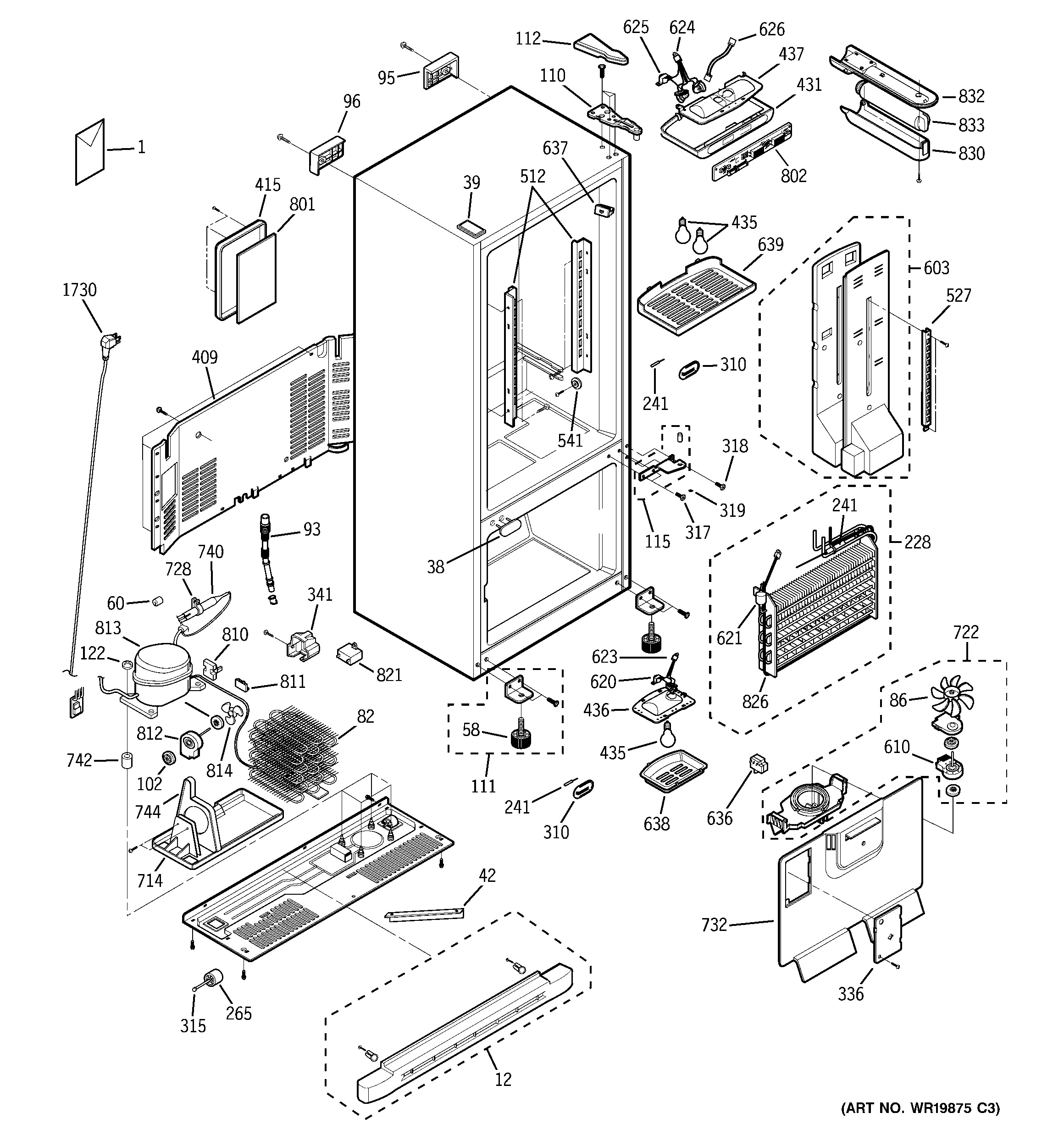

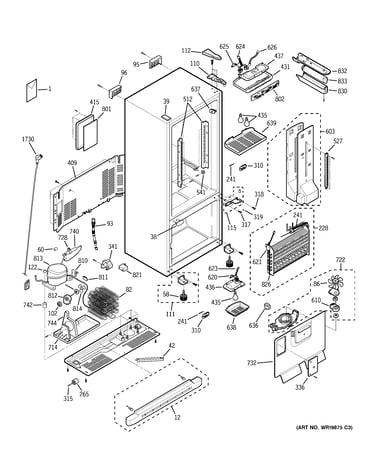

Cabinet diagram

Ge profile refrigerator temperature sensor

Part #WR55X10025

BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Dryer Filter WR86X0096
#740

Cabinet diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Capacitor WR62X10040
#821

Cabinet diagram

Refrigerator capacitor

Part #WR62X10040

Replaced by #WR55X24064

?
Manufacturer substitution
This part replaces WR62X10040. Substitute parts can look different from the original.
BEST SELLER
$40.73 |
13% OFF Phone Price : $46.73
In Stock
Comp. Repl. WR87X10097
#813

Cabinet diagram

Comp. repl.

Part #WR87X10097

Replaced by #WR87X20798

?
Manufacturer substitution
This part replaces WR87X10097. Substitute parts can look different from the original.
BEST SELLER
$382.57 |
$12.00 OFF Phone Price : $394.57
In Stock
Refrigerator Water Tube Fitting WR02X10471
#836

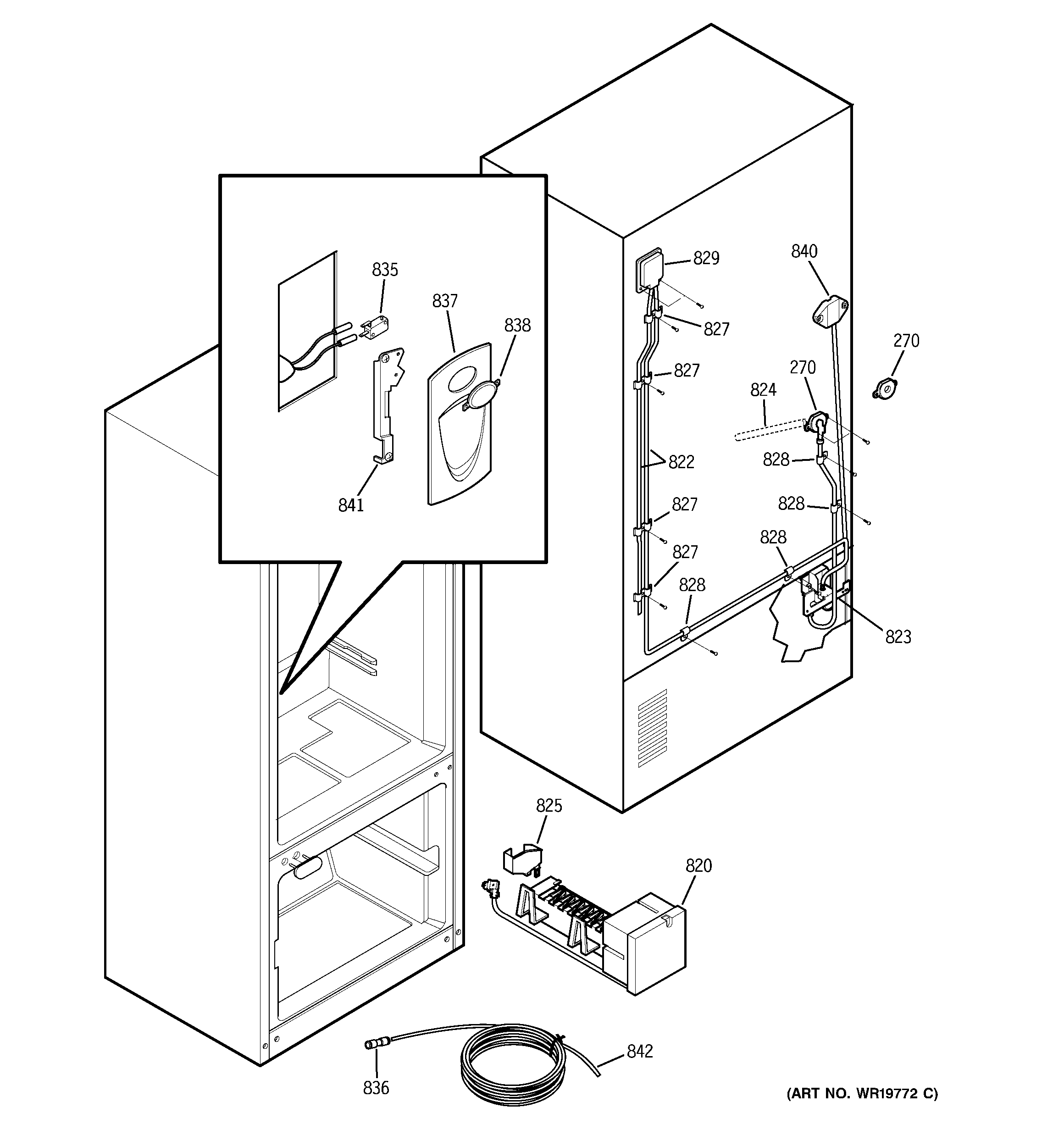

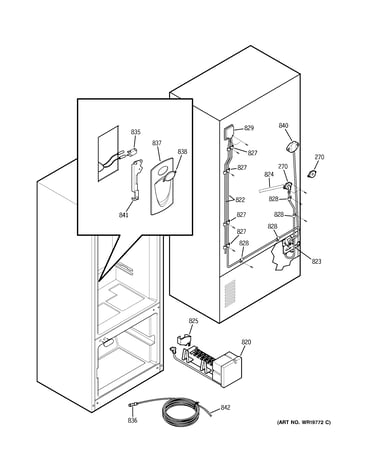

Water system diagram

Refrigerator water tube fitting

Part #WR02X10471

Replaced by #WR02X11330

?
Manufacturer substitution
This part replaces WR02X10471. Substitute parts can look different from the original.
BEST SELLER
$8.20 |
11% OFF Phone Price : $9.20
In Stock
Refrigerator Filter WR17X11608
#833

Cabinet diagram

Refrigerator filter

Part #WR17X11608

Replaced by #GSWF

?
Manufacturer substitution
This part replaces WR17X11608. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$49.98
In Stock
Refrigerator Water Reservoir (replaces Wr17x11141, Wr17x11331) WR17X11324
#842

Water system diagram

Refrigerator water reservoir (replaces wr17x11141, wr17x11331)

Part #WR17X11324

This item is not returnable
$26.84 |
18% OFF Phone Price : $32.84
In Stock
Refrigerator Condenser Fan Motor WR84X10055
#812

Cabinet diagram

Refrigerator condenser fan motor

Part #WR84X10055

$117.14 |
9% OFF Phone Price : $129.14
In Stock
Refrigerator Ice Maker On/off Switch WR23X10333
#835

Water system diagram

Refrigerator ice maker on/off switch

Part #WR23X10333

This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Refrigerator Evaporator Fan Motor WR60X10196
#610

Cabinet diagram

Refrigerator evaporator fan motor

Part #WR60X10196

$297.08 |
$12.00 OFF Phone Price : $309.08
In Stock
