Frigidaire
Side-By-Side Refrigerator

Model # PLHS267ZCB2 Official Frigidaire refrigerator

Here are the diagrams and repair parts for Official Frigidaire PLHS267ZCB2 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

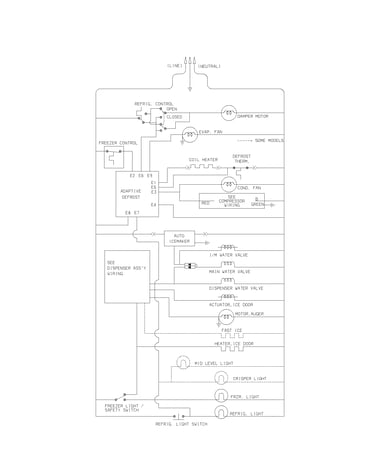

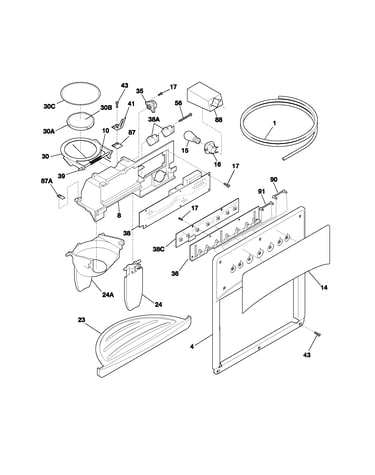

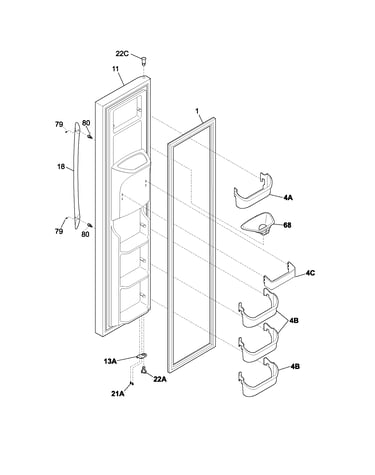

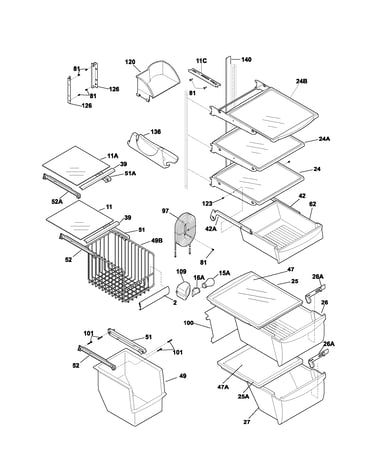

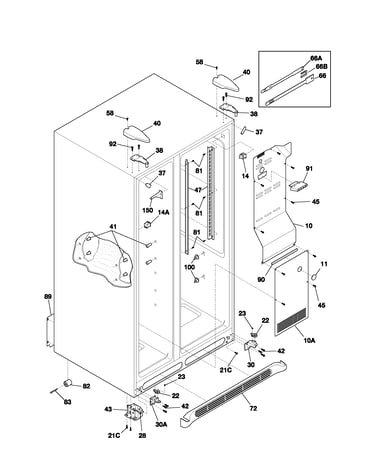

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 317 parts  |
Ice Maker Mold 5303320545
#17

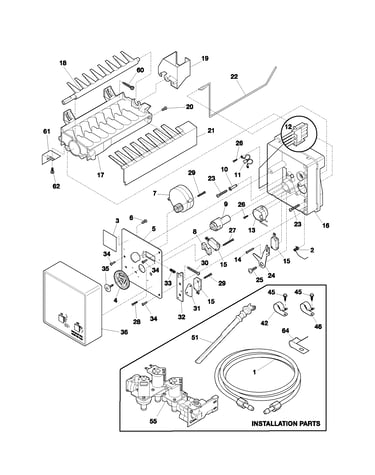

Ice maker diagram

Ice maker mold

Part #5303320545

Replaced by #241798231

?
Manufacturer substitution
This part replaces 5303320545. Substitute parts can look different from the original.
BEST SELLER
$153.02 |
7% OFF Phone Price : $165.02
In Stock
Refrigerator Filter Drier 218944001
#4

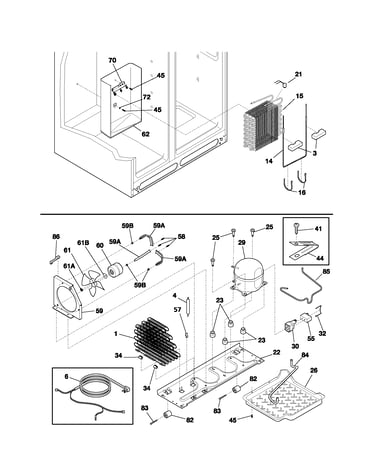

System diagram

Refrigerator filter drier

Part #218944001

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218944001. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Refrigerator Water Inlet Valve Assembly 240531101
#55

Ice maker diagram

Refrigerator water inlet valve assembly

Part #240531101

Replaced by #242252702

?
Manufacturer substitution
This part replaces 240531101. Substitute parts can look different from the original.
BEST SELLER
$78.80 |
7% OFF Phone Price : $84.80
In Stock
Appliance Light Bulb, 40-watt 5303001179
#15

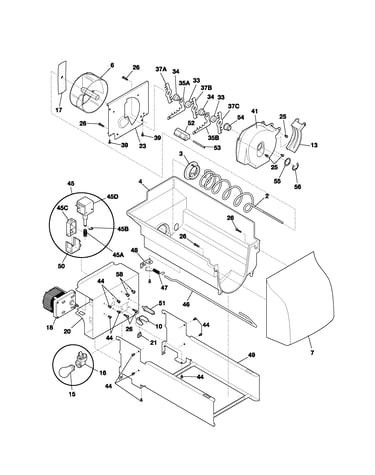

Ice container diagram

Appliance light bulb, 40-watt

Part #5303001179

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303001179. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Refrigerator Defrost Bi-metal Thermostat (replaces 75303918214) 5303918214
#21

System diagram

Refrigerator defrost bi-metal thermostat (replaces 75303918214)

Part #5303918214

BEST SELLER
$22.75 |
21% OFF Phone Price : $28.75
In Stock
Frigidaire Puresource2 Refrigerator Water Filter (replaces 242007901, Fc100) WF2CB
#137

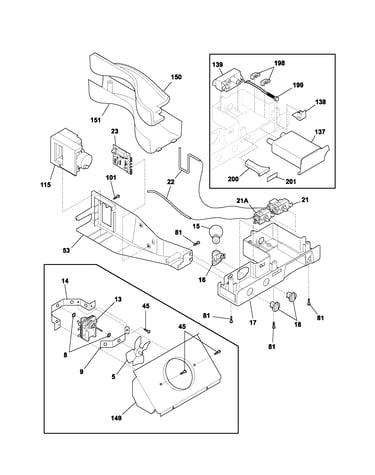

Controls diagram

Frigidaire puresource2 refrigerator water filter (replaces 242007901, fc100)

Part #WF2CB

BEST SELLER

Get free shipping with Automatic Reorder

$49.98
In Stock
Refrigerator Evaporator Fan Blade 5308000010
#5

Controls diagram

Refrigerator evaporator fan blade

Part #5308000010

BEST SELLER
$39.93 |
13% OFF Phone Price : $45.93
In Stock
Evaporator Motor 240315802
#13

Controls diagram

Evaporator motor

Part #240315802

Replaced by #5303918549

?
Manufacturer substitution
This part replaces 240315802. Substitute parts can look different from the original.
BEST SELLER
$71.31 |
8% OFF Phone Price : $77.31
In Stock
Refrigerator Evaporator (replaces 5303918216, 75303918284) 5303918284
#15

System diagram

Refrigerator evaporator (replaces 5303918216, 75303918284)

Part #5303918284

BEST SELLER
$327.83 |
$12.00 OFF Phone Price : $339.83
In Stock
Refrigerator Door Gallon Bin 240430312
#49

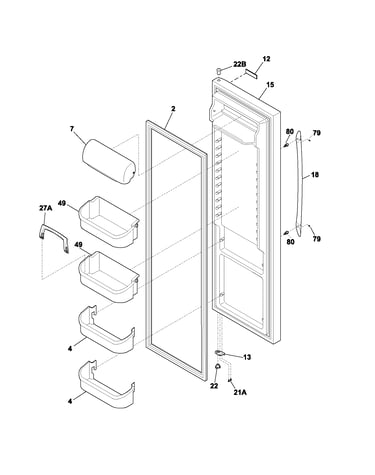

Refrigerator door diagram

Refrigerator door gallon bin

Part #240430312

Replaced by #240356402

?
Manufacturer substitution
This part replaces 240430312. Substitute parts can look different from the original.
BEST SELLER
$78.70 |
7% OFF Phone Price : $84.70
In Stock
