Model # 3554 Official Bissell upright vacuum cleaner

Here are the diagrams and repair parts for Official Bissell 3554 upright vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |

Tool Holder 014-3805
#23

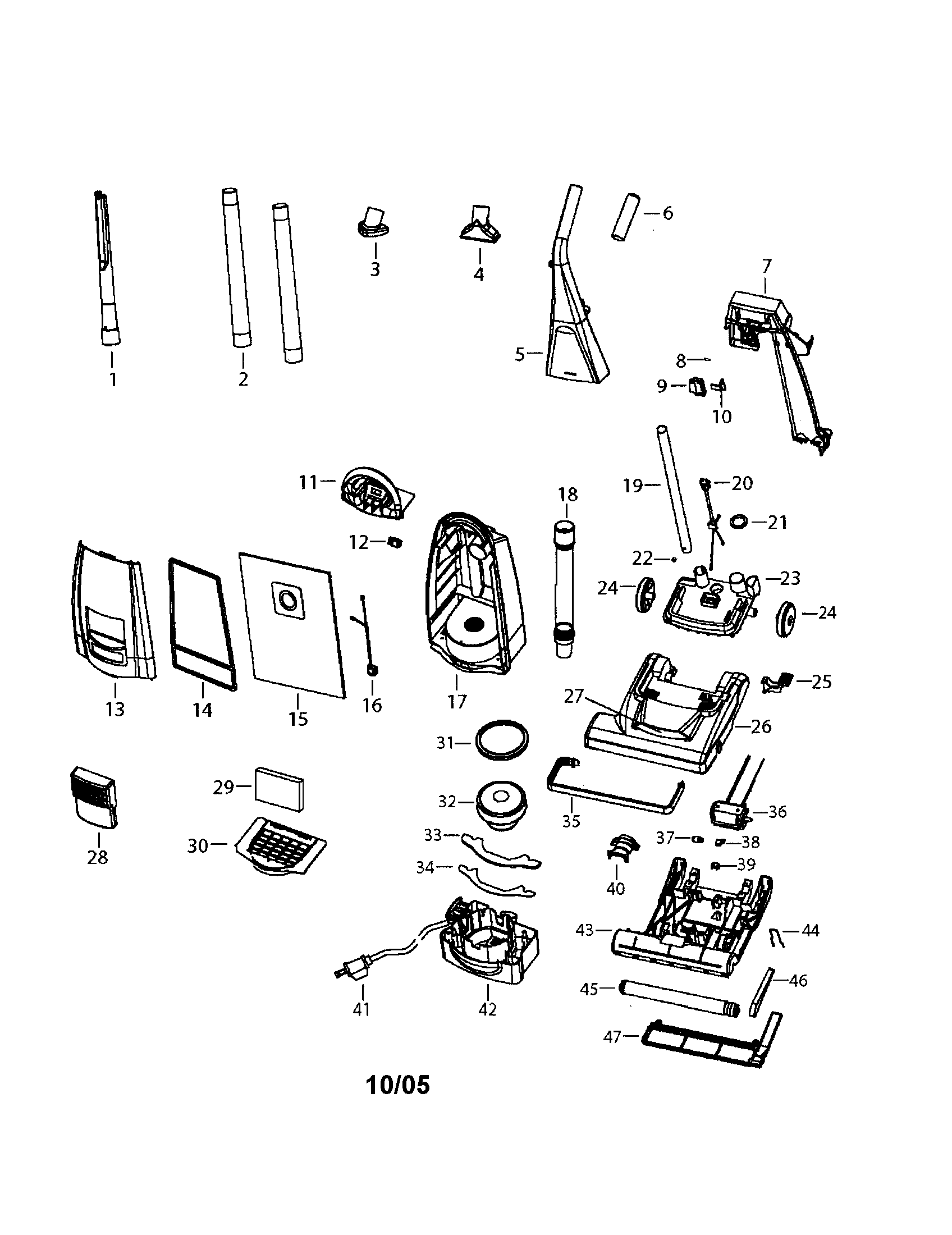

Lift - off vac diagram

Tool holder

Part #014-3805

The manufacturer no longer makes this part, and there's no substitute part

Latch 013-3813
#9

Lift - off vac diagram

Latch

Part #013-3813

The manufacturer no longer makes this part, and there's no substitute part

Foot Cover 014-3806
#26

Lift - off vac diagram

Foot cover

Part #014-3806

The manufacturer no longer makes this part, and there's no substitute part

Spring 010-8434
#8

Lift - off vac diagram

Spring

Part #010-8434

The manufacturer no longer makes this part, and there's no substitute part

Rear Wheel 010-9770
#24

Lift - off vac diagram

Rear wheel

Part #010-9770

The manufacturer no longer makes this part, and there's no substitute part

Handle Tube 010-9474
#19

Lift - off vac diagram

Handle tube

Part #010-9474

The manufacturer no longer makes this part, and there's no substitute part

Latch 013-3812
#10

Lift - off vac diagram

Latch

Part #013-3812

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 010-5739

#NI03

All parts diagram

Owner's manual

Part #010-5739

The manufacturer no longer makes this part, and there's no substitute part

Bissell Handle Grip 014-3822
#5A

Lift - off vac diagram

Bissell handle grip

Part #014-3822

The manufacturer no longer makes this part, and there's no substitute part

Bon Voyage Vacuum Switch 555-9125
#12

Lift - off vac diagram

Bon voyage vacuum switch

Part #555-9125

The manufacturer no longer makes this part, and there's no substitute part
