Craftsman
Gas Line Trimmer

Model # 917773751 Official Craftsman high wheel line trimmer

Here are the diagrams and repair parts for Official Craftsman 917773751 high wheel line trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 224 parts  |
Hex Flange Lock Nut 145212
#14

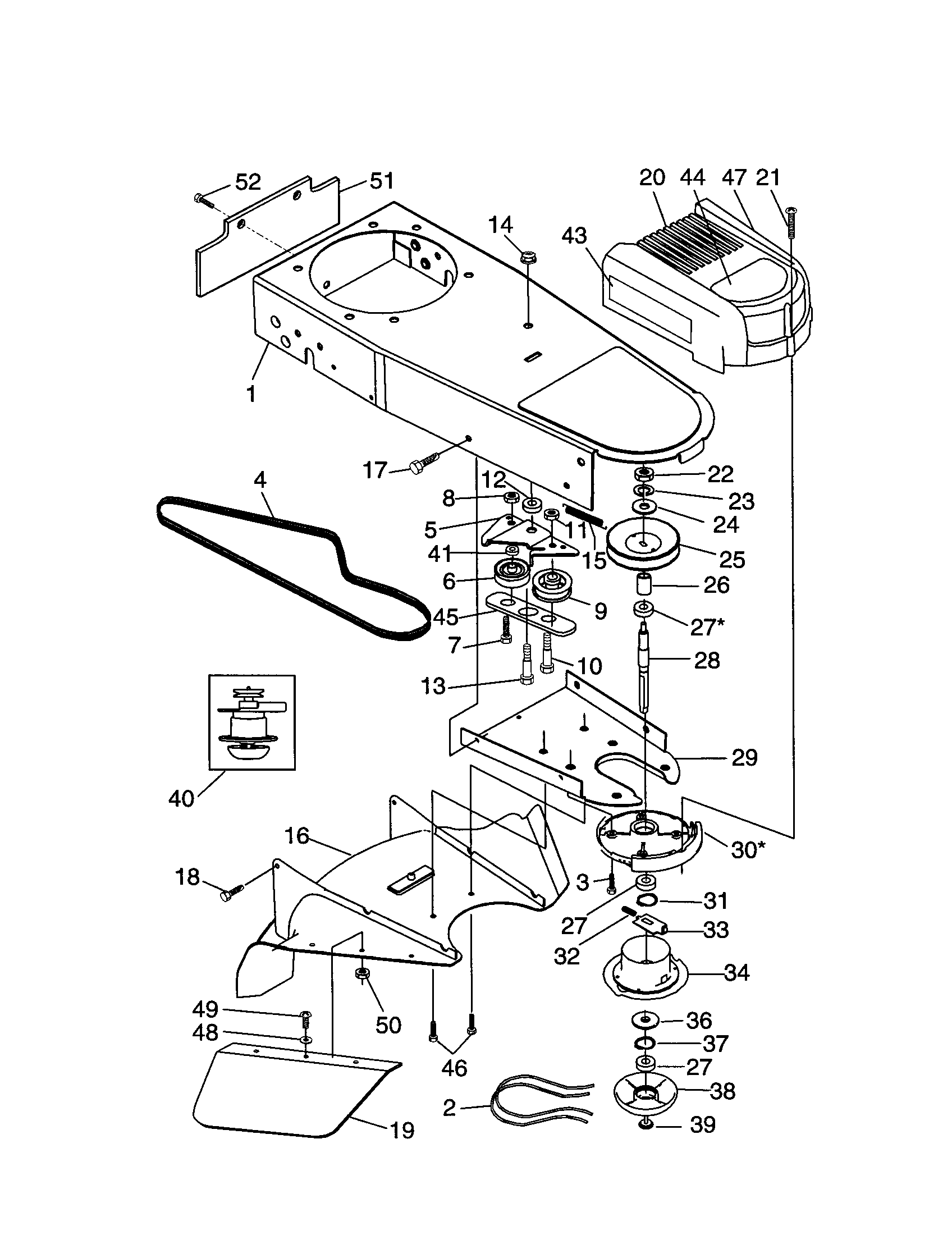

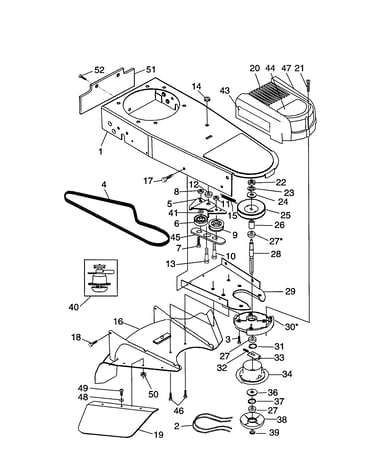

Chassis diagram

Hex flange lock nut

Part #145212

Replaced by #532409149

?
Manufacturer substitution
This part replaces 145212. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lock Nut 83923
#27

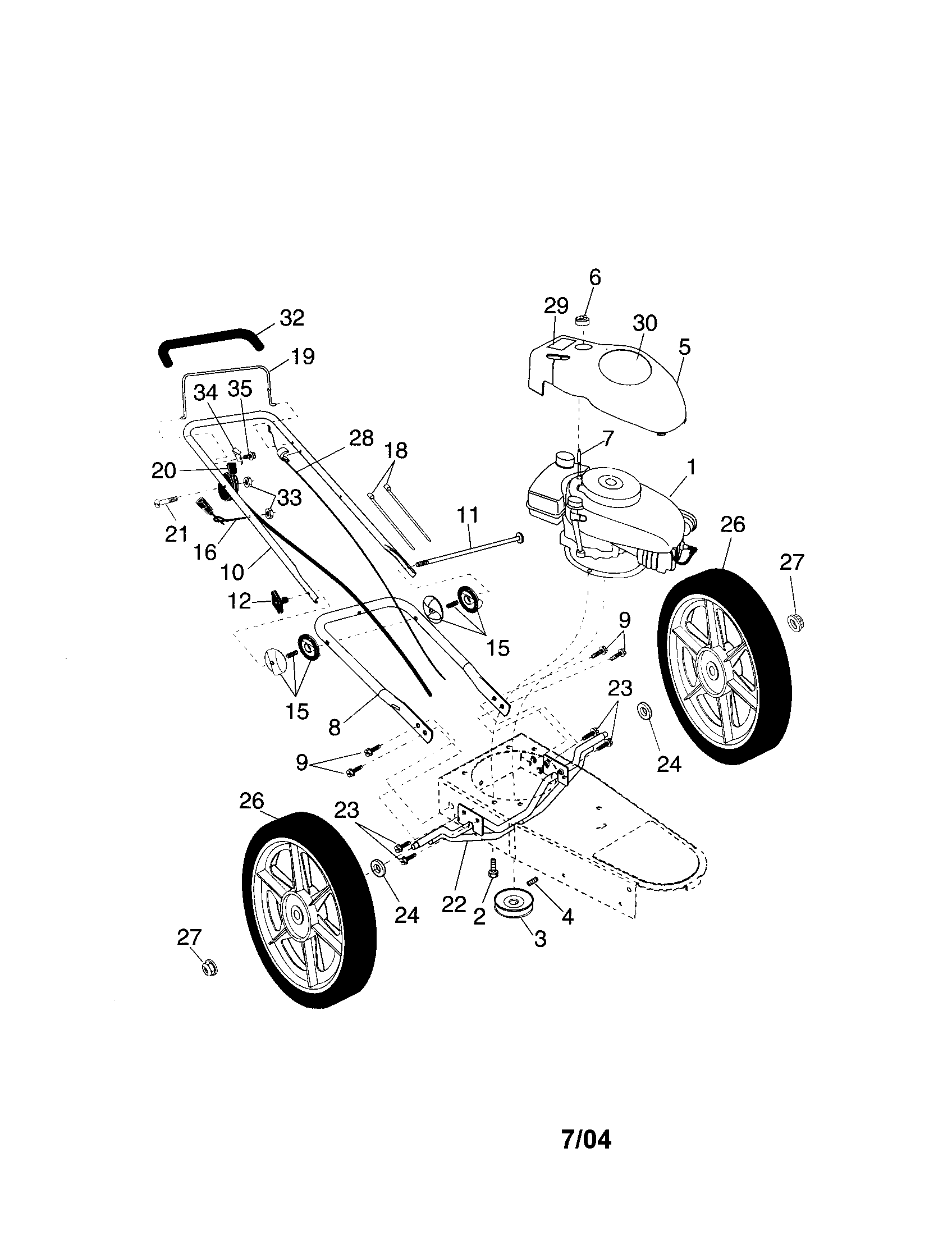

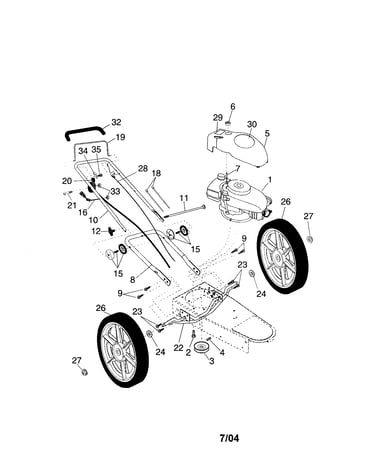

Weed trimmer diagram

Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Handle Knob 136376
#12

Weed trimmer diagram

Handle knob

Part #136376

Replaced by #532185577

?
Manufacturer substitution
This part replaces 136376. Substitute parts can look different from the original.
BEST SELLER
$10.64 |
16% OFF Phone Price : $12.64
In Stock
High-wheel Trimmer Driveshaft Belt 169790
#4

Chassis diagram

High-wheel trimmer driveshaft belt

Part #169790

Replaced by #532185476

?
Manufacturer substitution
This part replaces 169790. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$30.01 |
17% OFF Phone Price : $36.01
In Stock
Plate Assembly 174544
#34

Chassis diagram

Plate assembly

Part #174544

Replaced by #594935003

?
Manufacturer substitution
This part replaces 174544. Substitute parts can look different from the original.
BEST SELLER
$56.95 |
10% OFF Phone Price : $62.95
In Stock
Lawn & Garden Equipment Washer 52784
#48

Chassis diagram

Lawn & garden equipment washer

Part #52784

Replaced by #819061216

?
Manufacturer substitution
This part replaces 52784. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Mow Ball Assembly 172342
#40

Chassis diagram

Mow ball assembly

Part #172342

Replaced by #596878501

?
Manufacturer substitution
This part replaces 172342. Substitute parts can look different from the original.
BEST SELLER
$147.72 |
8% OFF Phone Price : $159.72
In Stock
Line Trimmer Drive Pulley 169792
#25

Chassis diagram

Line trimmer drive pulley

Part #169792

Replaced by #596878501

?
Manufacturer substitution
This part replaces 169792. Substitute parts can look different from the original.
BEST SELLER
$147.72 |
8% OFF Phone Price : $159.72
In Stock
Nut 132004
#33

Weed trimmer diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Line Trimmer Return Spring 173811
#15

Chassis diagram

Line trimmer return spring

Part #173811

Replaced by #532173811

?
Manufacturer substitution
This part replaces 173811. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
