Model # GDPP4517AD0A Official Frigidaire frigidaire/dishwasher

Here are the diagrams and repair parts for Official Frigidaire GDPP4517AD0A frigidaire/dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

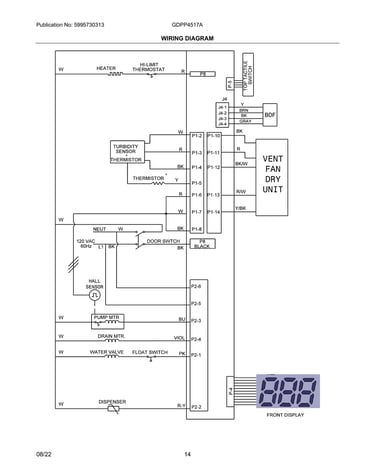

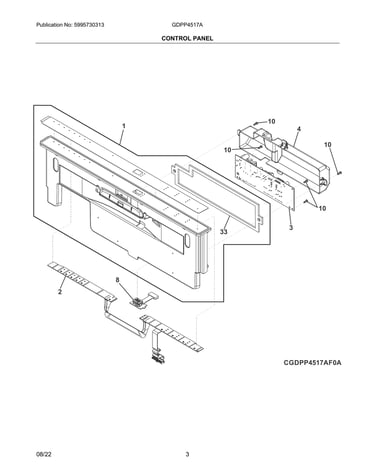

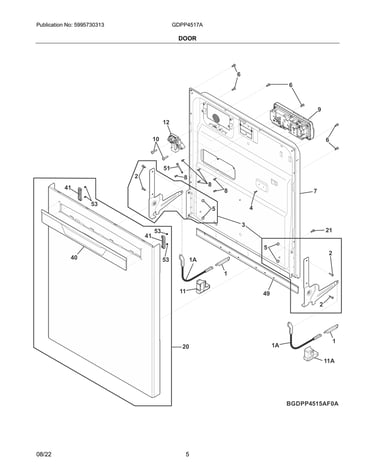

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 115 parts  |
Dishwasher Door Seal (replaces 154845301) 154827601
#3

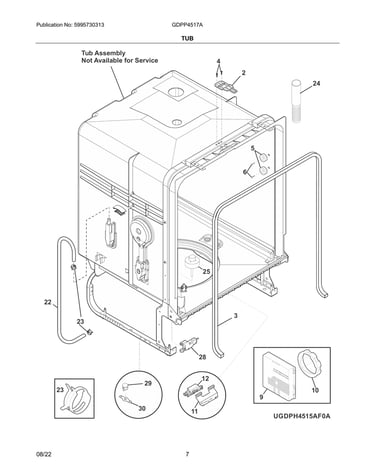

Tub diagram

Dishwasher door seal (replaces 154845301)

Part #154827601

BEST SELLER
$31.02 |
16% OFF Phone Price : $37.02
In Stock
Drain Pump A 5304492415
#60

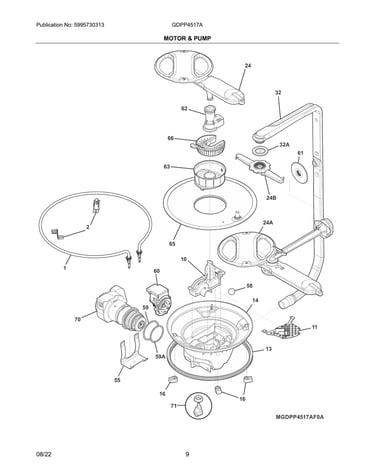

Motor & pump diagram

Drain pump a

Part #5304492415

Replaced by #A00126401

?
Manufacturer substitution
This part replaces 5304492415. Substitute parts can look different from the original.
BEST SELLER
$83.54 |
7% OFF Phone Price : $89.54
In Stock
Dishwasher Heating Element (replaces 154663801) 154825001
#1

Motor & pump diagram

Dishwasher heating element (replaces 154663801)

Part #154825001

BEST SELLER
$58.92 |
9% OFF Phone Price : $64.92
In Stock
Dishwasher Pump O-ring, Front 154247001
#59A

Motor & pump diagram

Dishwasher pump o-ring, front

Part #154247001

BEST SELLER
$38.87 |
13% OFF Phone Price : $44.87
In Stock
Crosley Dishwasher Water Inlet Valve (replaces 5304521660) 5304525044
#3

Frame diagram

Crosley dishwasher water inlet valve (replaces 5304521660)

Part #5304525044

BEST SELLER
$28.02 |
18% OFF Phone Price : $34.02
In Stock
Dishwasher Drain Hose (replaces 154753201) 807117001
#24

Tub diagram

Dishwasher drain hose (replaces 154753201)

Part #807117001

BEST SELLER
$32.27 |
16% OFF Phone Price : $38.27
In Stock
Crosley Dishwasher Dishrack Roller, Lower (replaces 5300809640, 5304521179) 5304532229
#7

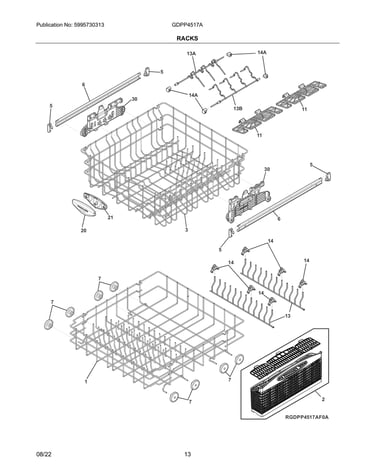

Racks diagram

Crosley dishwasher dishrack roller, lower (replaces 5300809640, 5304521179)

Part #5304532229

BEST SELLER
This item is not returnable
$4.74 |
17% OFF Phone Price : $5.74
In Stock
Dishwasher Pump Motor Bracket (replaces 154362301) 154595901
#55

Motor & pump diagram

Dishwasher pump motor bracket (replaces 154362301)

Part #154595901

Replaced by #5304534830

?
Manufacturer substitution
This part replaces 154595901. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.34
In Stock
Dishwasher Vent Assembly (replaces 154861101) 5304523304
#9

Tub diagram

Dishwasher vent assembly (replaces 154861101)

Part #5304523304

BEST SELLER
$95.99 |
11% OFF Phone Price : $107.99
In Stock
Dishwasher Heating Element Nut (replaces 154106201, 5303351029) 154106202
#NI

Motor & pump diagram

Dishwasher heating element nut (replaces 154106201, 5303351029)

Part #154106202

BEST SELLER
$7.99 |
11% OFF Phone Price : $8.99
In Stock
