Whirlpool
Upright Freezer

Model # EV200NXEW00 Official Whirlpool vertical freezer

Here are the diagrams and repair parts for Official Whirlpool EV200NXEW00 vertical freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |
Light Switch 4356873
#13

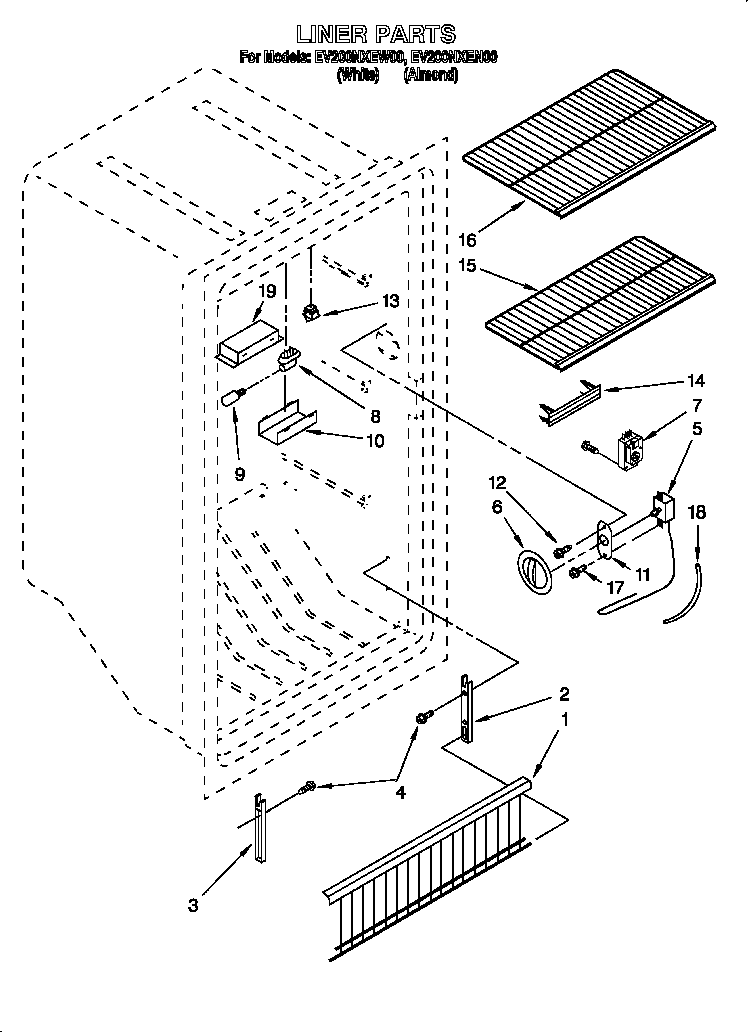

Liner diagram

Light switch

Part #4356873

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 4356873. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Drier Tube 4356332
#16

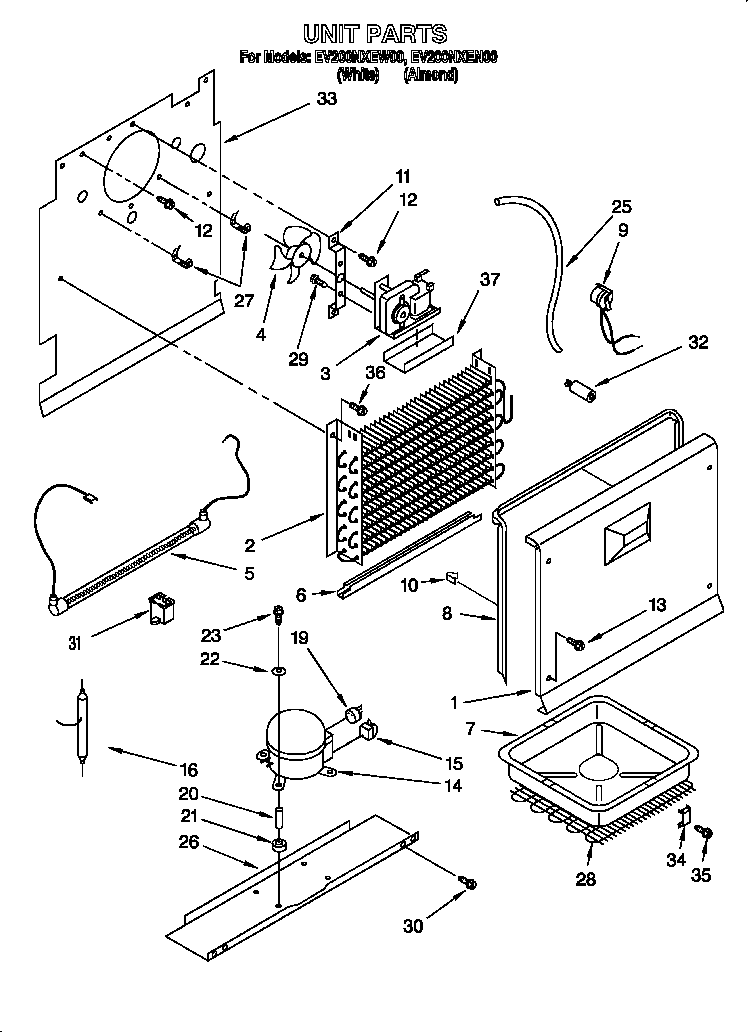

Unit diagram

Drier tube

Part #4356332

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 4356332. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Compressor 4357155
#14

Unit diagram

Compressor

Part #4357155

Replaced by #W10309994

?
Manufacturer substitution
This part replaces 4357155. Substitute parts can look different from the original.
BEST SELLER
$475.80 |
$12.00 OFF Phone Price : $487.80
In Stock
Start Relay 4357156
#15

Unit diagram

Start relay

Part #4357156

Replaced by #WPW10189190

?
Manufacturer substitution
This part replaces 4357156. Substitute parts can look different from the original.
BEST SELLER
$68.97 |
8% OFF Phone Price : $74.97
In Stock
Barrier 4356800
#18

Liner diagram

Barrier

Part #4356800

Replaced by #WP2196003

?
Manufacturer substitution
This part replaces 4356800. Substitute parts can look different from the original.
This item is not returnable
$5.04 |
17% OFF Phone Price : $6.04
In Stock
Heater 4356923
#5

Unit diagram

Heater

Part #4356923

Replaced by #W11175809

?
Manufacturer substitution
This part replaces 4356923. Substitute parts can look different from the original.
$78.88 |
7% OFF Phone Price : $84.88
In Stock
Door Gasket 4357112
#3B

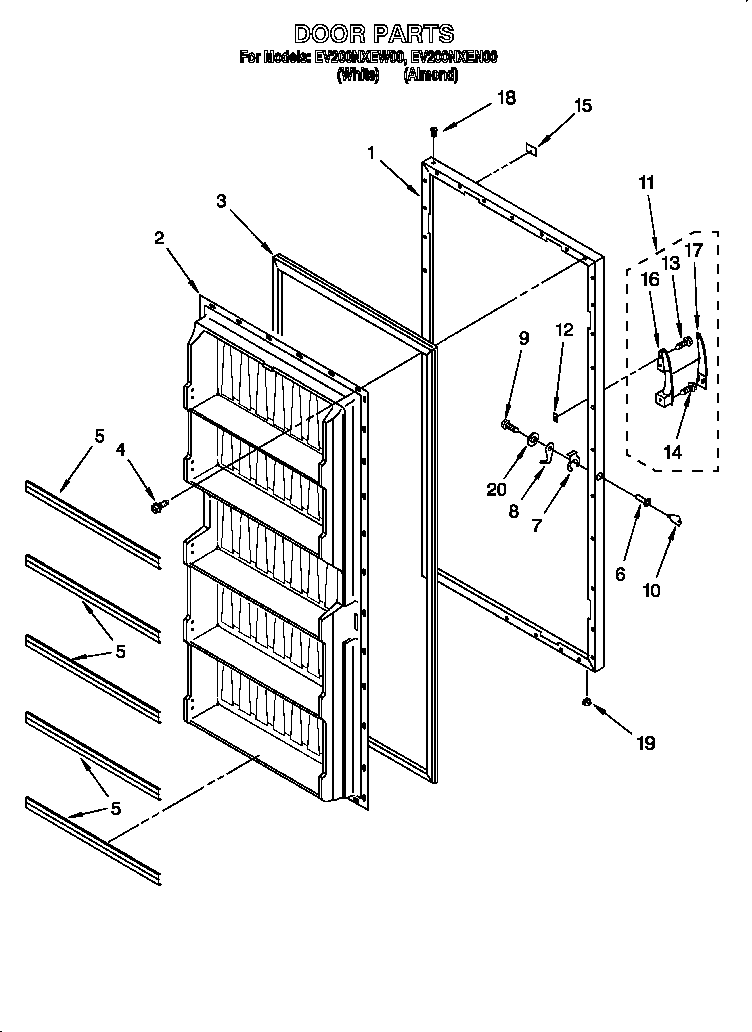

Door diagram

Door gasket

Part #4357112

Replaced by #WP4-81049-001

?
Manufacturer substitution
This part replaces 4357112. Substitute parts can look different from the original.
$221.81 |
5% OFF Phone Price : $233.81
In Stock
Gasket-dor 4357120
#3A

Door diagram

Gasket-dor

Part #4357120

Replaced by #WP4-81049-001

?
Manufacturer substitution
This part replaces 4357120. Substitute parts can look different from the original.
$221.81 |
5% OFF Phone Price : $233.81
In Stock
Defrost Bi-metal 4356928
#9

Unit diagram

Defrost bi-metal

Part #4356928

Replaced by #WP4387501

?
Manufacturer substitution
This part replaces 4356928. Substitute parts can look different from the original.
$51.99 |
10% OFF Phone Price : $57.99
In Stock
Overload 4357157
#19

Unit diagram

Overload

Part #4357157

Replaced by #WP4344040

?
Manufacturer substitution
This part replaces 4357157. Substitute parts can look different from the original.
$55.55 |
10% OFF Phone Price : $61.55
In Stock
