Maytag
Compact Refrigerator

Model # PCF1700ACW Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag PCF1700ACW refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Refrigerator Energy Label 63001268
#3

Supplemental information diagram

Refrigerator energy label

Part #63001268

This item is not returnable
$2.16
In Stock
Refrigerator Drip Tray 63001187
#5

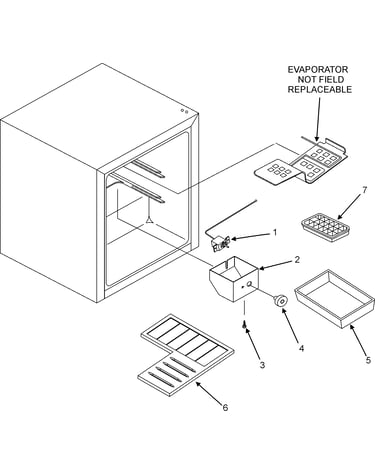

Interior parts diagram

Refrigerator drip tray

Part #63001187

The manufacturer no longer makes this part, and there's no substitute part

Power Box 63001271
#5

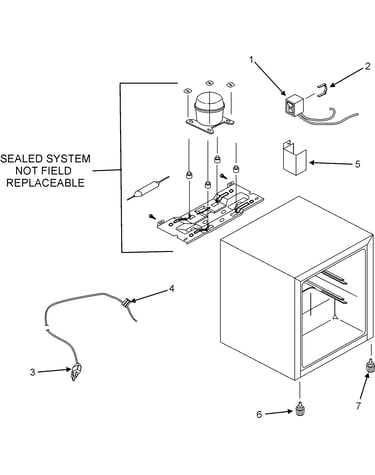

Compressor diagram

Power box

Part #63001271

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Screw 63001272
#8

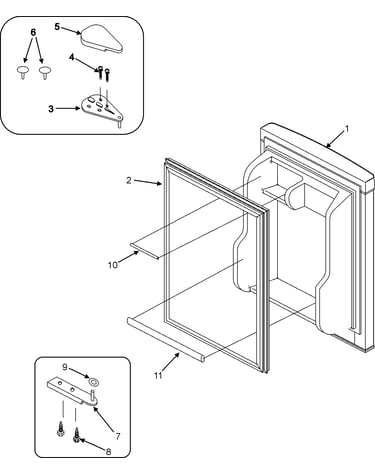

Door diagram

Refrigerator screw

Part #63001272

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Temperature Control 63001204
#1

Interior parts diagram

Refrigerator temperature control

Part #63001204

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Lower Hinge 63001265
#7

Door diagram

Refrigerator lower hinge

Part #63001265

The manufacturer no longer makes this part, and there's no substitute part

Tech Sht,top Mt (series 10) (non-illus) 16023197
#1

Supplemental information diagram

Tech sht,top mt (series 10) (non-illus)

Part #16023197

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Ice Tray 63001186
#7

Interior parts diagram

Refrigerator ice tray

Part #63001186

The manufacturer no longer makes this part, and there's no substitute part

Adaptive Defrost Assy. (art Is No Longer Available N/P
#9

Door diagram

Adaptive defrost assy. (art is no longer available

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Screw 63001199
#3

Interior parts diagram

Refrigerator screw

Part #63001199

The manufacturer no longer makes this part, and there's no substitute part
