Bottom-Mount Refrigerator

Model # GFE29HMDAES Official GE bottom-mount refrigerator

Here are the diagrams and repair parts for Official GE GFE29HMDAES bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

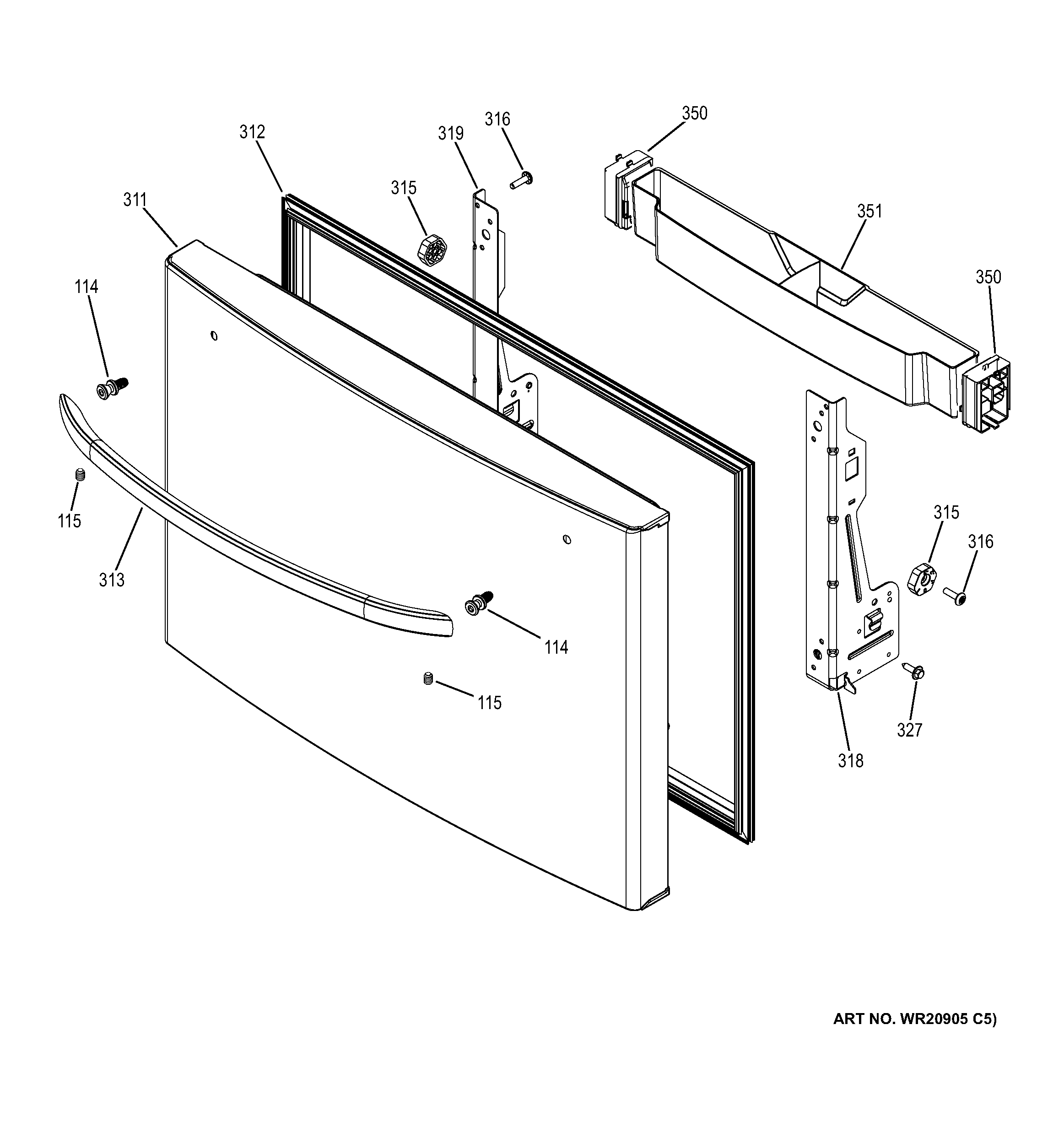

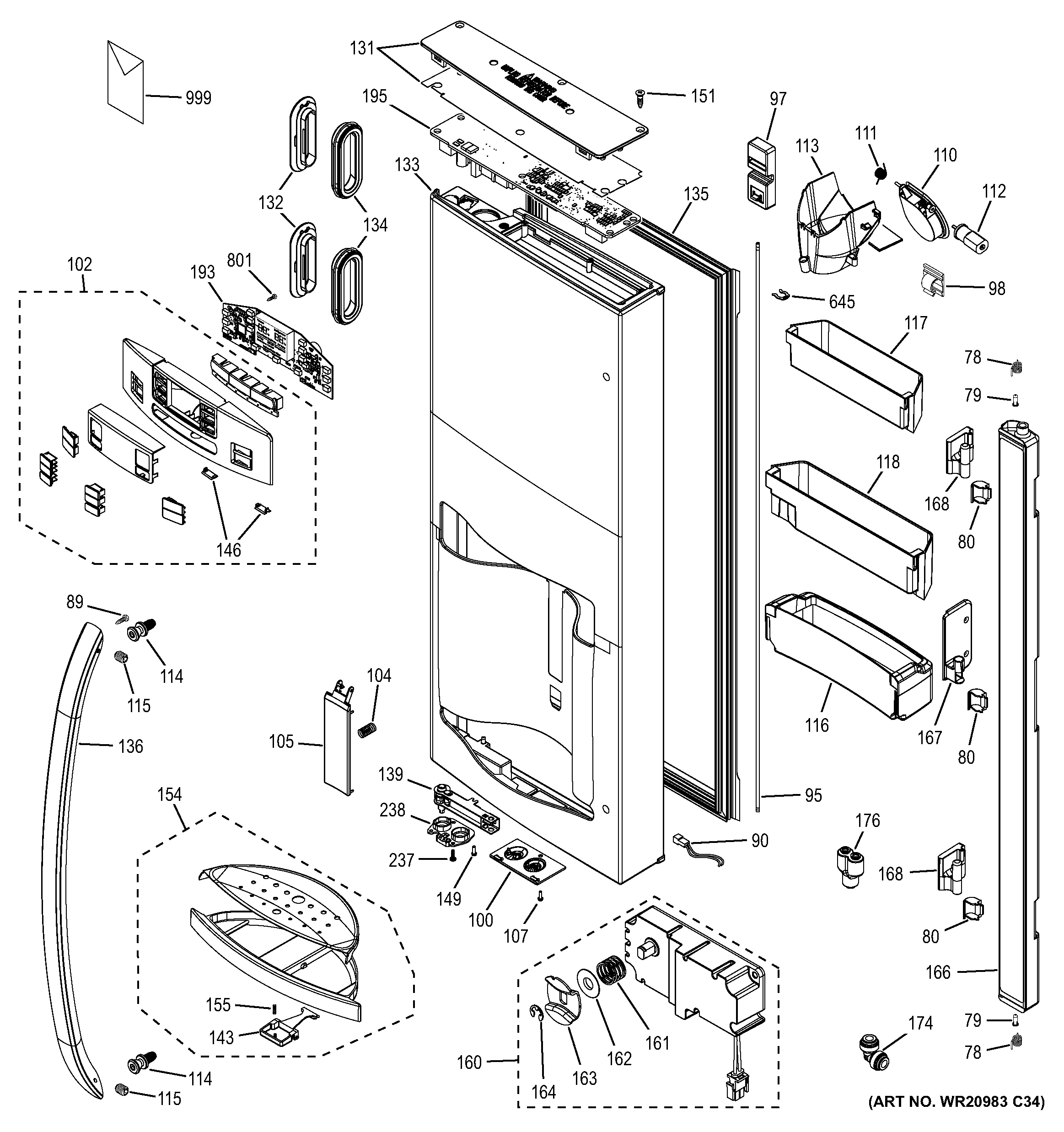

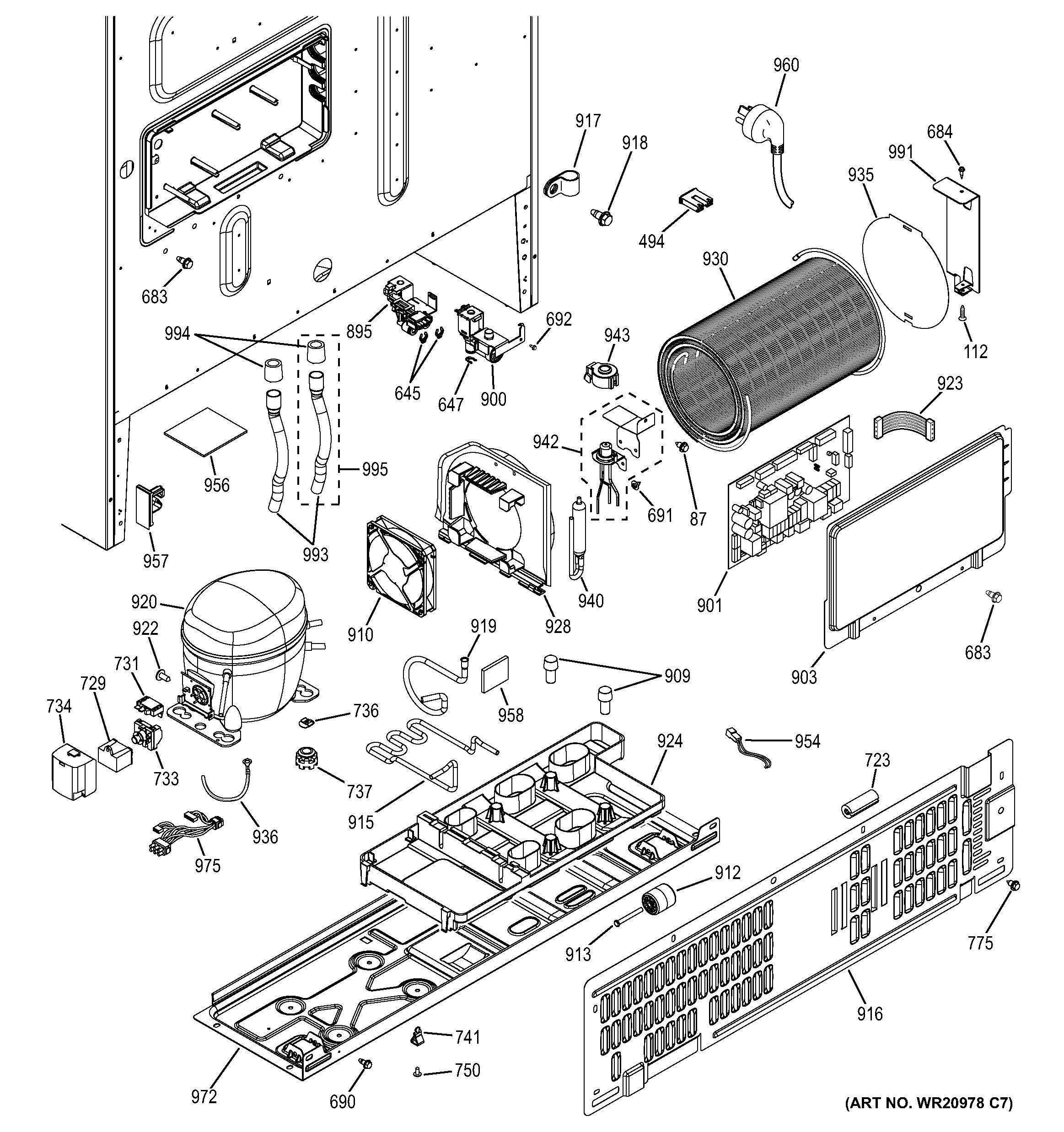

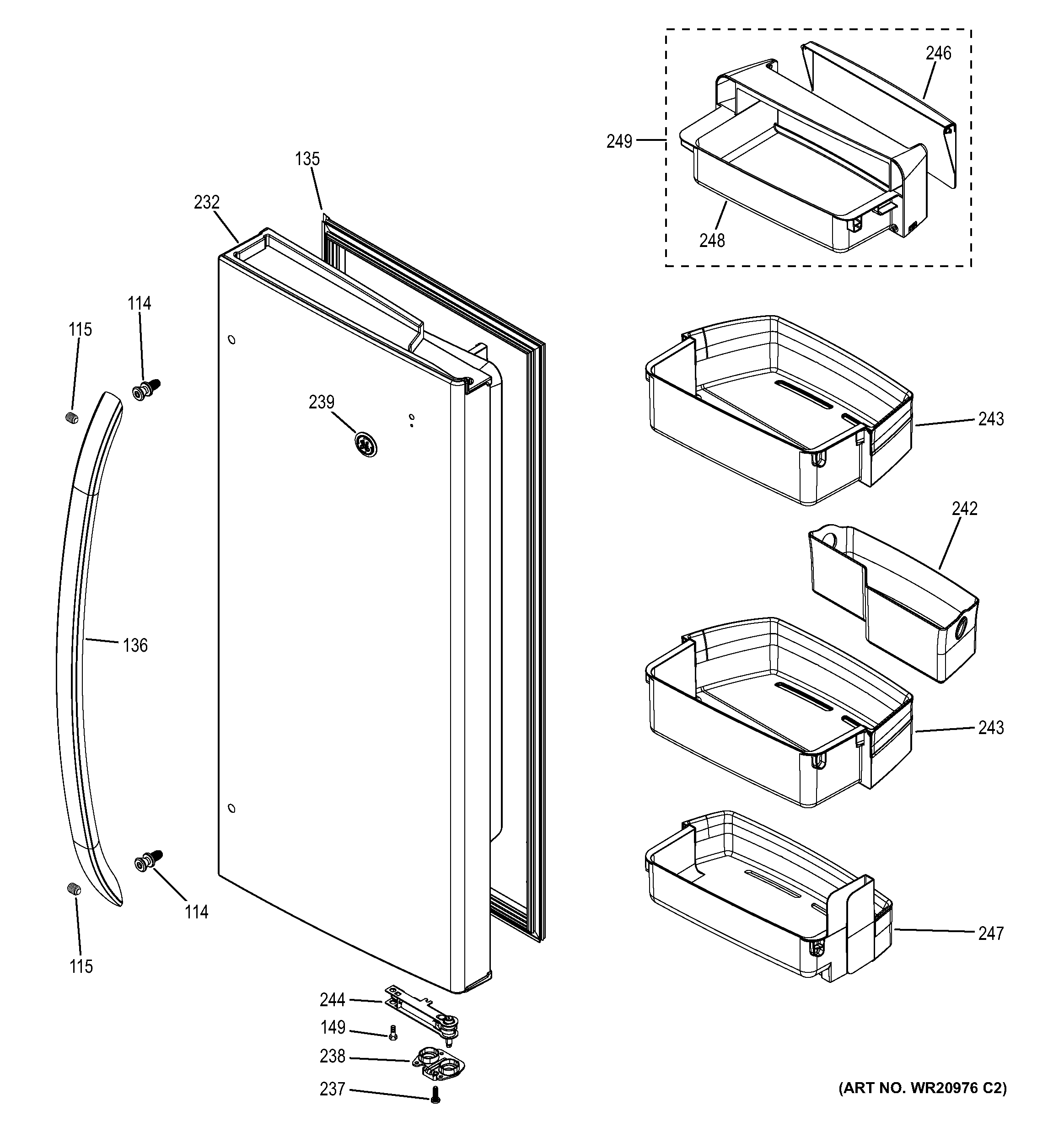

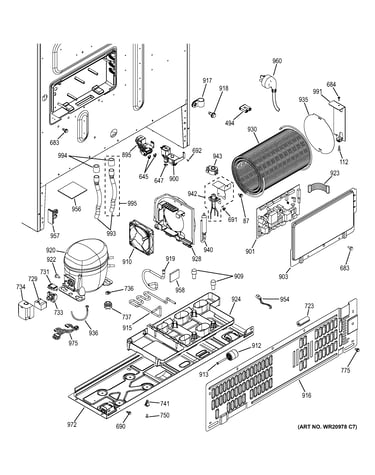

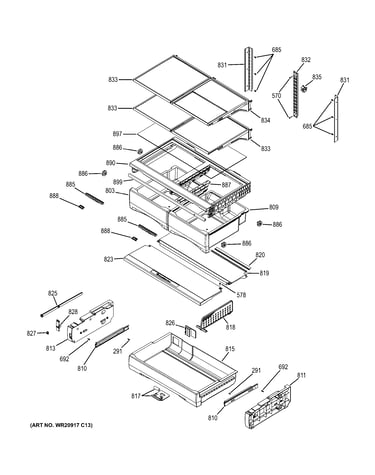

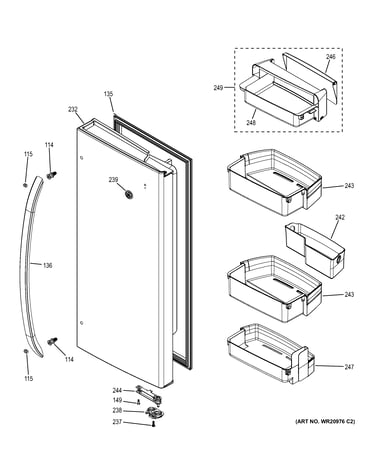

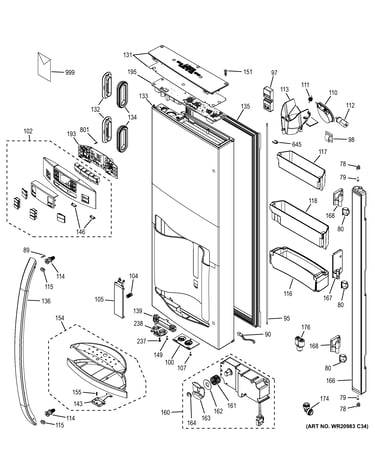

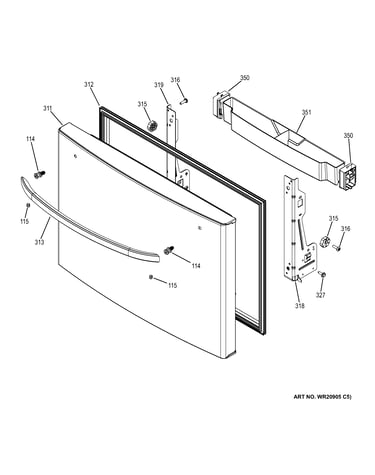

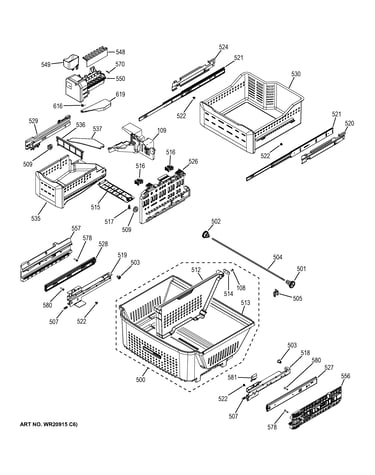

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forGFE29HMDAES Refrigerators

  • Refrigerator Temperature Sensor WR55X11121
    #511

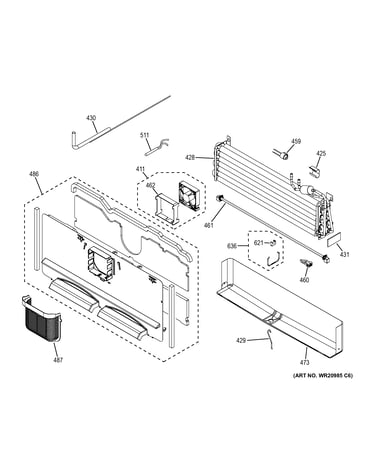

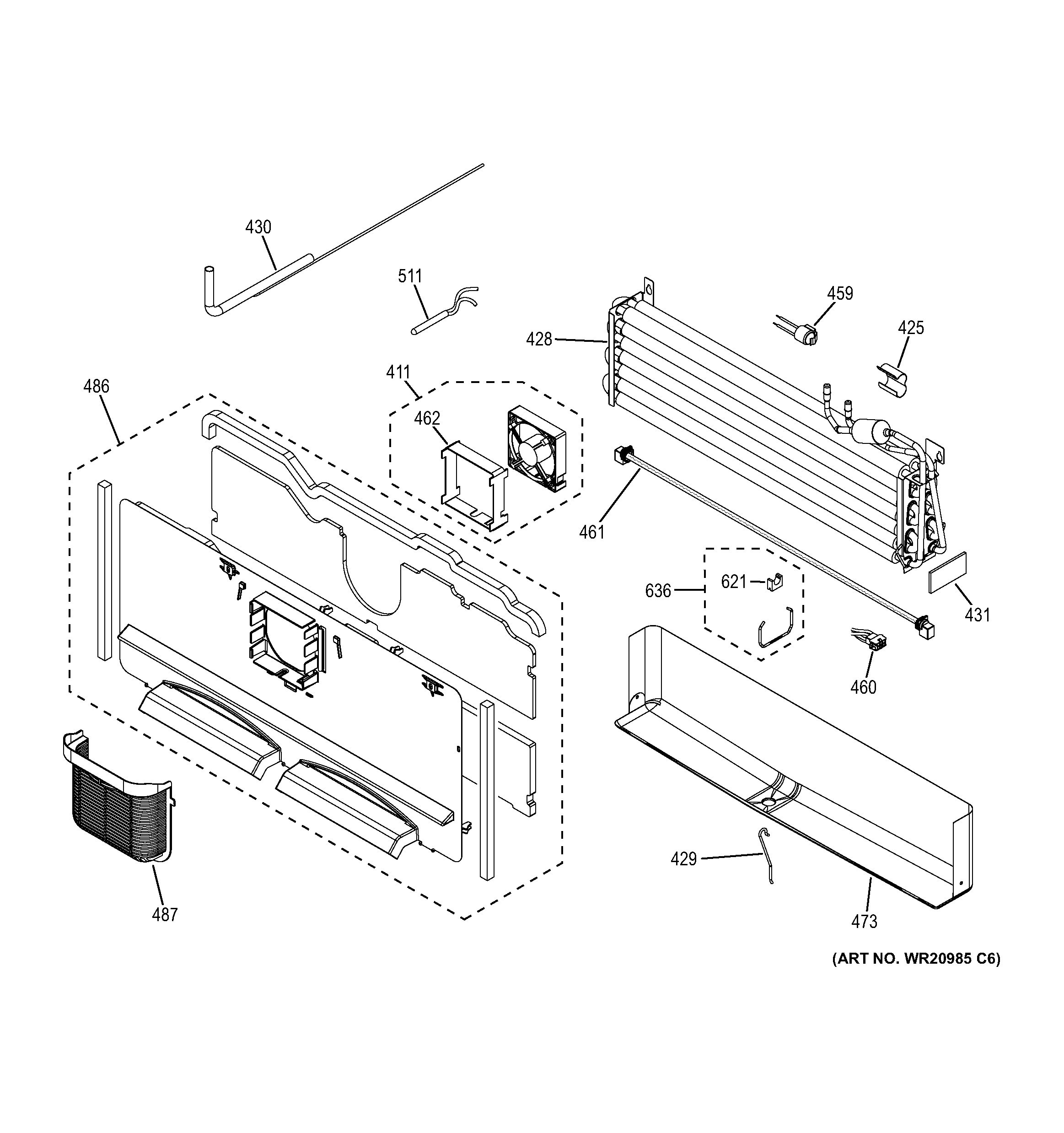

    Freezer section diagram

    Refrigerator temperature sensor

    Part #WR55X11121

    Replaced by #WR55X10025

    ?
    Manufacturer substitution
    This part replaces WR55X11121. Substitute parts can look different from the original.
    BEST SELLER
    $18.93
    10% OFF Phone Price : $20.93
    In Stock
  • Refrigerator Temperature Sensor WR55X11152
    #719

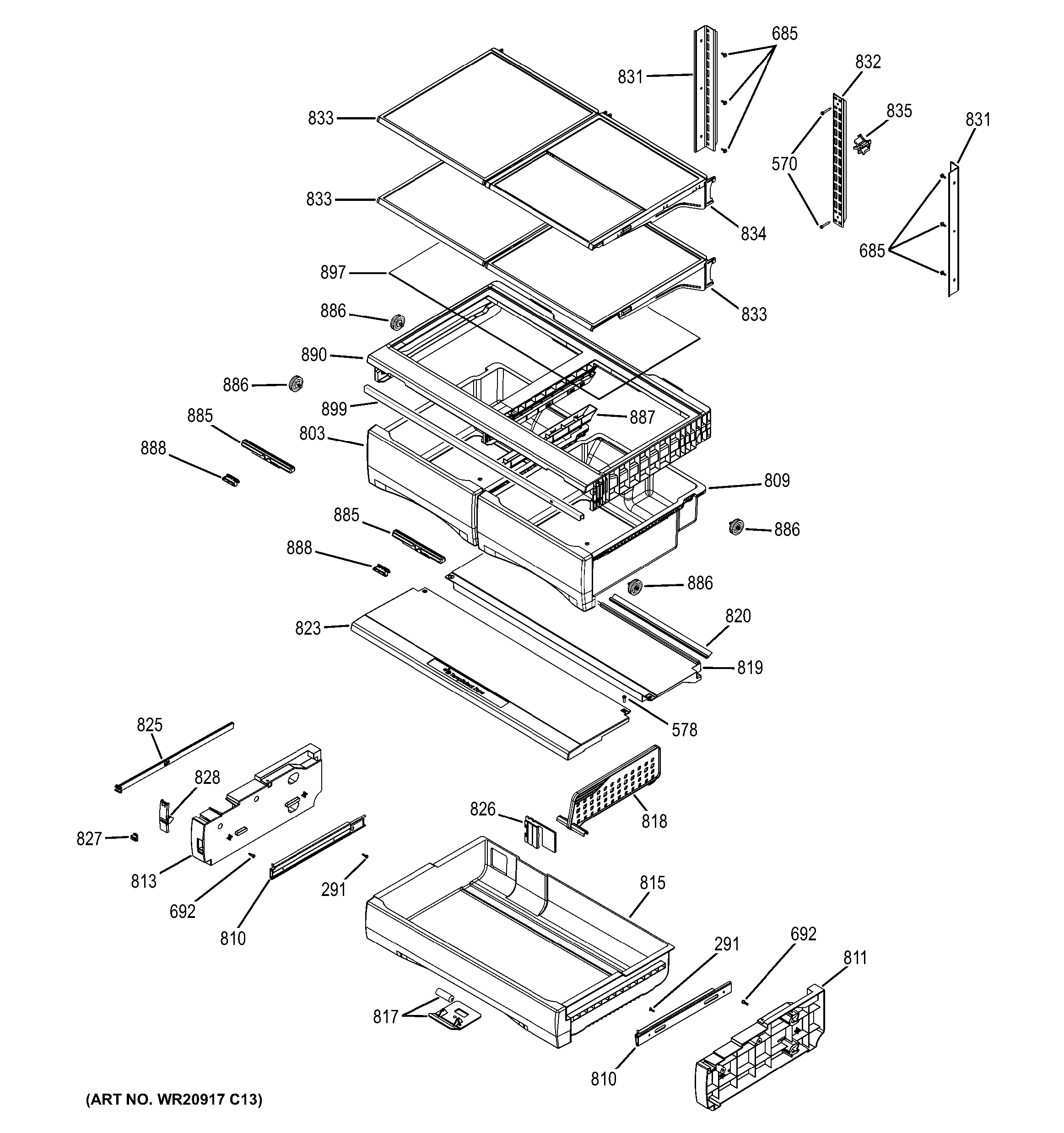

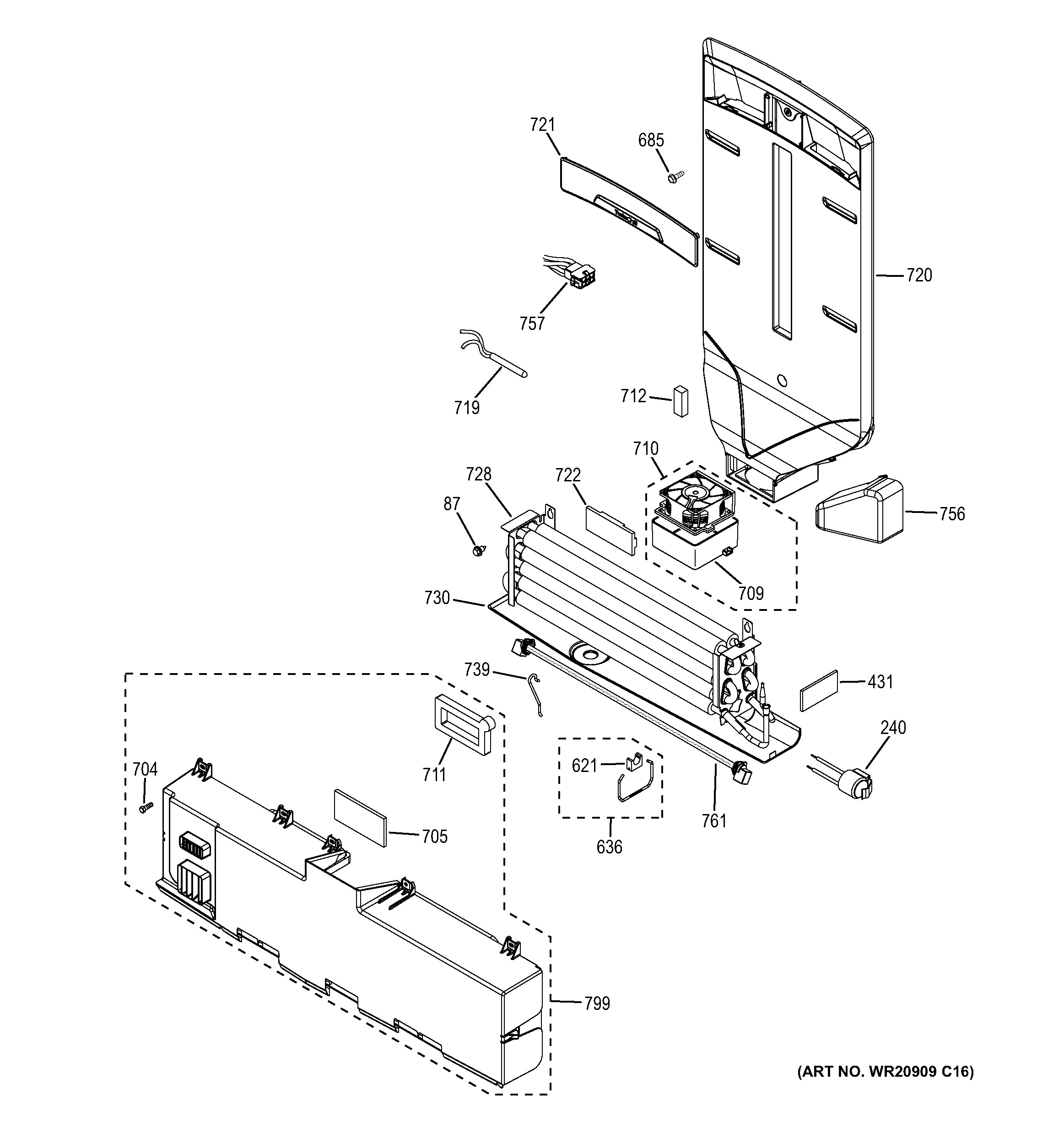

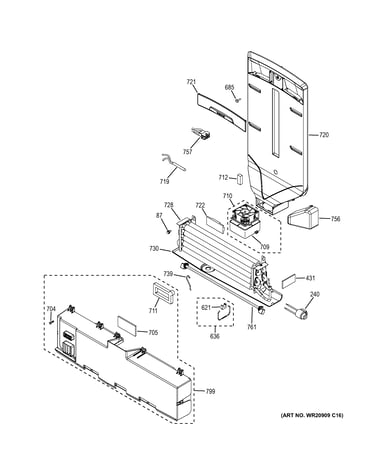

    Fresh food section diagram

    Refrigerator temperature sensor

    Part #WR55X11152

    Replaced by #WR55X10025

    ?
    Manufacturer substitution
    This part replaces WR55X11152. Substitute parts can look different from the original.
    BEST SELLER
    $18.93
    10% OFF Phone Price : $20.93
    In Stock
  • Refrigerator Temperature Sensor WR55X11150
    #945

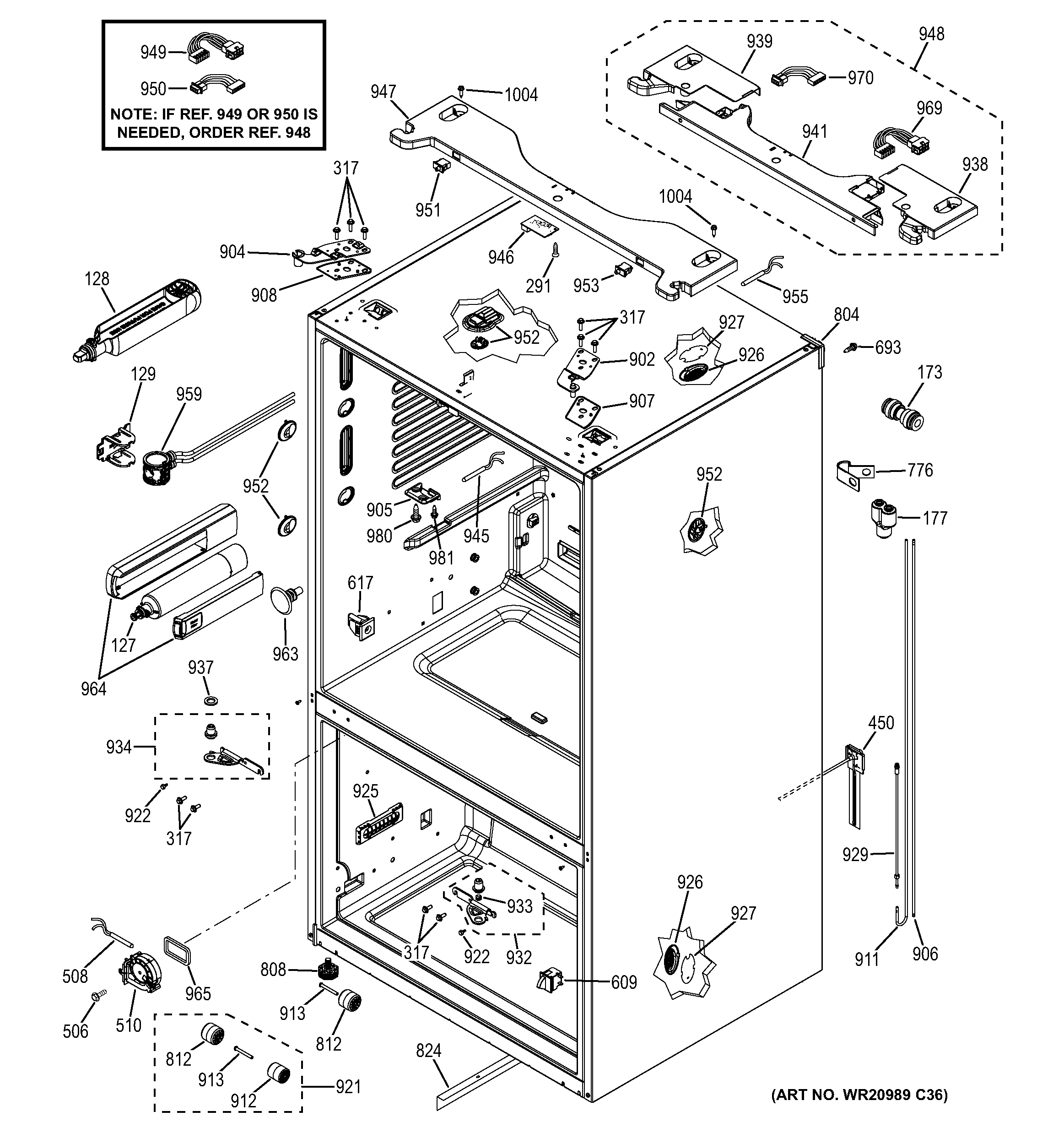

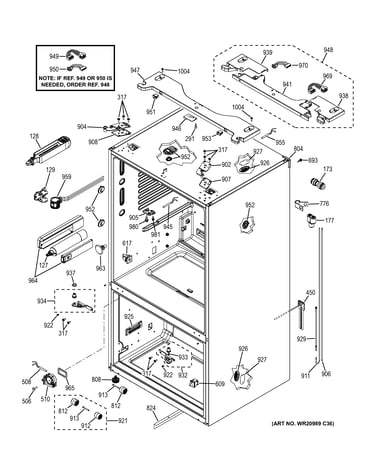

    Case parts diagram

    Refrigerator temperature sensor

    Part #WR55X11150

    Replaced by #WR55X10025

    ?
    Manufacturer substitution
    This part replaces WR55X11150. Substitute parts can look different from the original.
    BEST SELLER
    $18.93
    10% OFF Phone Price : $20.93
    In Stock
  • Refrigerator Temperature Sensor WR55X11151
    #508

    Case parts diagram

    Refrigerator temperature sensor

    Part #WR55X11151

    Replaced by #WR55X10025

    ?
    Manufacturer substitution
    This part replaces WR55X11151. Substitute parts can look different from the original.
    BEST SELLER
    $18.93
    10% OFF Phone Price : $20.93
    In Stock
  • Refrigerator Temperature Sensor WR55X11153
    #955

    Case parts diagram

    Refrigerator temperature sensor

    Part #WR55X11153

    Replaced by #WR55X10025

    ?
    Manufacturer substitution
    This part replaces WR55X11153. Substitute parts can look different from the original.
    BEST SELLER
    $18.93
    10% OFF Phone Price : $20.93
    In Stock
  • Refrigerator Temperature Sensor WR55X11142
    #153

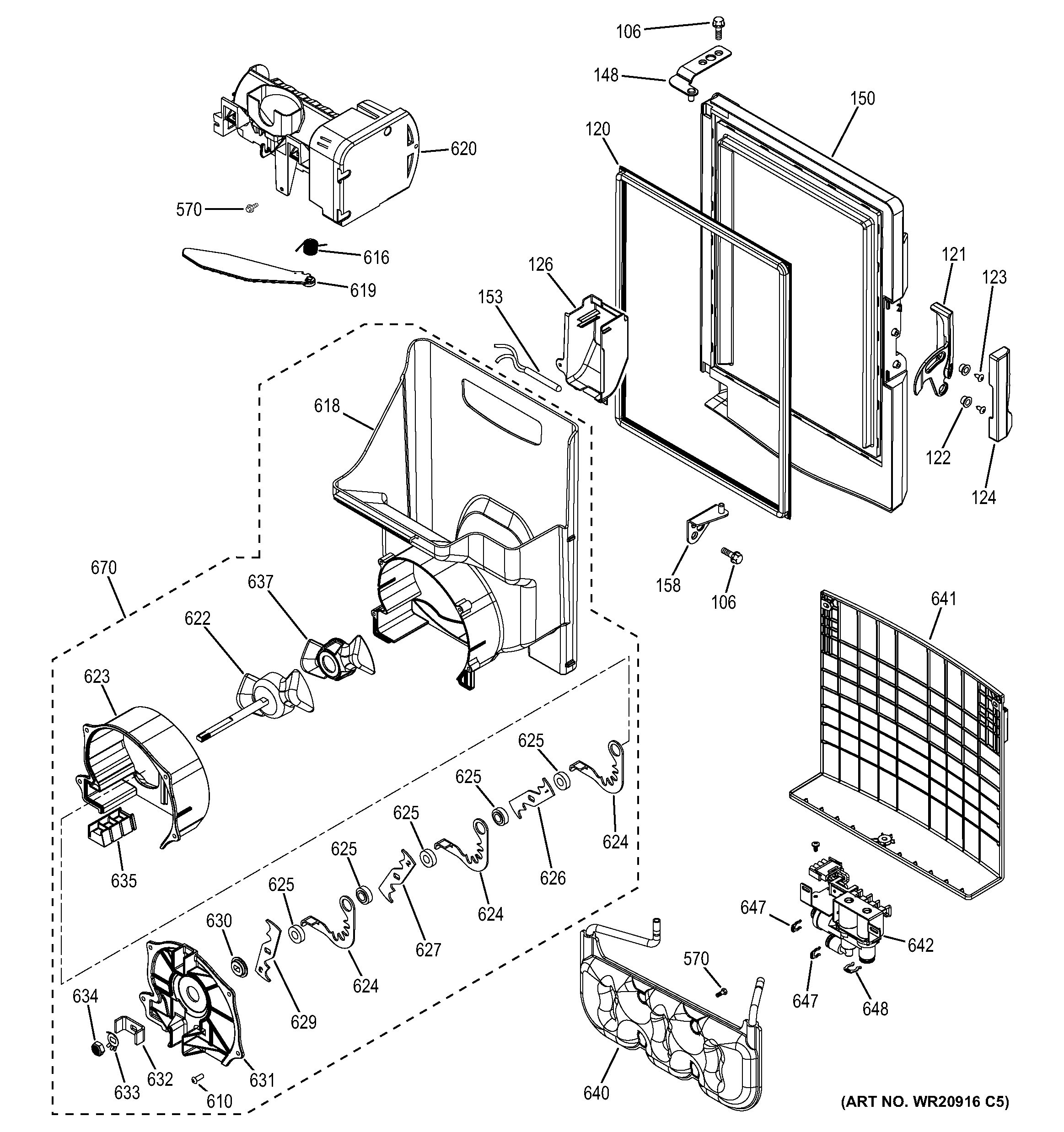

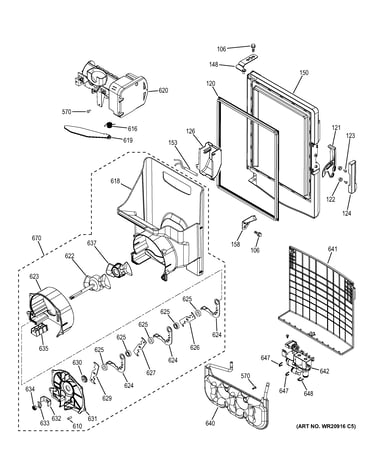

    Ice maker & dispenser diagram

    Refrigerator temperature sensor

    Part #WR55X11142

    Replaced by #WR55X10025

    ?
    Manufacturer substitution
    This part replaces WR55X11142. Substitute parts can look different from the original.
    BEST SELLER
    $18.93
    10% OFF Phone Price : $20.93
    In Stock
  • Fan Motor WR60X10341
    #710

    Fresh food section diagram

    Fan motor

    Part #WR60X10341

    Replaced by #WR60X26866

    ?
    Manufacturer substitution
    This part replaces WR60X10341. Substitute parts can look different from the original.
    BEST SELLER
    $71.76
    8% OFF Phone Price : $77.76
    In Stock
  • Refrigerator Fan Motor Assembly WR60X10357
    #710

    Fresh food section diagram

    Refrigerator fan motor assembly

    Part #WR60X10357

    Replaced by #WR60X26866

    ?
    Manufacturer substitution
    This part replaces WR60X10357. Substitute parts can look different from the original.
    BEST SELLER
    $71.76
    8% OFF Phone Price : $77.76
    In Stock
  • Fan Motor WR02X13733
    #712

    Fresh food section diagram

    Fan motor

    Part #WR02X13733

    Replaced by #WR60X26866

    ?
    Manufacturer substitution
    This part replaces WR02X13733. Substitute parts can look different from the original.
    BEST SELLER
    $71.76
    8% OFF Phone Price : $77.76
    In Stock
  • Refrigerator Water Filter RPWF
    #127

    Case parts diagram

    Refrigerator water filter

    Part #RPWF

    Replaced by #RPWFE

    ?
    Manufacturer substitution
    This part replaces RPWF. Substitute parts can look different from the original.
    BEST SELLER

    Get free shipping with Automatic Reorder

    $63.54
    9% OFF Phone Price : $69.54
    In Stock
