Amana
Electric Cooktop

Model # AKED3060WW-P1131757NWW Official Amana electric counter unit

Here are the diagrams and repair parts for Official Amana AKED3060WW-P1131757NWW electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Machine Screw 0041768
#28

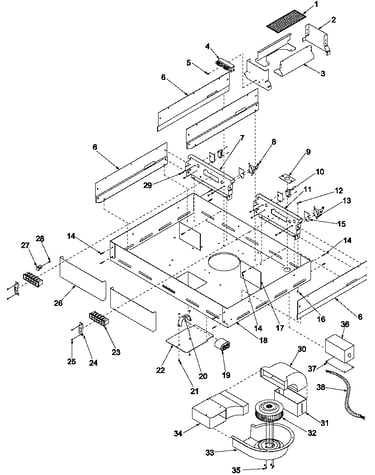

Cavity diagram

Machine screw

Part #0041768

Replaced by #WP3400882

?
Manufacturer substitution
This part replaces 0041768. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Infinite Switch 0315563
#17

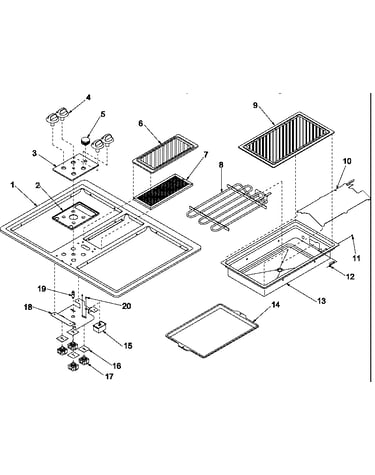

Main top diagram

Infinite switch

Part #0315563

Replaced by #WP74011243

?
Manufacturer substitution
This part replaces 0315563. Substitute parts can look different from the original.
$55.86 |
10% OFF Phone Price : $61.86
In Stock
Screw M0234422
#20

Main top diagram

Screw

Part #M0234422

This item is not returnable
$4.22
In Stock
Screw, #8-18 0041829
#5

Cavity diagram

Screw, #8-18

Part #0041829

Replaced by #WP400021-1

?
Manufacturer substitution
This part replaces 0041829. Substitute parts can look different from the original.
This item is not returnable
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Assy, Condui 0315698
#38

Cavity diagram

Assy, condui

Part #0315698

The manufacturer no longer makes this part, and there's no substitute part

Shield Control 0315707
#6

Cavity diagram

Shield control

Part #0315707

The manufacturer no longer makes this part, and there's no substitute part

Knob Fan Switch 31704804W
#5

Main top diagram

Knob fan switch

Part #31704804W

The manufacturer no longer makes this part, and there's no substitute part

Brkt, Capacitor 0317082
#20

Cavity diagram

Brkt, capacitor

Part #0317082

The manufacturer no longer makes this part, and there's no substitute part

J-box, Motor 0316911
#36

Cavity diagram

J-box, motor

Part #0316911

The manufacturer no longer makes this part, and there's no substitute part

Control Panel Frame 315725W
#2

Main top diagram

Control panel frame

Part #315725W

The manufacturer no longer makes this part, and there's no substitute part
