Norge
Gas Range

Model # N1100PAW Official Norge gas freestanding range

Here are the diagrams and repair parts for Official Norge N1100PAW gas freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Clamp Screw 7101P080-60
Clamp screw

Part #7101P080-60

Replaced by #WP3387230

?
Manufacturer substitution
This part replaces 7101P080-60. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Bracket, Ant 74002311
#16

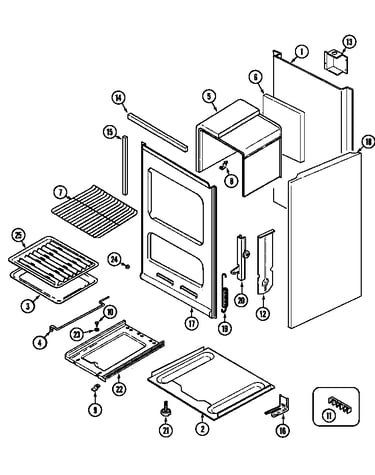

Oven/body diagram

Bracket, ant

Part #74002311

Replaced by #WP3801F656-51

?
Manufacturer substitution
This part replaces 74002311. Substitute parts can look different from the original.
This item is not returnable
$5.03 |
17% OFF Phone Price : $6.03
In Stock
Screw 7101P061-60
#12A

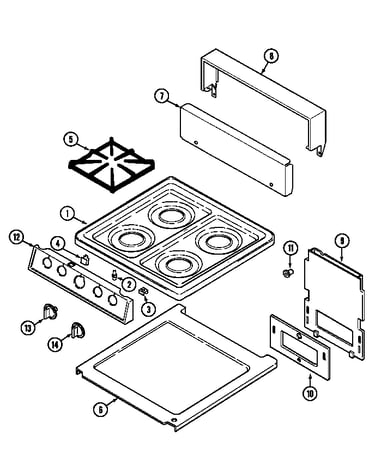

Top assembly diagram

Screw

Part #7101P061-60

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 7101P061-60. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Screw 7101P356-60
Screw

Part #7101P356-60

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 7101P356-60. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Thermostat Clip 7112P004-60
#8

Oven/body diagram

Thermostat clip

Part #7112P004-60

Replaced by #WP7112P004-60

?
Manufacturer substitution
This part replaces 7112P004-60. Substitute parts can look different from the original.
This item is not returnable
$8.99 |
10% OFF Phone Price : $9.99
In Stock
Screw 74002481
#18A

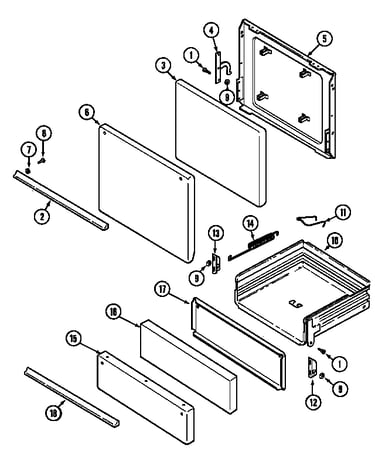

Door/drawer diagram

Screw

Part #74002481

This item is not returnable
$5.40
In Stock
Screw 7101P344-60
#16A

Oven/body diagram

Screw

Part #7101P344-60

Replaced by #WP7101P485-60

?
Manufacturer substitution
This part replaces 7101P344-60. Substitute parts can look different from the original.
$24.27 |
20% OFF Phone Price : $30.27
In Stock
Screw 7101P068-60
Screw

Part #7101P068-60

Replaced by #WP3400074

?
Manufacturer substitution
This part replaces 7101P068-60. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Manifold Panel 2616F069-71
#12

Top assembly diagram

Manifold panel

Part #2616F069-71

Replaced by #74001080

?
Manufacturer substitution
This part replaces 2616F069-71. Substitute parts can look different from the original.
$28.09 |
18% OFF Phone Price : $34.09
In Stock
Screw, #10 7101P062-60
#14

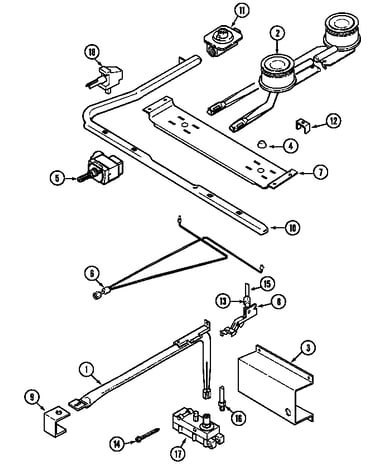

Gas controls diagram

Screw, #10

Part #7101P062-60

Replaced by #WP7101P062-60

?
Manufacturer substitution
This part replaces 7101P062-60. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
