Model # MVH150W-P1323202M Official Amana microwave/hood combo

Here are the diagrams and repair parts for Official Amana MVH150W-P1323202M microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Lamp R9900310
#211

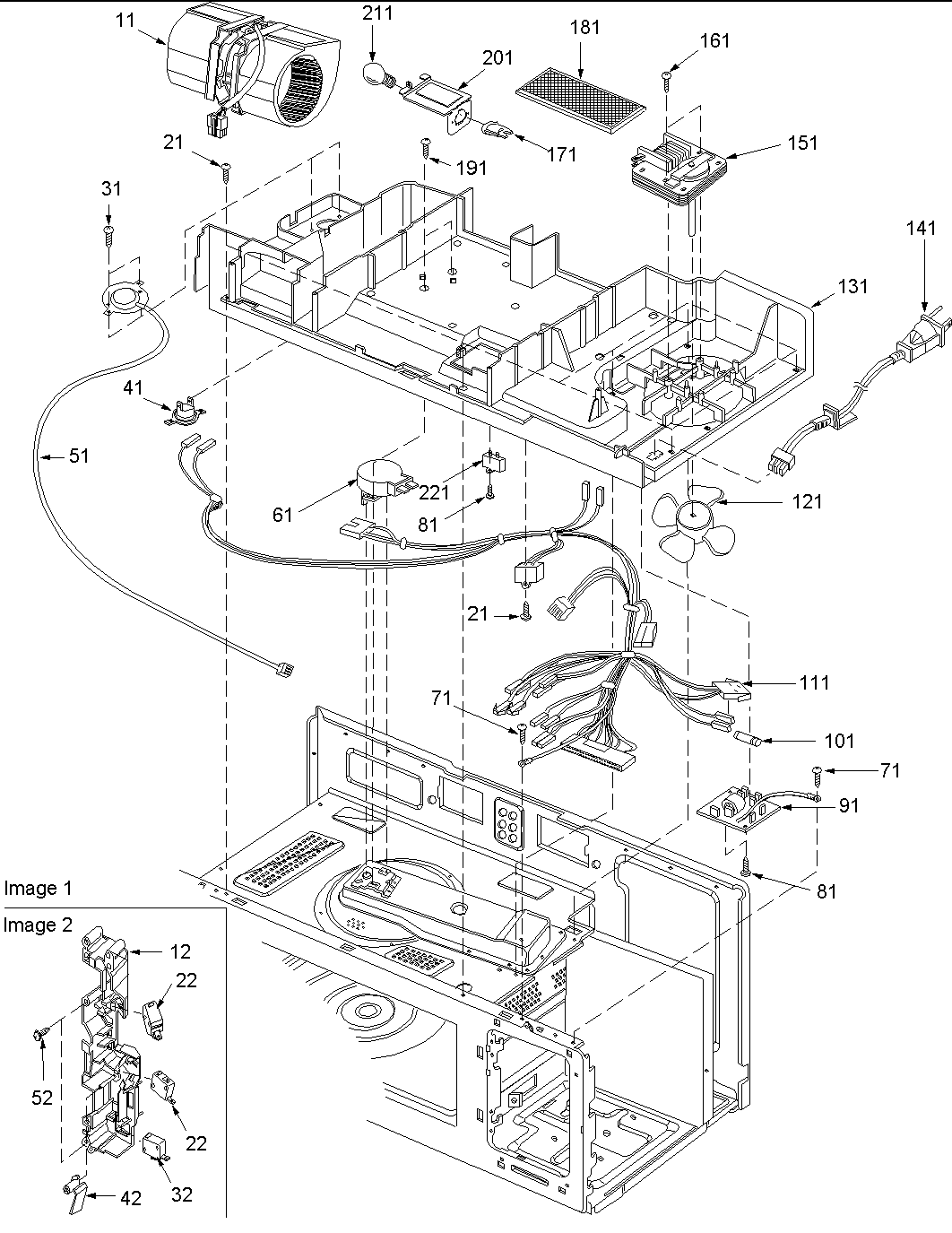

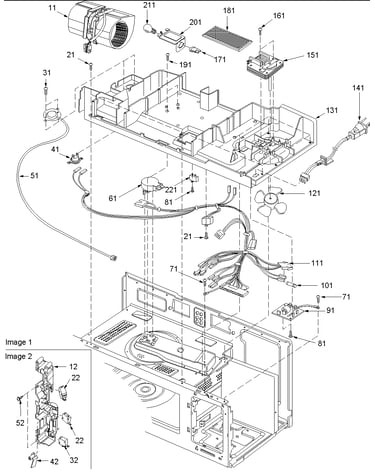

Blower motor, air duct and latch assy diagram

Lamp

Part #R9900310

Replaced by #8206232A

?
Manufacturer substitution
This part replaces R9900310. Substitute parts can look different from the original.
BEST SELLER
$8.65 |
10% OFF Phone Price : $9.65
In Stock
Capacitor R9900304
#151

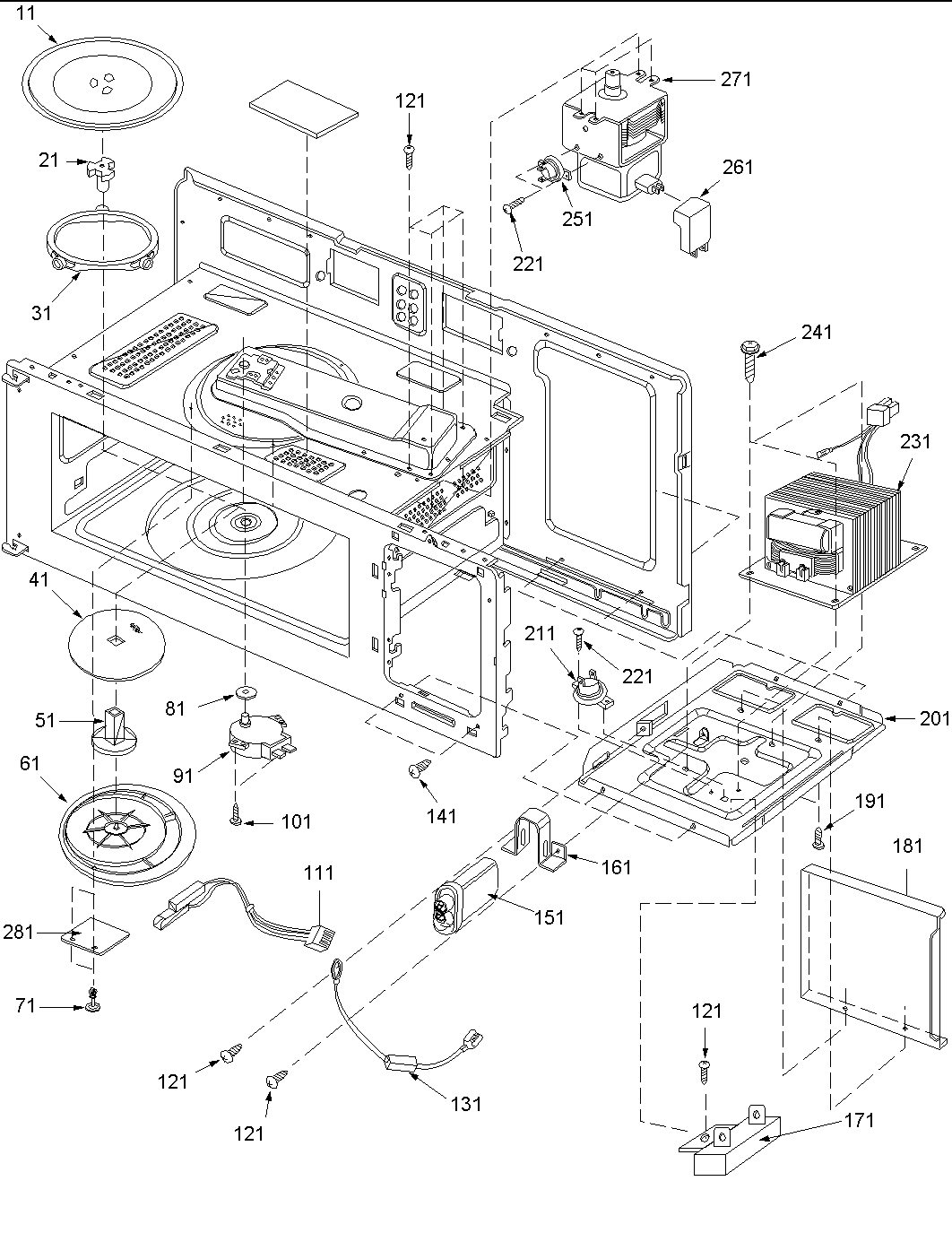

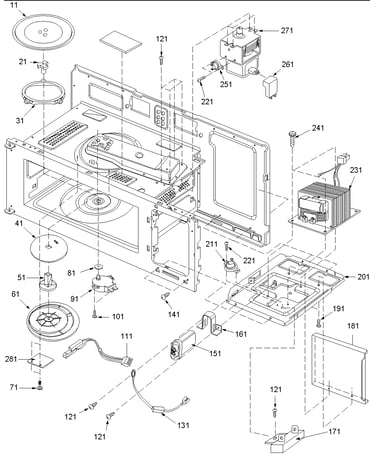

Magnetron, transformer and turntable diagram

Capacitor

Part #R9900304

Replaced by #WP59001168

?
Manufacturer substitution
This part replaces R9900304. Substitute parts can look different from the original.
$85.65 |
7% OFF Phone Price : $91.65
In Stock
Screw R9800501
#51

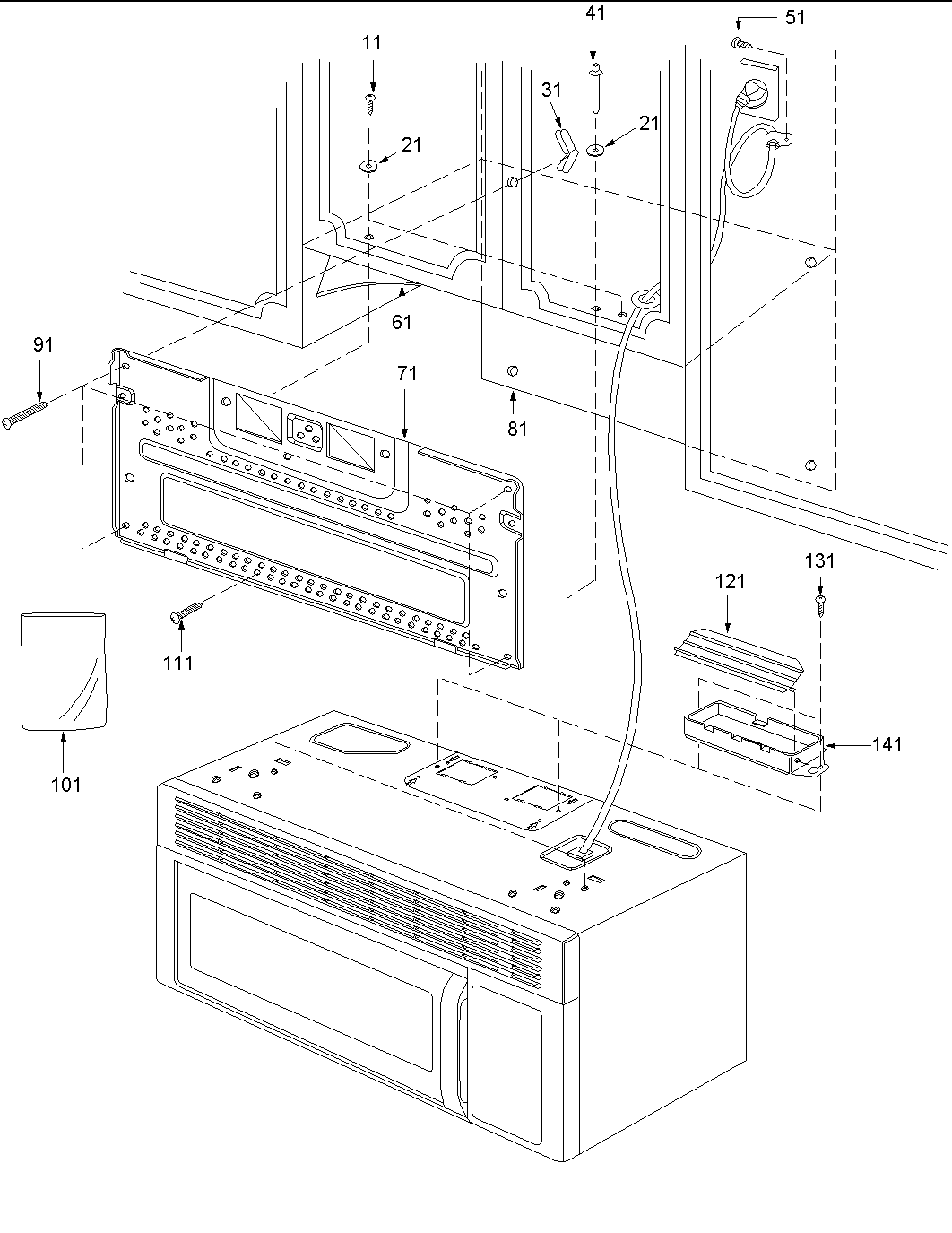

Installation parts diagram

Screw

Part #R9800501

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces R9800501. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Shaft R9800454
#21

Magnetron, transformer and turntable diagram

Shaft

Part #R9800454

Replaced by #WPW10143947

?
Manufacturer substitution
This part replaces R9800454. Substitute parts can look different from the original.
This item is not returnable
$11.78 |
15% OFF Phone Price : $13.78
In Stock
Screw R0654038
Screw

Part #R0654038

Replaced by #W11380570

?
Manufacturer substitution
This part replaces R0654038. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Bulb R9900292
#71

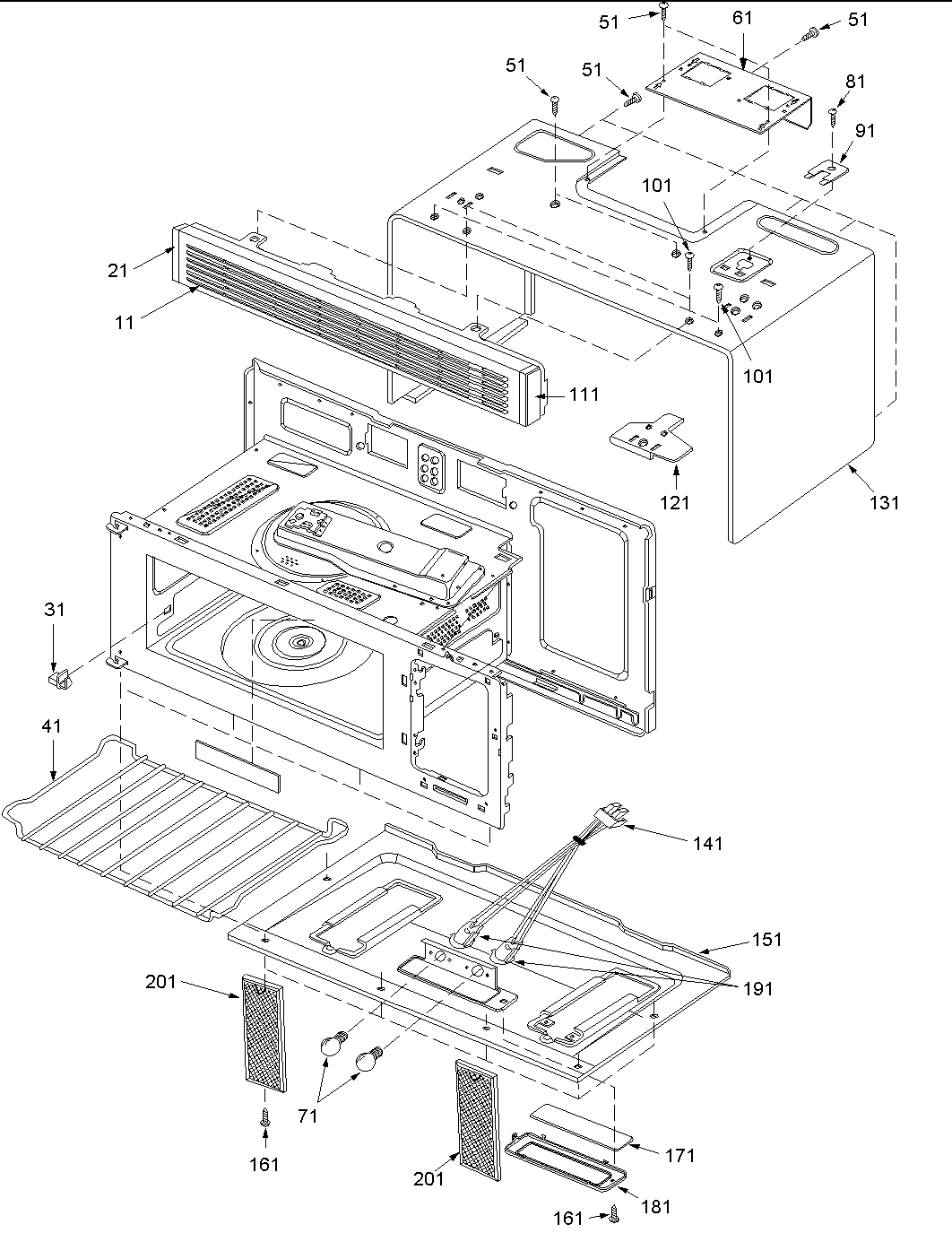

Outer case, rack, lights and filters diagram

Bulb

Part #R9900292

Replaced by #WPA3073101

?
Manufacturer substitution
This part replaces R9900292. Substitute parts can look different from the original.
$18.12 |
10% OFF Phone Price : $20.12
In Stock
Rivet R9800452
#71

Magnetron, transformer and turntable diagram

Rivet

Part #R9800452

Replaced by #WP4359508

?
Manufacturer substitution
This part replaces R9800452. Substitute parts can look different from the original.
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Dioide R9900303
#131

Magnetron, transformer and turntable diagram

Dioide

Part #R9900303

Replaced by #WPR9800486

?
Manufacturer substitution
This part replaces R9900303. Substitute parts can look different from the original.
$20.69 |
22% OFF Phone Price : $26.69
In Stock
. R9900267
#22

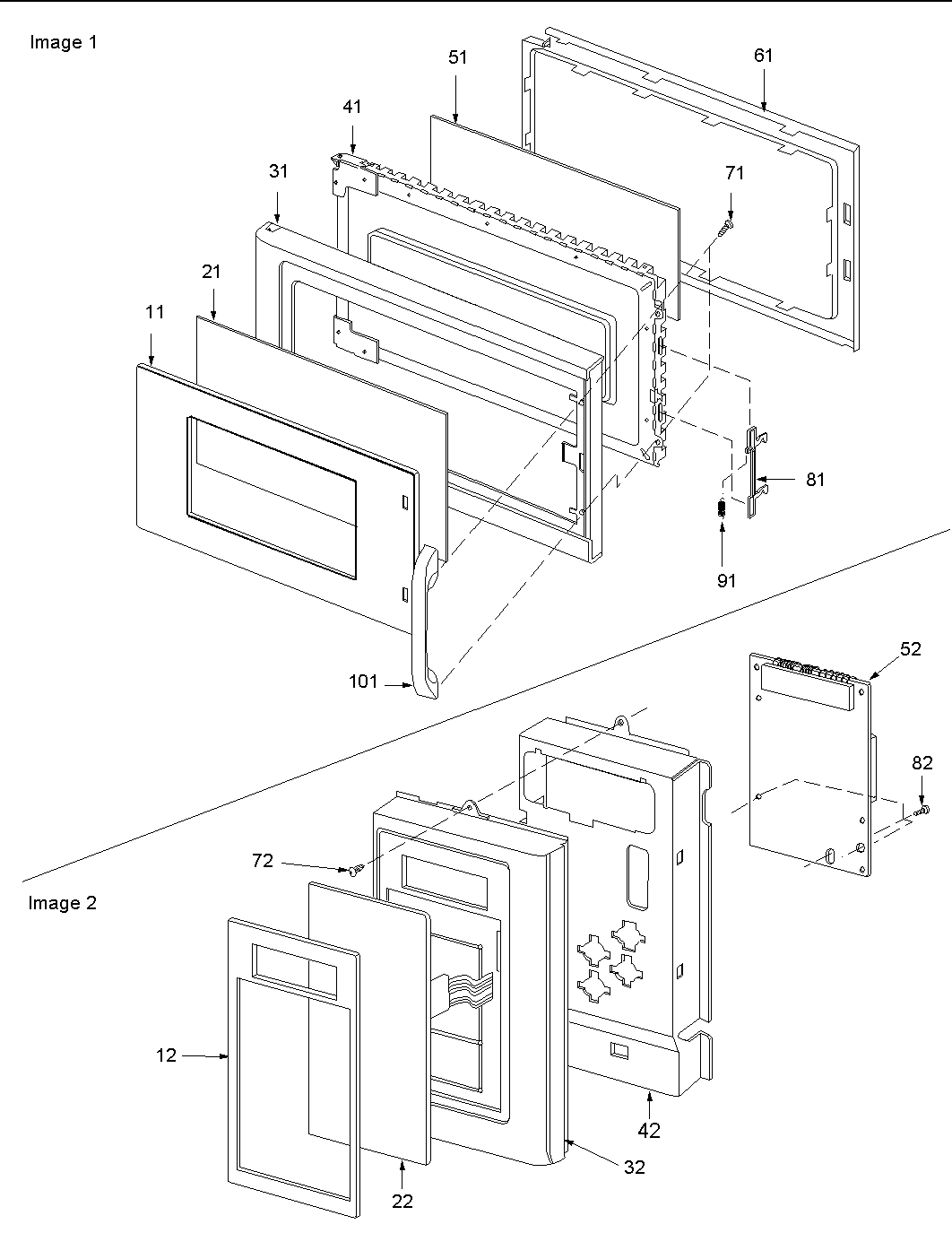

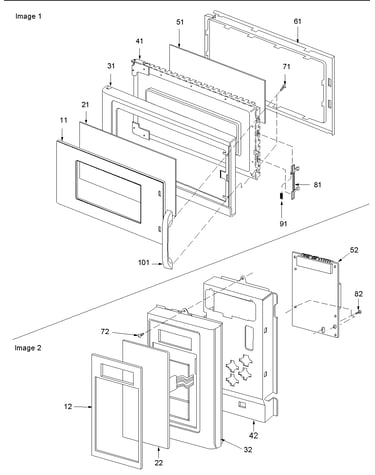

Door and control panel diagram

.

Part #R9900267

Replaced by #R9900267

?
Manufacturer substitution
This part replaces R9900267. Substitute parts can look different from the original.
$25.53
In Stock
Screw R0654111
#52

Blower motor, air duct and latch assy diagram

Screw

Part #R0654111

Replaced by #R0654111

?
Manufacturer substitution
This part replaces R0654111. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
