Model # 153314371 Official Kenmore 30-gallon electric water heater

Here are the diagrams and repair parts for Official Kenmore 153314371 30-gallon electric water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

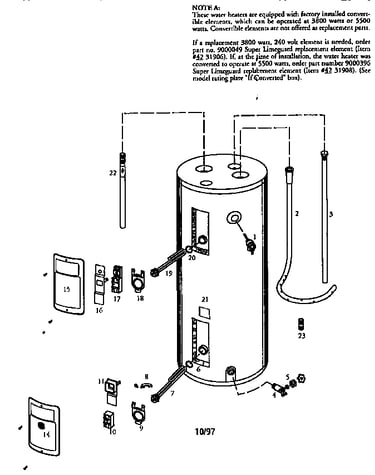

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 20 parts  |
Thermostat 9002302
#17

Replacement parts diagram

Thermostat

Part #9002302

Replaced by #9001954015

?
Manufacturer substitution
This part replaces 9002302. Substitute parts can look different from the original.
BEST SELLER
$28.93 |
17% OFF Phone Price : $34.93
In Stock
Thermostat 9002214
#10

Replacement parts diagram

Thermostat

Part #9002214

Replaced by #9000507015

?
Manufacturer substitution
This part replaces 9002214. Substitute parts can look different from the original.
BEST SELLER
$33.17 |
15% OFF Phone Price : $39.17
In Stock
Rod 9001792
#22

Replacement parts diagram

Rod

Part #9001792

Replaced by #100300397

?
Manufacturer substitution
This part replaces 9001792. Substitute parts can look different from the original.
$55.38 |
10% OFF Phone Price : $61.38
In Stock
Kenmore Elite Water Heater Thermostat Cover (replaces 183529-000) 9002276
#11

Replacement parts diagram

Kenmore elite water heater thermostat cover (replaces 183529-000)

Part #9002276

This item is not returnable
$17.69 |
10% OFF Phone Price : $19.69
In Stock
Relief Valve 9001583
#1

Replacement parts diagram

Relief valve

Part #9001583

The manufacturer no longer makes this part, and there's no substitute part

Anode Rod 9001830
#3

Replacement parts diagram

Anode rod

Part #9001830

Replaced by #100108660

?
Manufacturer substitution
This part replaces 9001830. Substitute parts can look different from the original.
$60.00
In Stock
Nipple 9000948
#23

Replacement parts diagram

Nipple

Part #9000948

Replaced by #9002564

?
Manufacturer substitution
This part replaces 9000948. Substitute parts can look different from the original.
$19.19 |
9% OFF Phone Price : $21.19
In Stock
Water Heater Heating Element Gasket 9000308
Water heater heating element gasket

Part #9000308

Replaced by #9000308005

?
Manufacturer substitution
This part replaces 9000308. Substitute parts can look different from the original.
$30.62 |
16% OFF Phone Price : $36.62
In Stock
Water Heater Thermostat Bracket (replaces 0110238, 0110238-01, 0110322, 9000309015) 9000309
Water heater thermostat bracket (replaces 0110238, 0110238-01, 0110322, 9000309015)

Part #9000309

Replaced by #100108380

?
Manufacturer substitution
This part replaces 9000309. Substitute parts can look different from the original.
$27.78
In Stock
Kenmore Elite Water Heater Washer (replaces 0540042) 9001584
#5

Replacement parts diagram

Kenmore elite water heater washer (replaces 0540042)

Part #9001584

Replaced by #100108603

?
Manufacturer substitution
This part replaces 9001584. Substitute parts can look different from the original.
$24.44
In Stock
