Jenn-Air
Gas Range

Model # JGRP648HL05 Official Jenn-Air range/oven, gas

Here are the diagrams and repair parts for Official Jenn-Air JGRP648HL05 range/oven, gas, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

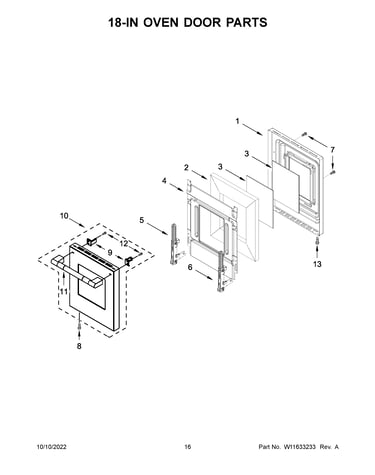

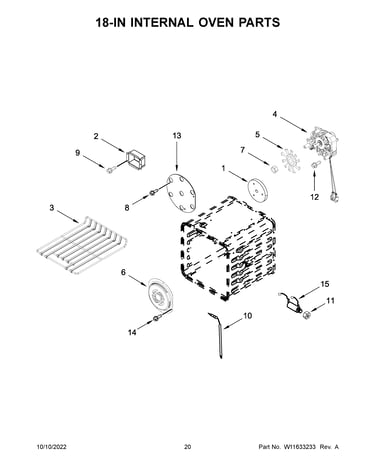

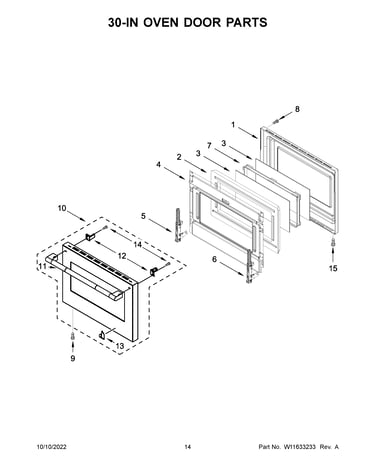

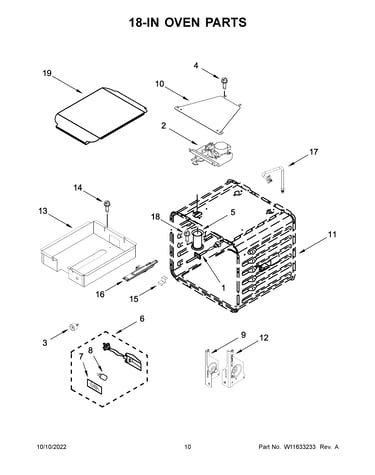

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 247 parts  |
Range Spark Module W10511278
#36

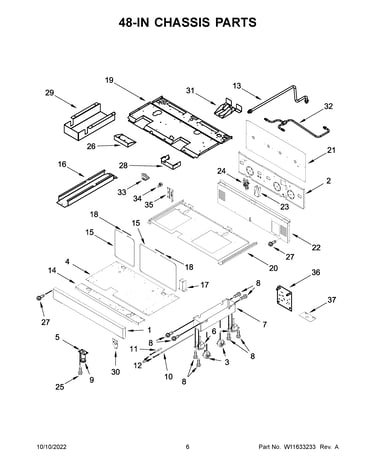

48-in chassis parts diagram

Range spark module

Part #W10511278

Replaced by #WPW10511278

?
Manufacturer substitution
This part replaces W10511278. Substitute parts can look different from the original.
$120.09 |
9% OFF Phone Price : $132.09
In Stock
Wall Oven Light Bulb W10169757
Wall oven light bulb

Part #W10169757

Replaced by #WPW10169757

?
Manufacturer substitution
This part replaces W10169757. Substitute parts can look different from the original.
This item is not returnable
$33.50 |
15% OFF Phone Price : $39.50
In Stock
Screw 3196537
#47

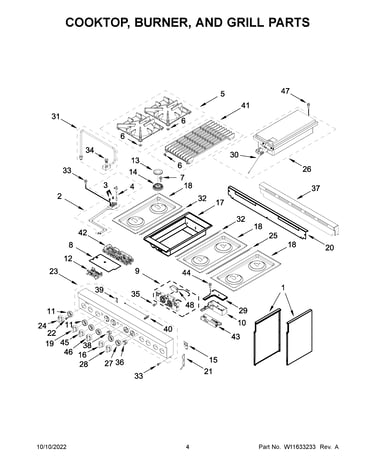

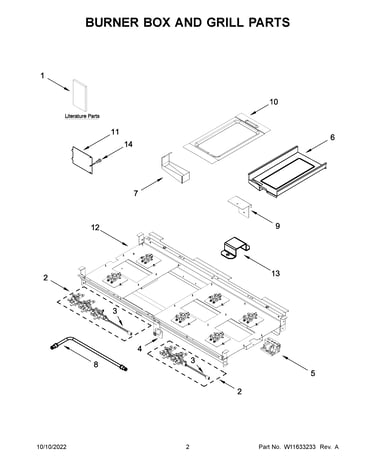

Cooktop, burner, and grill parts diagram

Screw

Part #3196537

Replaced by #WP3196557

?
Manufacturer substitution
This part replaces 3196537. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 3196176
Screw

Part #3196176

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 3196176. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Range Screw 4449154
Range screw

Part #4449154

Replaced by #WP4449154

?
Manufacturer substitution
This part replaces 4449154. Substitute parts can look different from the original.
This item is not returnable
$3.95 |
20% OFF Phone Price : $4.95
In Stock
Motorized Latch W10830016
Motorized latch

Part #W10830016

Replaced by #W11029221

?
Manufacturer substitution
This part replaces W10830016. Substitute parts can look different from the original.
$119.37 |
9% OFF Phone Price : $131.37
In Stock
Range Oven Meat Probe 9755542
#13

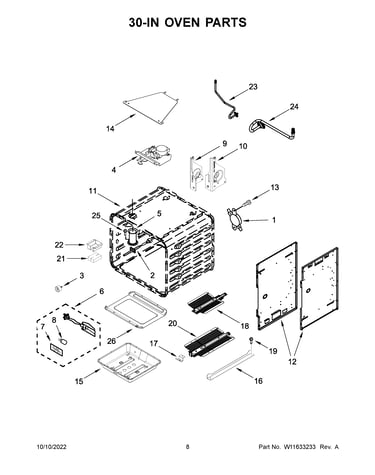

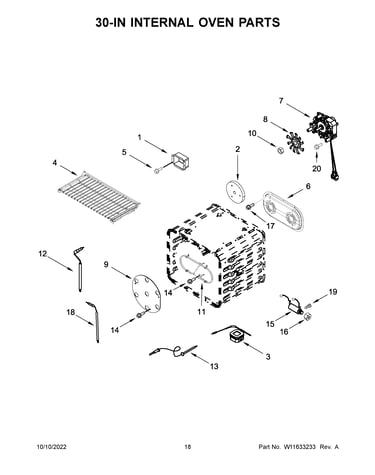

30-in internal oven parts diagram

Range oven meat probe

Part #9755542

Replaced by #WP9755542

?
Manufacturer substitution
This part replaces 9755542. Substitute parts can look different from the original.
$80.39 |
7% OFF Phone Price : $86.39
In Stock

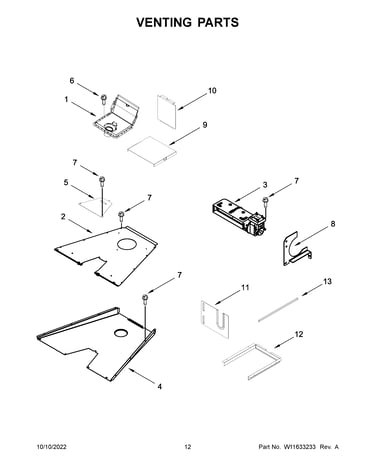

Blower, Mine W11200129
