Model # 79641272211 Official Kenmore Elite washer

Here are the diagrams and repair parts for Official Kenmore Elite 79641272211 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Washer Water Inlet Valve 5221ER1003A
#F160

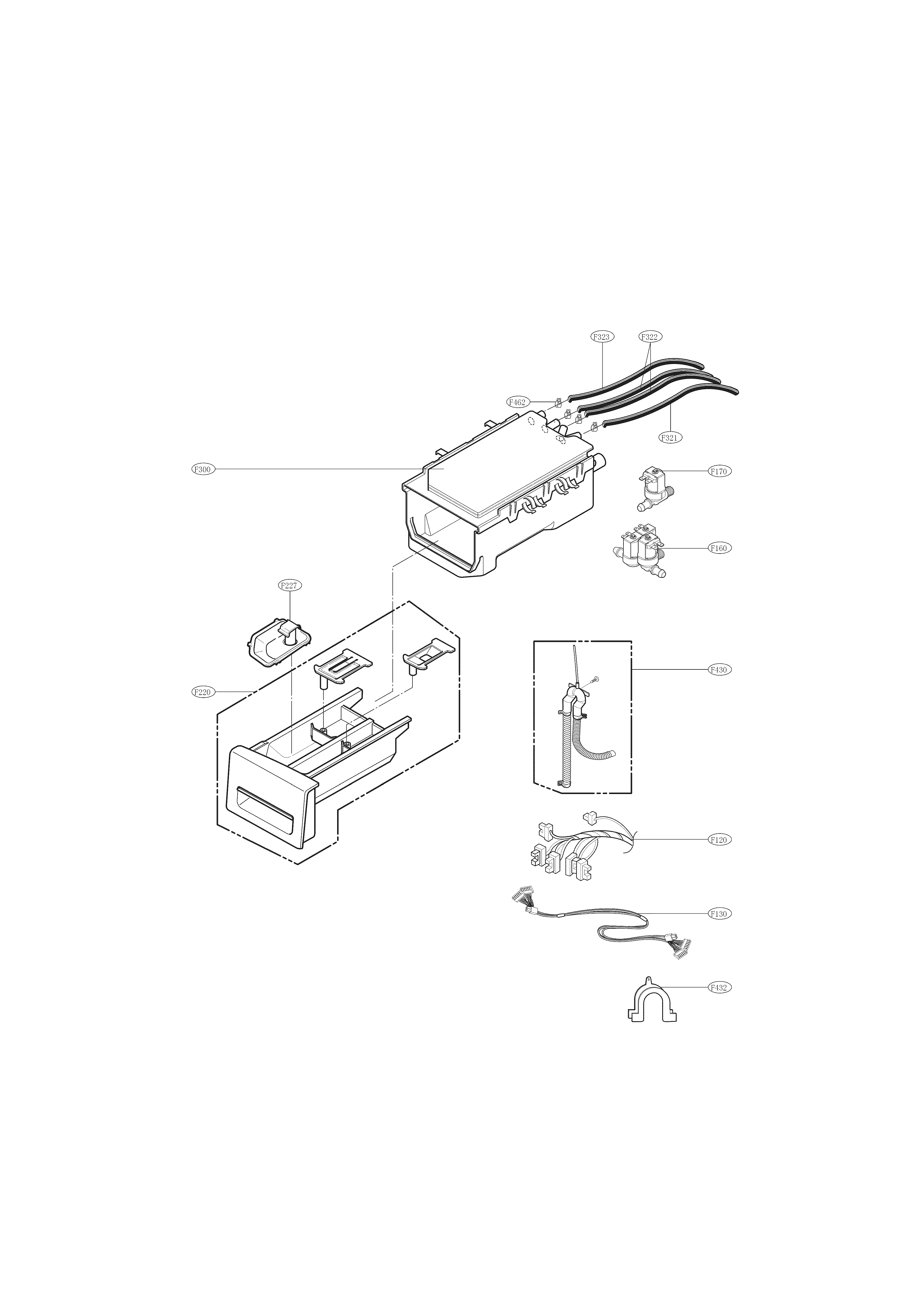

Dispenser parts diagram

Washer water inlet valve

Part #5221ER1003A

Replaced by #5220FR2075L

?
Manufacturer substitution
This part replaces 5221ER1003A. Substitute parts can look different from the original.
BEST SELLER
$63.59 |
9% OFF Phone Price : $69.59
In Stock
Washer Single-solenoid Water Inlet Valve (replaces 5220fr1280f, 5220fr2006l) 5220FR2006H
#F170

Dispenser parts diagram

Washer single-solenoid water inlet valve (replaces 5220fr1280f, 5220fr2006l)

Part #5220FR2006H

BEST SELLER
$20.53 |
23% OFF Phone Price : $26.53
In Stock
Washer Magnetic Door Plunger (replaces Meg61961401) AGM73610701
Washer magnetic door plunger (replaces meg61961401)

Part #AGM73610701

BEST SELLER
$23.70 |
20% OFF Phone Price : $29.70
In Stock
Washer Shock Absorber (replaces Acv72909501) ACV72909503
#K610

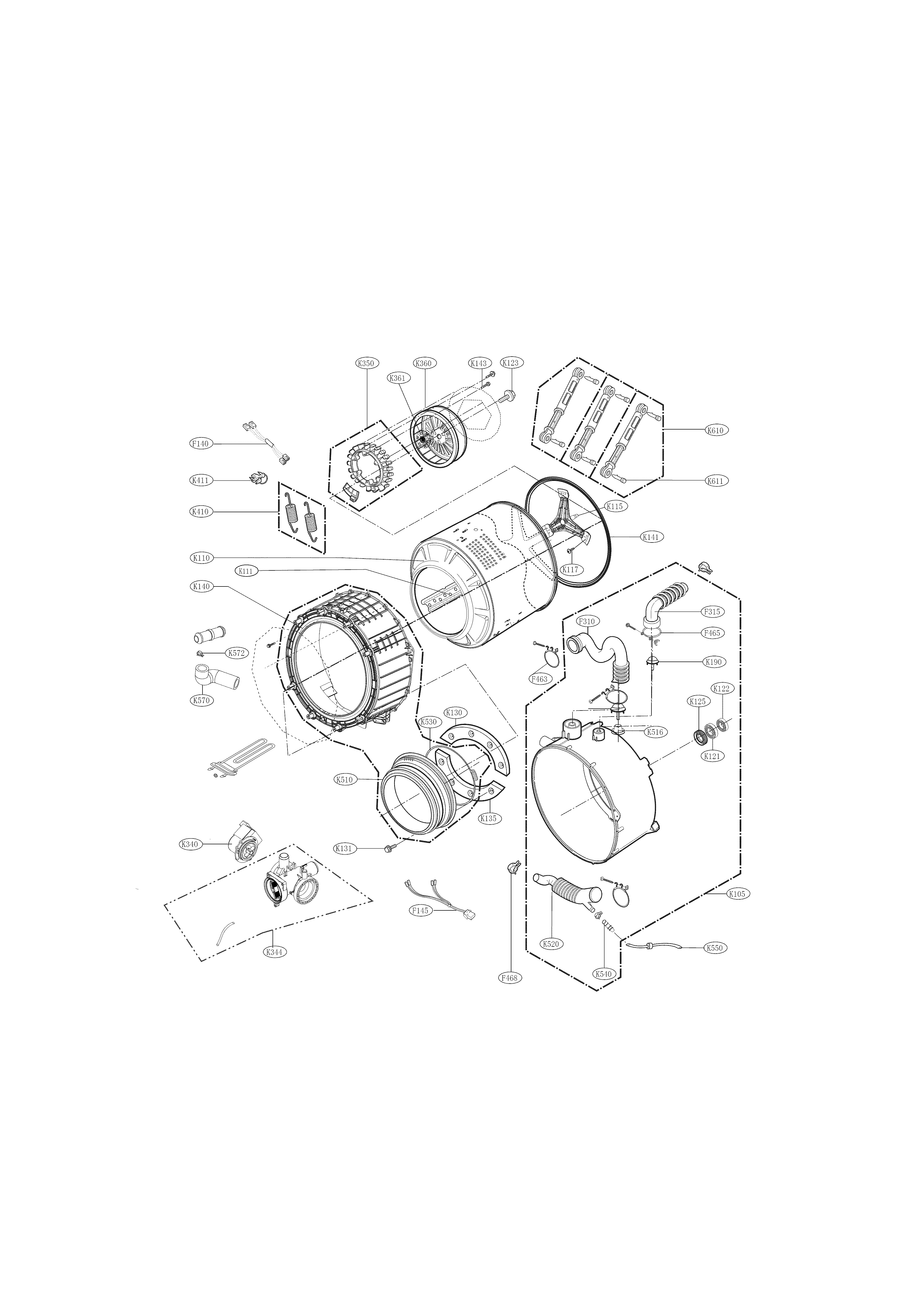

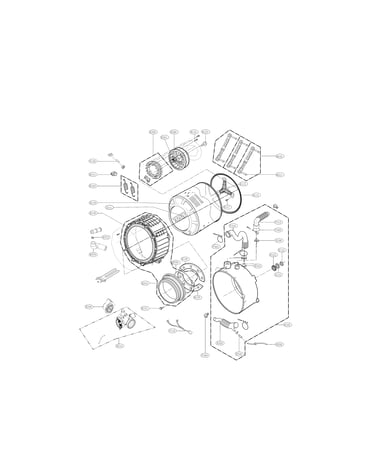

Drum and tub parts diagram

Washer shock absorber (replaces acv72909501)

Part #ACV72909503

BEST SELLER
$31.86 |
16% OFF Phone Price : $37.86
In Stock
Washer Door Boot (replaces 4986er0004j, 4986er0004k, 4986er0004n) 4986ER0004F
#K510

Drum and tub parts diagram

Washer door boot (replaces 4986er0004j, 4986er0004k, 4986er0004n)

Part #4986ER0004F

BEST SELLER
$44.82 |
12% OFF Phone Price : $50.82
In Stock
Washer Door Lock Switch 6601ER1004C
#A440

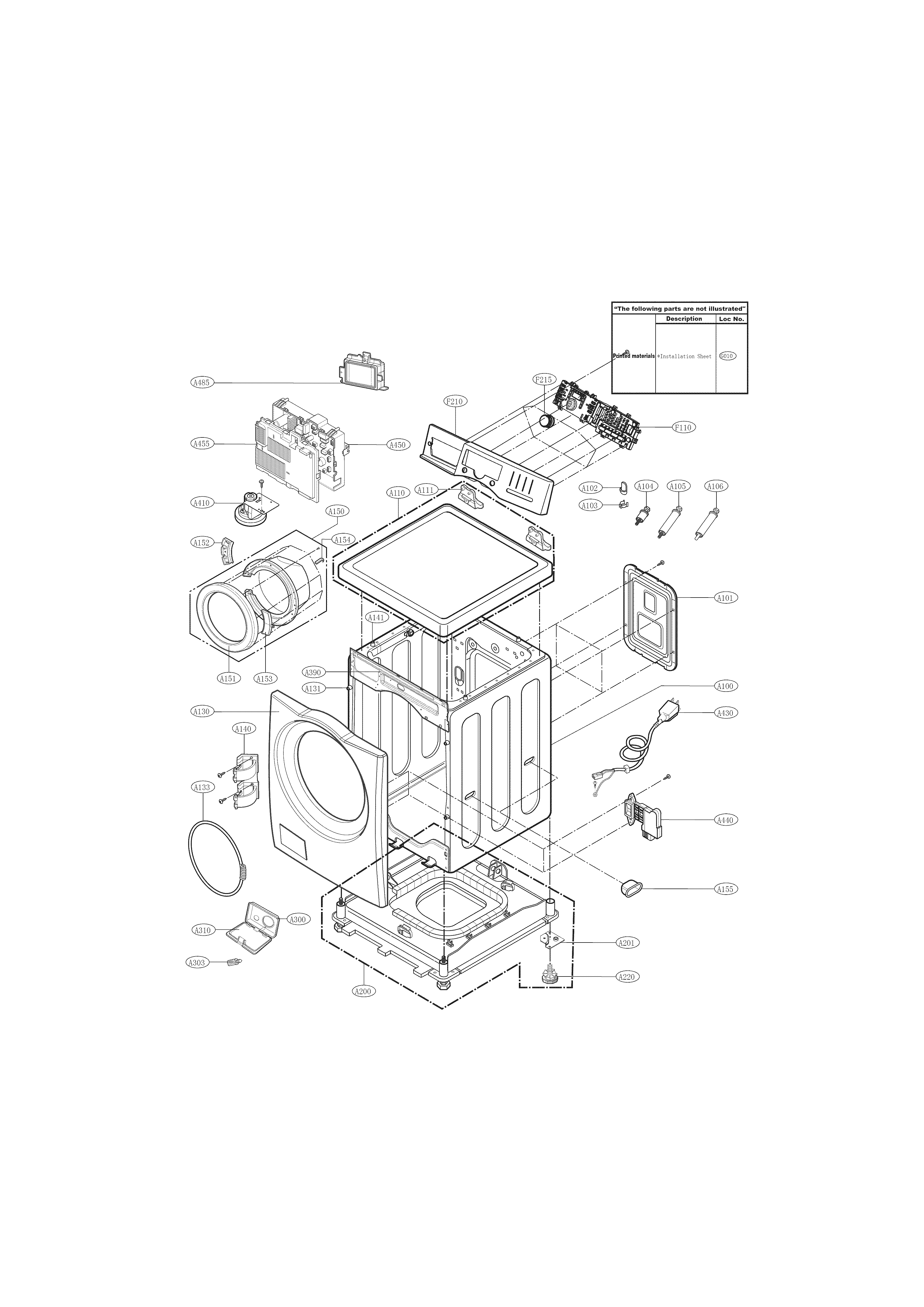

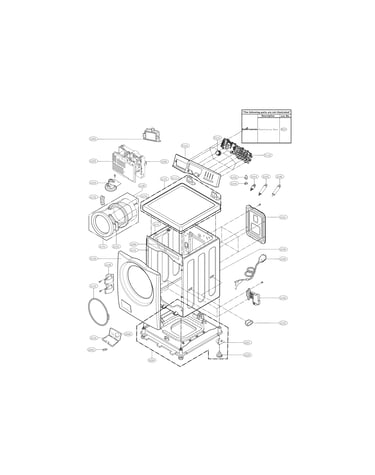

Control panel parts diagram

Washer door lock switch

Part #6601ER1004C

Replaced by #EBF49827801

?
Manufacturer substitution
This part replaces 6601ER1004C. Substitute parts can look different from the original.
BEST SELLER
$52.72 |
10% OFF Phone Price : $58.72
In Stock
Clamp Assembly 4861EN3004J
#A133

Control panel parts diagram

Clamp assembly

Part #4861EN3004J

Replaced by #4861ER2001J

?
Manufacturer substitution
This part replaces 4861EN3004J. Substitute parts can look different from the original.
BEST SELLER
$21.49 |
22% OFF Phone Price : $27.49
In Stock
Washer Drive Motor (replaces 4417fa1994g) 4417EA1002Y
#K350

Drum and tub parts diagram

Washer drive motor (replaces 4417fa1994g)

Part #4417EA1002Y

BEST SELLER
$182.57 |
6% OFF Phone Price : $194.57
In Stock
Washer Dispenser Hose 4738ER1004B
#F310

Drum and tub parts diagram

Washer dispenser hose

Part #4738ER1004B

BEST SELLER
$29.54 |
17% OFF Phone Price : $35.54
In Stock
Washer Rear Tub Gasket (replaces 4036er3002a) 4036ER2004A
#K125

Drum and tub parts diagram

Washer rear tub gasket (replaces 4036er3002a)

Part #4036ER2004A

BEST SELLER
$31.50 |
16% OFF Phone Price : $37.50
In Stock
