Frigidaire
Top-Mount Refrigerator

Model # FPI11TAW3 Official Frigidaire top-mount refrigerator - 81-386-00

Here are the diagrams and repair parts for Official Frigidaire FPI11TAW3 top-mount refrigerator - 81-386-00, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

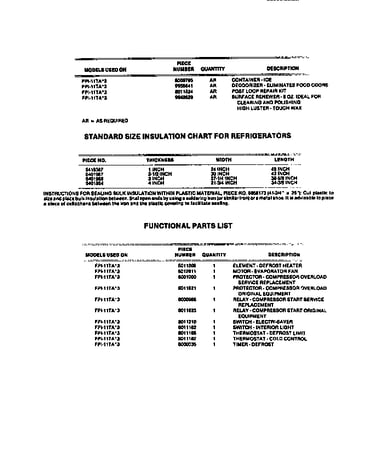

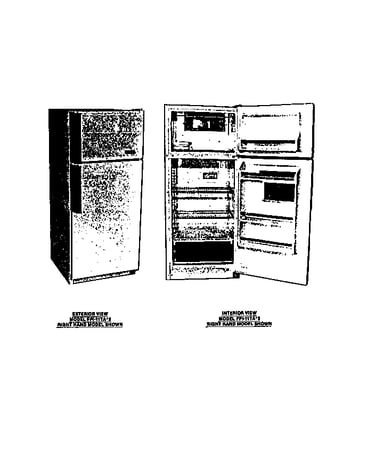

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 140 parts  |
Refrigerator Hinge Screw 8000123
#10

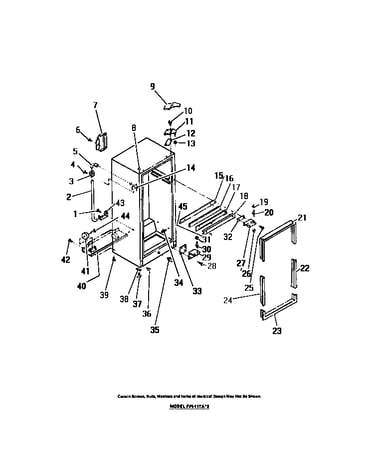

Cabinet diagram

Refrigerator hinge screw

Part #8000123

Replaced by #241710601

?
Manufacturer substitution
This part replaces 8000123. Substitute parts can look different from the original.
This item is not returnable
$14.19 |
12% OFF Phone Price : $16.19
In Stock
Refrigerator Strap 8000110
#18

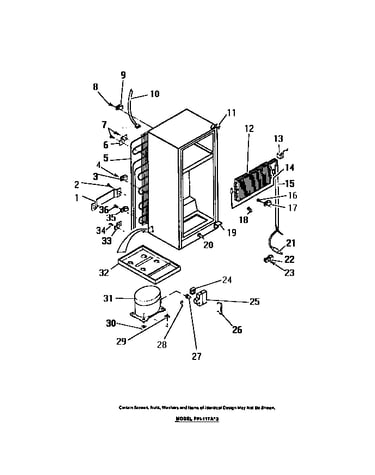

Compressor, condenser, evaporator diagram

Refrigerator strap

Part #8000110

Replaced by #5308000110

?
Manufacturer substitution
This part replaces 8000110. Substitute parts can look different from the original.
$52.30 |
10% OFF Phone Price : $58.30
In Stock
Grommet 8008778
#30

Compressor, condenser, evaporator diagram

Grommet

Part #8008778

Replaced by #218513300

?
Manufacturer substitution
This part replaces 8008778. Substitute parts can look different from the original.
$36.56 |
14% OFF Phone Price : $42.56
In Stock
Refrigerator Bottom 8011193
#22

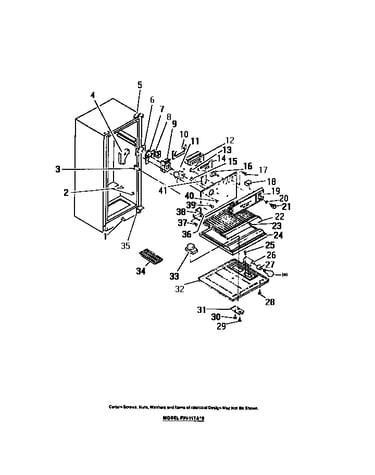

Freezer compartment, shelf, blower motor diagram

Refrigerator bottom

Part #8011193

The manufacturer no longer makes this part, and there's no substitute part

Nut-keps (2) 8011129
#7

Freezer compartment, shelf, blower motor diagram

Nut-keps (2)

Part #8011129

The manufacturer no longer makes this part, and there's no substitute part

Retainer Bottom 8011191
Retainer bottom

Part #8011191

The manufacturer no longer makes this part, and there's no substitute part

Retainer Bottom 8011187
#24

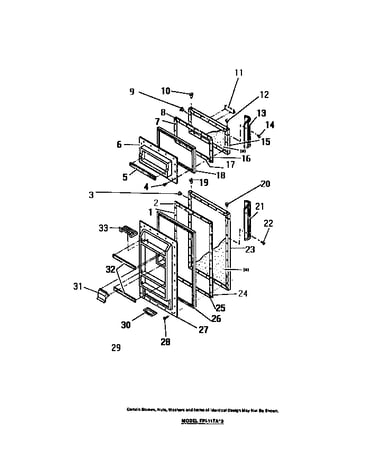

Food & freezer doors diagram

Retainer bottom

Part #8011187

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Compressor 8950037
#31

Compressor, condenser, evaporator diagram

Refrigerator compressor

Part #8950037

The manufacturer no longer makes this part, and there's no substitute part

Pin-roller (2) 8011131
#44

Cabinet diagram

Pin-roller (2)

Part #8011131

The manufacturer no longer makes this part, and there's no substitute part

Base Compressor 8012871
#40

Cabinet diagram

Base compressor

Part #8012871

The manufacturer no longer makes this part, and there's no substitute part
