Gas Walk-Behind Mower

Model # 917265210 Official Craftsman gang reel mower

Here are the diagrams and repair parts for Official Craftsman 917265210 gang reel mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Nut 574P
#21

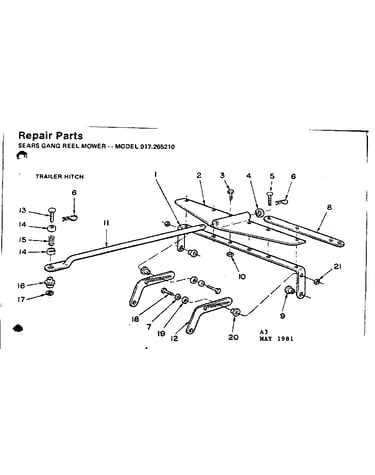

Trailer hitch diagram

Nut

Part #574P

Replaced by #586668901

?
Manufacturer substitution
This part replaces 574P. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Bar Assembly 6968J
#11

Trailer hitch diagram

Bar assembly

Part #6968J

The manufacturer no longer makes this part, and there's no substitute part

Tire 6991J
#21

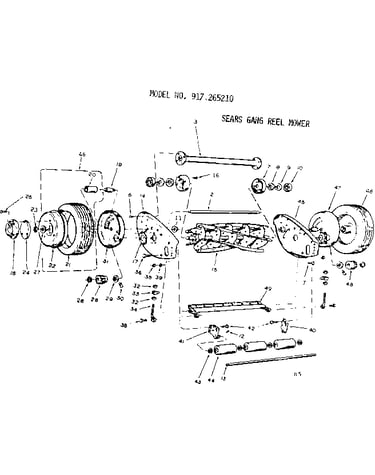

Rear reel mower diagram

Tire

Part #6991J

The manufacturer no longer makes this part, and there's no substitute part

Roller 7005J
#44

Rear reel mower diagram

Roller

Part #7005J

The manufacturer no longer makes this part, and there's no substitute part

Bushing 6967J
#9

Trailer hitch diagram

Bushing

Part #6967J

The manufacturer no longer makes this part, and there's no substitute part

Retainer 6987J
#17

Rear reel mower diagram

Retainer

Part #6987J

The manufacturer no longer makes this part, and there's no substitute part

Bushing 6973J
#16

Trailer hitch diagram

Bushing

Part #6973J

The manufacturer no longer makes this part, and there's no substitute part

Bearing 6990J
#20

Rear reel mower diagram

Bearing

Part #6990J

The manufacturer no longer makes this part, and there's no substitute part

Screw STD600602
#4

Rear reel mower diagram

Screw

Part #STD600602

The manufacturer no longer makes this part, and there's no substitute part

Plated Nut 514P
#23

Rear reel mower diagram

Plated nut

Part #514P

The manufacturer no longer makes this part, and there's no substitute part
