Model # 16-987-E5 Official Goldblatt power trowler

Here are the diagrams and repair parts for Official Goldblatt 16-987-E5 power trowler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

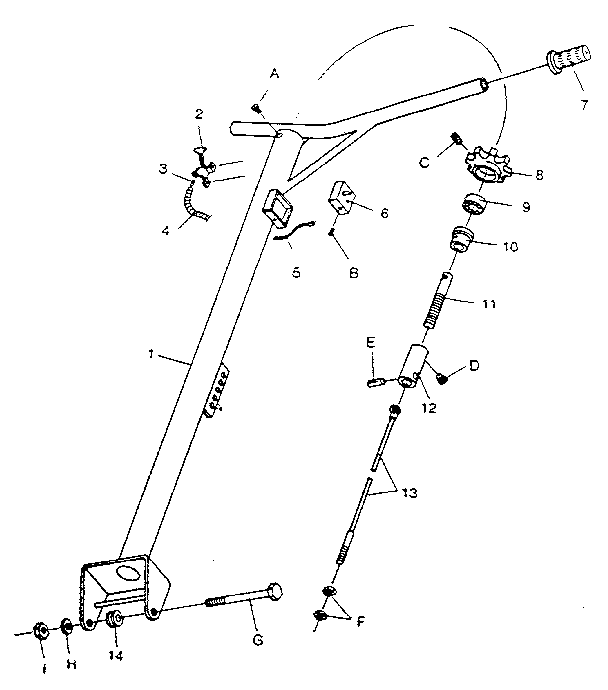

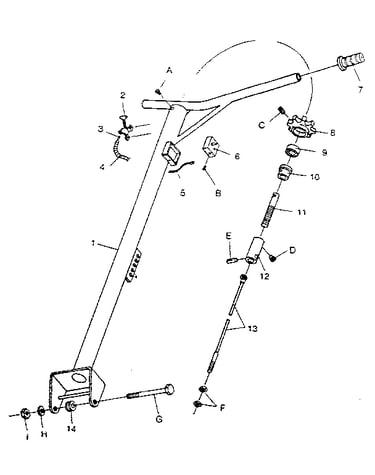

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 114 parts  |

Goldblatt Guard 18-20013
#3

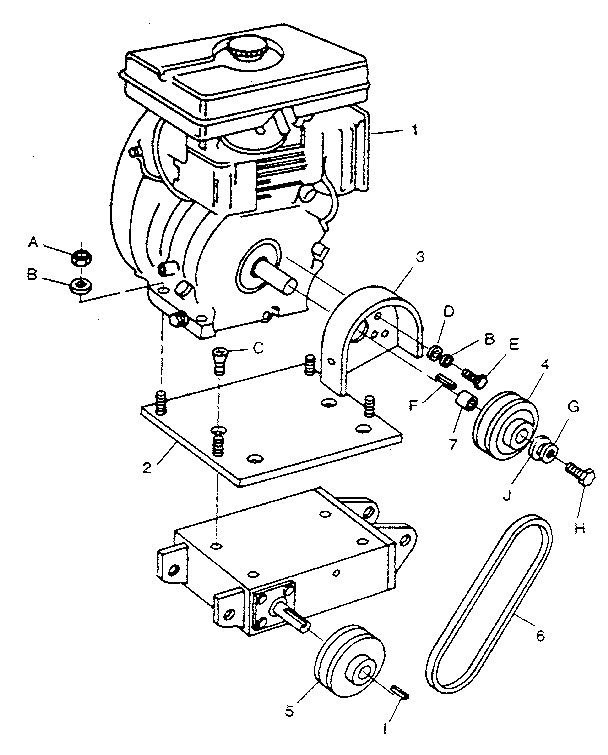

7 hp briggs power unit i/c diagram

Goldblatt guard

Part #18-20013

The manufacturer no longer makes this part, and there's no substitute part

Goldblatt Screw 008-0766
#17

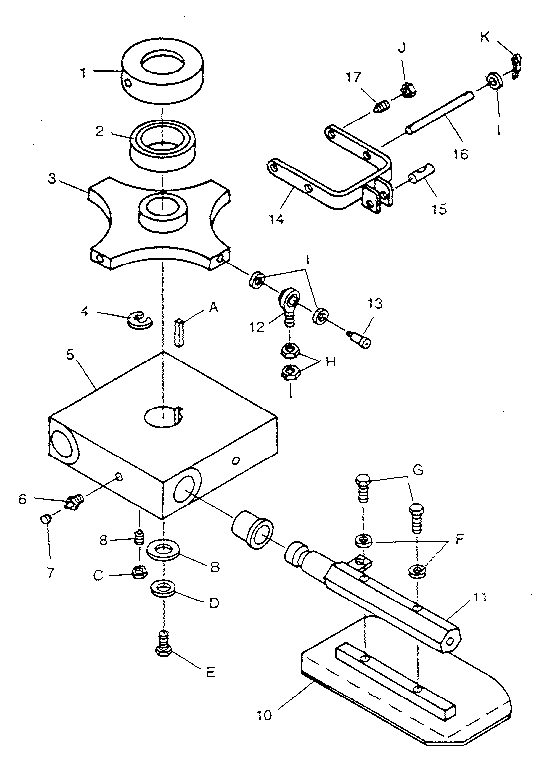

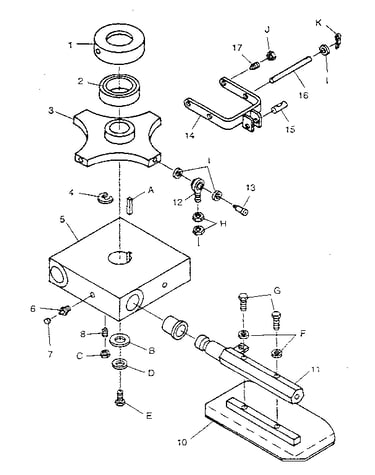

Spider assembly diagram

Goldblatt screw

Part #008-0766

The manufacturer no longer makes this part, and there's no substitute part

Goldblatt Spacer 18-10551
#7

7 hp briggs power unit i/c diagram

Goldblatt spacer

Part #18-10551

The manufacturer no longer makes this part, and there's no substitute part

Goldblatt Mounting Plate 18-20006
#2

7 hp briggs power unit i/c diagram

Goldblatt mounting plate

Part #18-20006

The manufacturer no longer makes this part, and there's no substitute part

Goldblatt Yoke 18-20005
#14

Spider assembly diagram

Goldblatt yoke

Part #18-20005

The manufacturer no longer makes this part, and there's no substitute part

Goldblatt V-belt 008-0945
#6

7 hp briggs power unit i/c diagram

Goldblatt v-belt

Part #008-0945

The manufacturer no longer makes this part, and there's no substitute part

Jam Nut 008-0767
#17J

Spider assembly diagram

Jam nut

Part #008-0767

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 008-0610
#22A

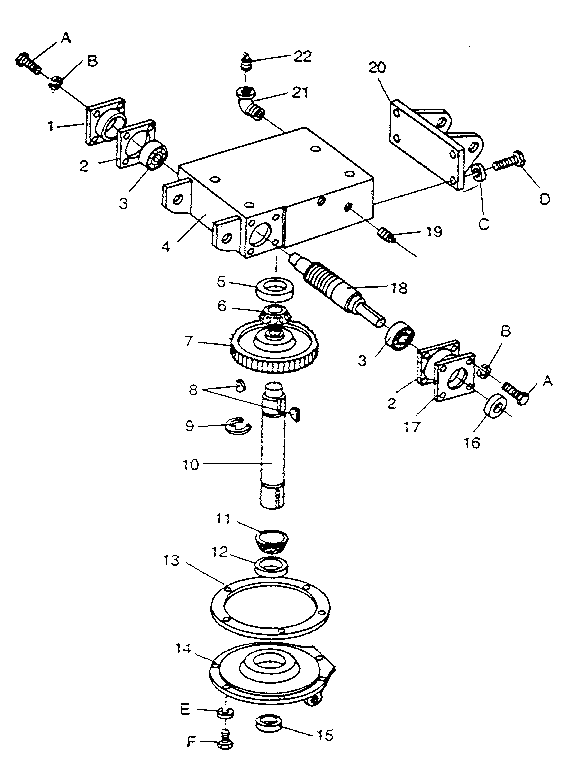

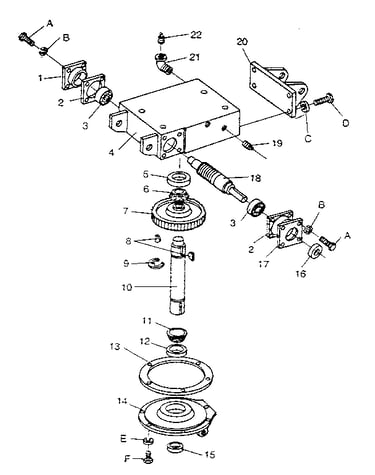

Gear case assembly diagram

Cap screw

Part #008-0610

The manufacturer no longer makes this part, and there's no substitute part

1/4 X 1/4 X 2 1/4 Key 008-2337
#7F

7 hp briggs power unit i/c diagram

1/4 x 1/4 x 2 1/4 key

Part #008-2337

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 008-1311
#8C

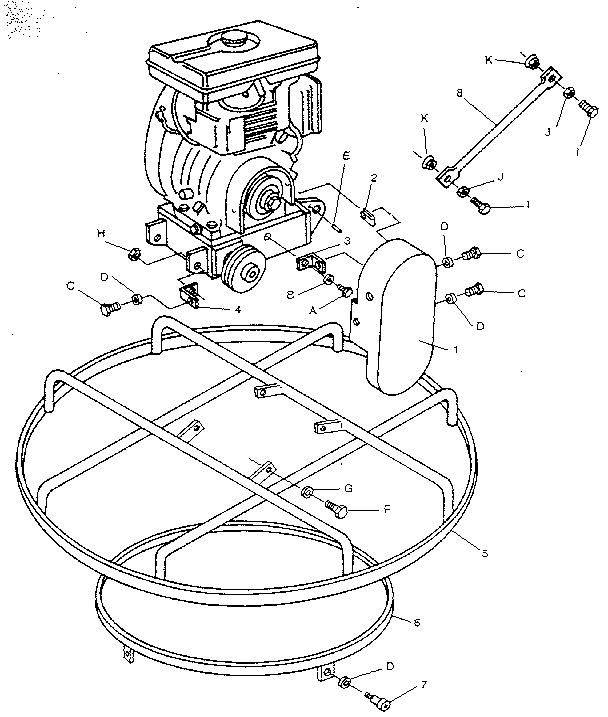

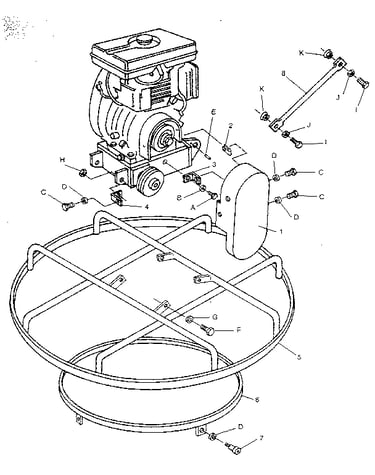

Guards diagram

Cap screw

Part #008-1311

The manufacturer no longer makes this part, and there's no substitute part
