Amana
Bottom-Mount Refrigerator

Model # AB2225PEKS8 Official Amana refrigerator

Here are the diagrams and repair parts for Official Amana AB2225PEKS8 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

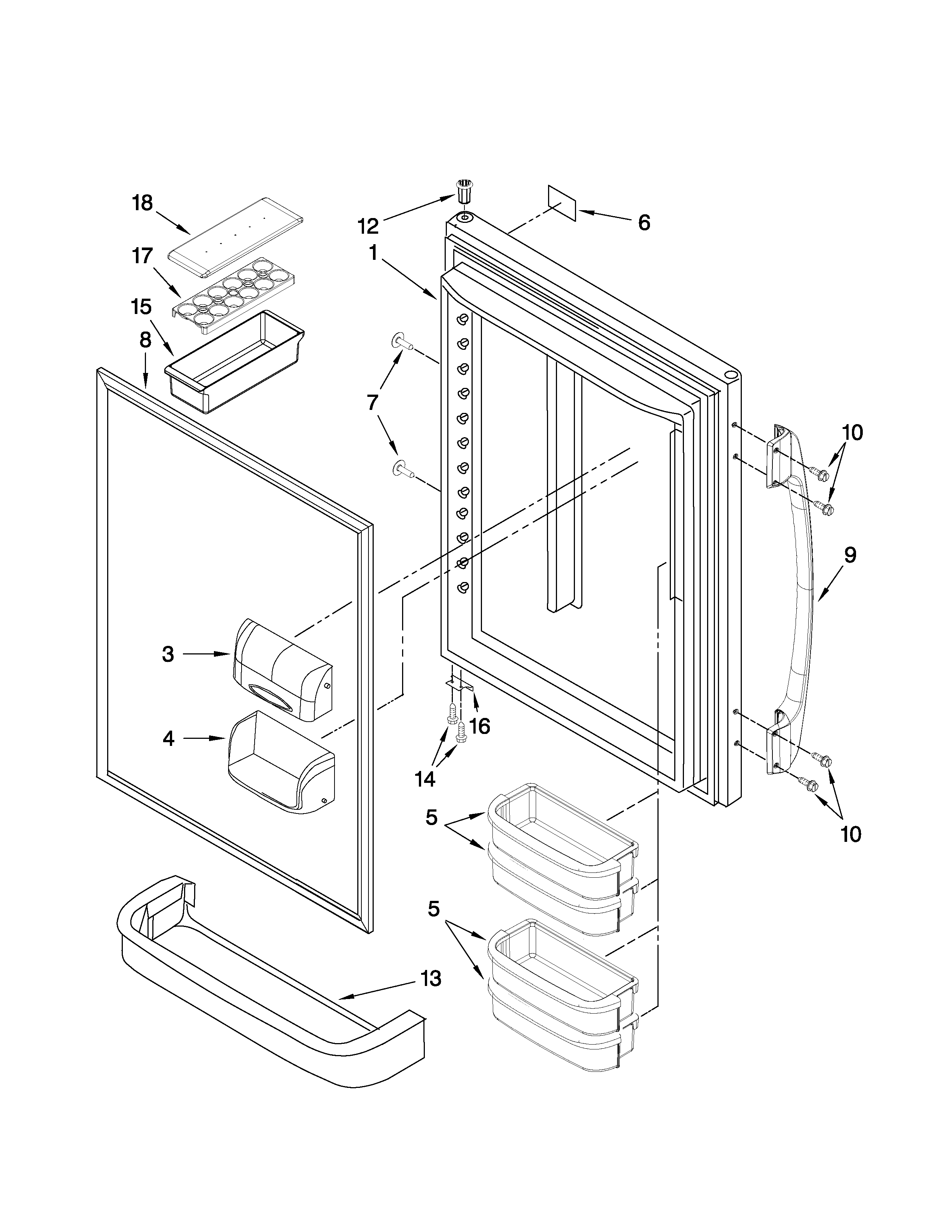

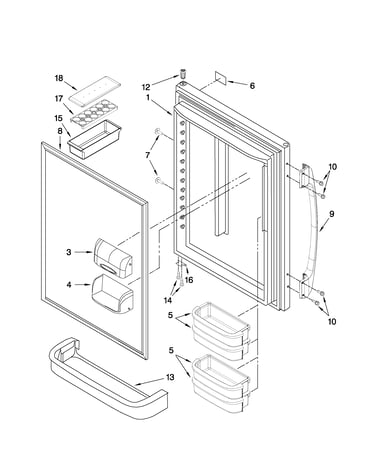

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 169 parts  |
Refrigerator Uv Filter Dryer W10143759
#27

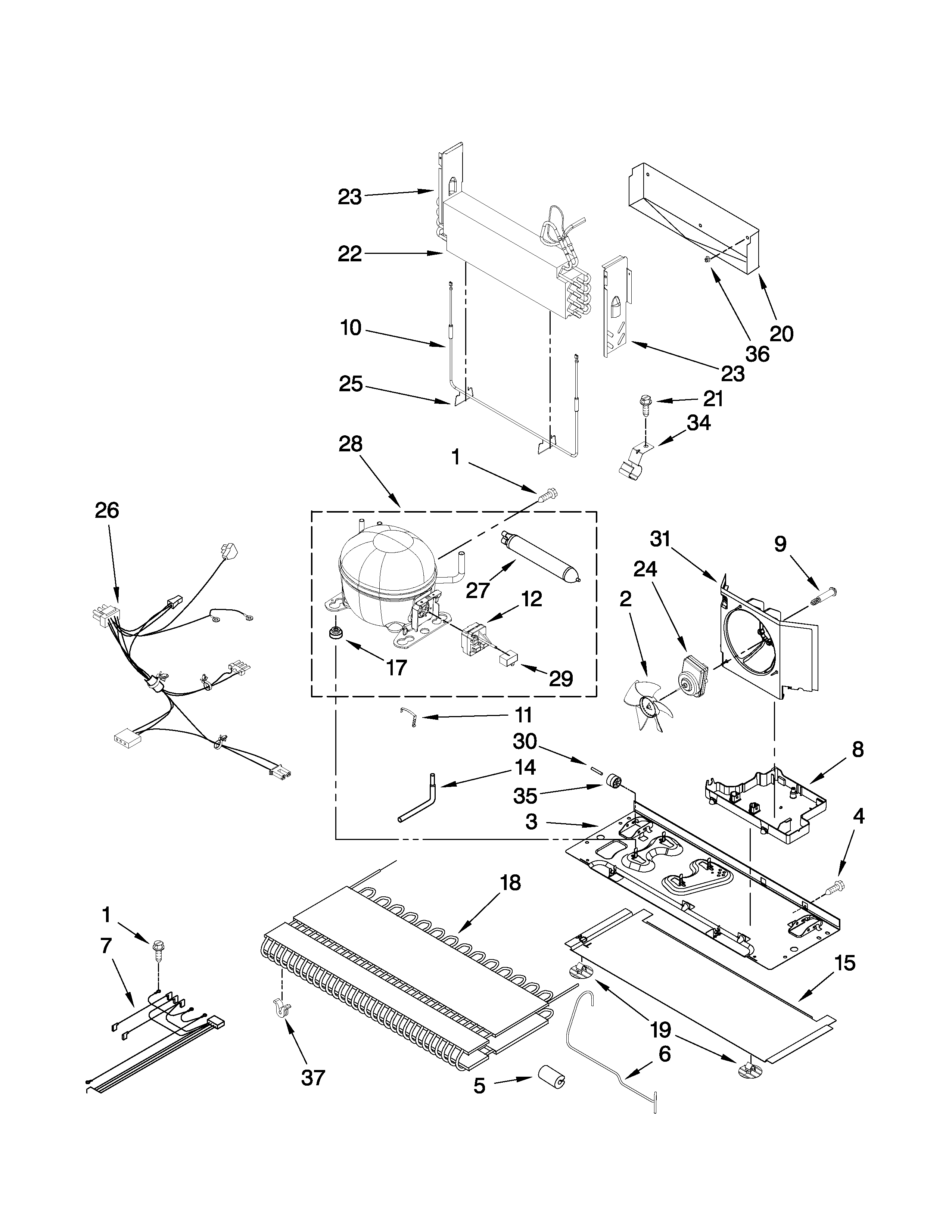

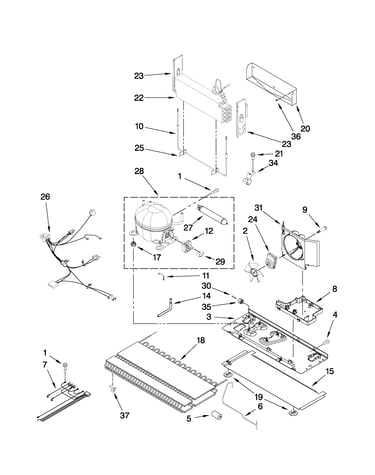

Unit parts diagram

Refrigerator uv filter dryer

Part #W10143759

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10143759. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Push-button Switch C3680314
#6

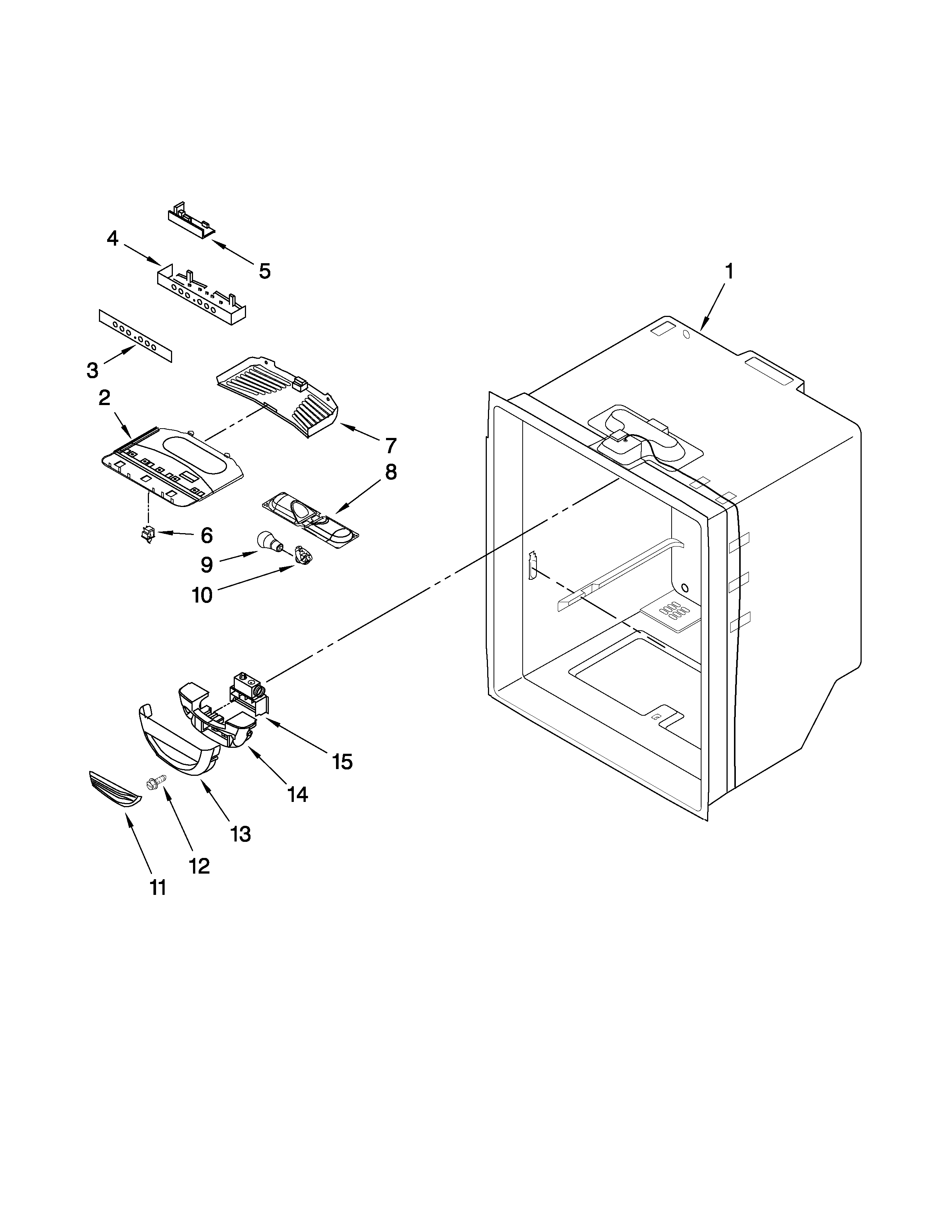

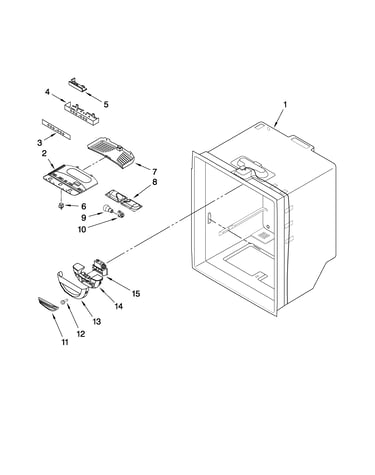

Refrigerator liner parts diagram

Refrigerator push-button switch

Part #C3680314

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680314. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Central Rail 12530701N
#12

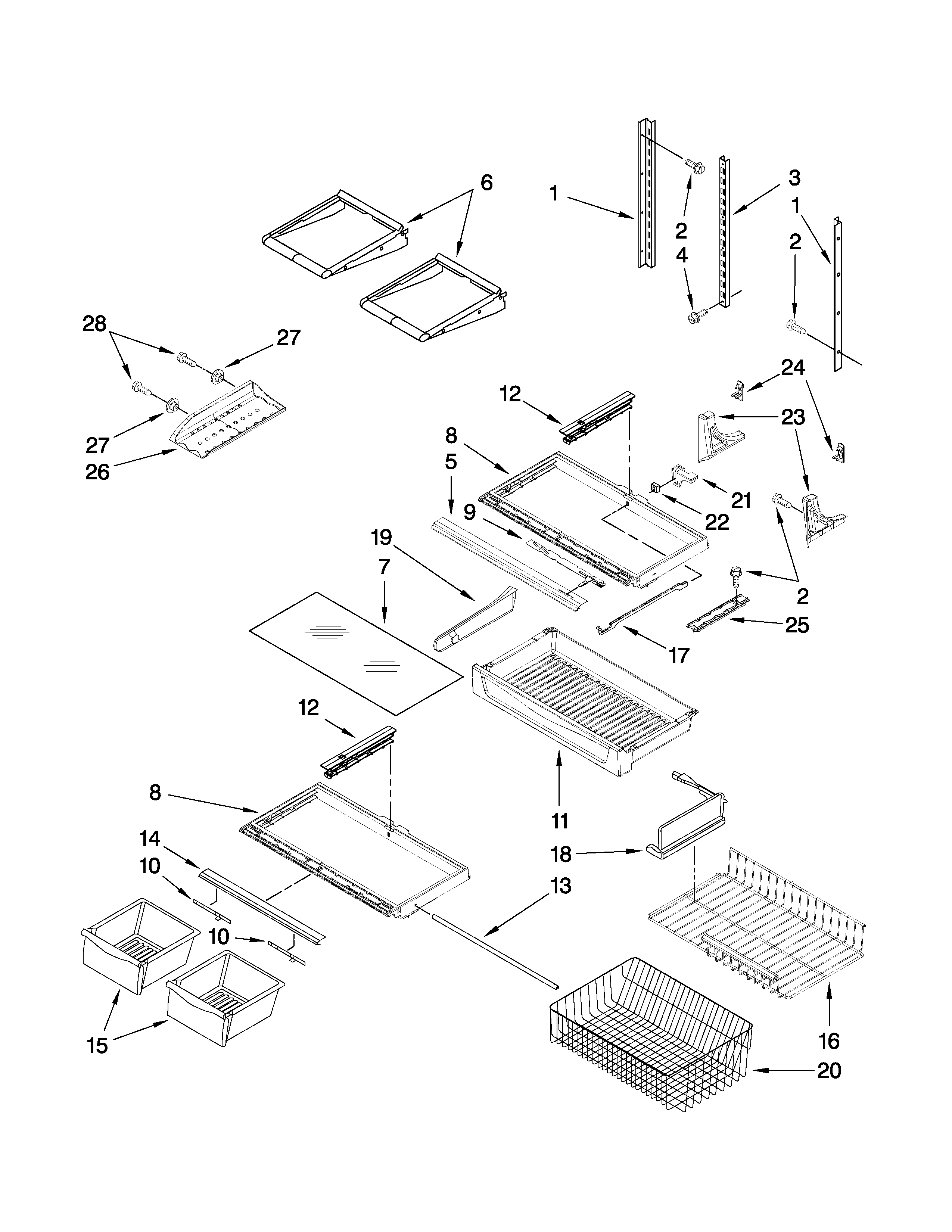

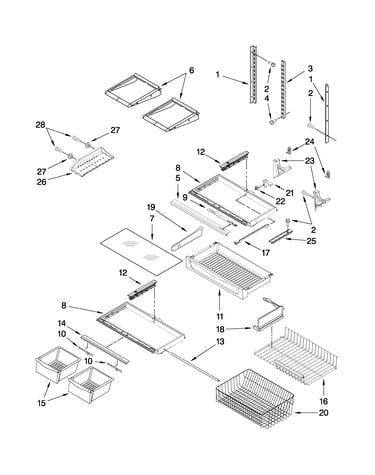

Shelf parts diagram

Refrigerator central rail

Part #12530701N

Replaced by #WPW10671238

?
Manufacturer substitution
This part replaces 12530701N. Substitute parts can look different from the original.
BEST SELLER
$47.26 |
11% OFF Phone Price : $53.26
In Stock
Refrigerator Drain Tube W10210988
#30

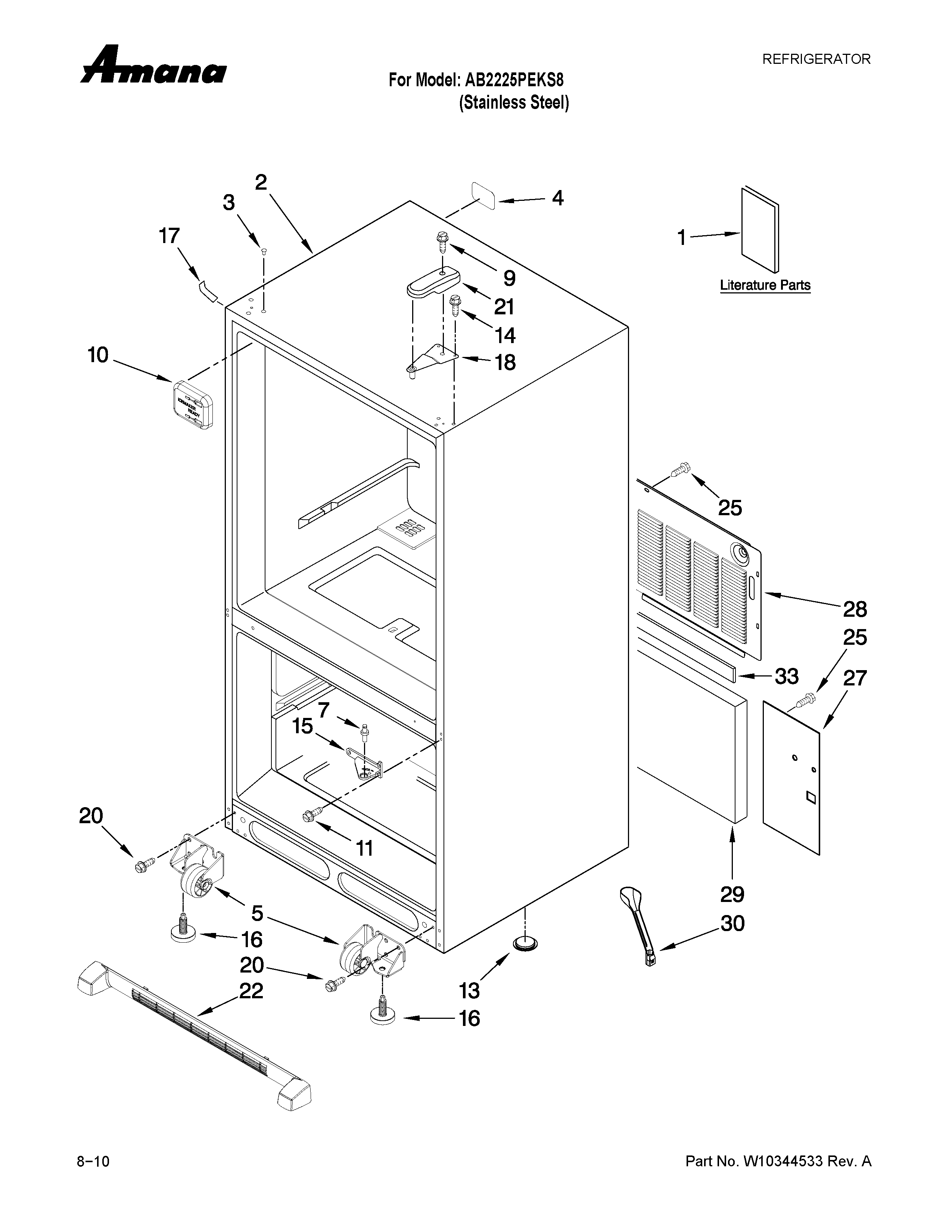

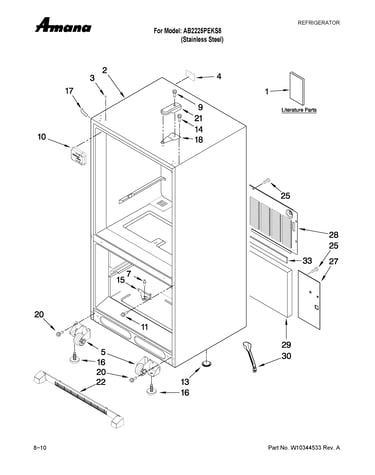

Cabinet parts diagram

Refrigerator drain tube

Part #W10210988

Replaced by #W10619951

?
Manufacturer substitution
This part replaces W10210988. Substitute parts can look different from the original.
BEST SELLER
$26.33 |
19% OFF Phone Price : $32.33
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

Optional parts (not included) diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Hook- Ladd 12531802
#24

Shelf parts diagram

Hook- ladd

Part #12531802

Replaced by #WP67001716

?
Manufacturer substitution
This part replaces 12531802. Substitute parts can look different from the original.
BEST SELLER
$9.88 |
9% OFF Phone Price : $10.88
In Stock
Spray Paint (white) 350930
#NI

Optional parts (not included) diagram

Spray paint (white)

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Refrigerator Grille 13024803
#22

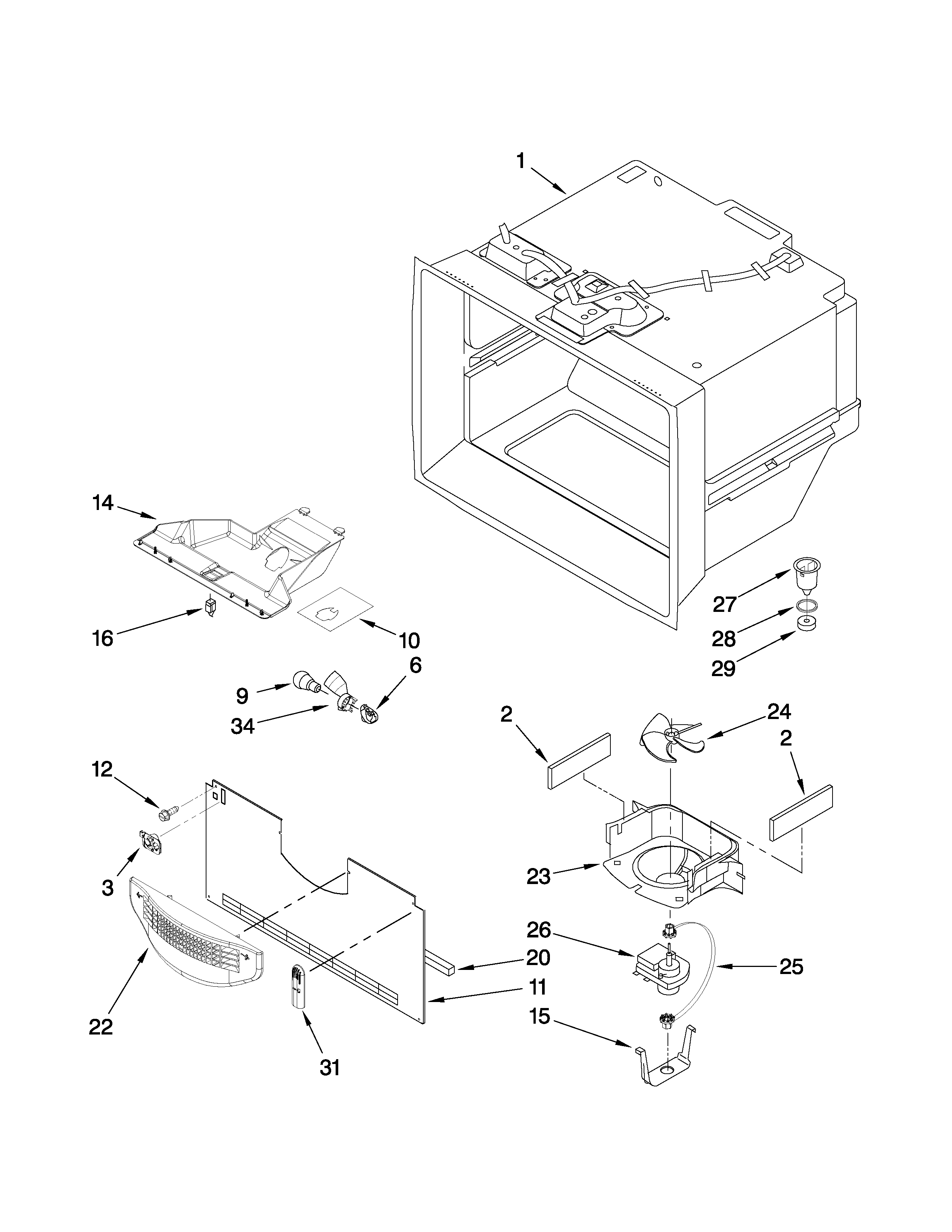

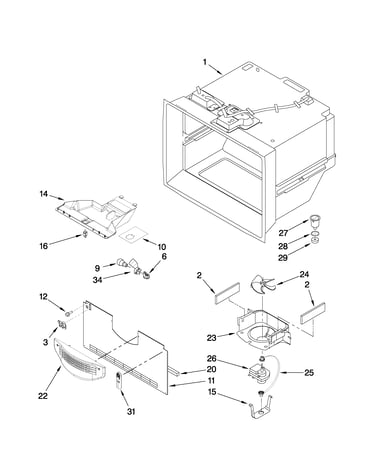

Freezer liner parts diagram

Refrigerator grille

Part #13024803

Replaced by #WPW10175909

?
Manufacturer substitution
This part replaces 13024803. Substitute parts can look different from the original.
BEST SELLER
$33.88 |
15% OFF Phone Price : $39.88
In Stock
Refrigerator Gasket Panel (black) W10164037
#3

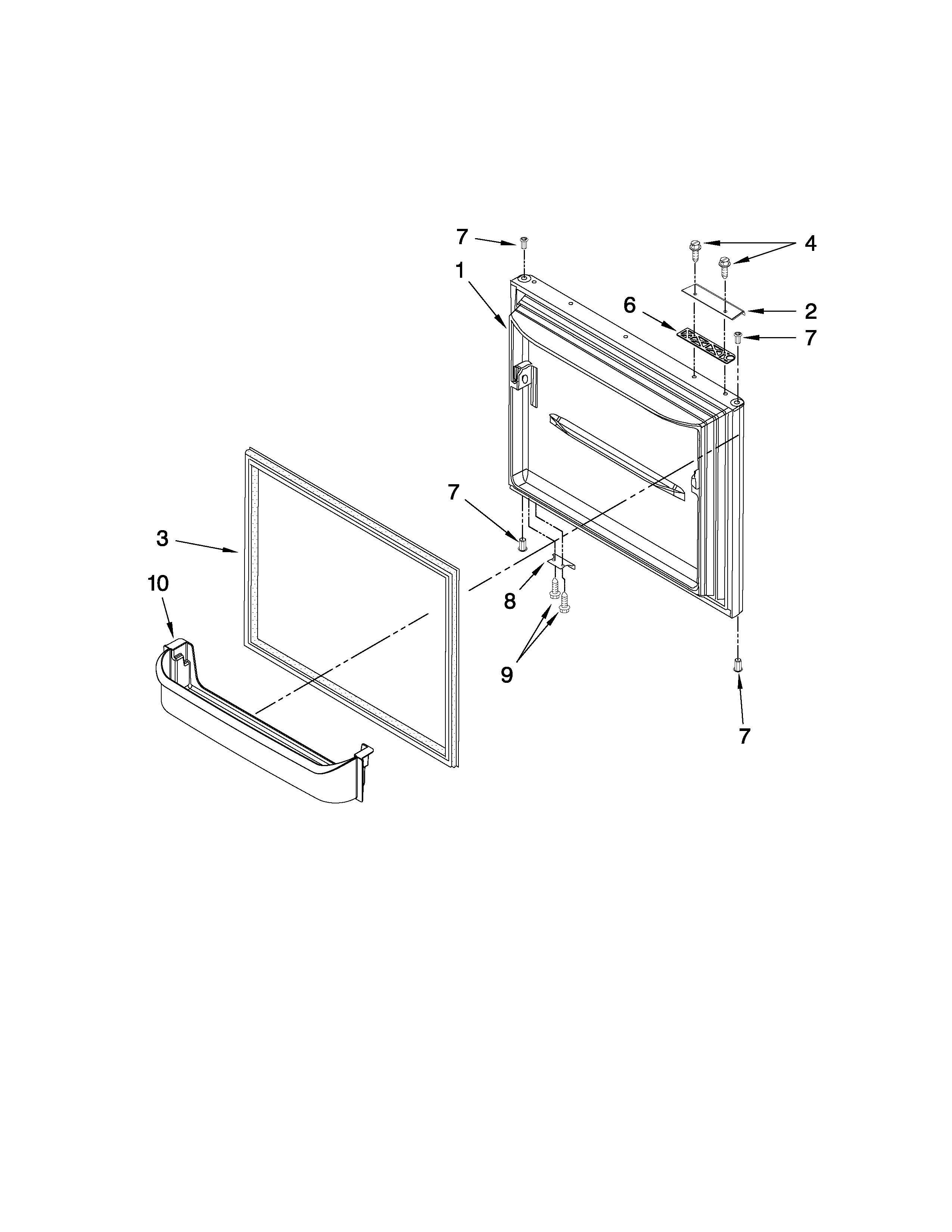

Freezer door parts diagram

Refrigerator gasket panel (black)

Part #W10164037

Replaced by #WPW10436250

?
Manufacturer substitution
This part replaces W10164037. Substitute parts can look different from the original.
BEST SELLER
$159.74 |
7% OFF Phone Price : $171.74
In Stock
Frame- Cri 12530401SP
#8

Shelf parts diagram

Frame- cri

Part #12530401SP

Replaced by #WPW10568041

?
Manufacturer substitution
This part replaces 12530401SP. Substitute parts can look different from the original.
BEST SELLER
$85.37 |
7% OFF Phone Price : $91.37
In Stock
