Magic Chef
Electric Range

Model # 38EA-2C Official Magic Chef electric range

Here are the diagrams and repair parts for Official Magic Chef 38EA-2C electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 165 parts  |
Element 7406P025-60
Element

Part #7406P025-60

Replaced by #WPY04000036

?
Manufacturer substitution
This part replaces 7406P025-60. Substitute parts can look different from the original.
$58.59 |
9% OFF Phone Price : $64.59
In Stock
Infinite Switch 7403P064-60
#9A

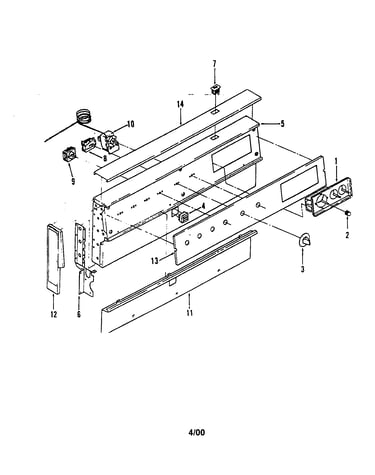

Backguard diagram

Infinite switch

Part #7403P064-60

Replaced by #W11122006

?
Manufacturer substitution
This part replaces 7403P064-60. Substitute parts can look different from the original.
$69.58 |
8% OFF Phone Price : $75.58
In Stock
Rocker Switch 7403P102-60
Rocker switch

Part #7403P102-60

Replaced by #7403P067-60

?
Manufacturer substitution
This part replaces 7403P102-60. Substitute parts can look different from the original.
$40.49
In Stock
Element 7406P026-60
Element

Part #7406P026-60

Replaced by #WPY04000035

?
Manufacturer substitution
This part replaces 7406P026-60. Substitute parts can look different from the original.
$65.19 |
8% OFF Phone Price : $71.19
In Stock
Lock Switch 7403E045
Lock switch

Part #7403E045

The manufacturer no longer makes this part, and there's no substitute part

Hinge, Oven Door - Left 0528-261
#27

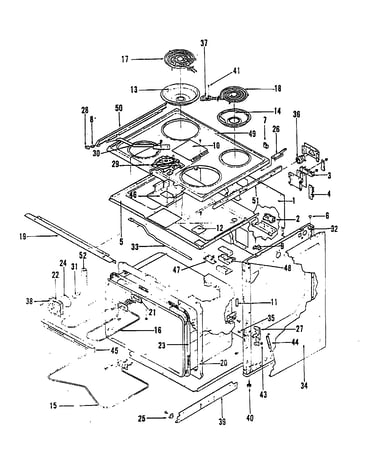

Cooktop diagram

Hinge, oven door - left

Part #0528-261

The manufacturer no longer makes this part, and there's no substitute part

Ballast 1023-200

#NI

All parts diagram

Ballast

Part #1023-200

The manufacturer no longer makes this part, and there's no substitute part

Oven Handle 7701E013
#7A

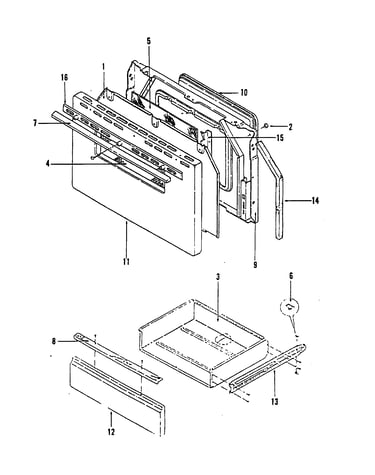

Oven door diagram

Oven handle

Part #7701E013

The manufacturer no longer makes this part, and there's no substitute part

Support, Doo 3807F193
#47

Cooktop diagram

Support, doo

Part #3807F193

The manufacturer no longer makes this part, and there's no substitute part

Panel, Service Door - Sand 0684-316D
#12E

Oven door diagram

Panel, service door - sand

Part #0684-316D

The manufacturer no longer makes this part, and there's no substitute part
