Model # 45562 Official Sears 20" girls' jazzy wheels bicycle

Here are the diagrams and repair parts for Official Sears 45562 20" girls' jazzy wheels bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

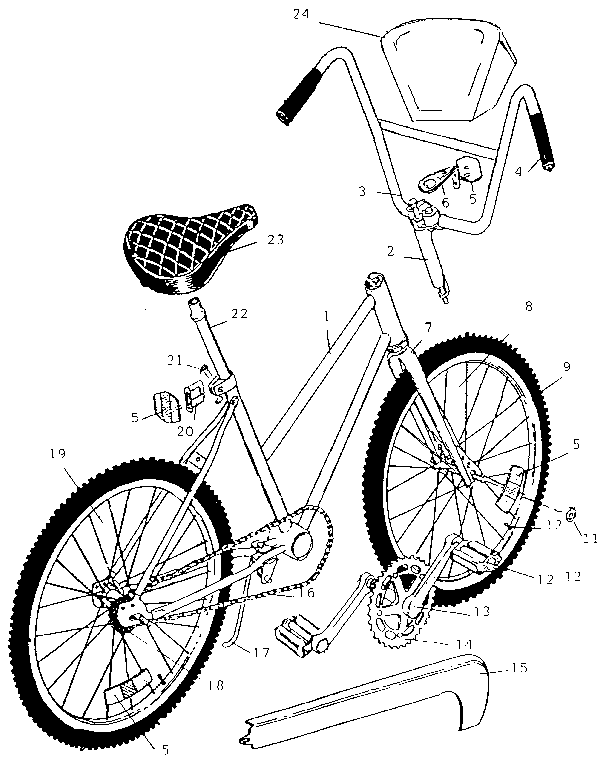

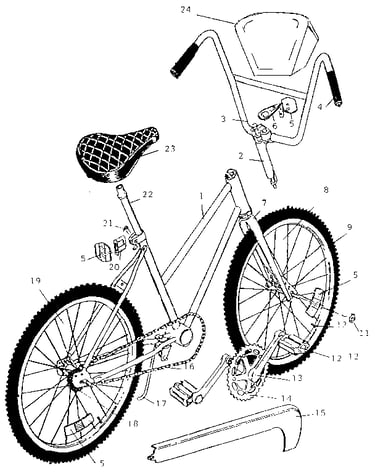

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |

Bca Tool 103017

#NI

All parts diagram

Bca tool

Part #103017

The manufacturer no longer makes this part, and there's no substitute part

Tool:spoke W 103047

#NI

All parts diagram

Tool:spoke w

Part #103047

The manufacturer no longer makes this part, and there's no substitute part

Kent R Spk/npl 049511

#NI

All parts diagram

Kent r spk/npl

Part #049511

The manufacturer no longer makes this part, and there's no substitute part

Roadmaster Bicycle Front Axle And Bearing Assembly 053011

#NI

All parts diagram

Roadmaster bicycle front axle and bearing assembly

Part #053011

The manufacturer no longer makes this part, and there's no substitute part

Huffy Ft.sprocket 068036
#14

Unit parts diagram

Huffy ft.sprocket

Part #068036

The manufacturer no longer makes this part, and there's no substitute part

Tube 041006
#10

Unit parts diagram

Tube

Part #041006

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 102235

#NI

All parts diagram

Owner's manual

Part #102235

The manufacturer no longer makes this part, and there's no substitute part

Head Brg Set 019007

#NI

All parts diagram

Head brg set

Part #019007

The manufacturer no longer makes this part, and there's no substitute part

Front Wheel 045068
#8

Unit parts diagram

Front wheel

Part #045068

The manufacturer no longer makes this part, and there's no substitute part

Rr Reflector 082016
#20

Unit parts diagram

Rr reflector

Part #082016

The manufacturer no longer makes this part, and there's no substitute part
