Model # KCDS100T0 Official KitchenAid garbage disposal
Here are the diagrams and repair parts for Official KitchenAid KCDS100T0 garbage disposal, as well as links to manuals and error code tables, if available.
Installation guideBy Schematic
SELECT DIAGRAM
Browse Parts for
KCDS100T0 Garbage Disposal
#23

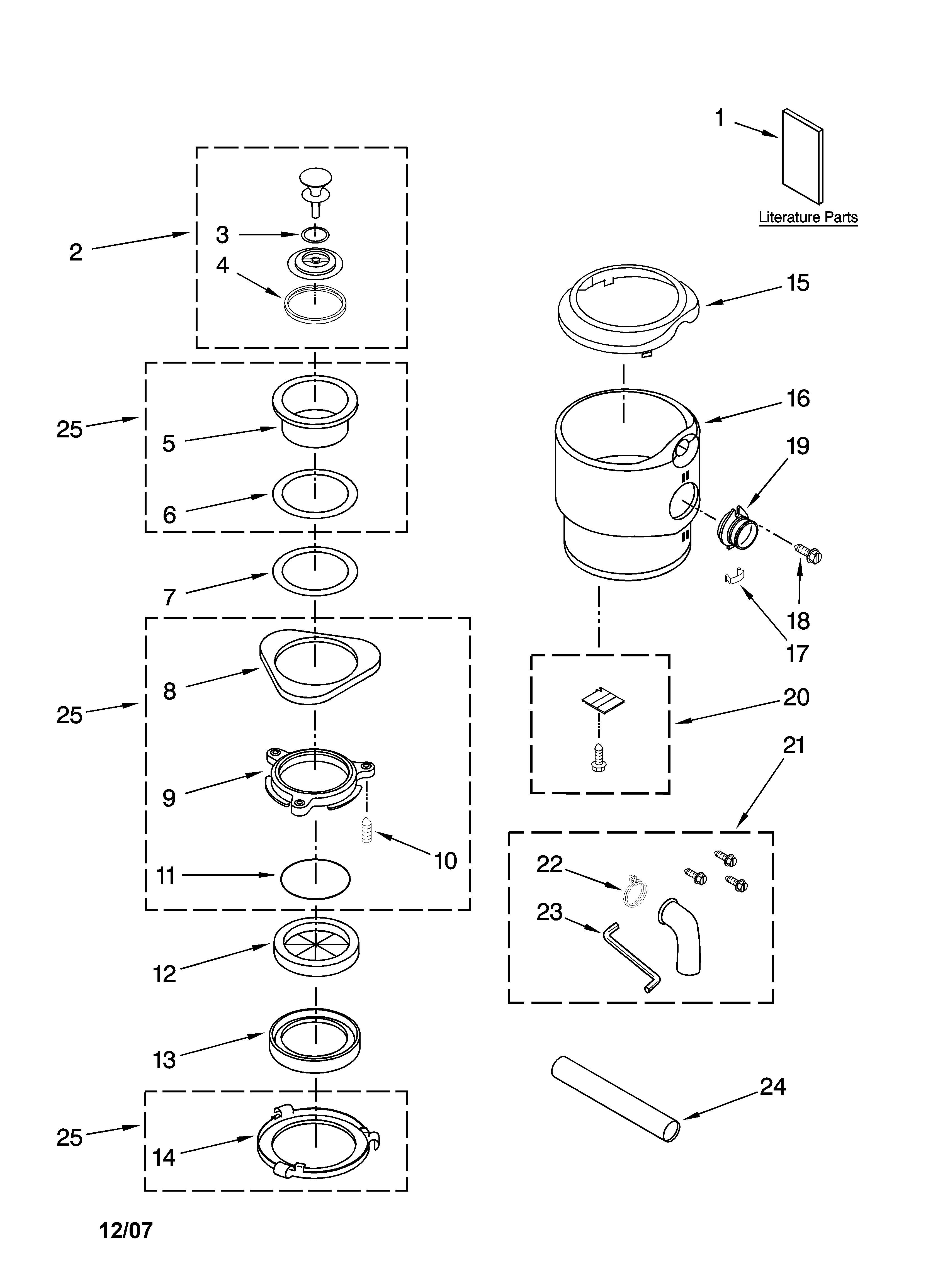

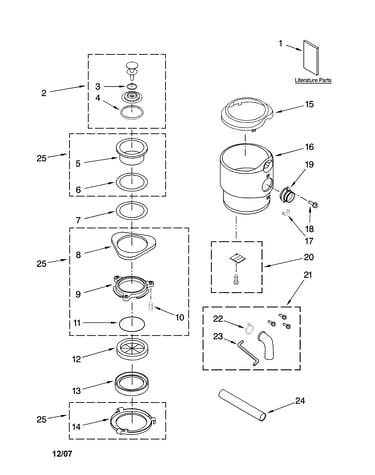

Housing and flange parts diagram
Wrench
Part #8174310
Replaced by #WP8174310
?
Manufacturer substitution
This part replaces 8174310. Substitute parts can look different from the original.
This item is not returnable
$17.59 |
10% OFF Phone Price : $19.59
In Stock
#19
Housing and flange parts diagram
Garbage disposal drain tube flange
Part #W10171109
Replaced by #W10352995
?
Manufacturer substitution
This part replaces W10171109. Substitute parts can look different from the original.
$34.43 |
15% OFF Phone Price : $40.43
In Stock
#12
Housing and flange parts diagram
Guard
Part #W10171487
Replaced by #W11087190
?
Manufacturer substitution
This part replaces W10171487. Substitute parts can look different from the original.
$9.59 |
9% OFF Phone Price : $10.59
In Stock
#22
Housing and flange parts diagram
Clamp
Part #W10171111
Replaced by #W11622908
?
Manufacturer substitution
This part replaces W10171111. Substitute parts can look different from the original.
$53.90
In Stock
#16
Housing and flange parts diagram
Shell
Part #W10171489
$115.76
In Stock
#6
Housing and flange parts diagram
Whirlpool garbage disposal mounting gasket
Part #4211606
This item is not returnable
$14.00
In Stock
#11
Housing and flange parts diagram
Whirlpool ring
Part #4211306
This item is not returnable
$7.49
In Stock
#9
Housing and flange parts diagram
Whirlpool garbage disposal mounting flange
Part #4211304
$55.09
In Stock
#17
Housing and flange parts diagram
Clip
Part #8174342
$37.29
In Stock
#3
Housing and flange parts diagram
Gasket
Part #4211355
This item is not returnable
$5.89
In Stock
