Model # JDAF3924RX0 Official Jenn-Air dishwasher

Here are the diagrams and repair parts for Official Jenn-Air JDAF3924RX0 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

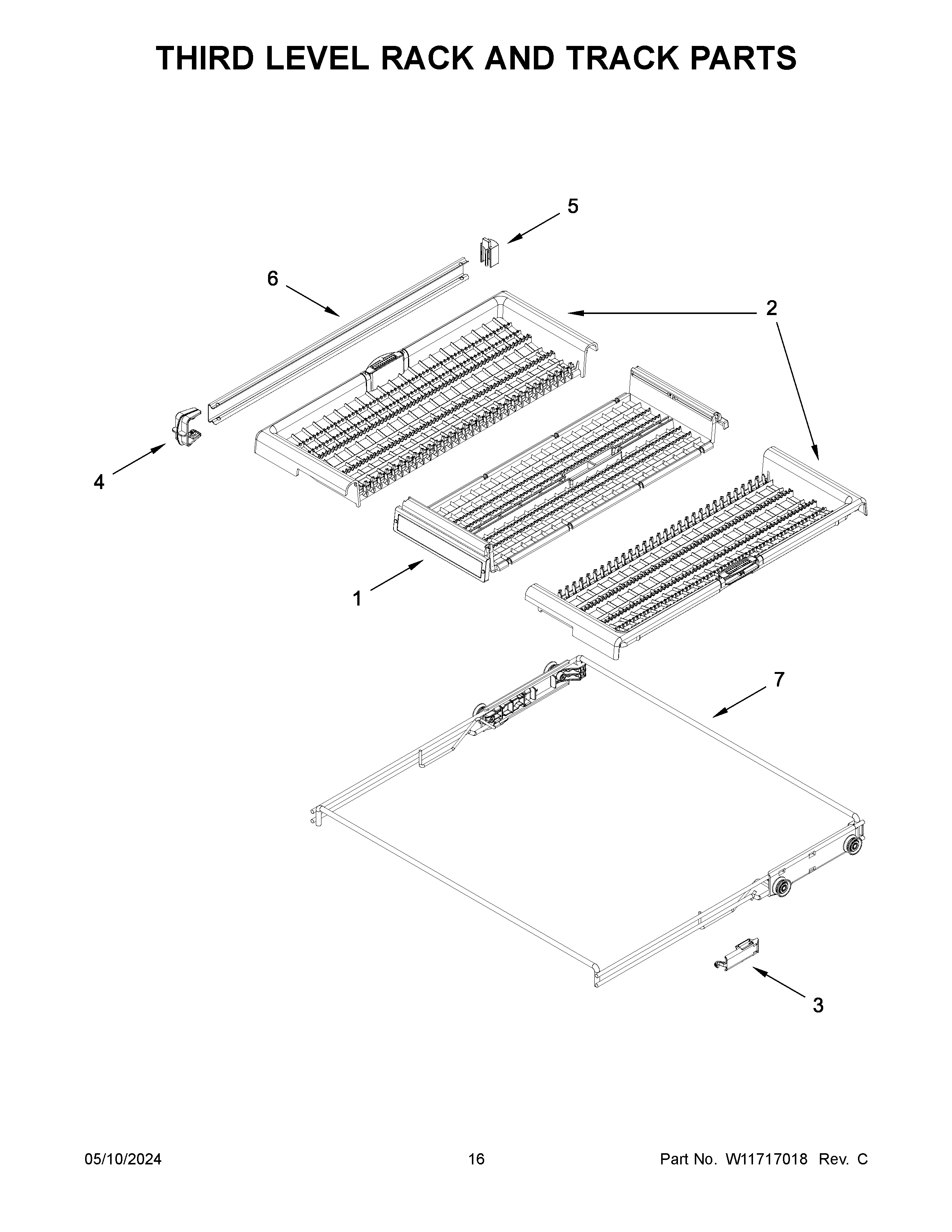

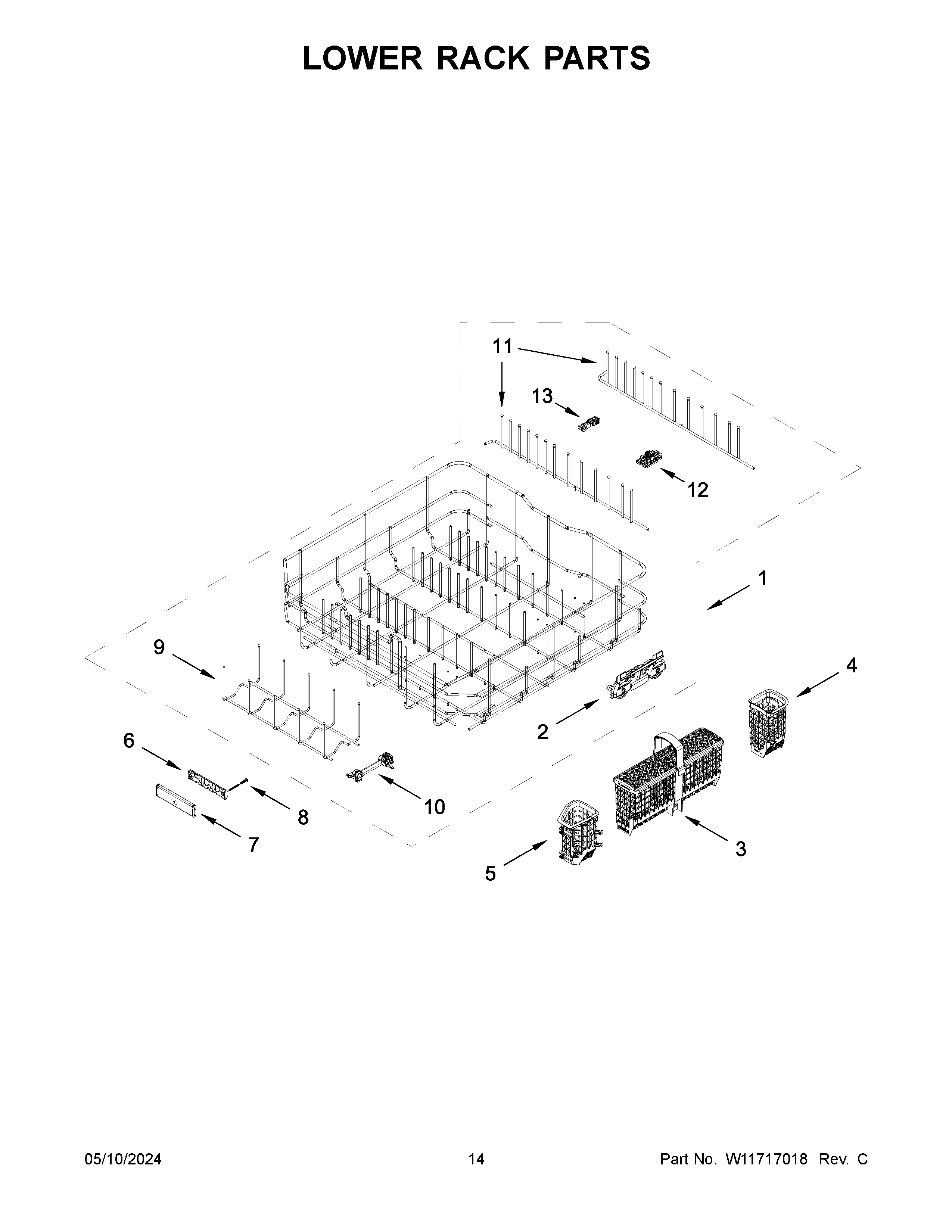

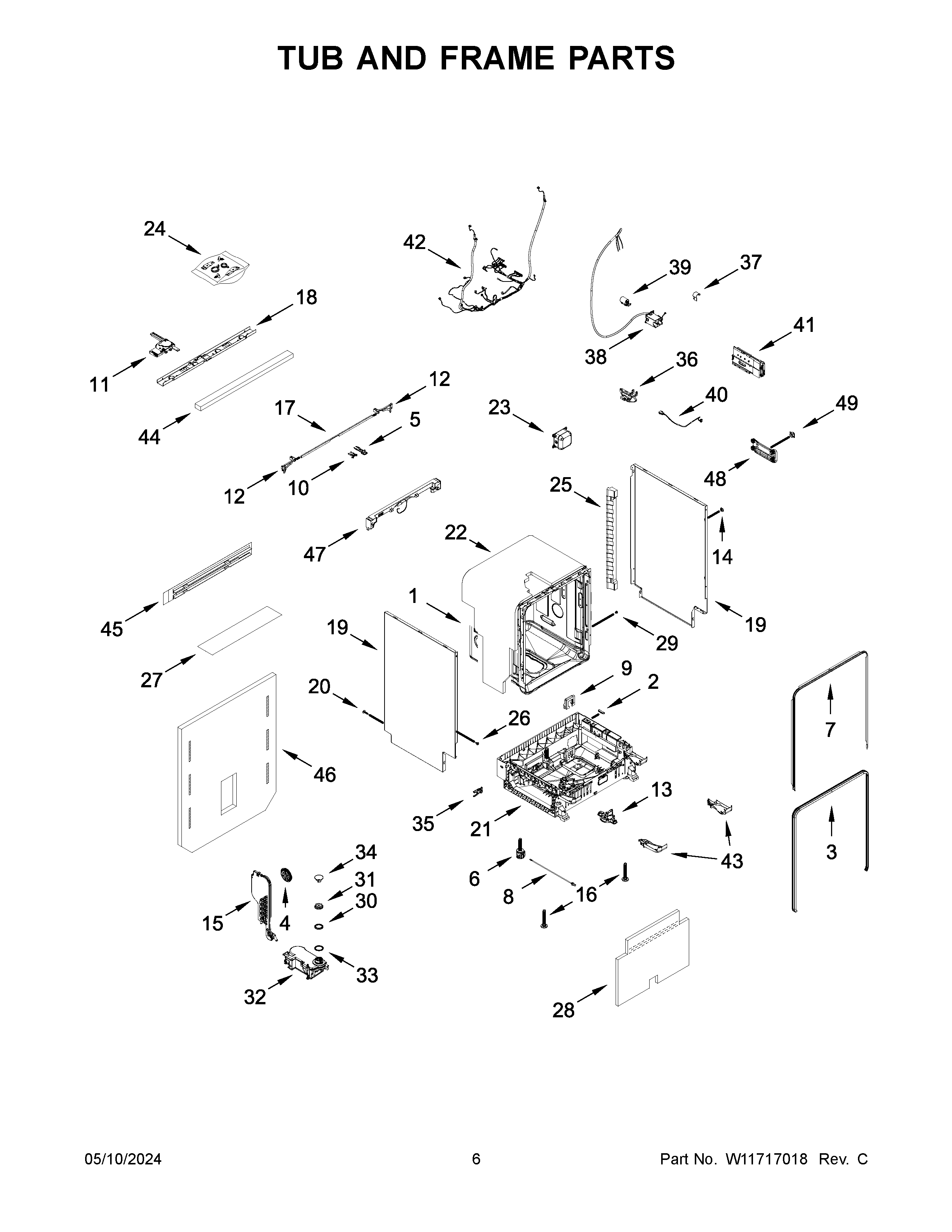

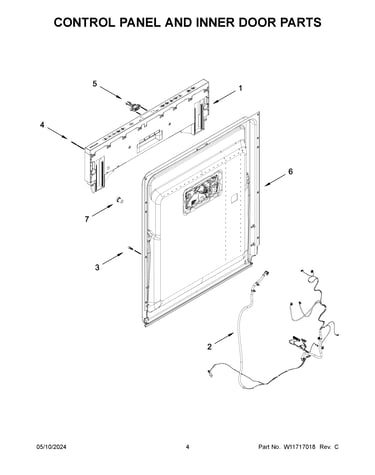

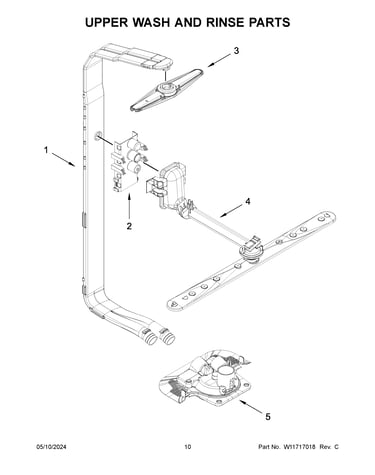

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 142 parts  |
Latch Assembly (includes Switch) W11091934
Latch assembly (includes switch)

Part #W11091934

Replaced by #W11412299

?
Manufacturer substitution
This part replaces W11091934. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$16.10 |
11% OFF Phone Price : $18.10
In Stock
40.8-44.0mm W11122851
40.8-44.0mm

Part #W11122851

Replaced by #W10783615

?
Manufacturer substitution
This part replaces W11122851. Substitute parts can look different from the original.
This item is not returnable
$11.42 |
15% OFF Phone Price : $13.42
In Stock
Control, Electronic W11696410
Control, electronic

Part #W11696410

$243.47
In Stock
Chassis - Cp W11690567
Chassis - cp

Part #W11690567

$108.00
In Stock
Installation W11696042
Installation

Part #W11696042

$107.14
In Stock
Wash Arm Assembly W11528063
Wash arm assembly

Part #W11528063

Replaced by #W11699038

?
Manufacturer substitution
This part replaces W11528063. Substitute parts can look different from the original.
$72.62
In Stock
Clip,1lr,leo W11545635
Clip,1lr,leo

Part #W11545635

Replaced by #W11699016

?
Manufacturer substitution
This part replaces W11545635. Substitute parts can look different from the original.
$15.20
In Stock
Tine Row, Back (right) W11534678
Tine row, back (right)

Part #W11534678

Replaced by #W11701299

?
Manufacturer substitution
This part replaces W11534678. Substitute parts can look different from the original.
$119.24
In Stock
Tine, Folddown (rear) W11544443
Tine, folddown (rear)

Part #W11544443

Replaced by #W11701324

?
Manufacturer substitution
This part replaces W11544443. Substitute parts can look different from the original.
$58.80
In Stock
Overflow Cha W11684708
Overflow cha

Part #W11684708

Replaced by #W11690634

?
Manufacturer substitution
This part replaces W11684708. Substitute parts can look different from the original.
$13.40
In Stock

Most common symptoms to help you fix your dishwashers

Choose a symptom to see related dishwasher repairs.

View all

Why does my dishwasher door drop open too fast?

Main causes: broken door spring, damaged or broken door hinge…

Read more

Why don't my dishes get dry?

Main causes: not using rinse aid, rinse aid dispenser failure, broken heating element, malfunctioning vent, drying fan f…

Read more

Why won't my dishwasher fill?

Main causes: water supply problem, stuck overfill float, clogged water inlet valve screen, water inlet valve failure…

Read more

Why won't my dishwasher start?

Main causes: light switch beside the sink turned off, lack of power, bad dishwasher door switch, control system failure,…

Read more

Why isn't my dishwasher getting dishes clean?

Main causes: improper loading, low water temperature, improper detergent dosage, detergent dispenser failure, spray arm …

Read more

Why is my dishwasher noisy?

Main causes: glass or popcorn kernel stuck in the chopper blade, drain line vibrating against the cabinet, debris in was…

Read more

Why won't my dishwasher drain?

Main causes: clogged kitchen sink drain, clogged drain hose, drain check valve damaged, drain pump failure, control syst…

Read more

Why can't I adjust the dishwasher rack height?

Main cause: damaged rack height adjuster…

Read more

Why is my dishwasher leaking?

Main causes: damaged or stuck spray arm, leaking door seal, damaged door hinge, leaky heating element water seal, cracke…

Read more
