Side-By-Side Refrigerator

Model # CS22AFXKQ04 Official Crosley refrigerator

Here are the diagrams and repair parts for Official Crosley CS22AFXKQ04 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

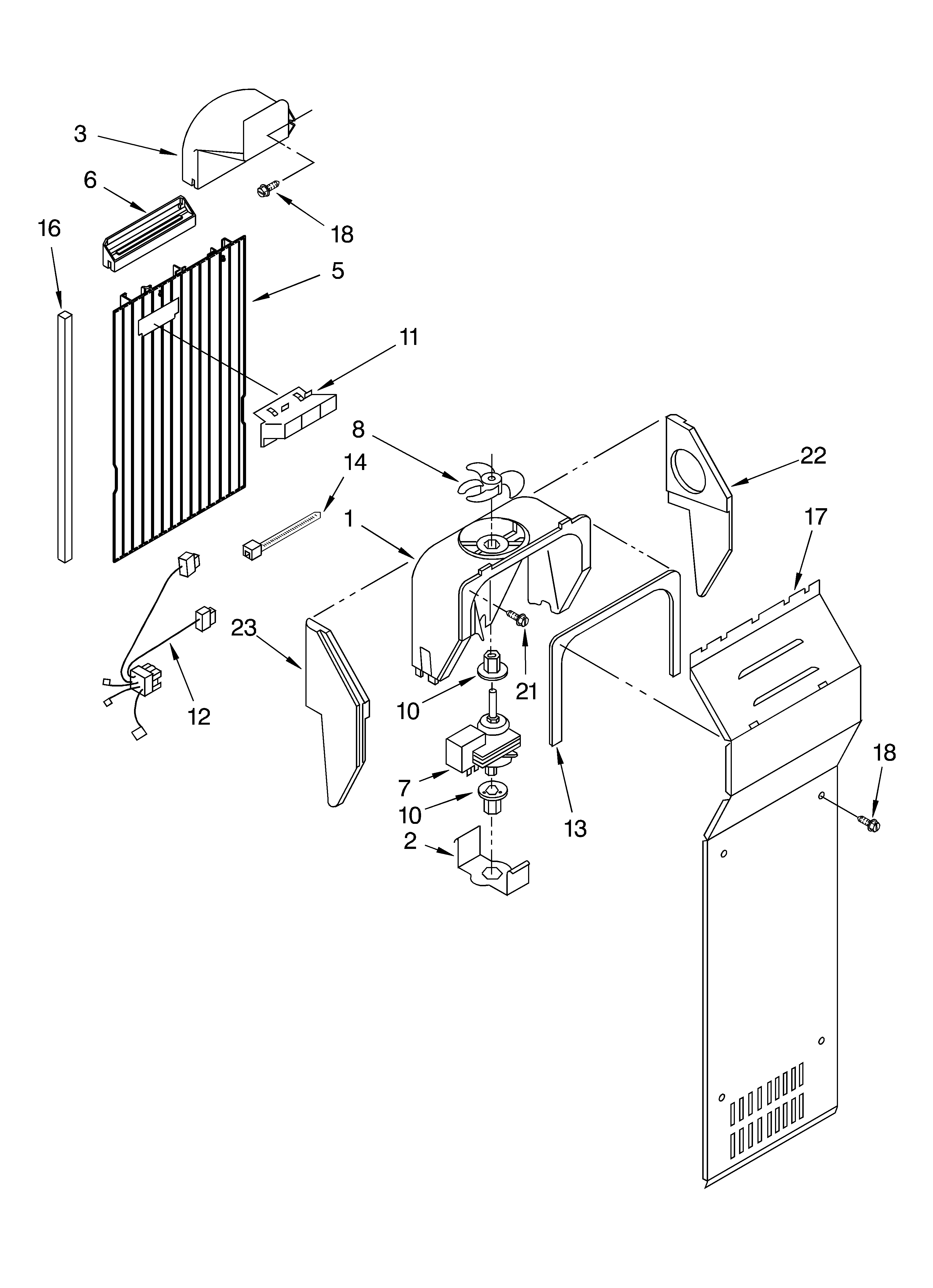

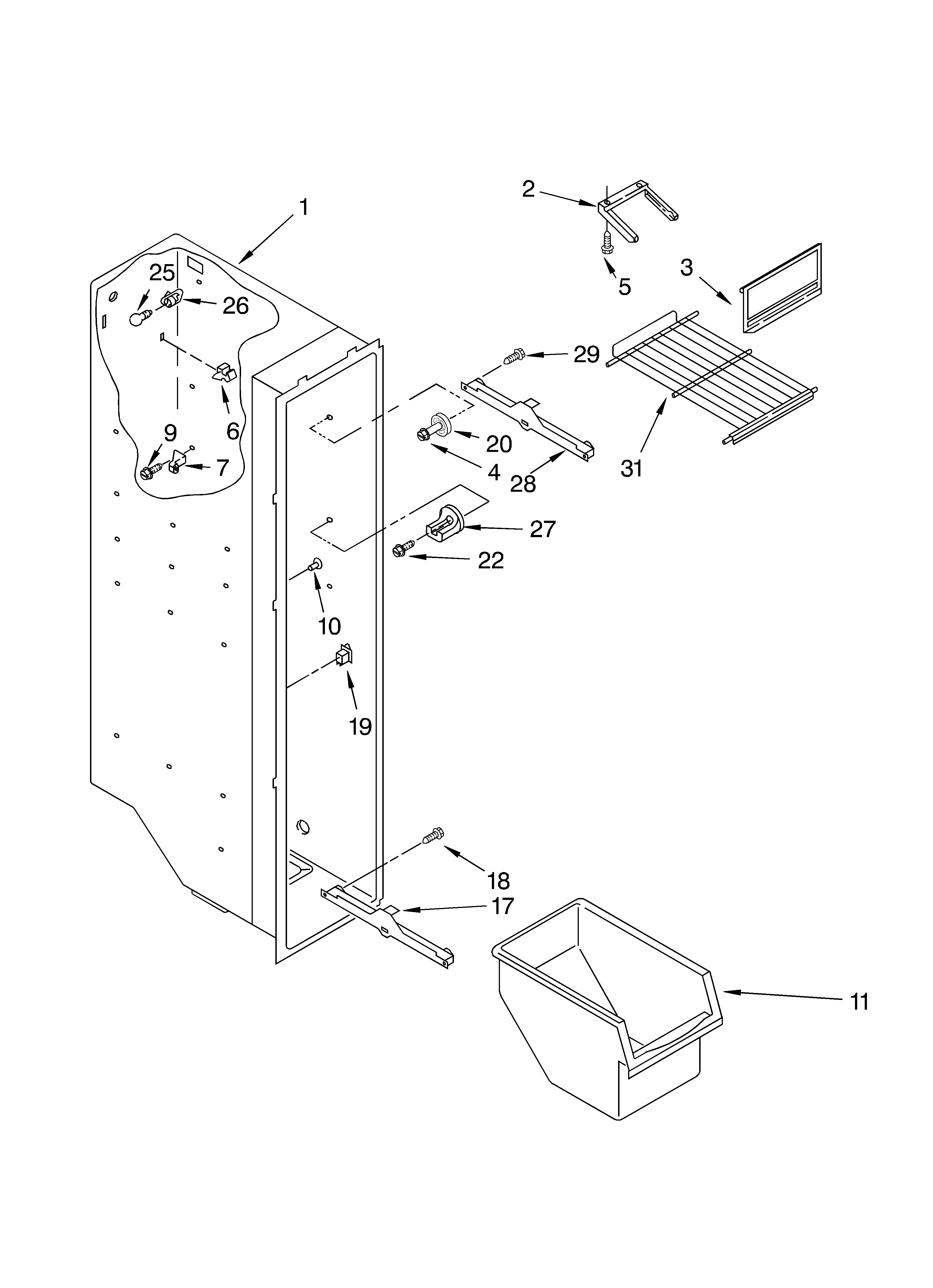

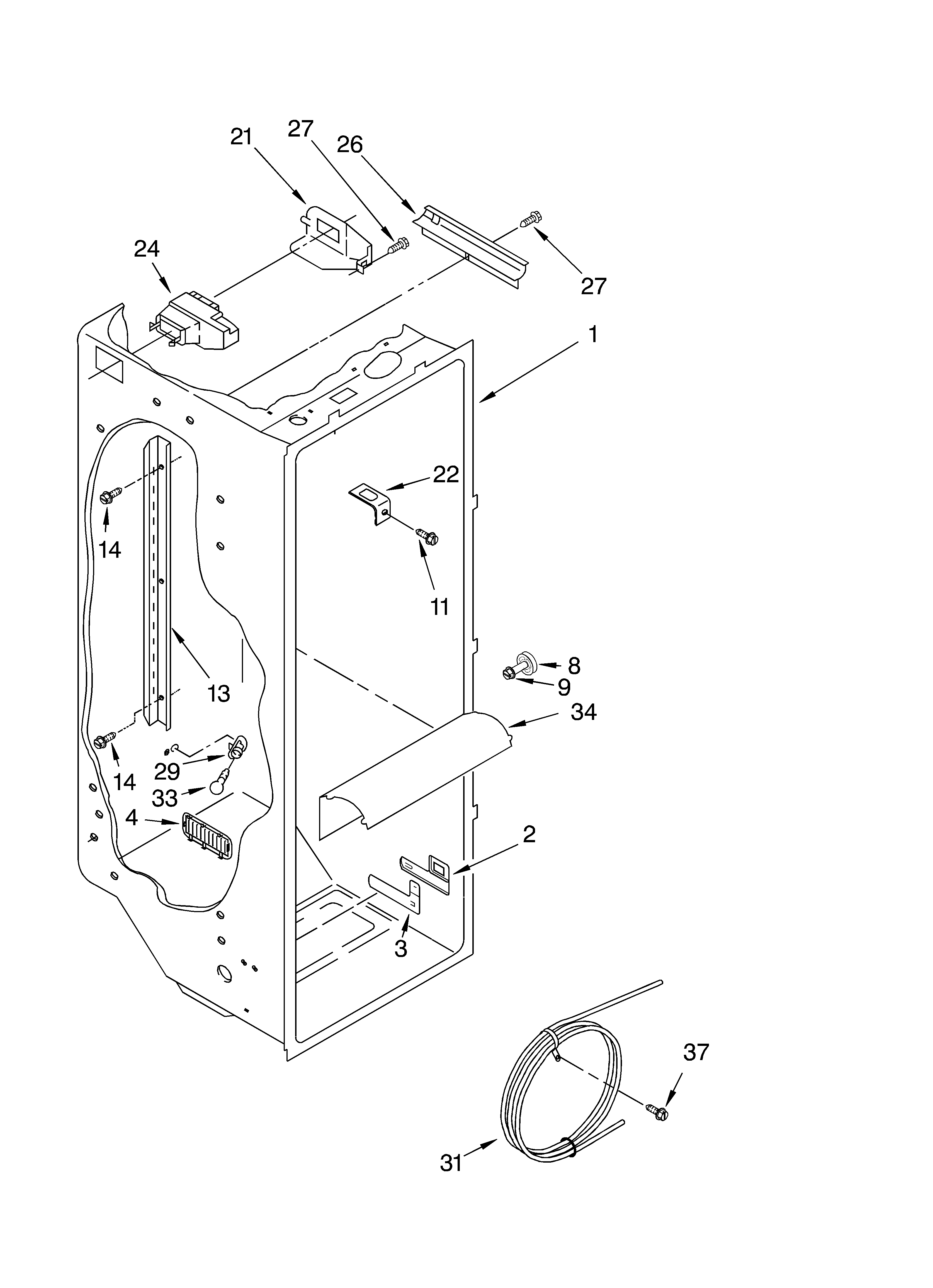

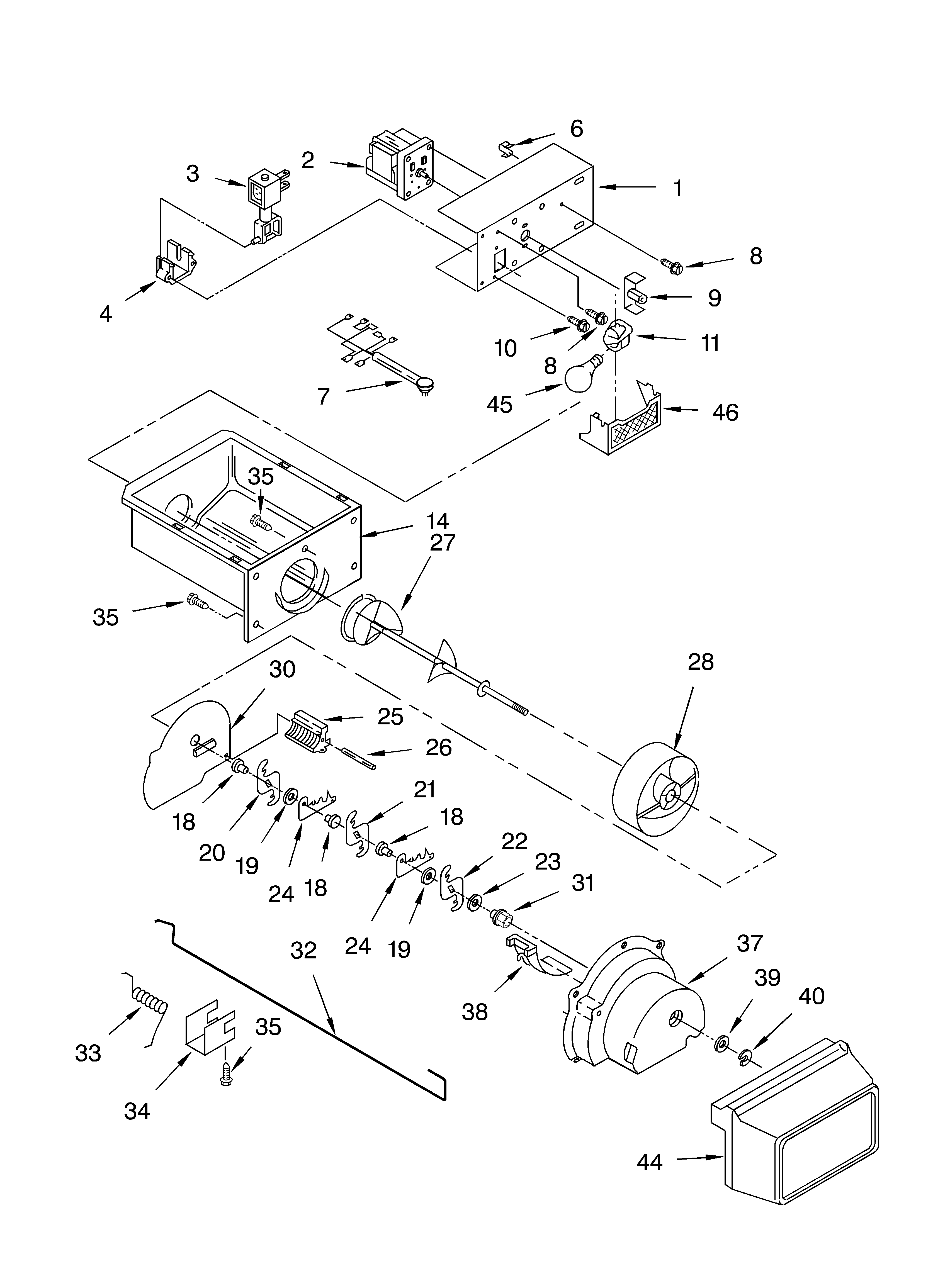

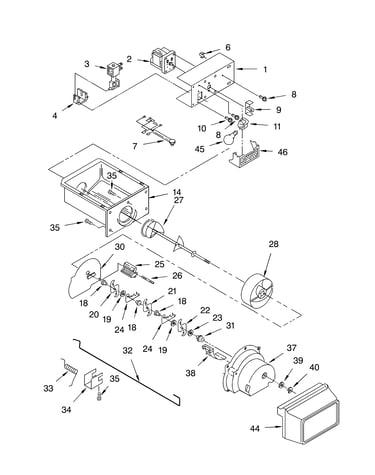

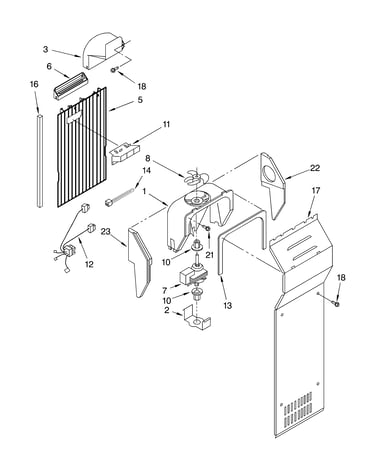

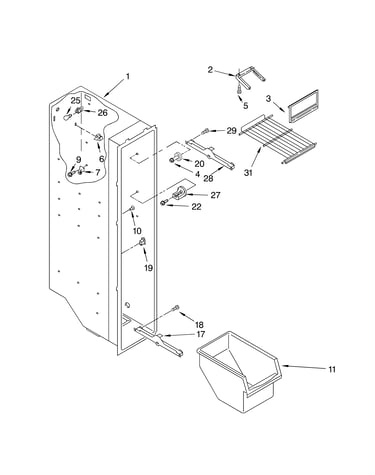

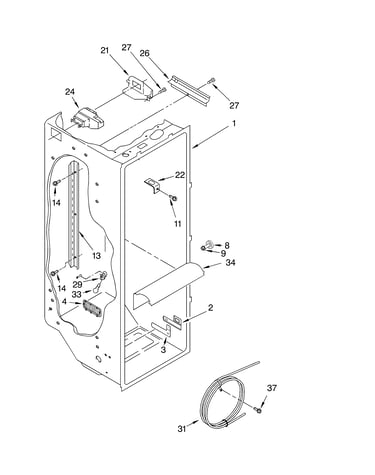

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
CS22AFXKQ04 Refrigerators
Ice Maker Assembly - Refrigerator Ice Maker By Whirlpool 4317943
#100

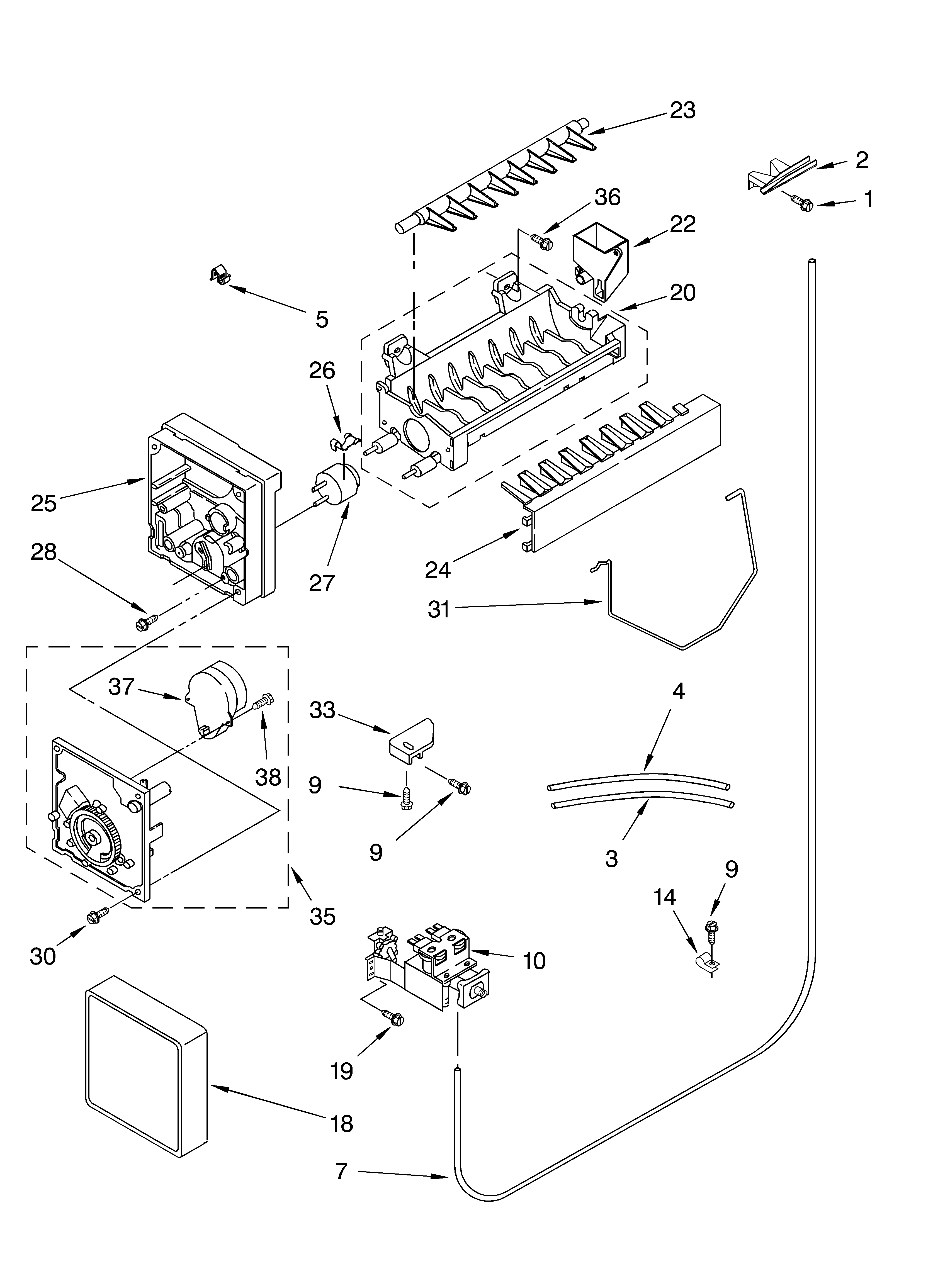

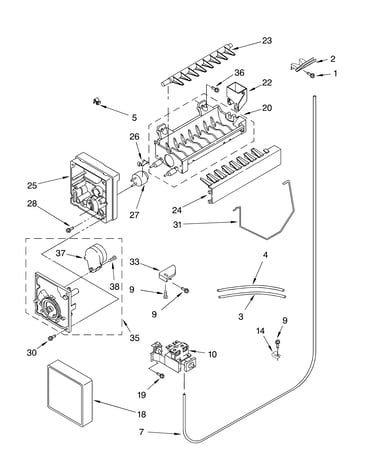

Ice maker/optional diagram

Ice maker assembly - refrigerator ice maker by whirlpool

Part #4317943

4.29 (82)
BEST SELLER
$102.60 |
10% OFF Phone Price : $114.60
In Stock
Refrigerator Inlet Valve 2188622
#10

Ice maker/optional diagram

Refrigerator inlet valve

Part #2188622

Replaced by #W10408179

?
Manufacturer substitution
This part replaces 2188622. Substitute parts can look different from the original.
4.08 (83)
BEST SELLER
$62.29 |
9% OFF Phone Price : $68.29
In Stock
Refrigerator Thermostat 2198202
#9

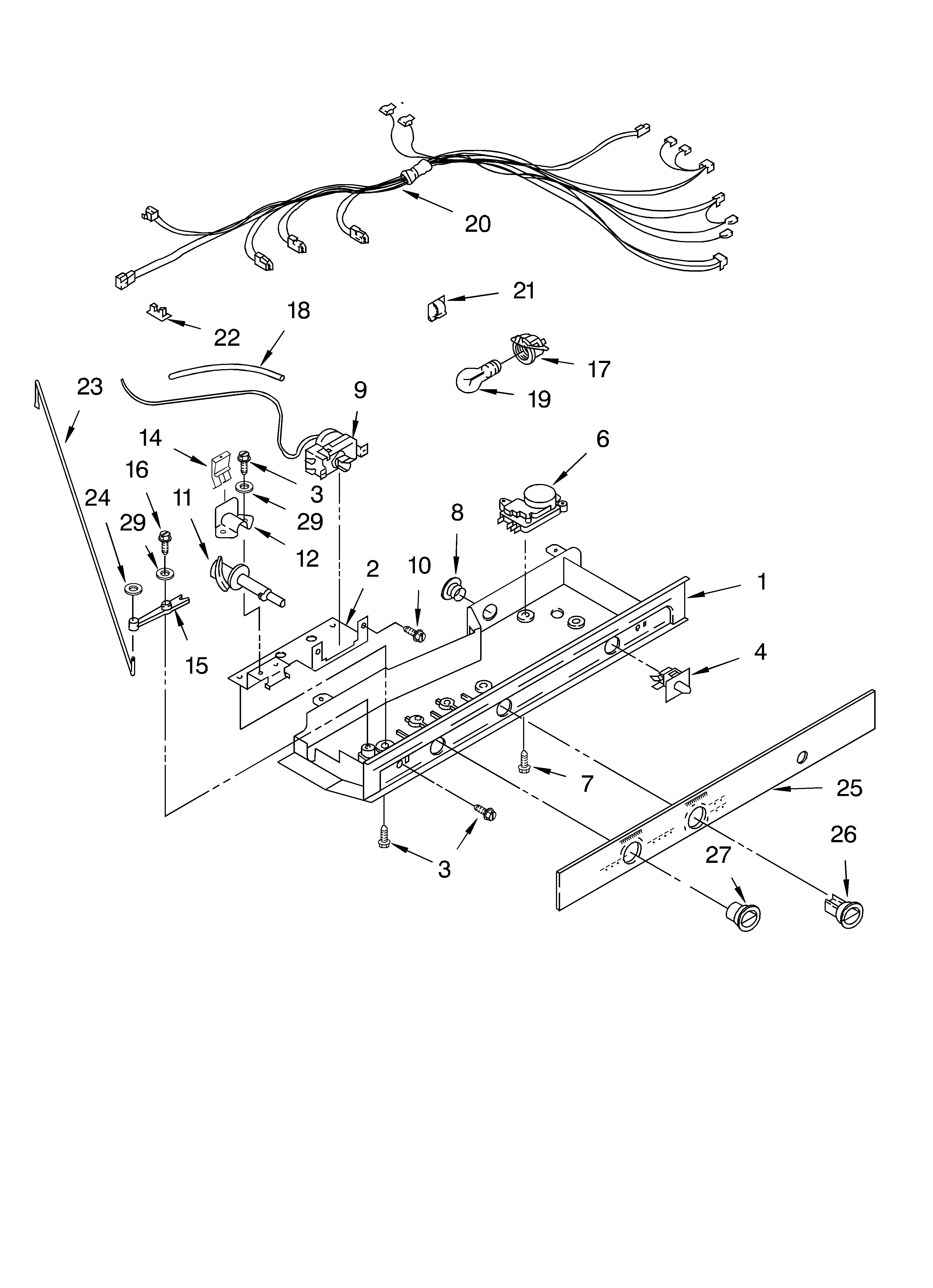

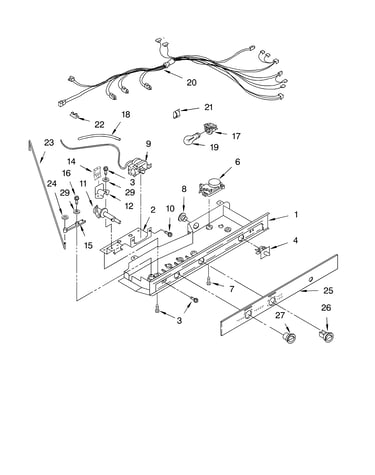

Control diagram

Refrigerator thermostat

Part #2198202

Replaced by #WP2198202

?
Manufacturer substitution
This part replaces 2198202. Substitute parts can look different from the original.
4.33 (21)
BEST SELLER
$76.36 |
7% OFF Phone Price : $82.36
In Stock
Refrigerator Defrost Bi-metal 2196155
#35

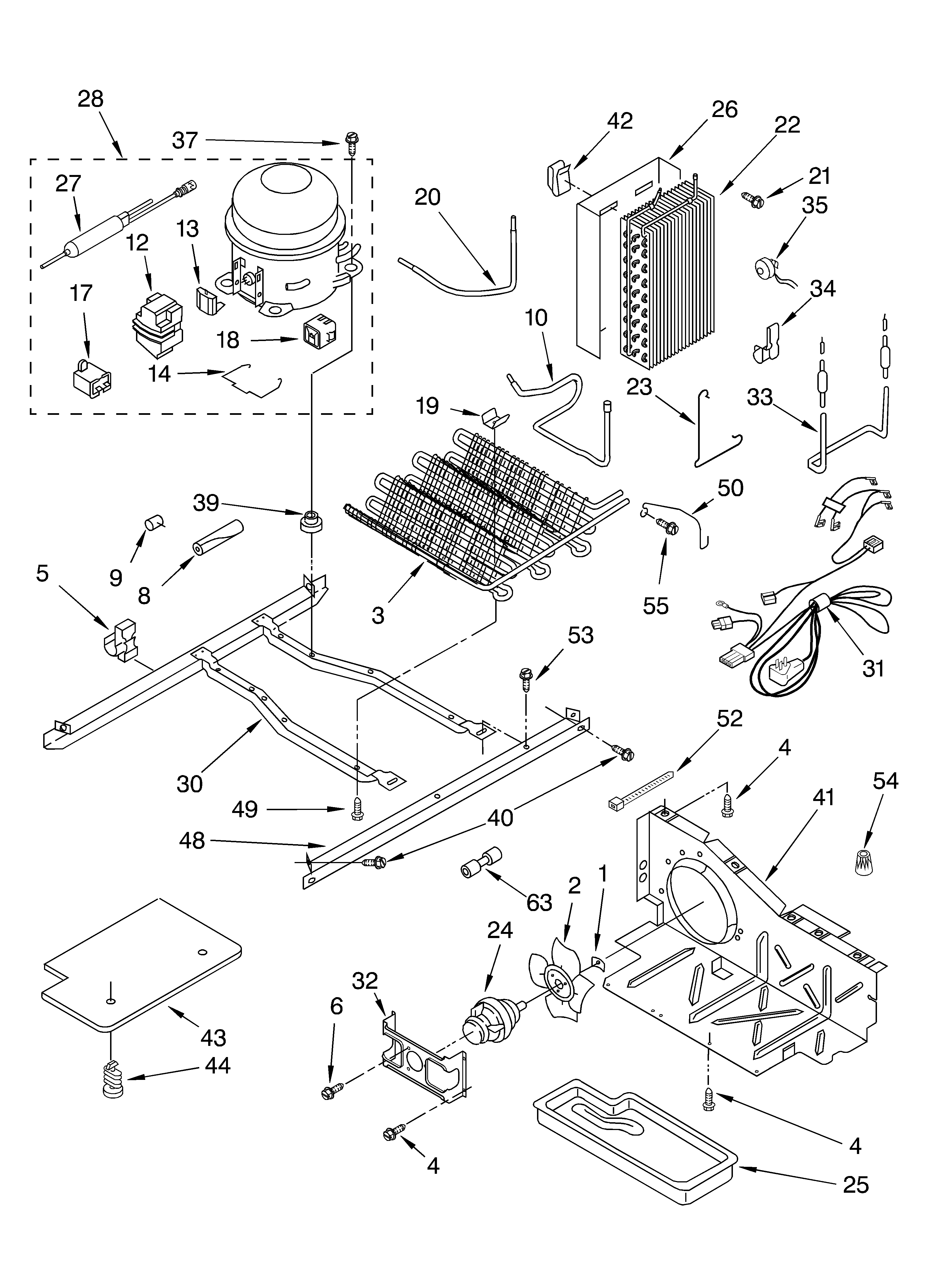

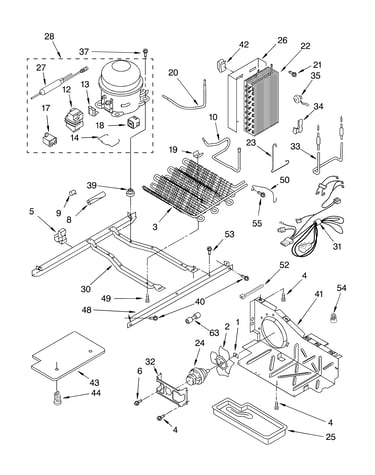

Unit diagram

Refrigerator defrost bi-metal

Part #2196155

Replaced by #WPW10225581

?
Manufacturer substitution
This part replaces 2196155. Substitute parts can look different from the original.
4.53 (17)
BEST SELLER
$27.96 |
18% OFF Phone Price : $33.96
In Stock
Refrigerator Door Cam (black) 2182178
#11

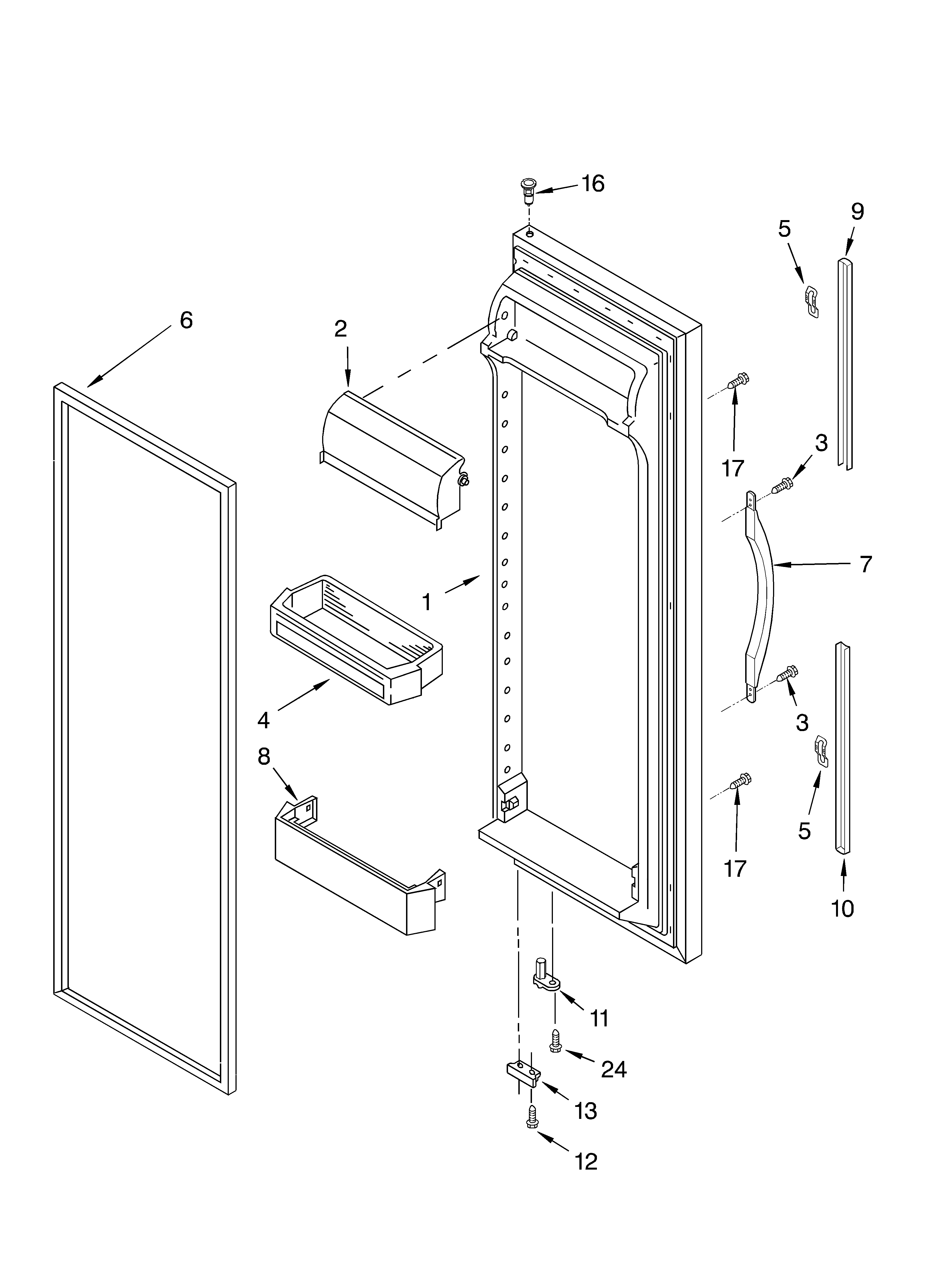

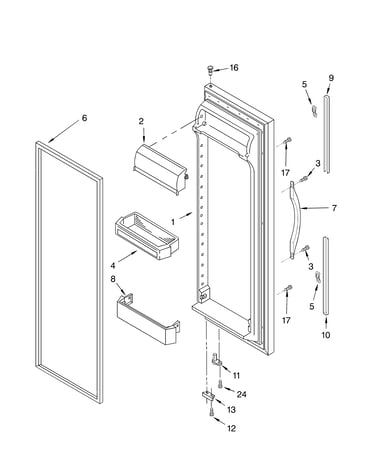

Refrigerator door diagram

Refrigerator door cam (black)

Part #2182178

Replaced by #WP2182179

?
Manufacturer substitution
This part replaces 2182178. Substitute parts can look different from the original.
3.98 (56)
BEST SELLER
$10.62 |
16% OFF Phone Price : $12.62
In Stock
Refrigerator Door Closer Cam 2182179
#12

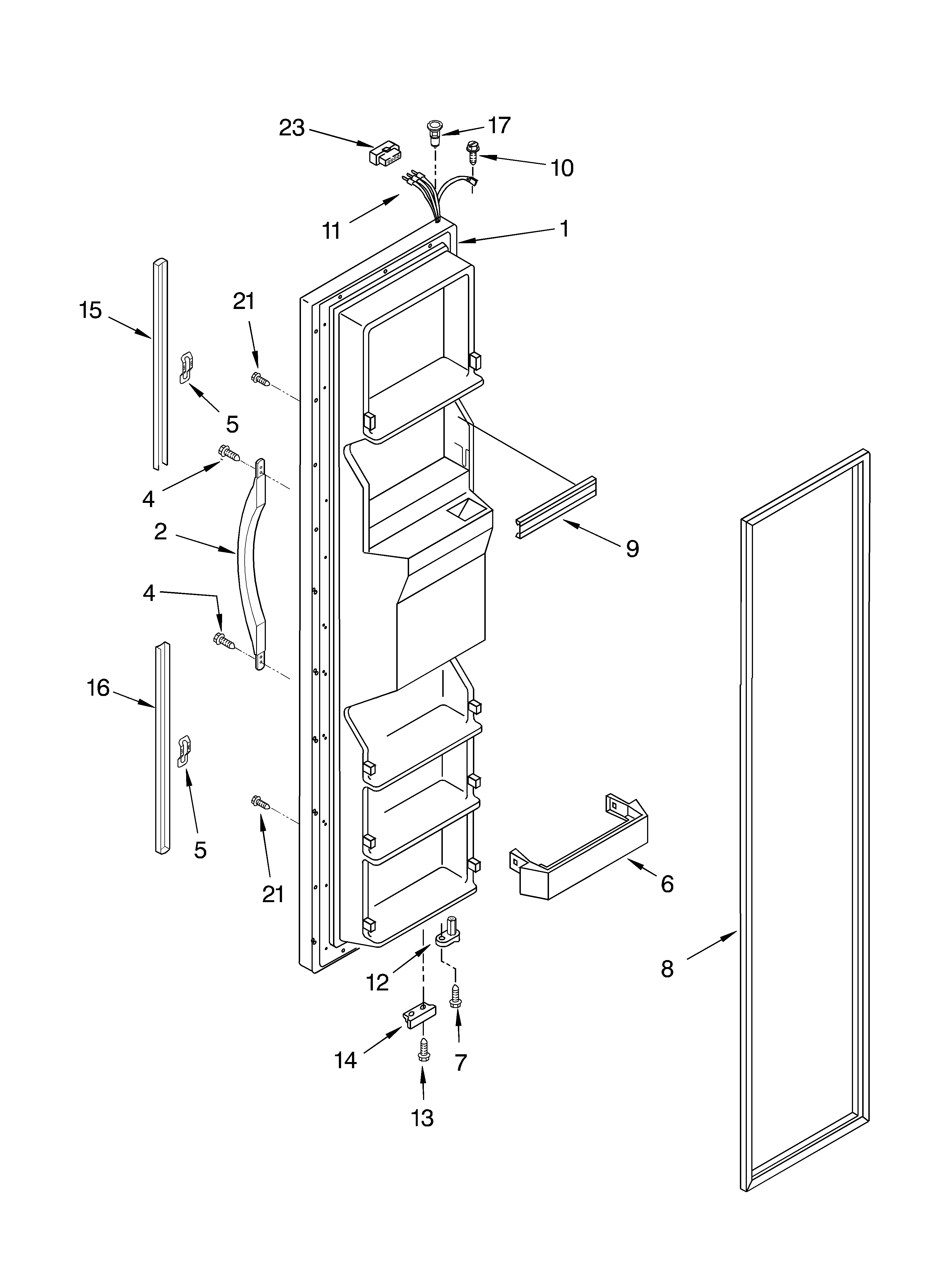

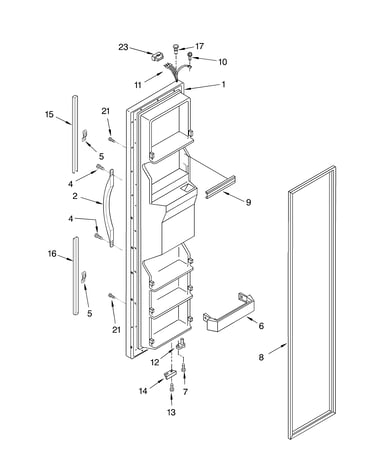

Freezer door diagram

Refrigerator door closer cam

Part #2182179

Replaced by #WP2182179

?
Manufacturer substitution
This part replaces 2182179. Substitute parts can look different from the original.
3.98 (56)
BEST SELLER
$10.62 |
16% OFF Phone Price : $12.62
In Stock
Refrigerator Meat Pan 2196162
#7

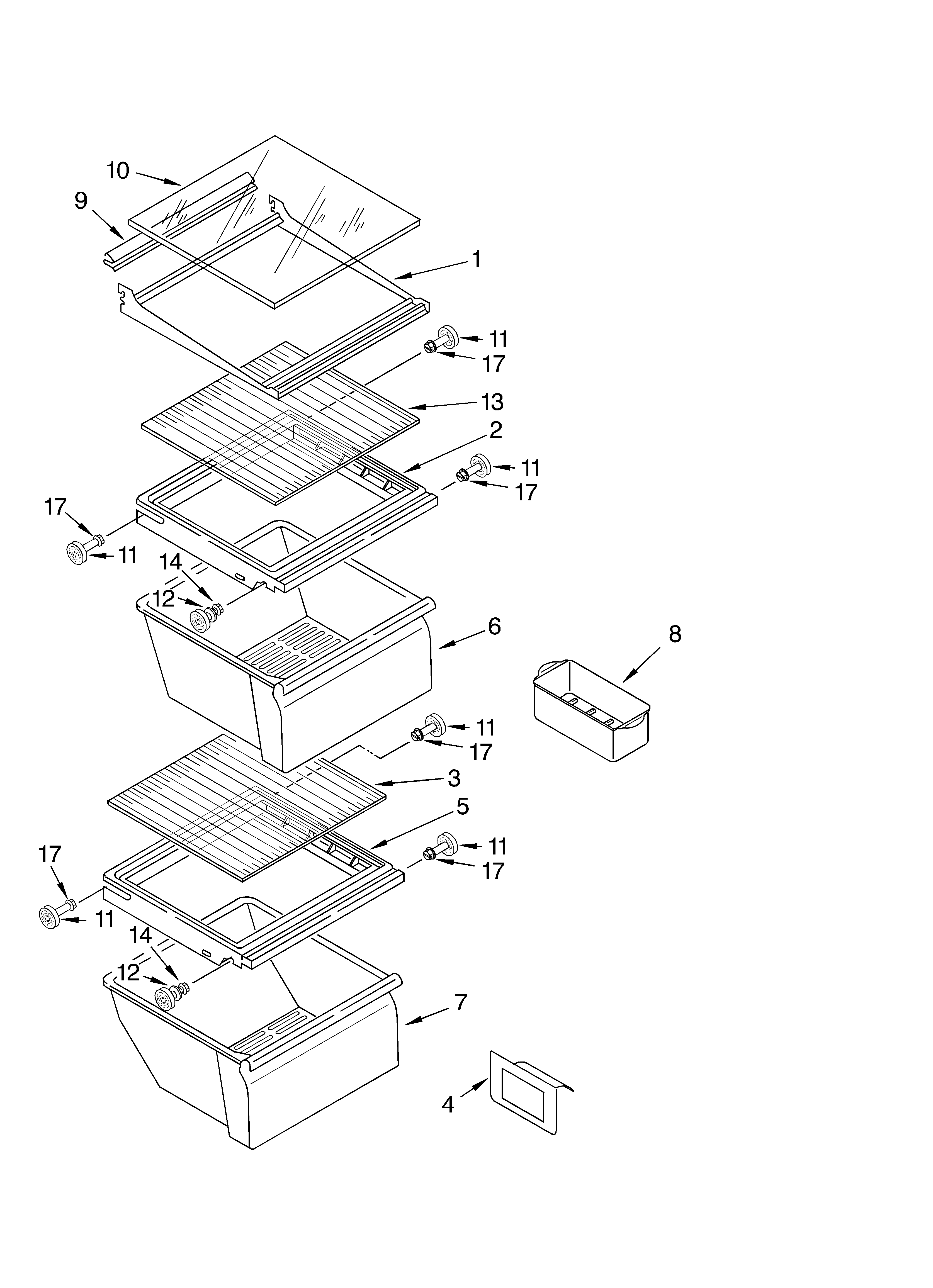

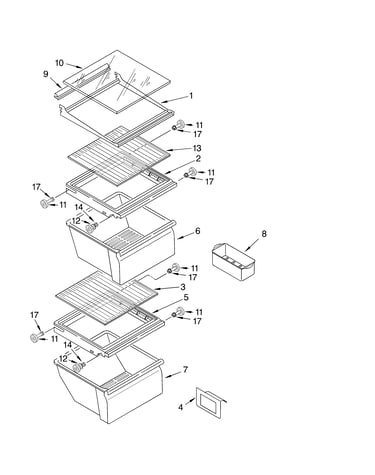

Refrigerator shelf diagram

Refrigerator meat pan

Part #2196162

Replaced by #WP2188664

?
Manufacturer substitution
This part replaces 2196162. Substitute parts can look different from the original.
4.4 (90)
BEST SELLER
$51.39 |
10% OFF Phone Price : $57.39
In Stock
Refrigerator Water Filter Housing 2186443
#31

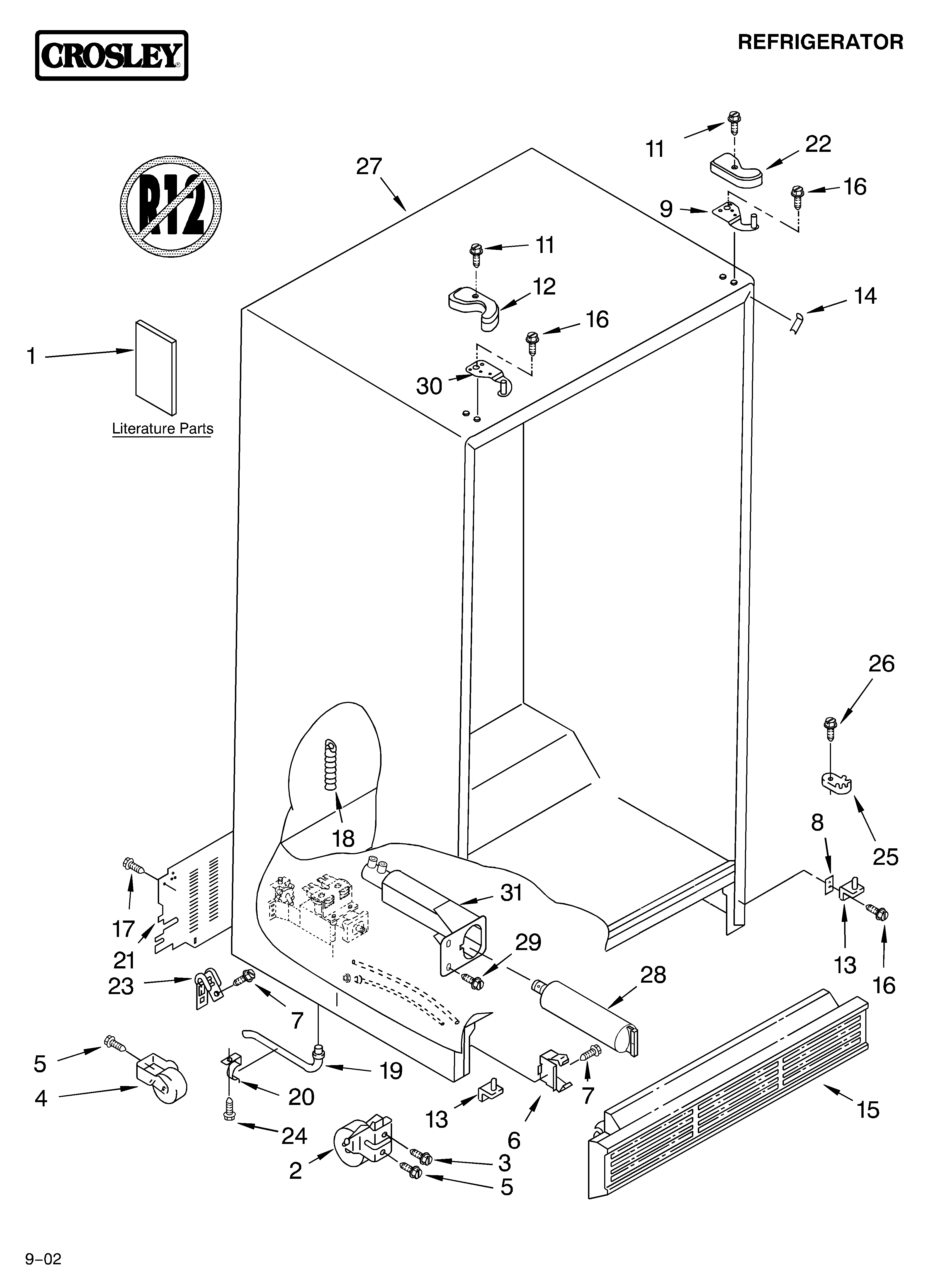

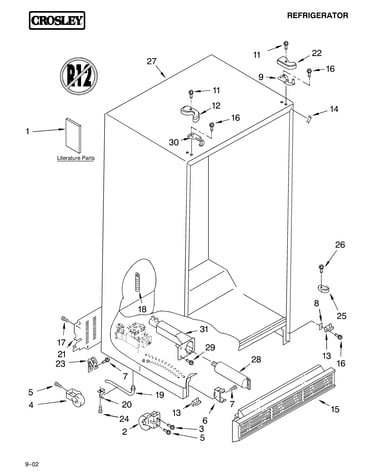

Cabinet/literature diagram

Refrigerator water filter housing

Part #2186443

Replaced by #WP2186443

?
Manufacturer substitution
This part replaces 2186443. Substitute parts can look different from the original.
3.36 (11)
BEST SELLER
$54.11 |
10% OFF Phone Price : $60.11
In Stock
Refrigerator Door Closer Cam 2155311
#25

Cabinet/literature diagram

Refrigerator door closer cam

Part #2155311

Replaced by #WPW10329686

?
Manufacturer substitution
This part replaces 2155311. Substitute parts can look different from the original.
4.21 (29)
BEST SELLER
$9.06 |
10% OFF Phone Price : $10.06
In Stock
Refrigerator Bracket 2183771
#15

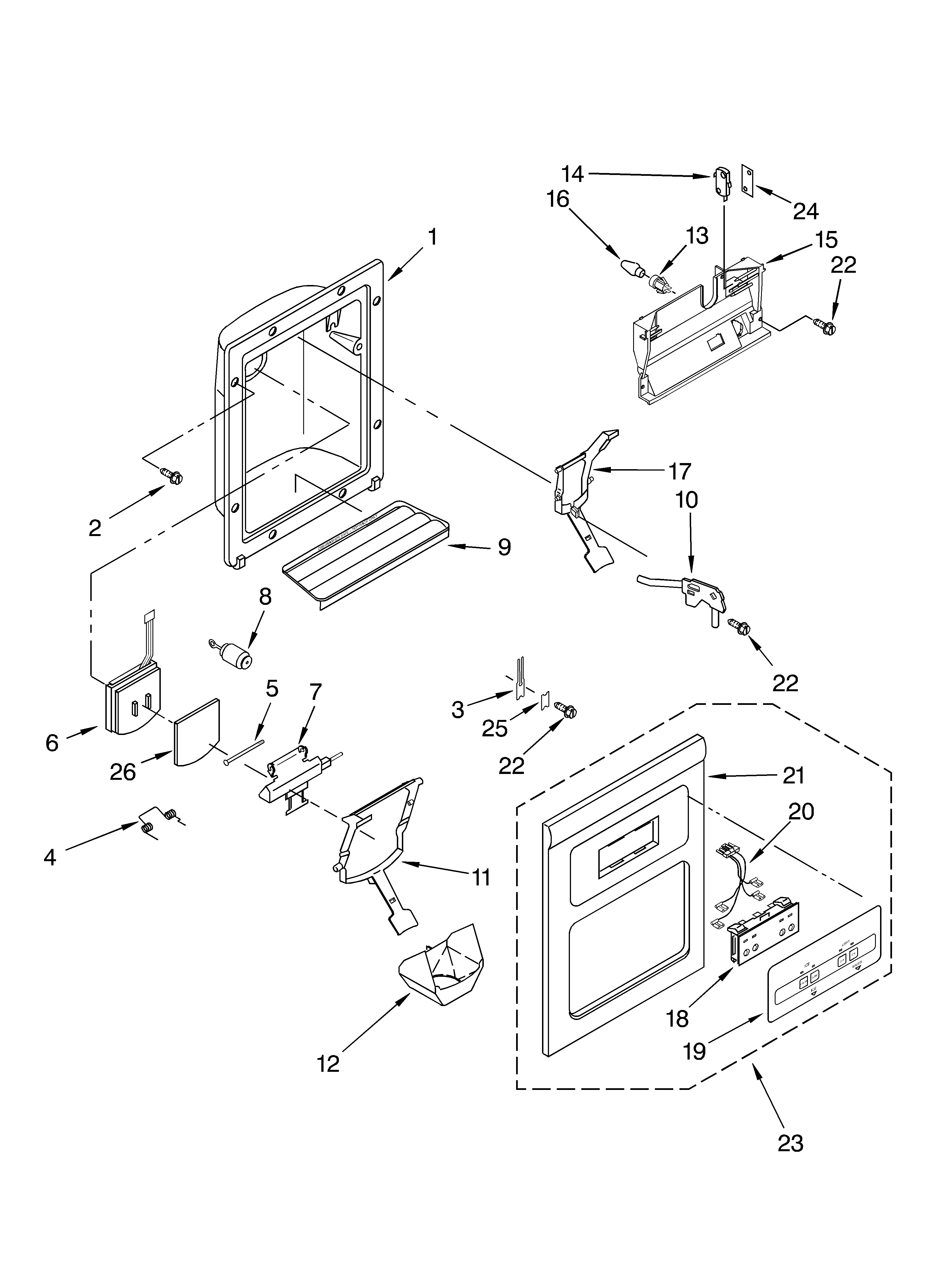

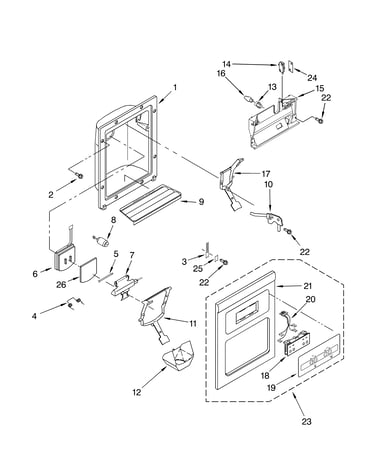

Dispenser front diagram

Refrigerator bracket

Part #2183771

Replaced by #WP2180226

?
Manufacturer substitution
This part replaces 2183771. Substitute parts can look different from the original.
4.93 (40)
BEST SELLER
$17.58 |
10% OFF Phone Price : $19.58
In Stock
