Frigidaire
Washer

Model # GLWS1349AS1 Official Frigidaire washer

Here are the diagrams and repair parts for Official Frigidaire GLWS1349AS1 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

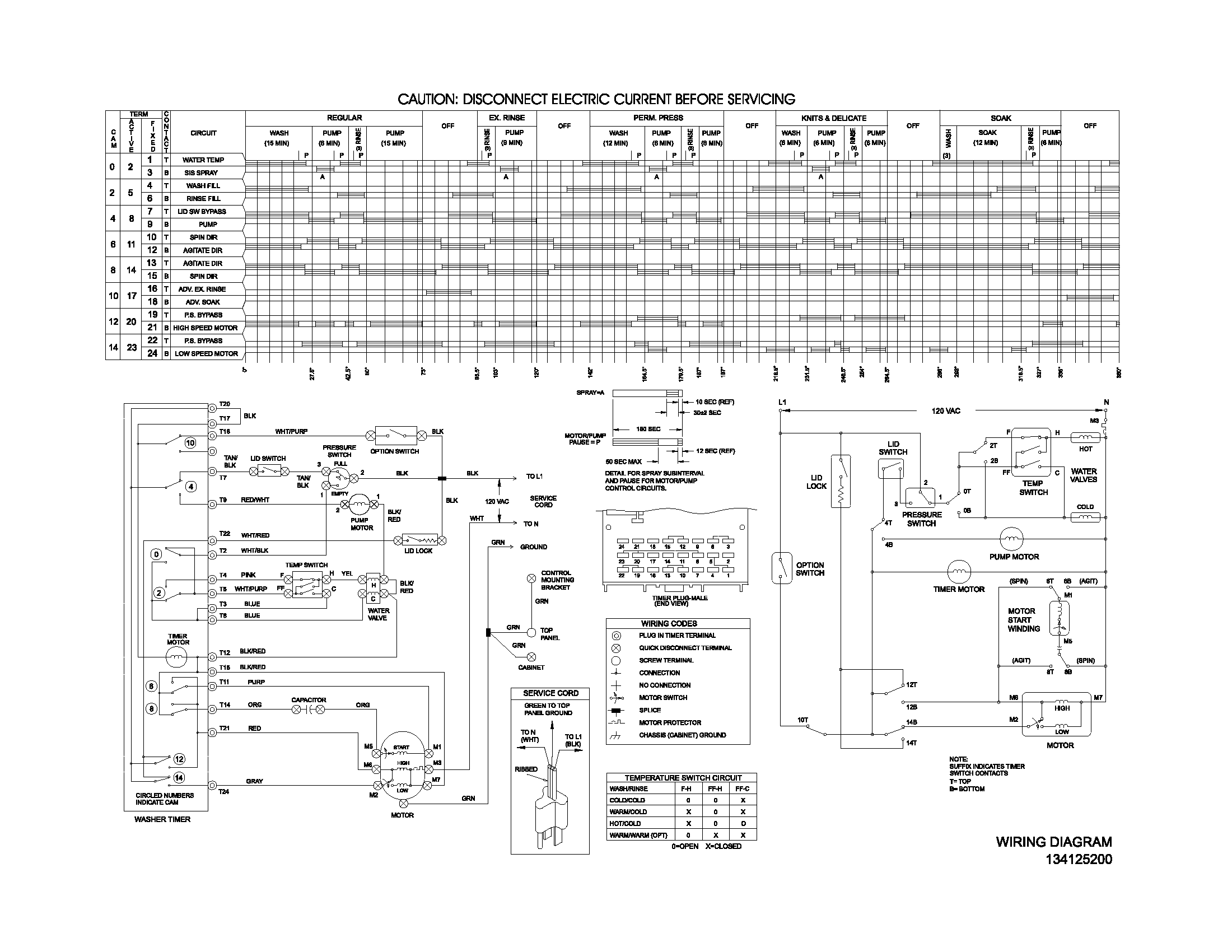

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |
Screw Inc. 131192800
#14

Wshr mtr,hose diagram

Screw inc.

Part #131192800

Replaced by #137539500

?
Manufacturer substitution
This part replaces 131192800. Substitute parts can look different from the original.
BEST SELLER
$15.24 |
12% OFF Phone Price : $17.24
In Stock
Electrolux Laundry Center Washer Trunnion (replaces 131154501) 131545101
#16

Wshr mtr,hose diagram

Electrolux laundry center washer trunnion (replaces 131154501)

Part #131545101

BEST SELLER
$102.42 |
10% OFF Phone Price : $114.42
In Stock
Laundry Center Clamp 5303304824
#9

Wshr mtr,hose diagram

Laundry center clamp

Part #5303304824

Replaced by #5304488479

?
Manufacturer substitution
This part replaces 5303304824. Substitute parts can look different from the original.
BEST SELLER
$20.69 |
22% OFF Phone Price : $26.69
In Stock
Lock Plate 5308001923
#15

Wshr mtr,hose diagram

Lock plate

Part #5308001923

Replaced by #137107000

?
Manufacturer substitution
This part replaces 5308001923. Substitute parts can look different from the original.
BEST SELLER
$28.29 |
17% OFF Phone Price : $34.29
In Stock
Mechanism Wrap 131878412
#3

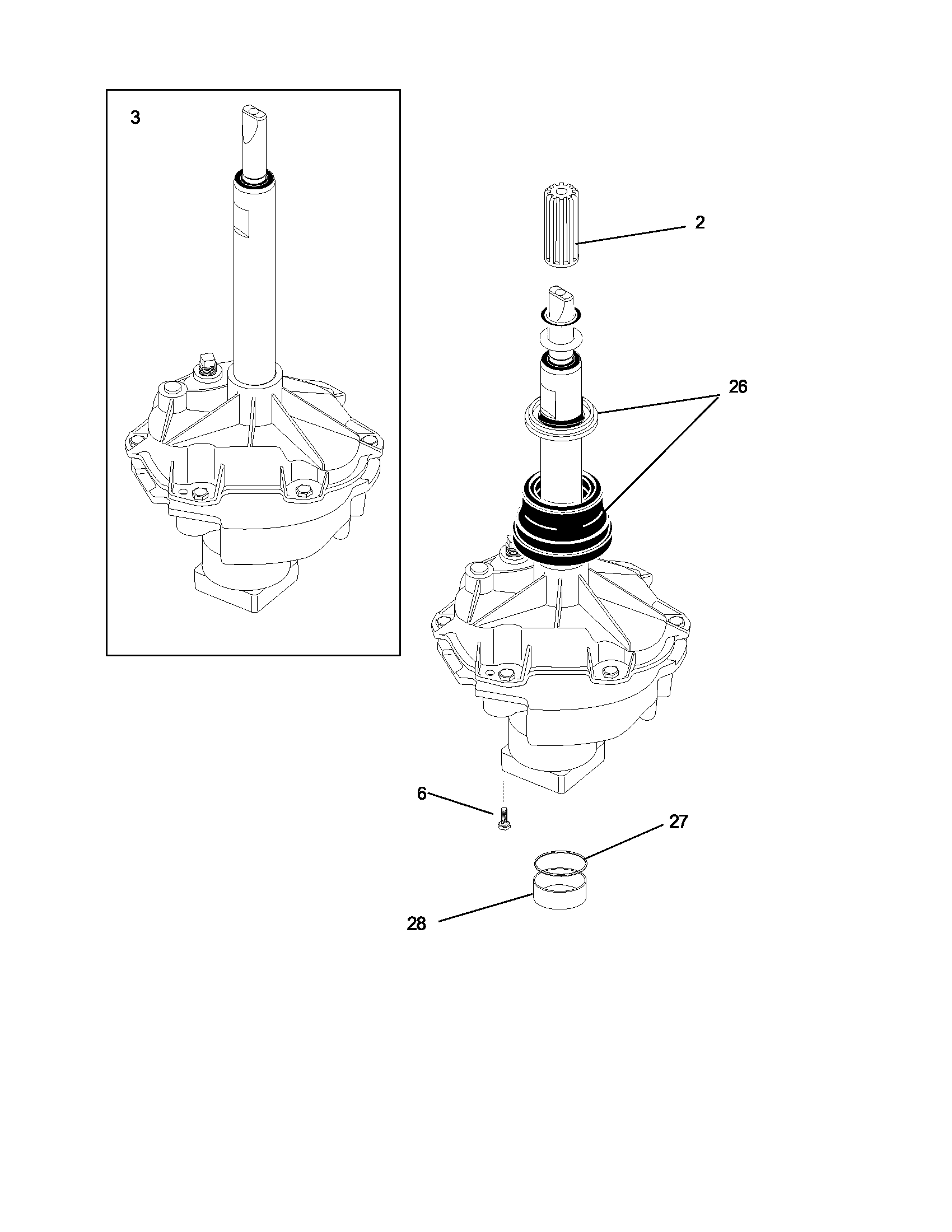

Transmission diagram

Mechanism wrap

Part #131878412

The manufacturer no longer makes this part, and there's no substitute part

Screw 131258400
Screw

Part #131258400

Replaced by #131302800

?
Manufacturer substitution
This part replaces 131258400. Substitute parts can look different from the original.
BEST SELLER
$14.09 |
12% OFF Phone Price : $16.09
In Stock
Asmy-motor/p 131902700
#40

Wshr mtr,hose diagram

Asmy-motor/p

Part #131902700

Replaced by #134159500

?
Manufacturer substitution
This part replaces 131902700. Substitute parts can look different from the original.
BEST SELLER
$246.55 |
5% OFF Phone Price : $258.55
In Stock
Water Valve 131389300
#33

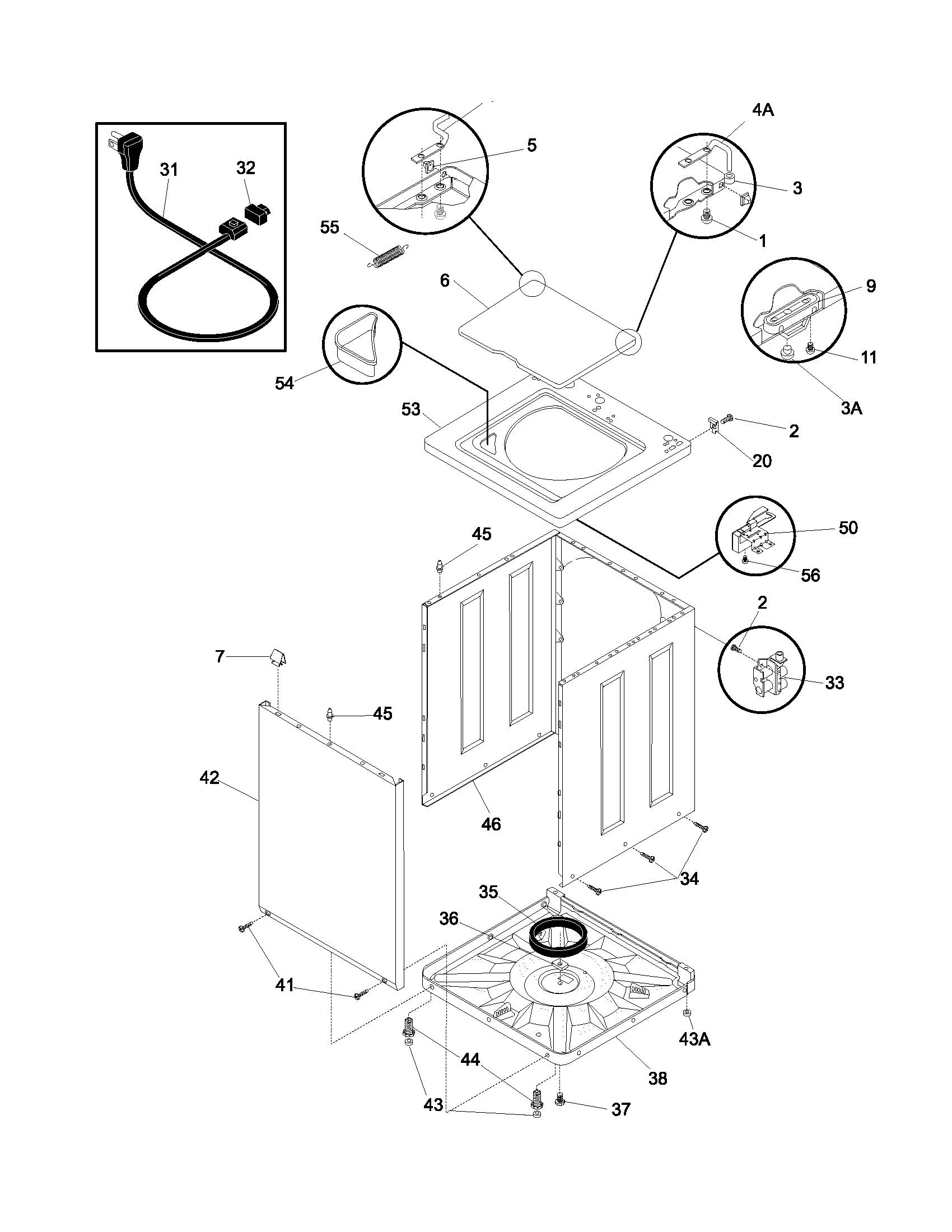

Wshr cab,top diagram

Water valve

Part #131389300

Replaced by #134190200

?
Manufacturer substitution
This part replaces 131389300. Substitute parts can look different from the original.
$125.33 |
9% OFF Phone Price : $137.33
In Stock
Kelvinator Washer Screw 131205300
#19

Wshr mtr,hose diagram

Kelvinator washer screw

Part #131205300

$15.69 |
11% OFF Phone Price : $17.69
In Stock
Kelvinator Washer Start Capacitor 131212301
#4

Wshr mtr,hose diagram

Kelvinator washer start capacitor

Part #131212301

This item is not returnable
$11.19 |
15% OFF Phone Price : $13.19
In Stock
