Model # 2VET23DKJW00 Official Whirlpool top-mount refrigerator

Here are the diagrams and repair parts for Official Whirlpool 2VET23DKJW00 top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

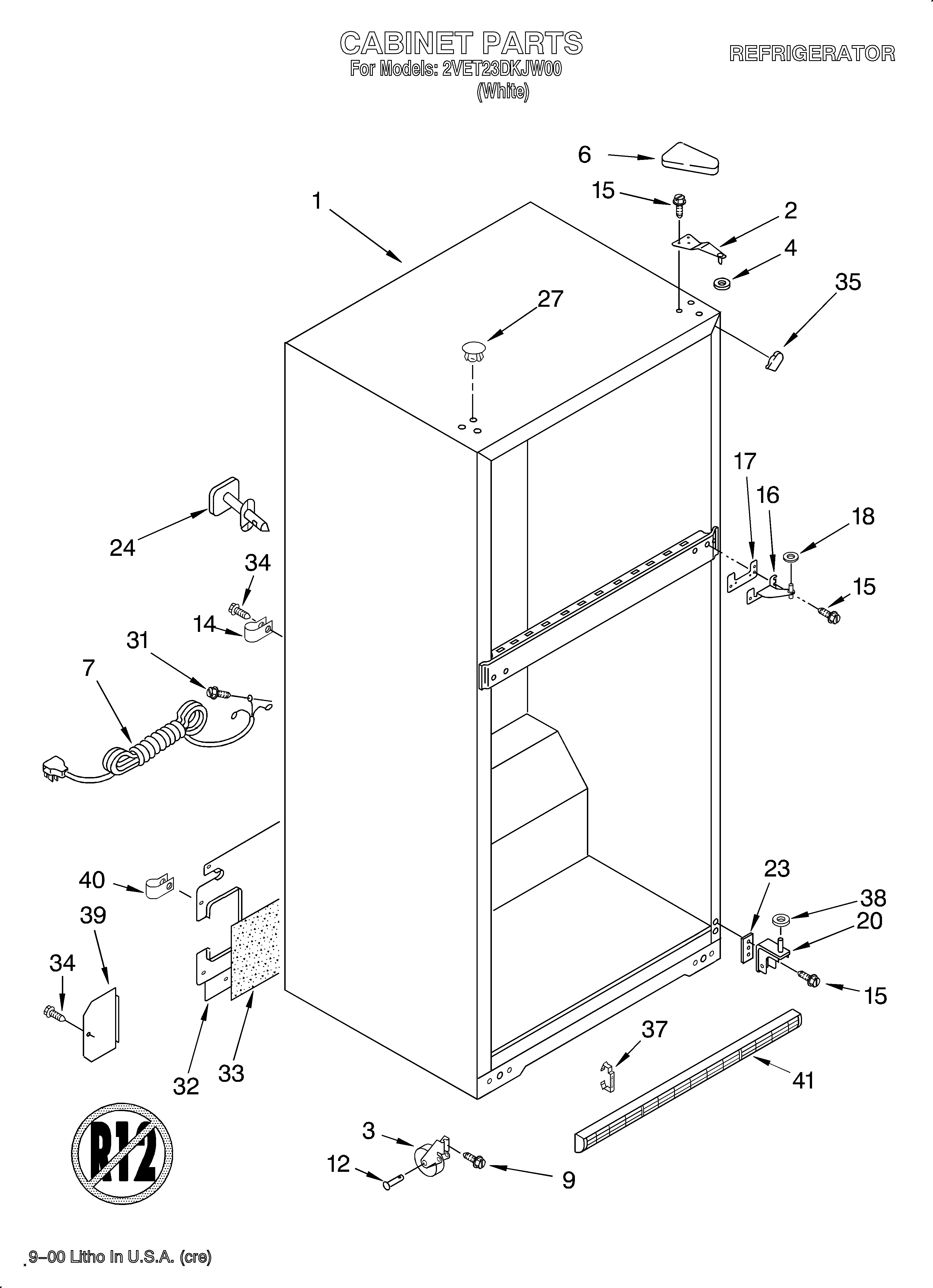

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 203 parts  |
Refrigerator Light Switch 1118894
#19

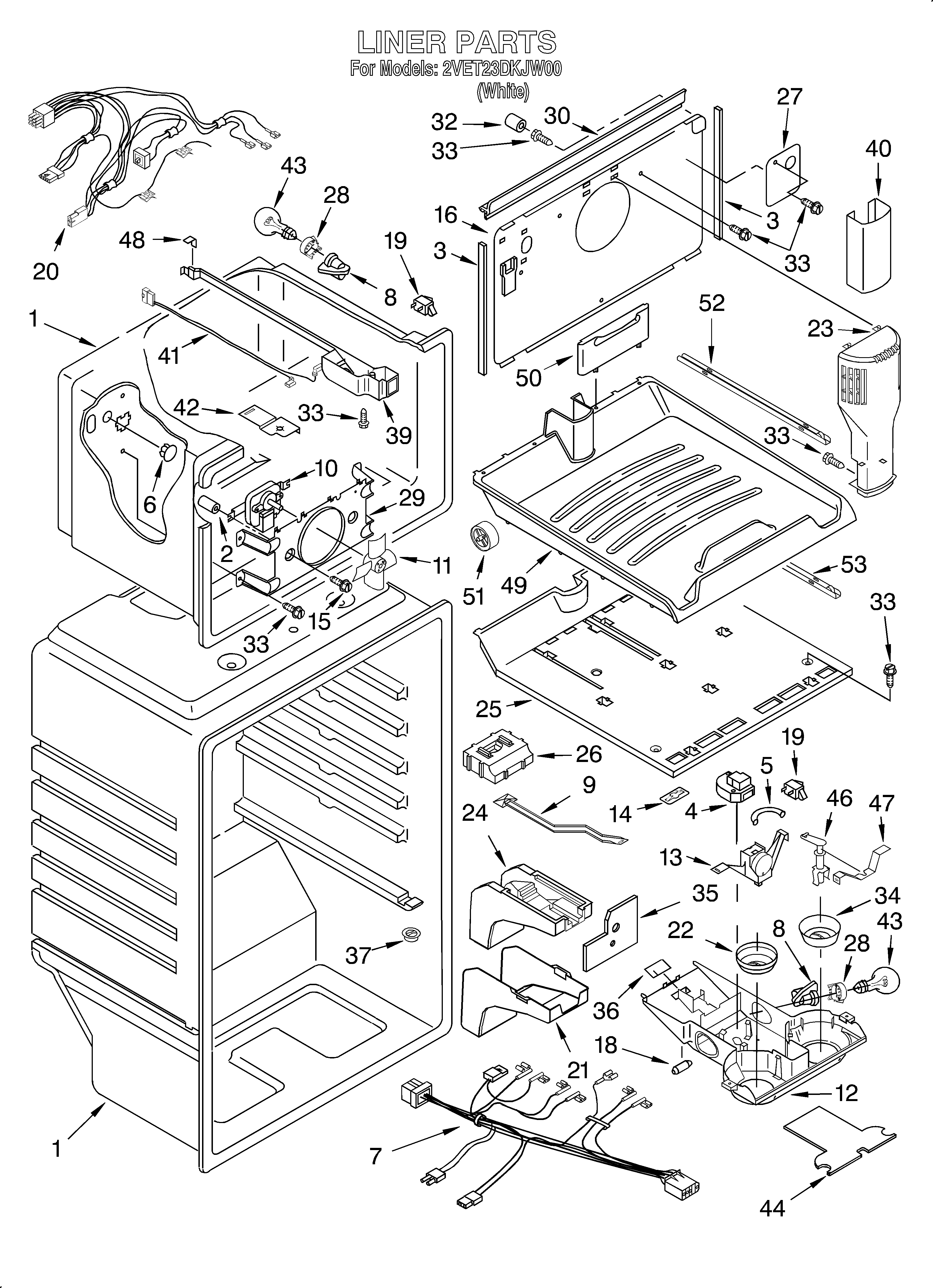

Liner diagram

Refrigerator light switch

Part #1118894

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Drier-tue 2199167
#29

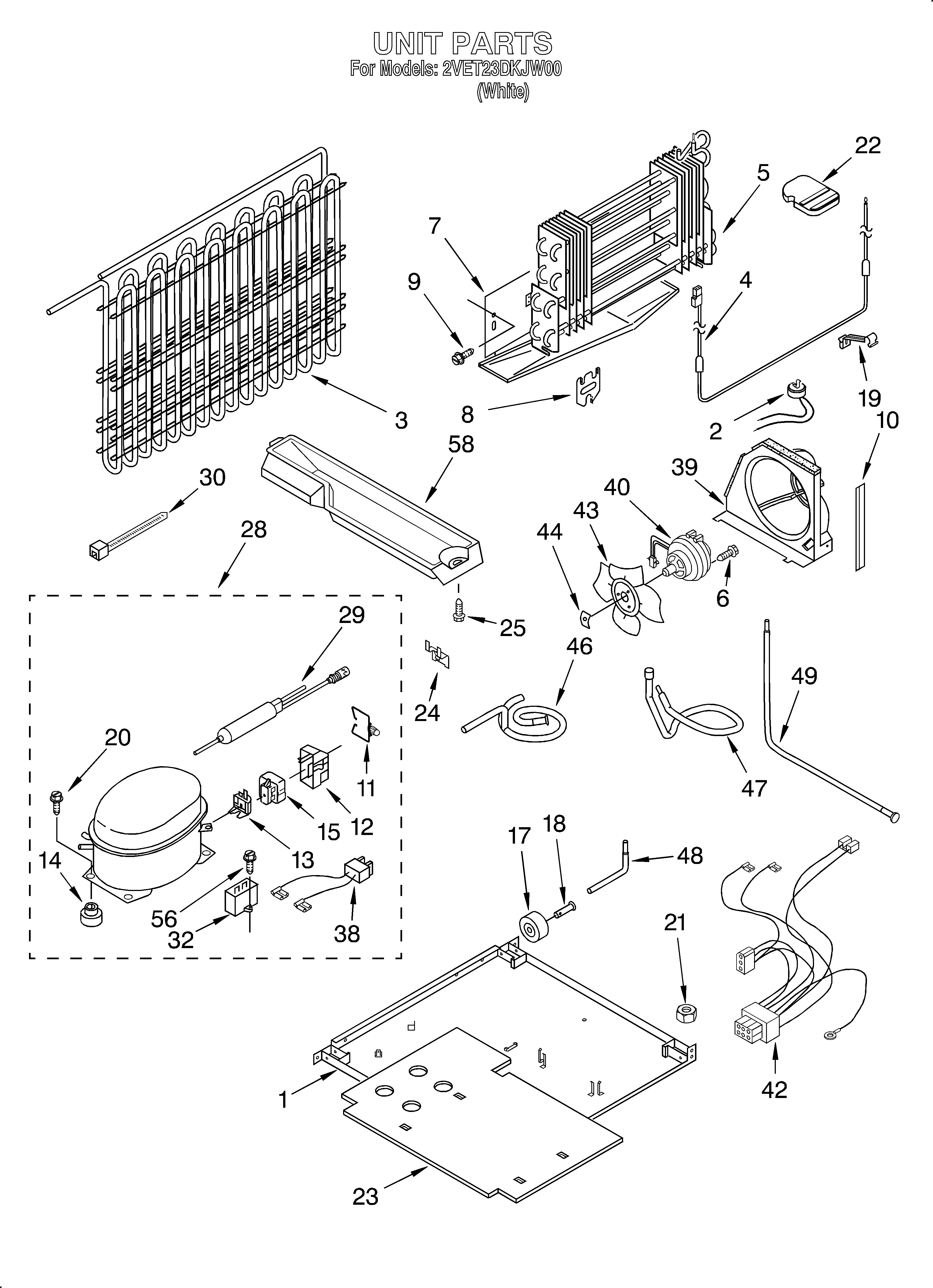

Unit diagram

Drier-tue

Part #2199167

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2199167. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Meat Pan 2201032
#20

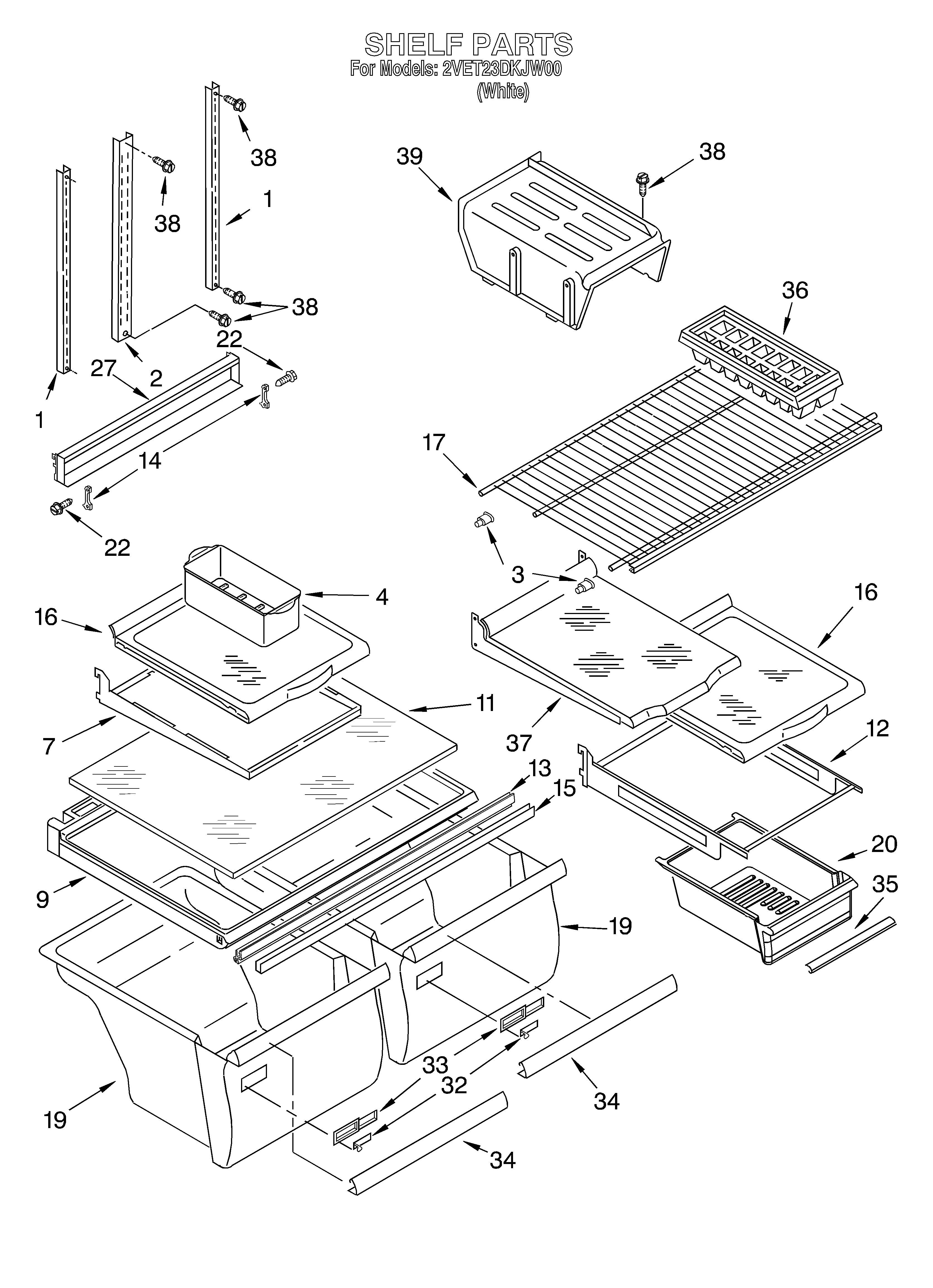

Shelf diagram

Refrigerator meat pan

Part #2201032

Replaced by #WP2218132K

?
Manufacturer substitution
This part replaces 2201032. Substitute parts can look different from the original.
BEST SELLER
$94.14 |
6% OFF Phone Price : $100.14
In Stock
Refrigerator Freezer Door Gasket (replaces 2171375, 2183850, 2214967, W11406605) 2159060
#8

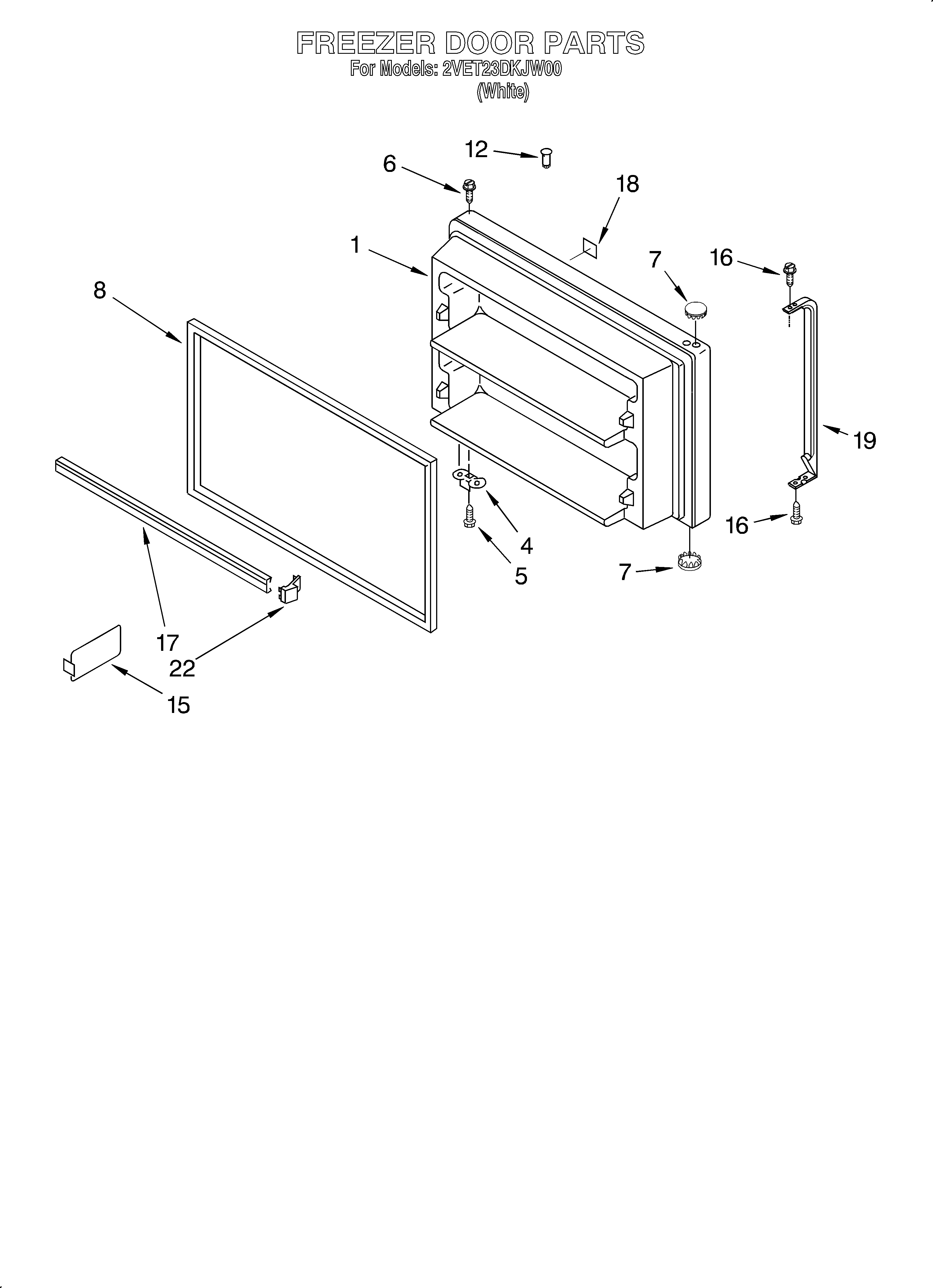

Freezer door/lit/optional diagram

Refrigerator freezer door gasket (replaces 2171375, 2183850, 2214967, w11406605)

Part #2159060

BEST SELLER
$146.92 |
8% OFF Phone Price : $158.92
In Stock
Refrigerator Screw 489357
Refrigerator screw

Part #489357

Replaced by #WP489357

?
Manufacturer substitution
This part replaces 489357. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Appliance Silicone Lubricant 542638
#NI

Freezer door/lit/optional diagram

Appliance silicone lubricant

Part #542638

Replaced by #WP542638

?
Manufacturer substitution
This part replaces 542638. Substitute parts can look different from the original.
BEST SELLER
$26.69 |
18% OFF Phone Price : $32.69
In Stock
Sears Refrigerator Service Valve (replaces 876620) 876764
#NI

Unit diagram

Sears refrigerator service valve (replaces 876620)

Part #876764

BEST SELLER
$26.12 |
19% OFF Phone Price : $32.12
In Stock
Door Trim 2195948
#21

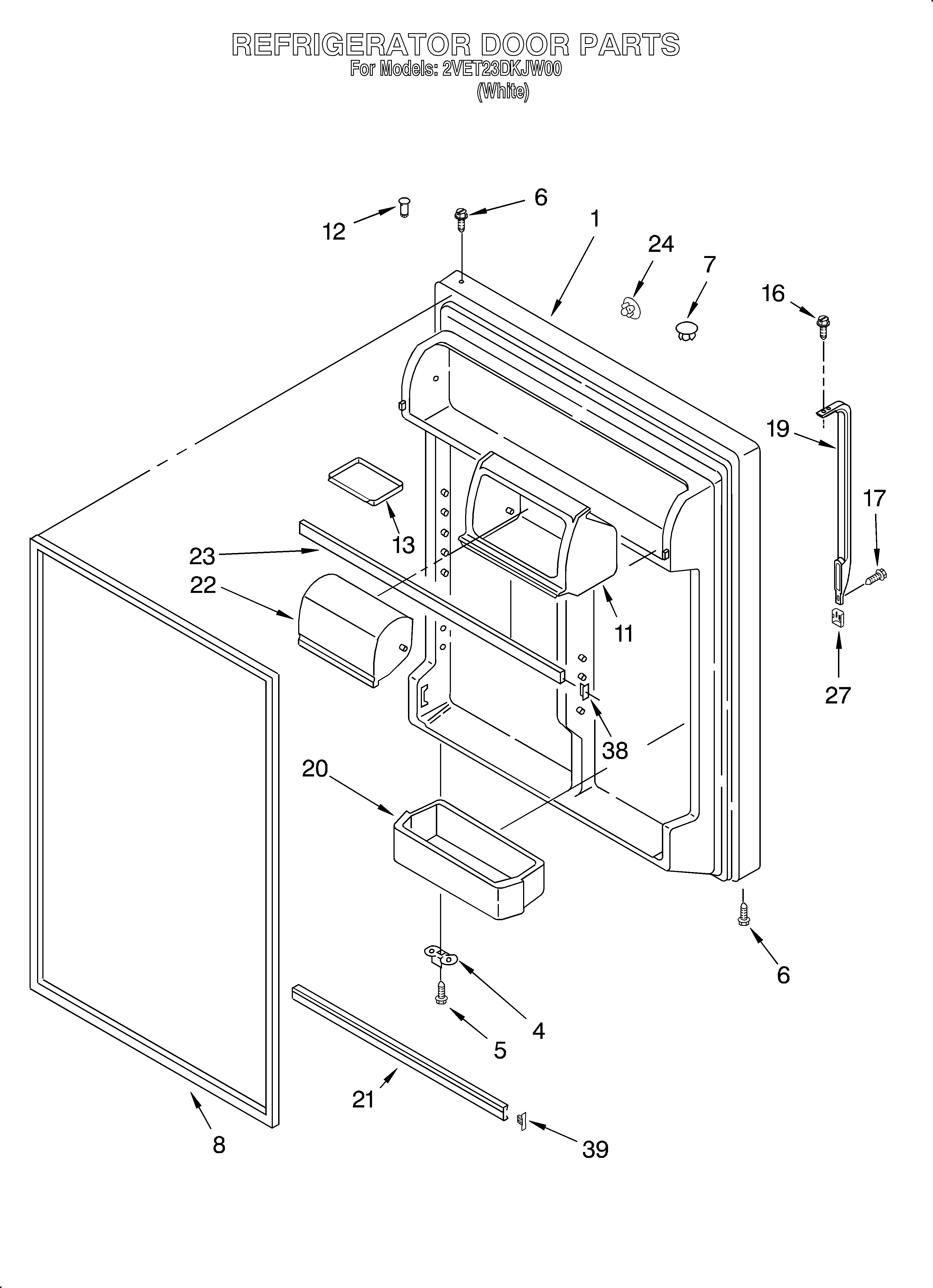

Refrigerator door diagram

Door trim

Part #2195948

Replaced by #WPW10421486

?
Manufacturer substitution
This part replaces 2195948. Substitute parts can look different from the original.
BEST SELLER
$43.11 |
12% OFF Phone Price : $49.11
Back Order
Appliance Touch-up Paint, 0.6-oz (black) (replaces 20001009, 72032p, 72032r, W10831982) 72032
#NI

Freezer door/lit/optional diagram

Appliance touch-up paint, 0.6-oz (black) (replaces 20001009, 72032p, 72032r, w10831982)

Part #72032

BEST SELLER
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Refrigerator Cantilever Shelf 2179606
#20

Refrigerator door diagram

Refrigerator cantilever shelf

Part #2179606

Replaced by #WP2204813

?
Manufacturer substitution
This part replaces 2179606. Substitute parts can look different from the original.
BEST SELLER
$57.62 |
9% OFF Phone Price : $63.62
In Stock
