Jenn-Air
Gas Range

Model # J31213WAV Official Jenn-Air gas range

Here are the diagrams and repair parts for Official Jenn-Air J31213WAV gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

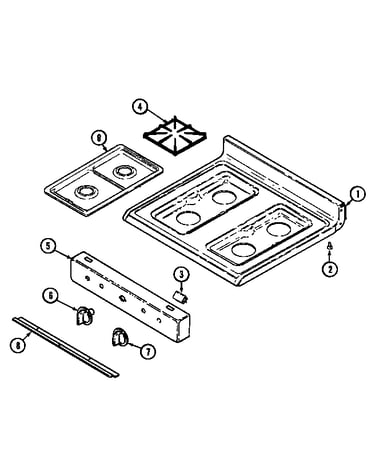

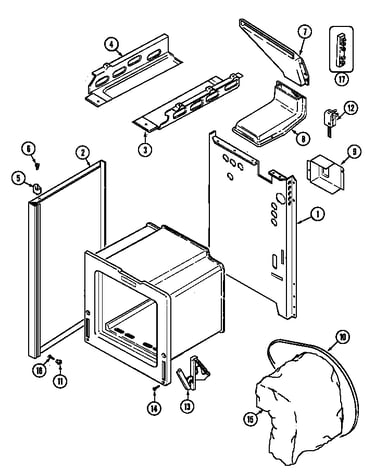

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |
Oven Bulb 7407P103-60
#4

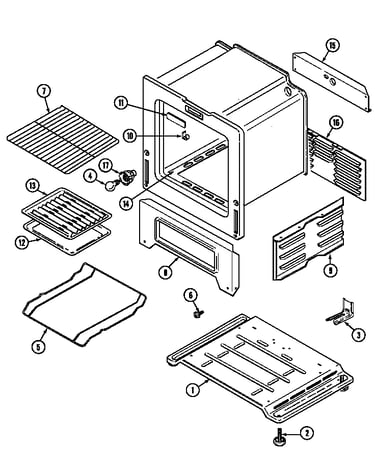

Oven/base diagram

Oven bulb

Part #7407P103-60

Replaced by #40A15

?
Manufacturer substitution
This part replaces 7407P103-60. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Oven Igniter 7432P076-60
#14

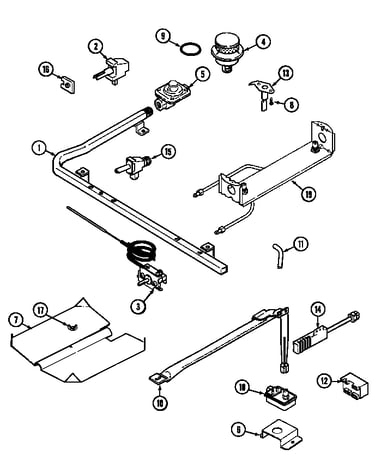

Gas controls diagram

Oven igniter

Part #7432P076-60

Replaced by #12400035

?
Manufacturer substitution
This part replaces 7432P076-60. Substitute parts can look different from the original.
BEST SELLER
$39.28 |
13% OFF Phone Price : $45.28
In Stock
Clamp Screw 7101P080-60
#13

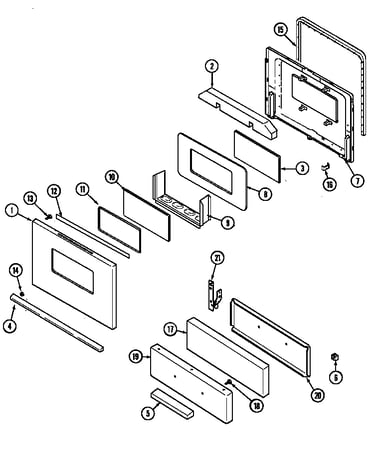

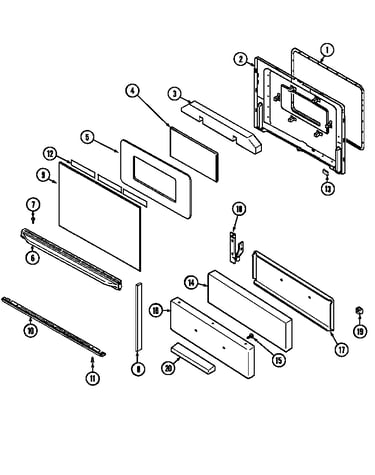

Door/drawer (j31213wa*) (j31213wav) diagram

Clamp screw

Part #7101P080-60

Replaced by #WP3387230

?
Manufacturer substitution
This part replaces 7101P080-60. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Burner Seal 3412D018-09
#4

Gas controls diagram

Burner seal

Part #3412D018-09

Replaced by #WP3412D024-09

?
Manufacturer substitution
This part replaces 3412D018-09. Substitute parts can look different from the original.
$58.10 |
9% OFF Phone Price : $64.10
In Stock
Sealed Burner 3412D018-26
#4A

Gas controls diagram

Sealed burner

Part #3412D018-26

Replaced by #WP3412D024-26

?
Manufacturer substitution
This part replaces 3412D018-26. Substitute parts can look different from the original.
$53.19 |
10% OFF Phone Price : $59.19
In Stock
Bracket Screw 7101P040-60
Bracket screw

Part #7101P040-60

Replaced by #WP98008545

?
Manufacturer substitution
This part replaces 7101P040-60. Substitute parts can look different from the original.
This item is not returnable
$4.67 |
18% OFF Phone Price : $5.67
In Stock
Oven Rack 74001757
#7

Oven/base diagram

Oven rack

Part #74001757

Replaced by #WPW10282492

?
Manufacturer substitution
This part replaces 74001757. Substitute parts can look different from the original.
$56.89 |
10% OFF Phone Price : $62.89
In Stock
Screw 7101P328-60
#14A

Gas controls diagram

Screw

Part #7101P328-60

Replaced by #WP3351614

?
Manufacturer substitution
This part replaces 7101P328-60. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 7101P347-60
#7B

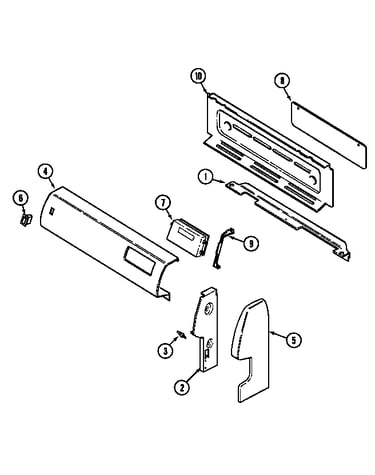

Control panel diagram

Screw

Part #7101P347-60

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 7101P347-60. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Screw 707113
#8

Gas controls diagram

Screw

Part #707113

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 707113. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
