GE
Bottom-Mount Refrigerator

Model # ZWE23ESNDSS Official GE refrigerator

Here are the diagrams and repair parts for Official GE ZWE23ESNDSS refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

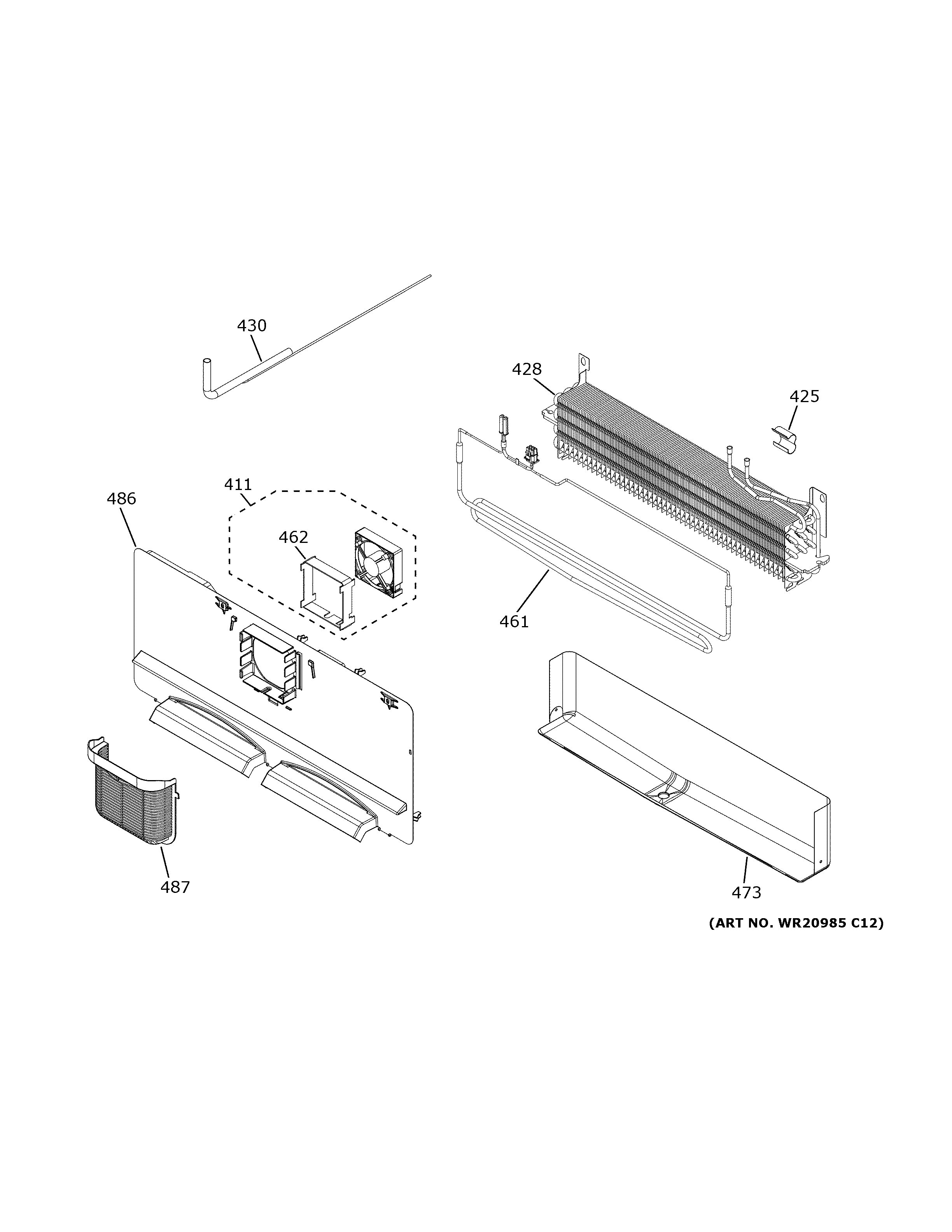

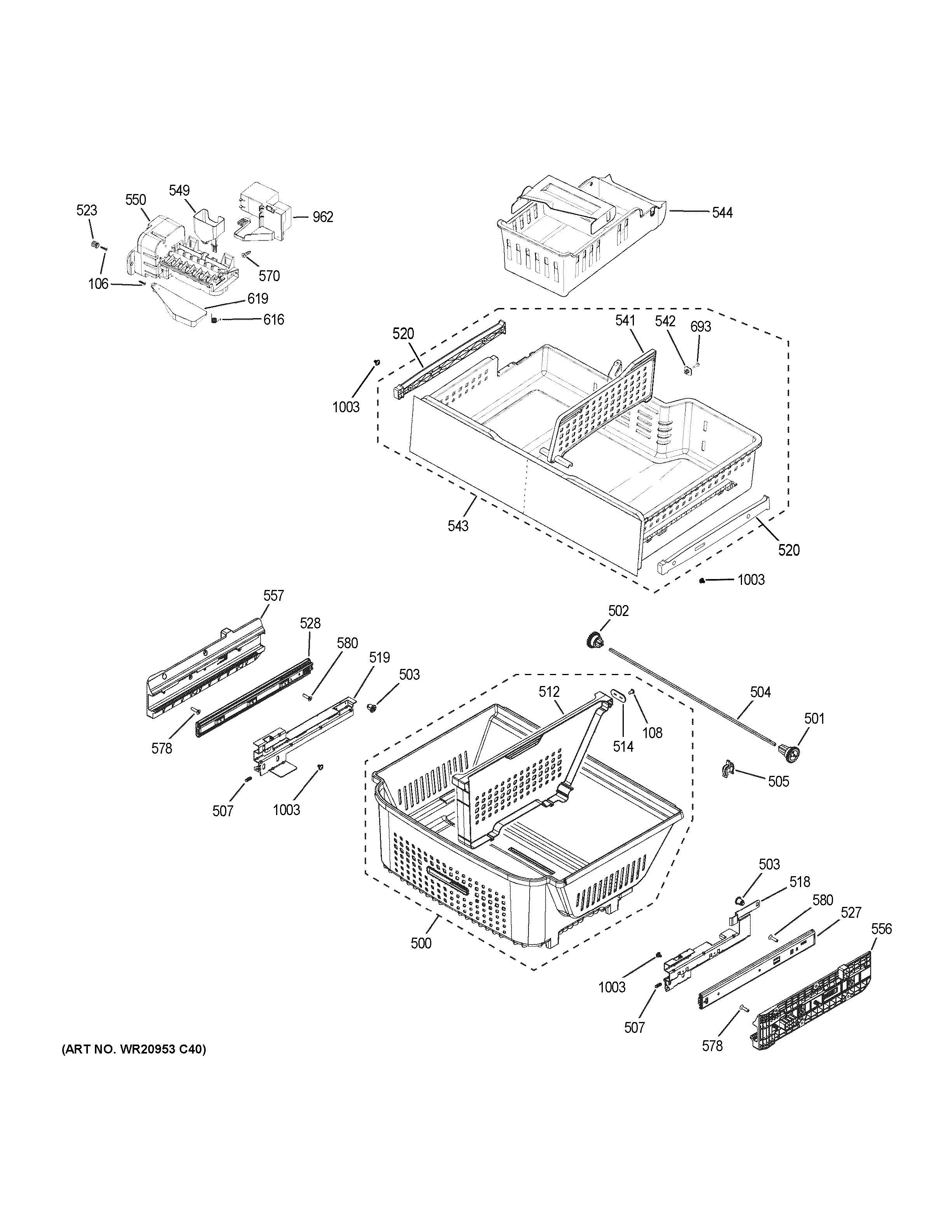

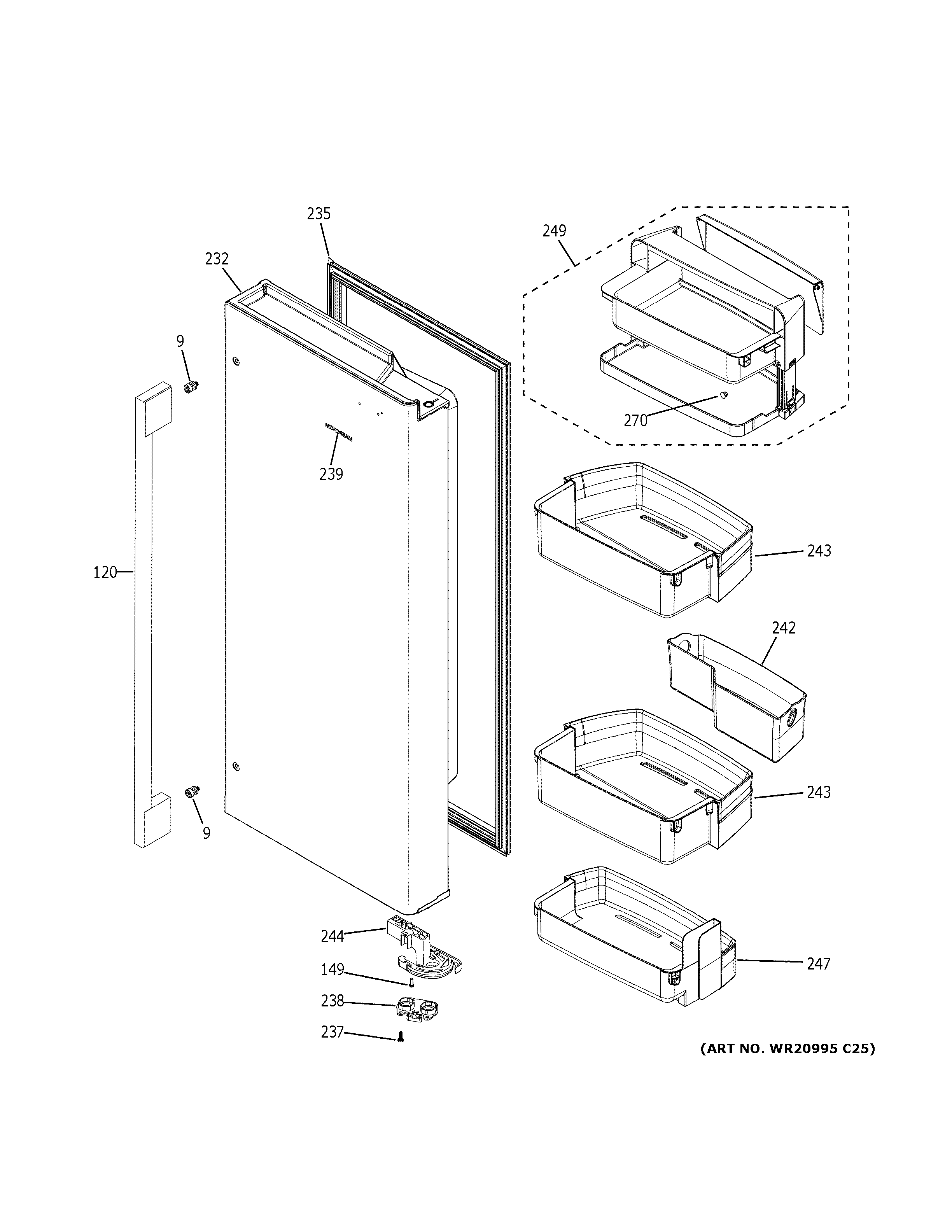

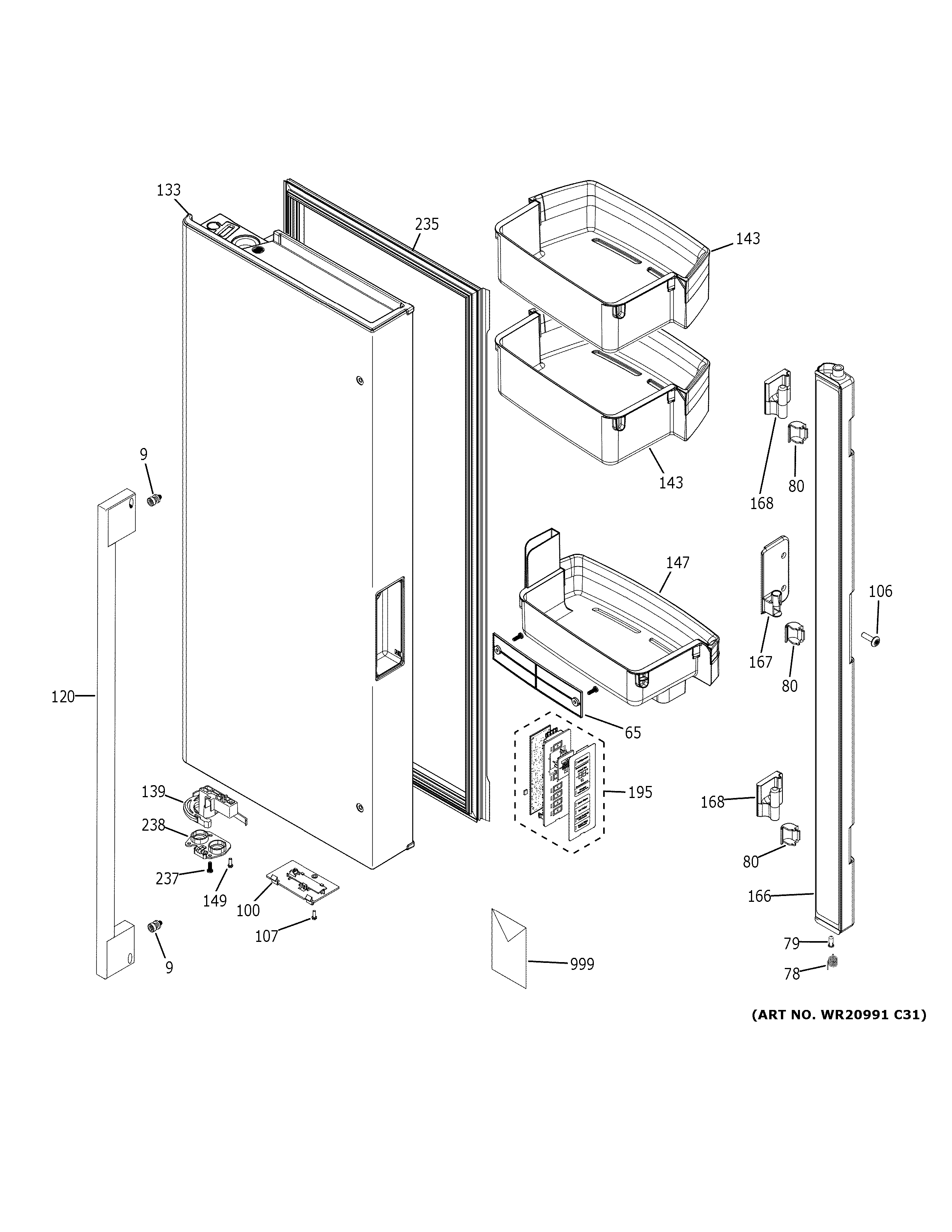

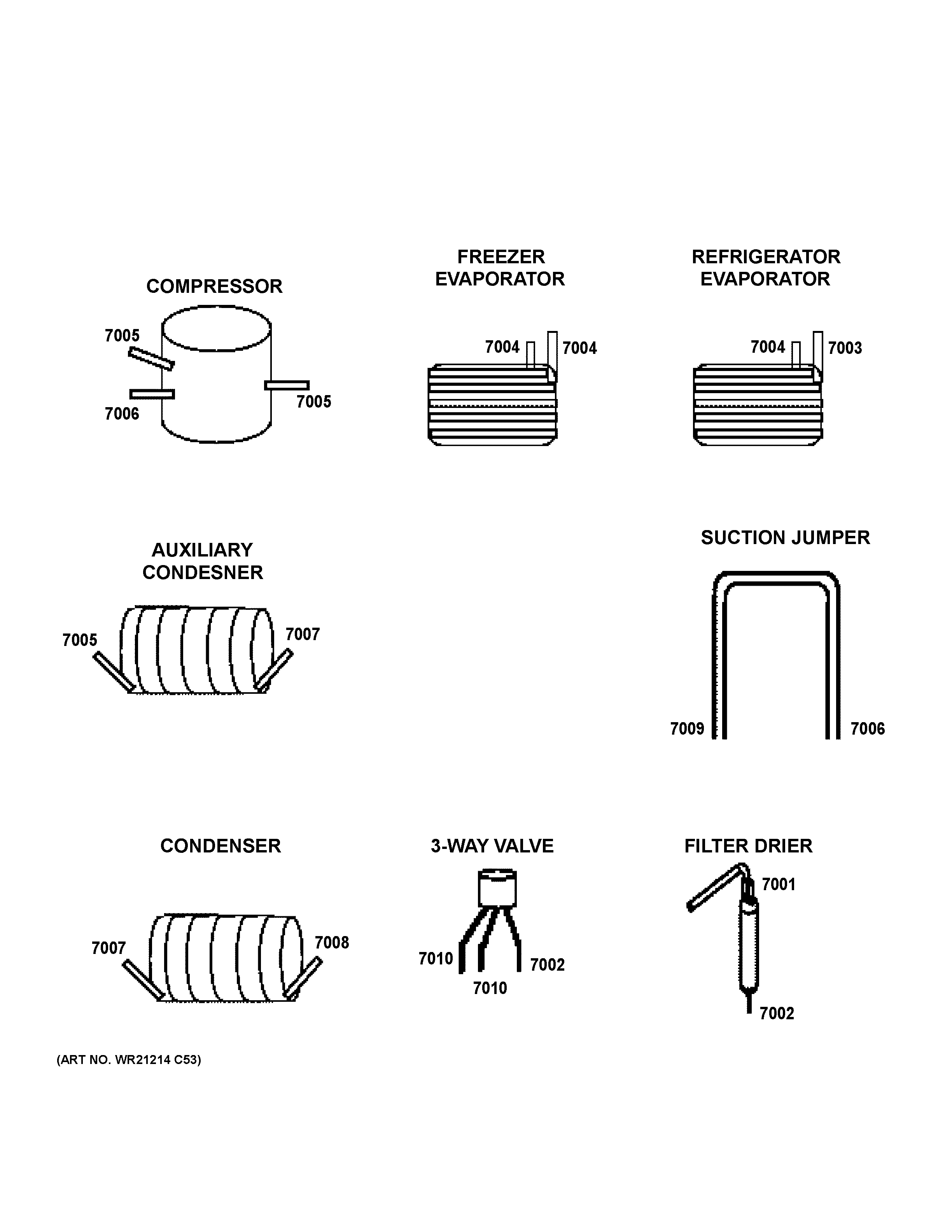

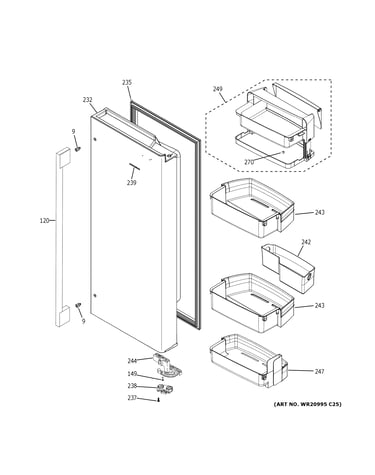

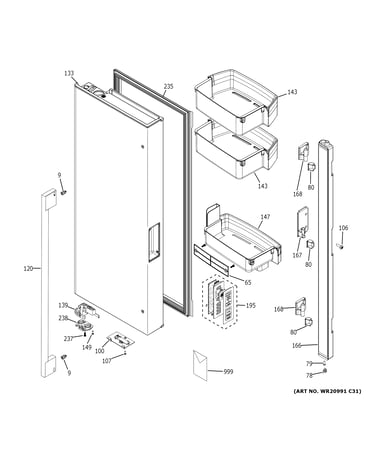

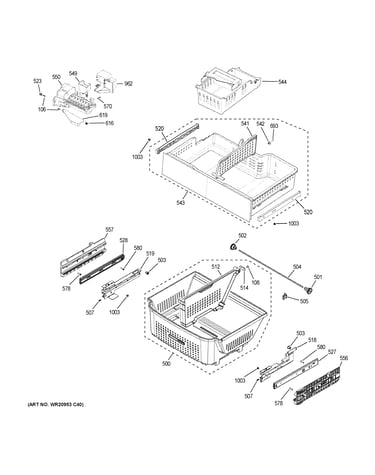

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 207 parts  |
Refrigerator Temperature Sensor WR55X11153
#955

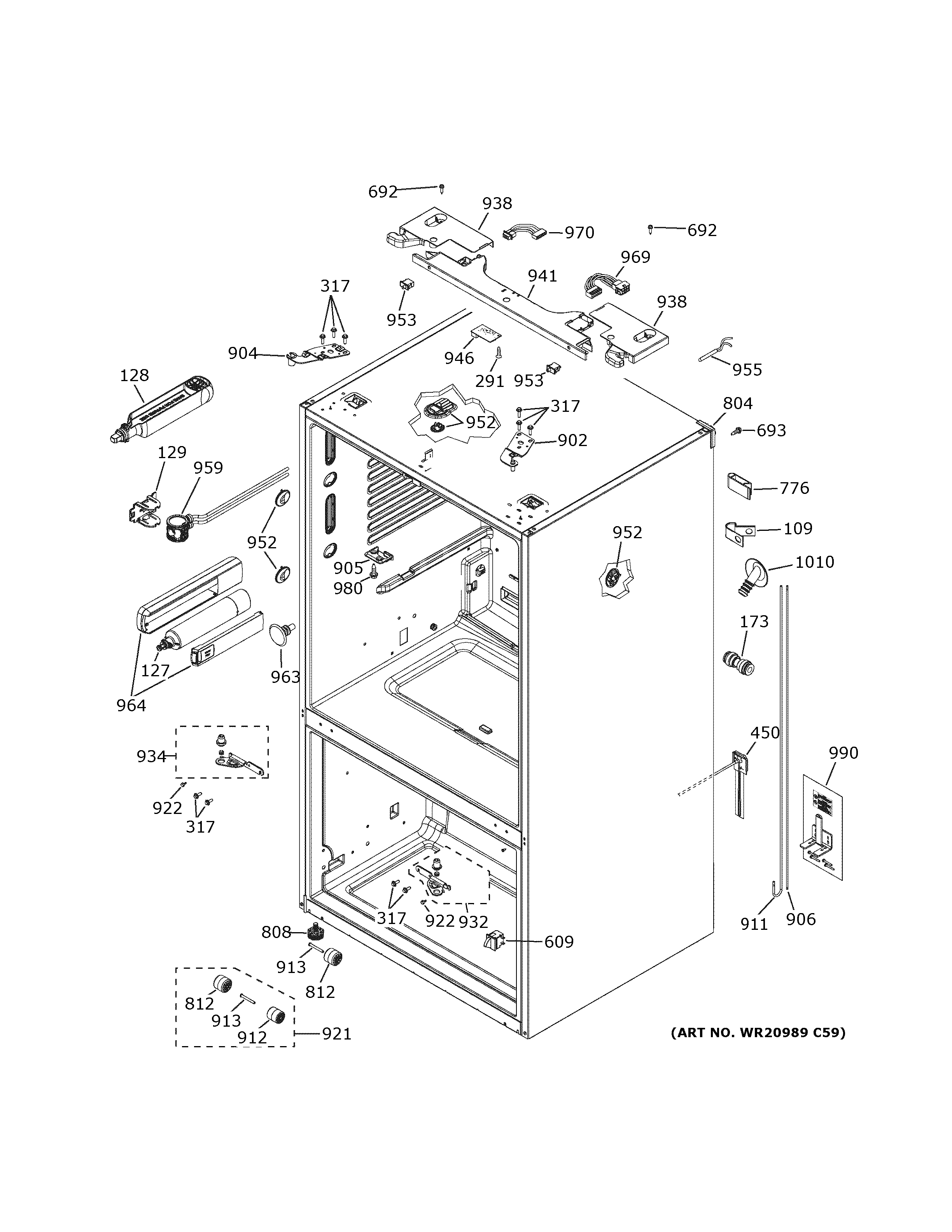

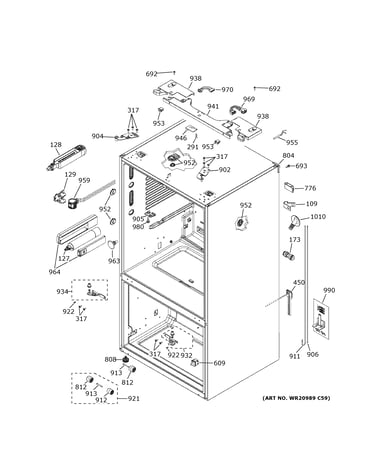

Case parts diagram

Refrigerator temperature sensor

Part #WR55X11153

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X11153. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X11141
#841

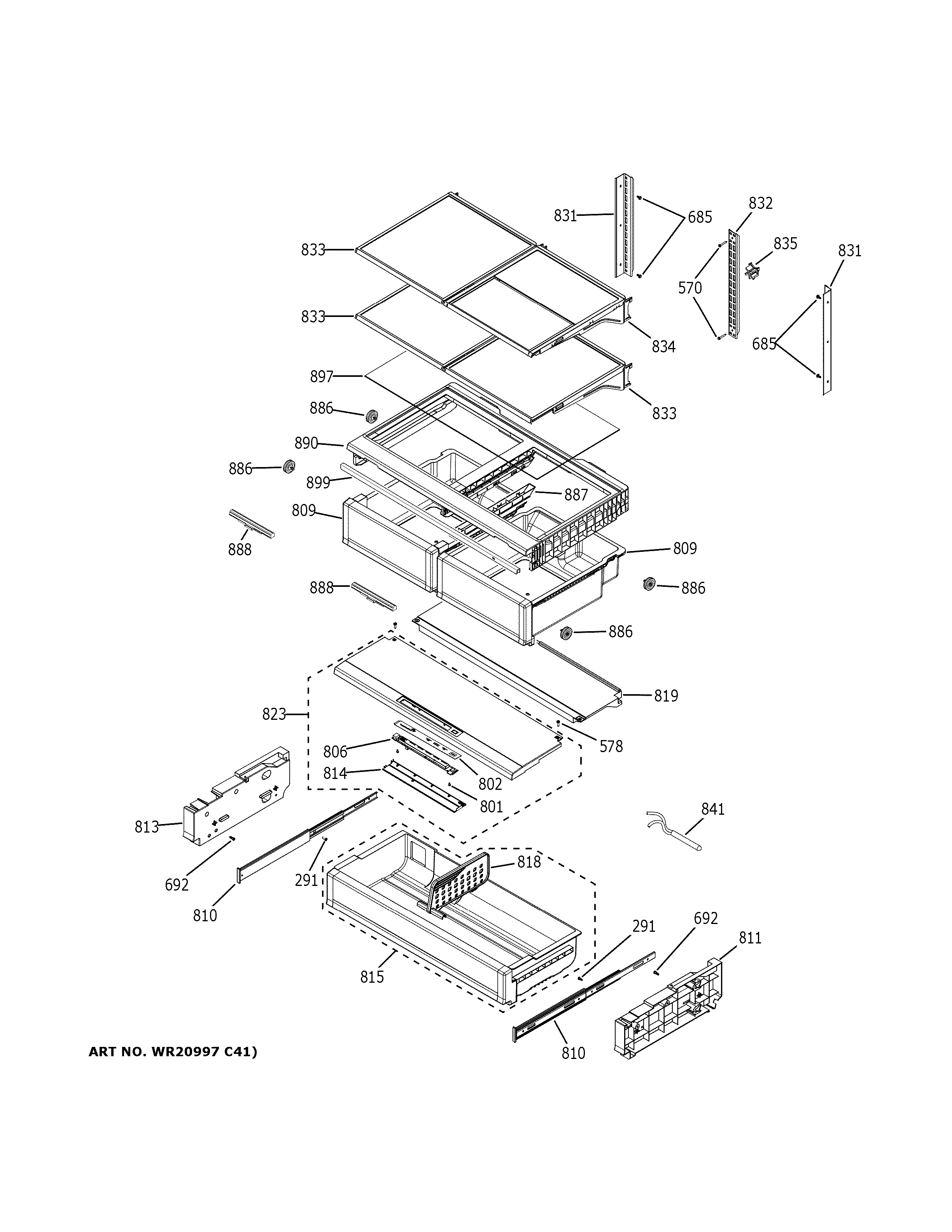

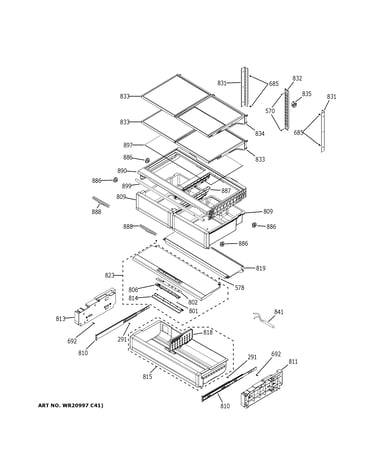

Fresh food shelves diagram

Refrigerator temperature sensor

Part #WR55X11141

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X11141. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X11152
#719

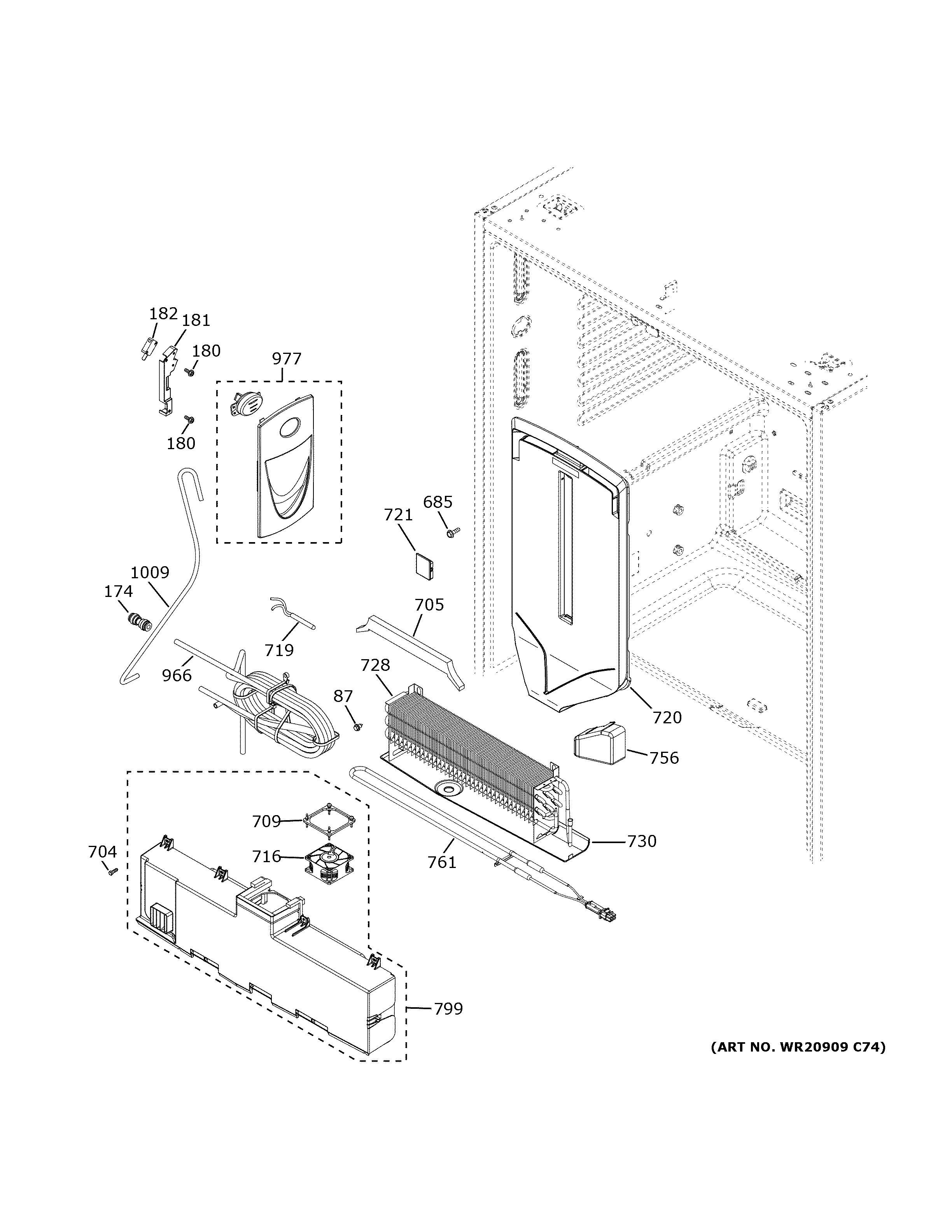

Fresh food section diagram

Refrigerator temperature sensor

Part #WR55X11152

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X11152. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Filter Dryer WR86X10089
#940

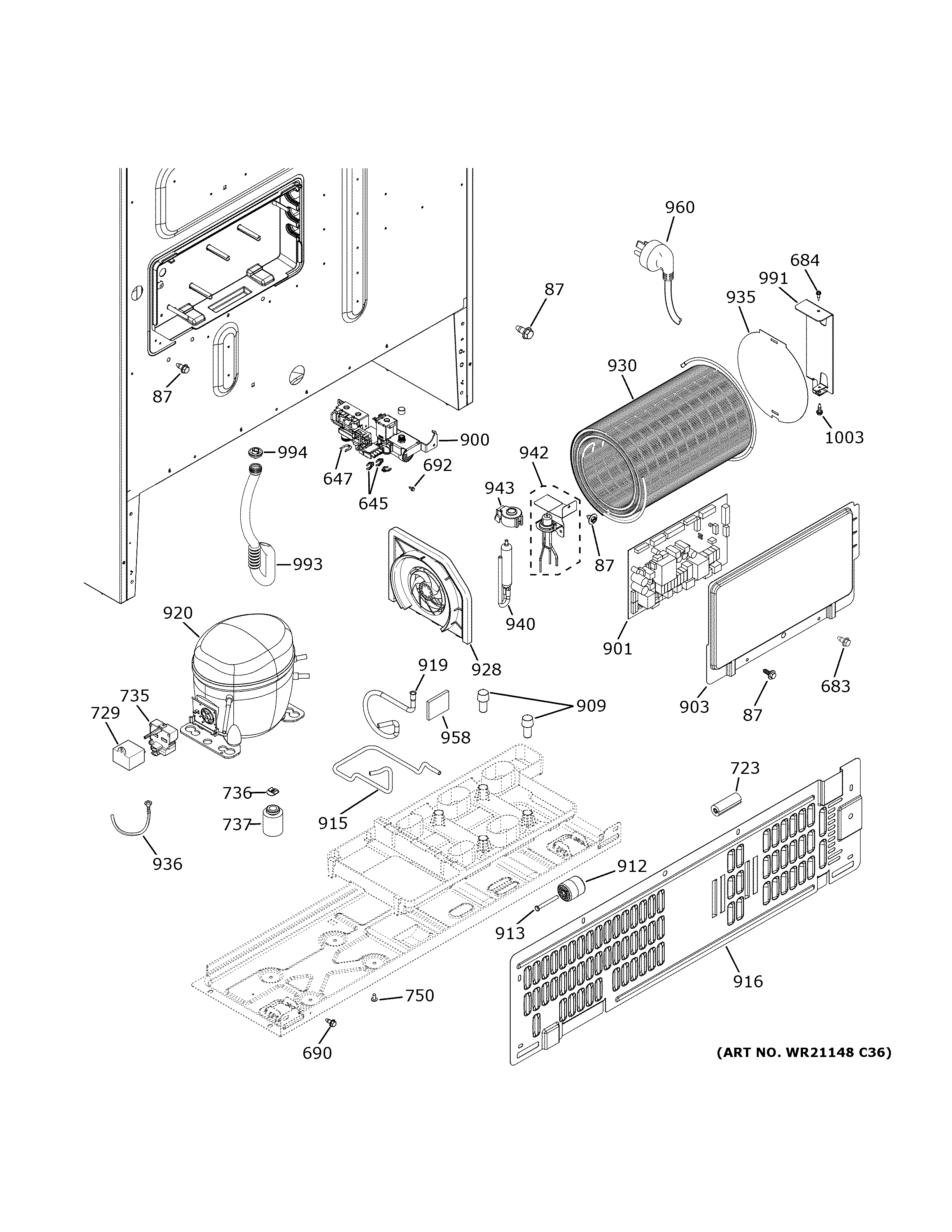

Machine compartment diagram

Refrigerator filter dryer

Part #WR86X10089

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X10089. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Main Control Board WR55X35728
#901

Machine compartment diagram

Refrigerator main control board

Part #WR55X35728

Replaced by #WR55X38248

?
Manufacturer substitution
This part replaces WR55X35728. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$206.37 |
5% OFF Phone Price : $218.37
In Stock
Cover Led Assembly WR55X26487
#952

Case parts diagram

Cover led assembly

Part #WR55X26487

Replaced by #WR55X11132

?
Manufacturer substitution
This part replaces WR55X26487. Substitute parts can look different from the original.
BEST SELLER
$33.83 |
15% OFF Phone Price : $39.83
In Stock
Refrigerator Freezer Door Gasket WR14X31558
#312

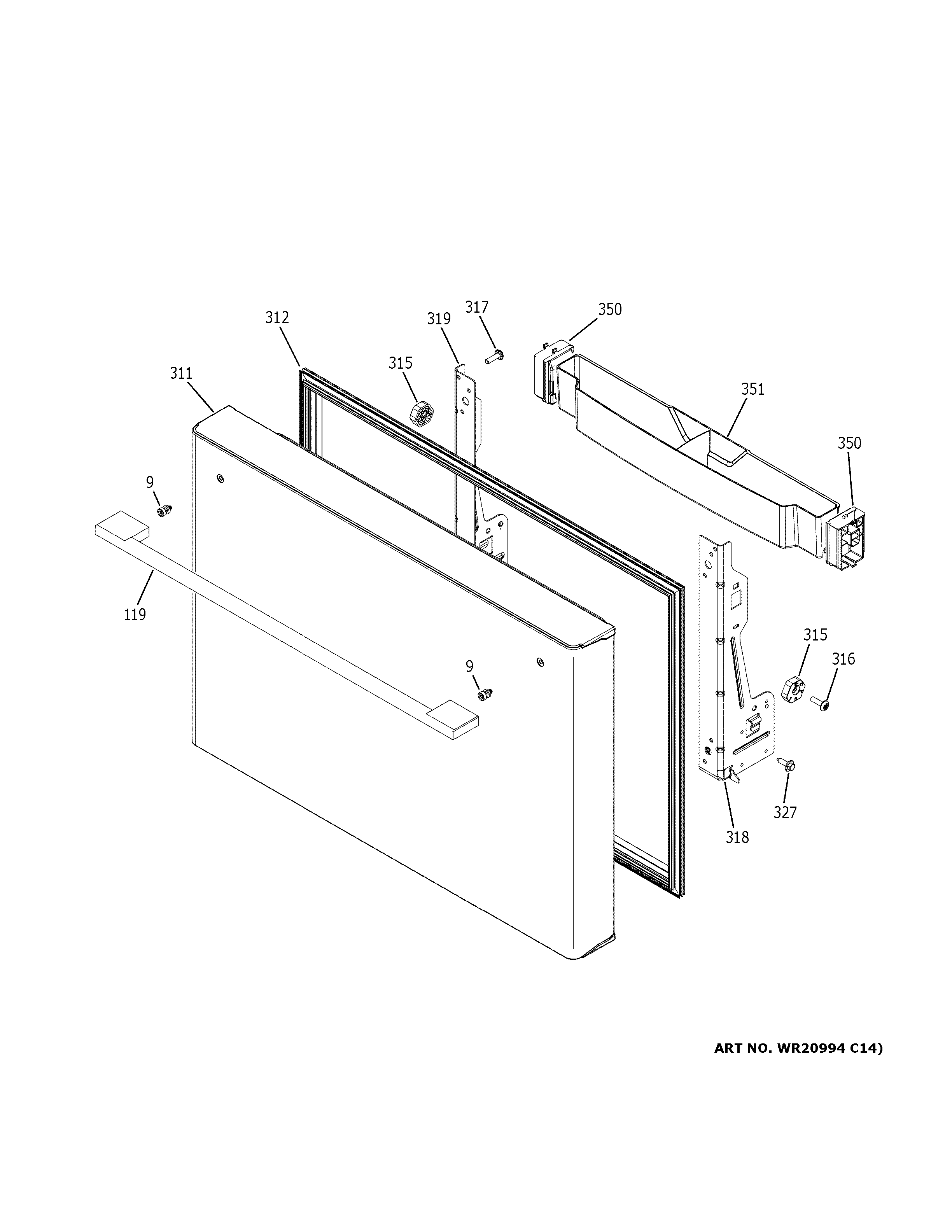

Freezer door diagram

Refrigerator freezer door gasket

Part #WR14X31558

Replaced by #WR14X36194

?
Manufacturer substitution
This part replaces WR14X31558. Substitute parts can look different from the original.
BEST SELLER
$58.11 |
9% OFF Phone Price : $64.11
In Stock
Fresh Food Door Light Switch WR23X29162
#953

Case parts diagram

Fresh food door light switch

Part #WR23X29162

Replaced by #WR23X29161

?
Manufacturer substitution
This part replaces WR23X29162. Substitute parts can look different from the original.
BEST SELLER
$8.96 |
10% OFF Phone Price : $9.96
In Stock
Refrigerator Water Filter Head WR02X13684
#959

Case parts diagram

Refrigerator water filter head

Part #WR02X13684

BEST SELLER
$39.73 |
13% OFF Phone Price : $45.73
In Stock
Refrigerator Fresh Food Fan Motor Assembly (replaces Wr60x29099) WR60X35205
#716

Fresh food section diagram

Refrigerator fresh food fan motor assembly (replaces wr60x29099)

Part #WR60X35205

BEST SELLER
$102.20
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Most common symptoms to help you fix your refrigerators

Choose a symptom to see related refrigerator repairs.

View all

Why is water dripping from my refrigerator onto the floor?

Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubin…

Read more

Why won't my refrigerator cool at all?

Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, se…

Read more

What routine maintenance does my refrigerator need?

Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, cl…

Read more

Why won't my refrigerator run?

Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost tim…

Read more

Why is my freezer not cold enough?

Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan…

Read more

Why isn't my refrigerator cooling well?

Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condens…

Read more

Why won't my refrigerator ice maker make ice?

Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freeze…

Read more

Why is frost building up in my refrigerator's freezer?

Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer o…

Read more
