Model # RJE345PW0 Official Whirlpool electric range

Here are the diagrams and repair parts for Official Whirlpool RJE345PW0 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

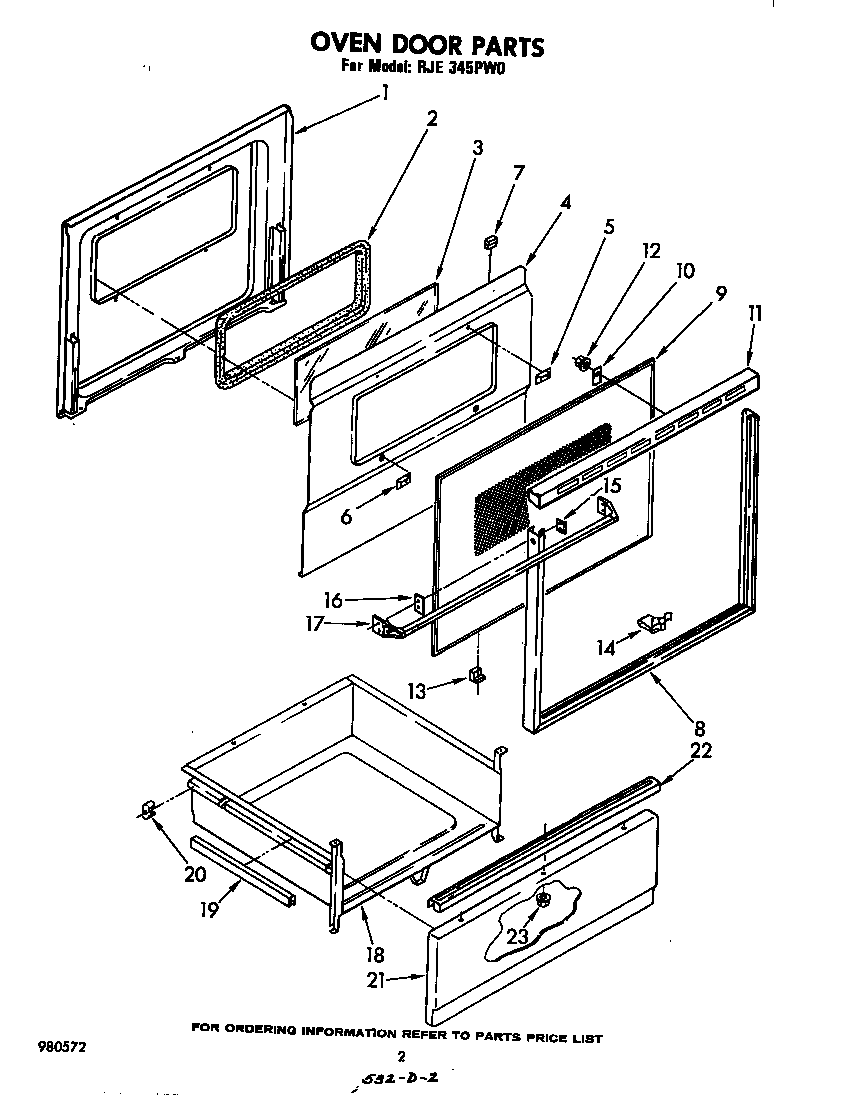

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 202 parts  |
Light Bulb 311255
#11

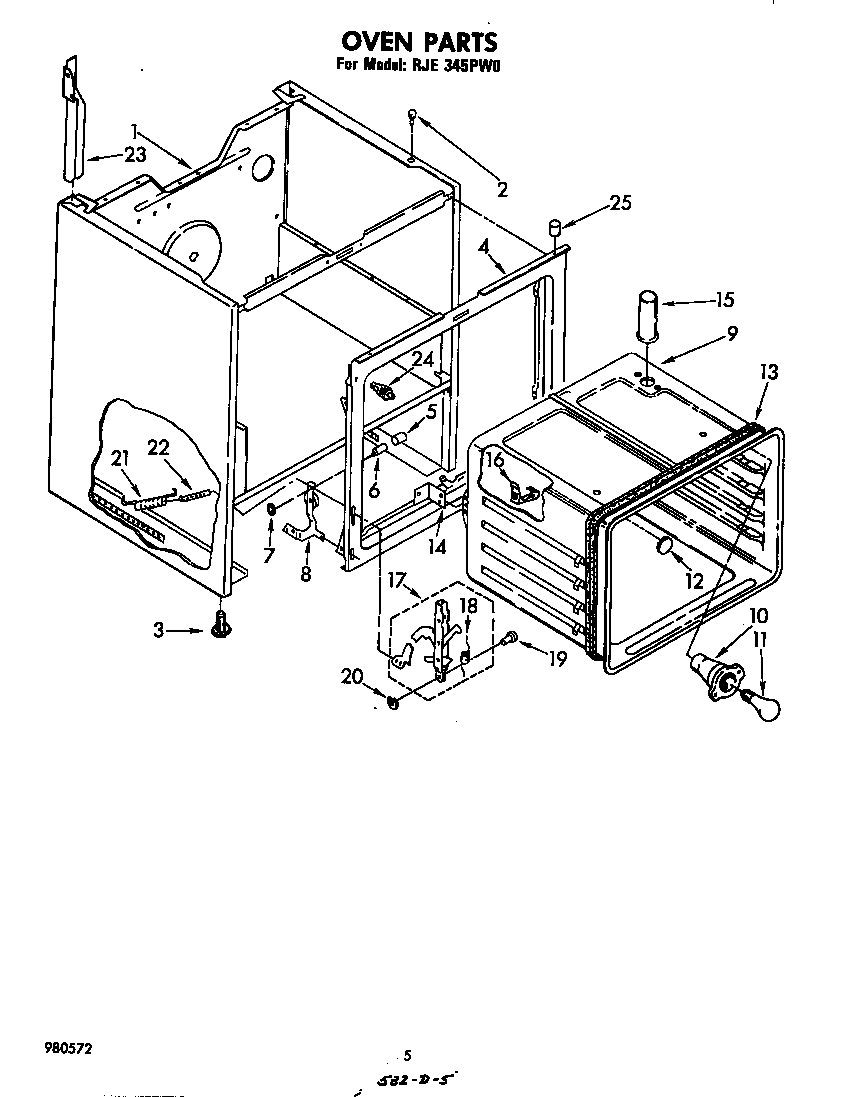

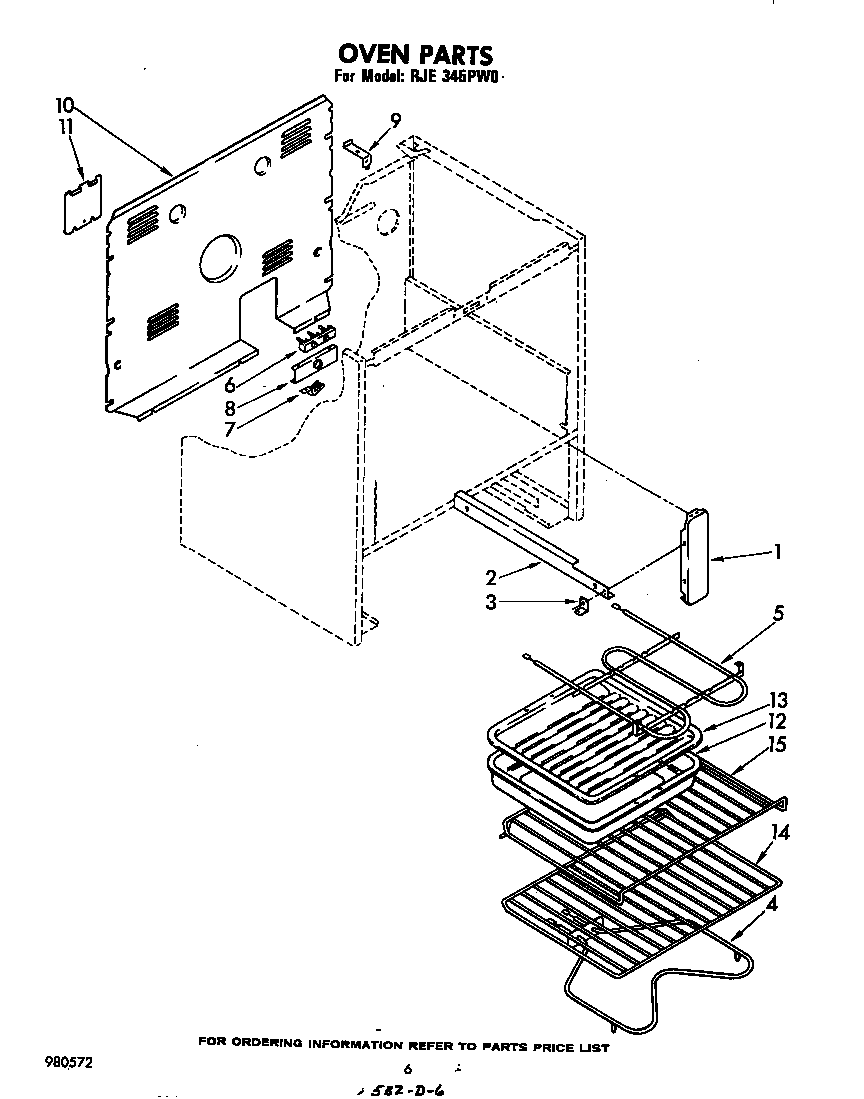

Oven diagram

Light bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Infinite Switch 311846
#6B

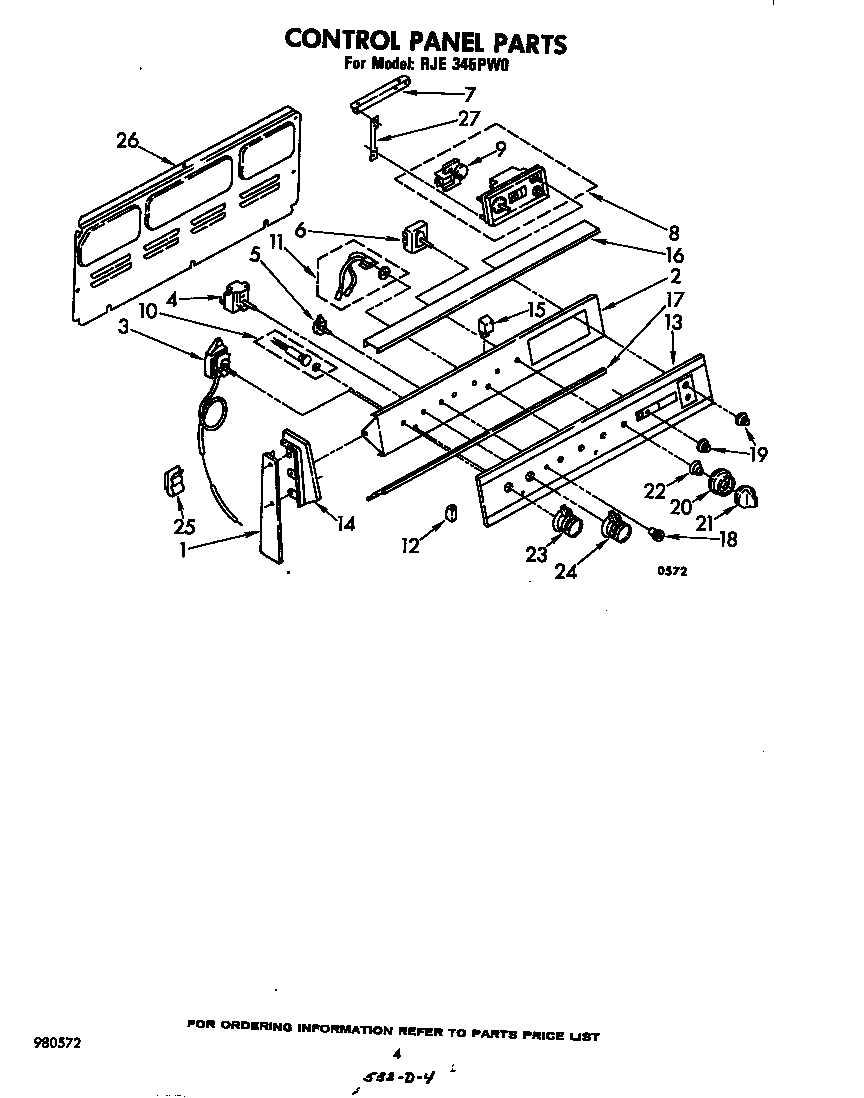

Control panel diagram

Infinite switch

Part #311846

Replaced by #WP3149400

?
Manufacturer substitution
This part replaces 311846. Substitute parts can look different from the original.
BEST SELLER
$37.80 |
14% OFF Phone Price : $43.80
In Stock
Infinite Switch 311847
#6A

Control panel diagram

Infinite switch

Part #311847

Replaced by #WP3149404

?
Manufacturer substitution
This part replaces 311847. Substitute parts can look different from the original.
BEST SELLER
$37.74 |
14% OFF Phone Price : $43.74
In Stock
Clip 688805
#24A

Control panel diagram

Clip

Part #688805

Replaced by #WP688805

?
Manufacturer substitution
This part replaces 688805. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Screw 253549
Screw

Part #253549

Replaced by #WP308685

?
Manufacturer substitution
This part replaces 253549. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Element 309340
#12D

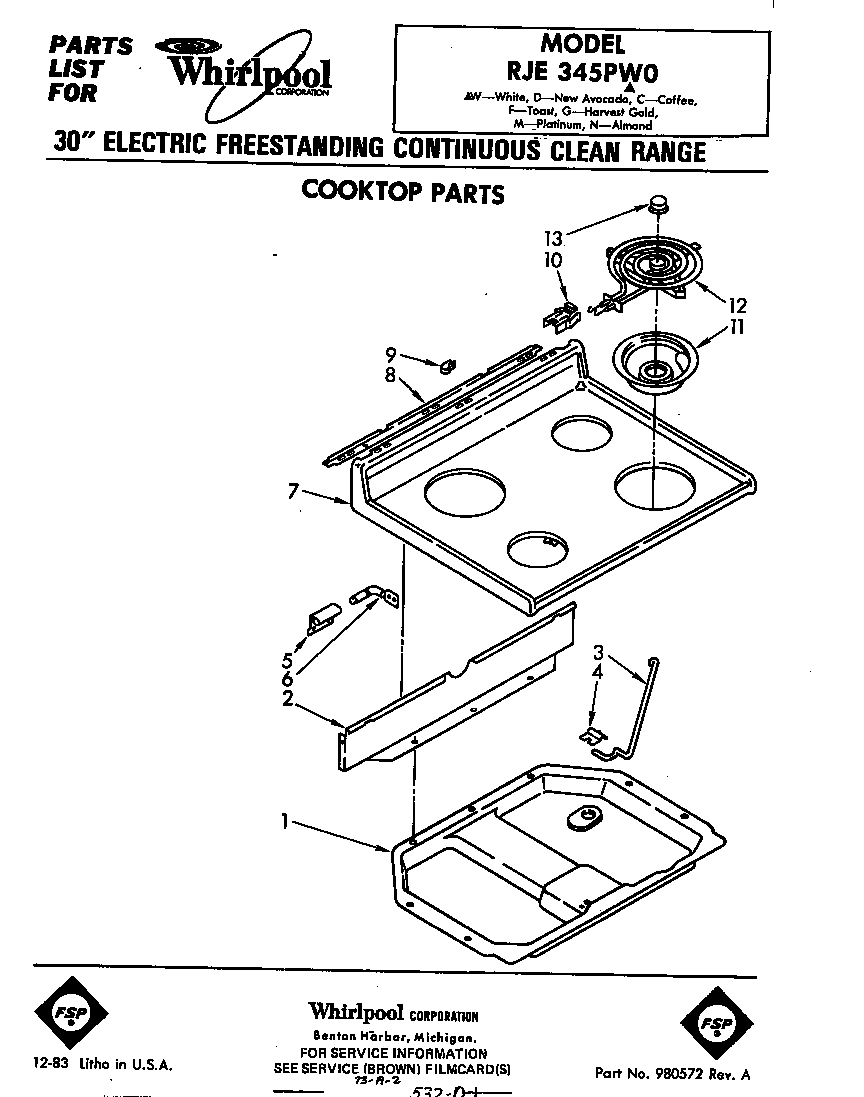

Cooktop diagram

Element

Part #309340

Replaced by #WP660533

?
Manufacturer substitution
This part replaces 309340. Substitute parts can look different from the original.
$25.41 |
19% OFF Phone Price : $31.41
In Stock
Element 309214
#12C

Cooktop diagram

Element

Part #309214

Replaced by #WP660533

?
Manufacturer substitution
This part replaces 309214. Substitute parts can look different from the original.
$25.41 |
19% OFF Phone Price : $31.41
In Stock
Pan 308539
#11A

Cooktop diagram

Pan

Part #308539

Replaced by #W10196406RW

?
Manufacturer substitution
This part replaces 308539. Substitute parts can look different from the original.
$12.95 |
13% OFF Phone Price : $14.95
In Stock
Level Foot 312701
#3

Oven diagram

Level foot

Part #312701

Replaced by #WPW10058460

?
Manufacturer substitution
This part replaces 312701. Substitute parts can look different from the original.
This item is not returnable
$5.95 |
14% OFF Phone Price : $6.95
In Stock
Insulation 240132

#NI

All parts diagram

Insulation

Part #240132

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 240132. Substitute parts can look different from the original.
$38.42 |
14% OFF Phone Price : $44.42
In Stock
