Model # G21PCW3 Official Frigidaire gas range - lf32488100

Here are the diagrams and repair parts for Official Frigidaire G21PCW3 gas range - lf32488100, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |
Hinge 08008024
#8A

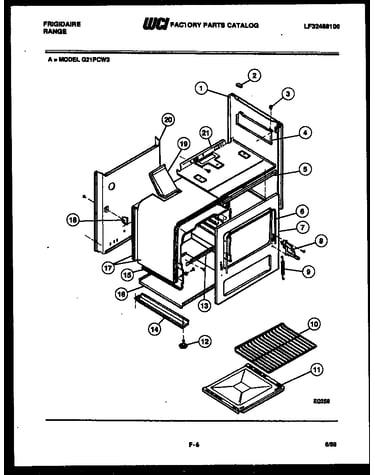

Body parts diagram

Hinge

Part #08008024

Replaced by #318348801

?
Manufacturer substitution
This part replaces 08008024. Substitute parts can look different from the original.
$97.04 |
11% OFF Phone Price : $109.04
In Stock
Regulator 08007974
#1

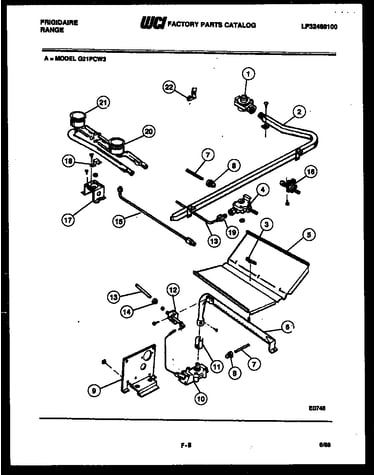

Burner, manifold and gas control diagram

Regulator

Part #08007974

Replaced by #5308007974

?
Manufacturer substitution
This part replaces 08007974. Substitute parts can look different from the original.
$186.45 |
6% OFF Phone Price : $198.45
In Stock
Knob 08013898
#8

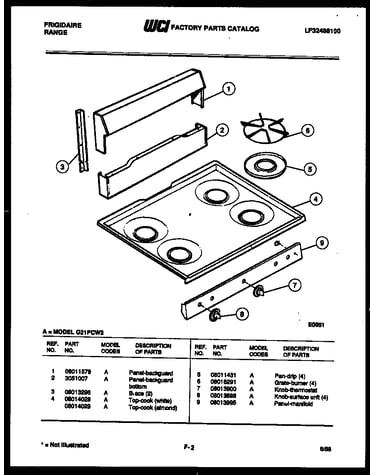

Backguard and cooktop parts diagram

Knob

Part #08013898

Replaced by #5308013898

?
Manufacturer substitution
This part replaces 08013898. Substitute parts can look different from the original.
$26.73
In Stock

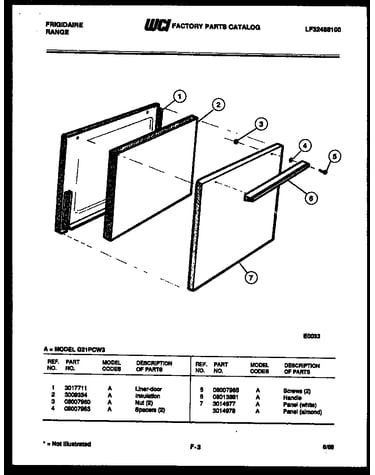

Screw 08007965
Screw

Part #08007965

Replaced by #5303292012

?
Manufacturer substitution
This part replaces 08007965. Substitute parts can look different from the original.
$13.29
In Stock
Thermostat 08013927
#4

Burner, manifold and gas control diagram

Thermostat

Part #08013927

The manufacturer no longer makes this part, and there's no substitute part

Nut 08007960
Nut

Part #08007960

Replaced by #3051038

?
Manufacturer substitution
This part replaces 08007960. Substitute parts can look different from the original.
This item is not returnable
$2.91
In Stock
Drawer 3018283
#3

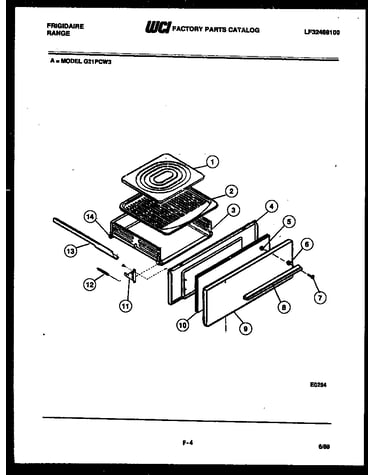

Broiler drawer parts diagram

Drawer

Part #3018283

Replaced by #5304504568

?
Manufacturer substitution
This part replaces 3018283. Substitute parts can look different from the original.
$182.07 |
6% OFF Phone Price : $194.07
In Stock
Tube 08014562
#15

Burner, manifold and gas control diagram

Tube

Part #08014562

The manufacturer no longer makes this part, and there's no substitute part

Panel 08011601
#9

Broiler drawer parts diagram

Panel

Part #08011601

The manufacturer no longer makes this part, and there's no substitute part

Insulation 3131044
#17A

Body parts diagram

Insulation

Part #3131044

The manufacturer no longer makes this part, and there's no substitute part
