Model # UVW7241SN1SS Official GE range hood

Here are the diagrams and repair parts for Official GE UVW7241SN1SS range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Ge Damper WB34X29009
#58

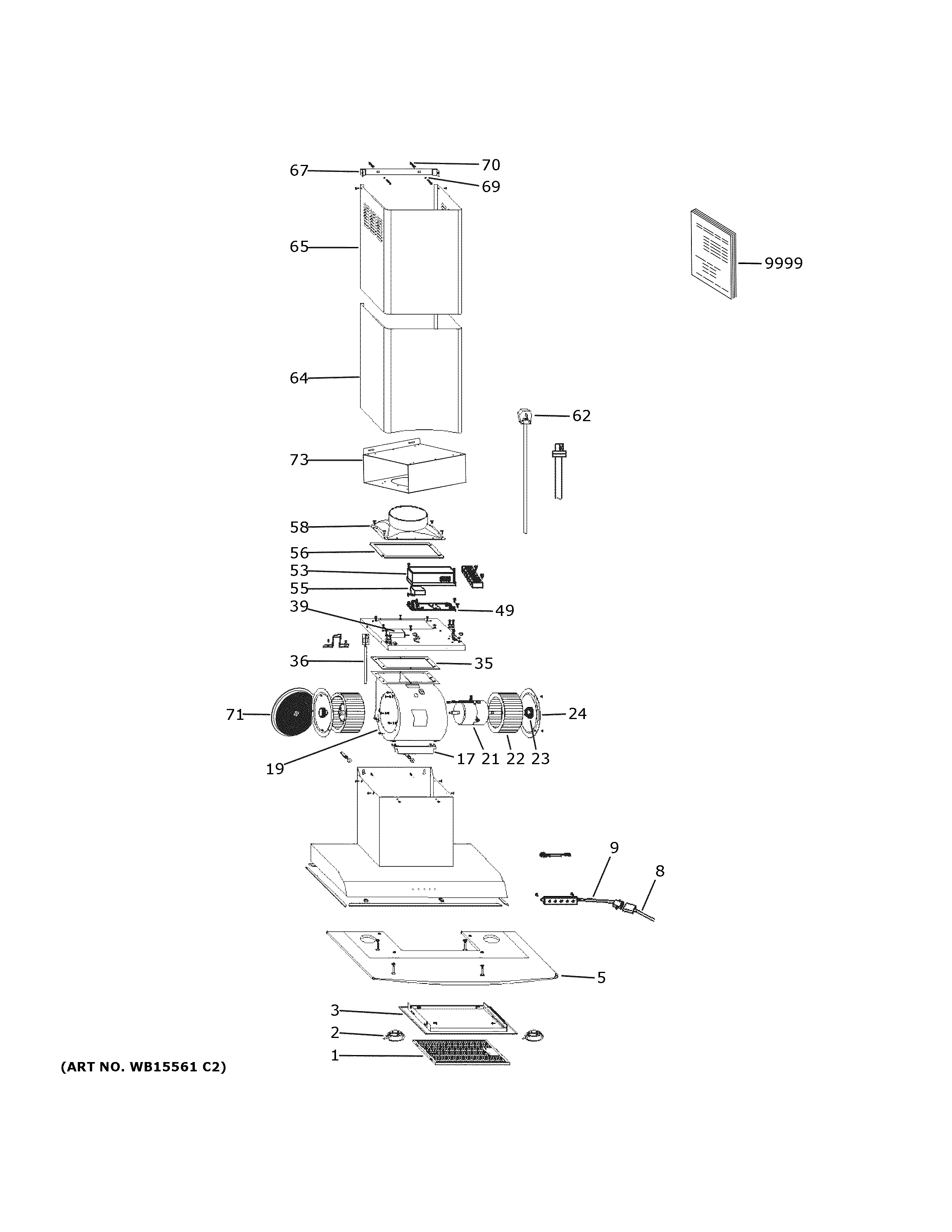

Range hood diagram

Ge damper

Part #WB34X29009

$75.72
In Stock
Haier Left Side Fa WB02X29046
#23

Range hood diagram

Haier left side fa

Part #WB02X29046

This item is not returnable
$4.35
In Stock
Ge Switch Harne WB18X29051
#8

Range hood diagram

Ge switch harne

Part #WB18X29051

$17.77
In Stock
Haier Grease Pan WB32X29042
#17

Range hood diagram

Haier grease pan

Part #WB32X29042

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Haier Glass Plate WB07X29040
#5

Range hood diagram

Haier glass plate

Part #WB07X29040

$142.87
In Stock
Ge Power Cord WB18X29026
#62

Range hood diagram

Ge power cord

Part #WB18X29026

$91.87
In Stock
Ge Filter Frame WB07X29038
#3

Range hood diagram

Ge filter frame

Part #WB07X29038

$83.51
In Stock
Haier Blower Cover WB34X29035
#24

Range hood diagram

Haier blower cover

Part #WB34X29035

$57.62
In Stock
Ge Gasket WB35X29039
#69

Range hood diagram

Ge gasket

Part #WB35X29039

This item is not returnable
$4.35
In Stock
Ge Air Duct WB34X29003
#73

Range hood diagram

Ge air duct

Part #WB34X29003

$52.27
In Stock
