Model # PB975SM1SS Official GE electric range

Here are the diagrams and repair parts for Official GE PB975SM1SS electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

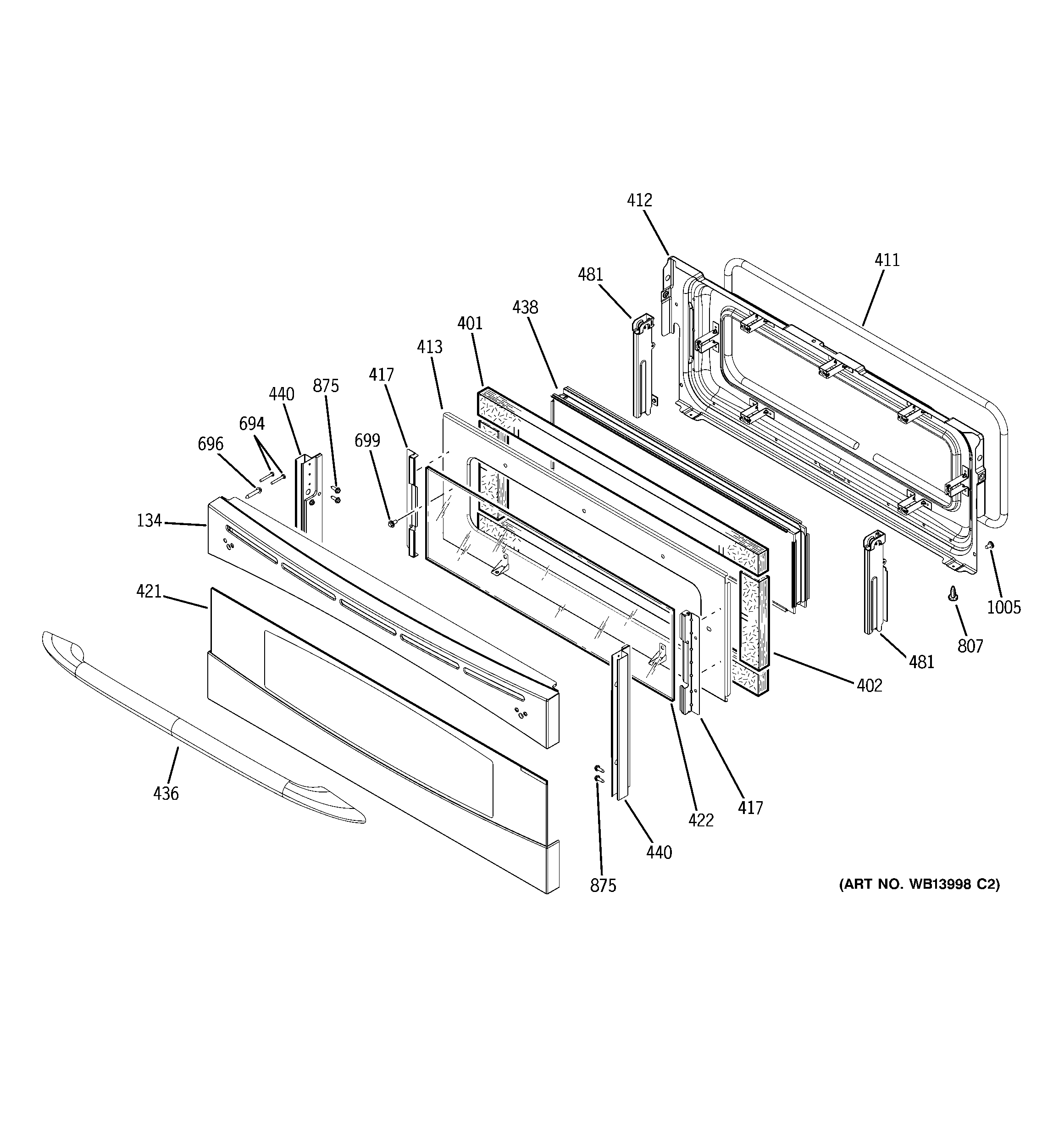

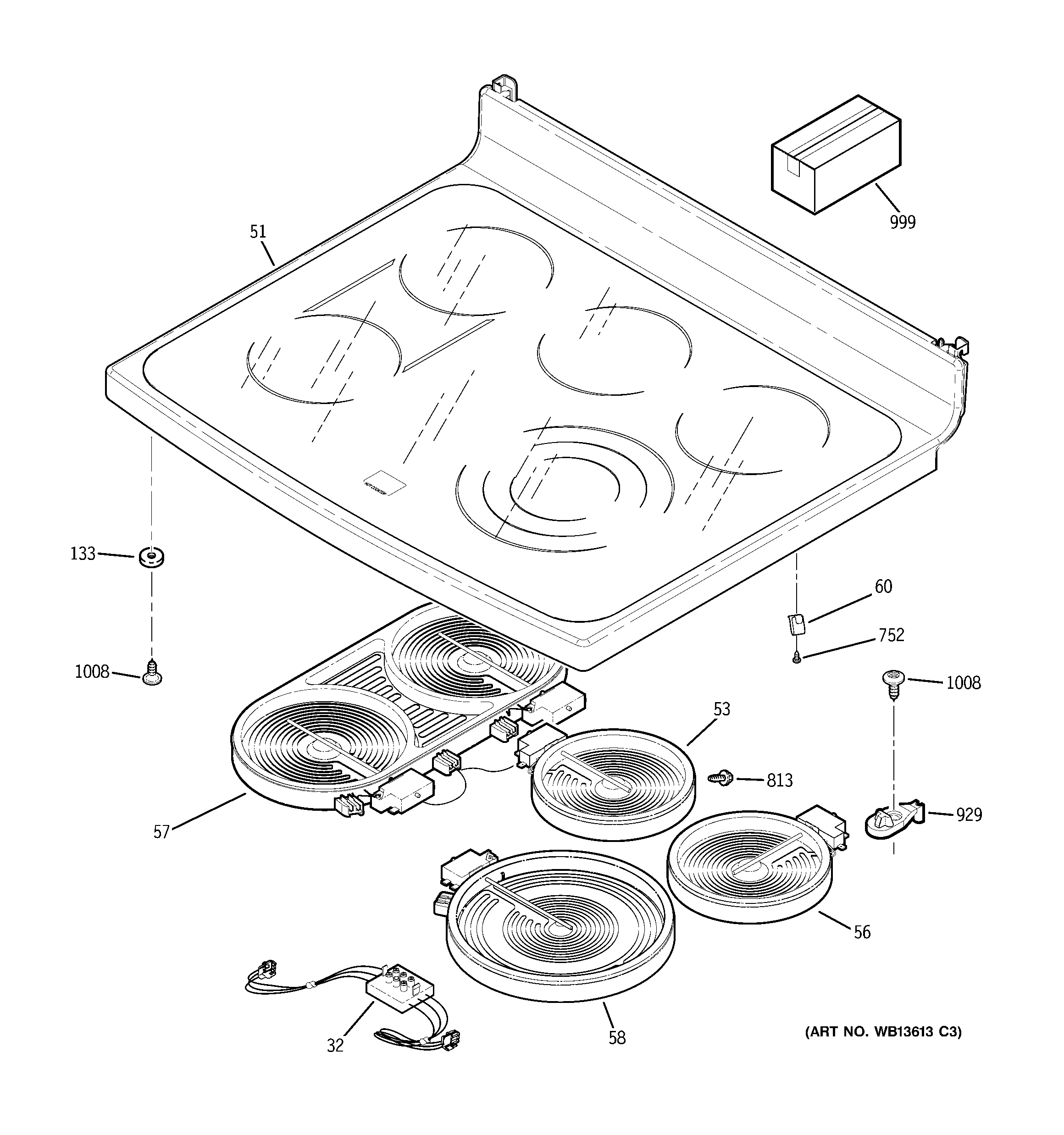

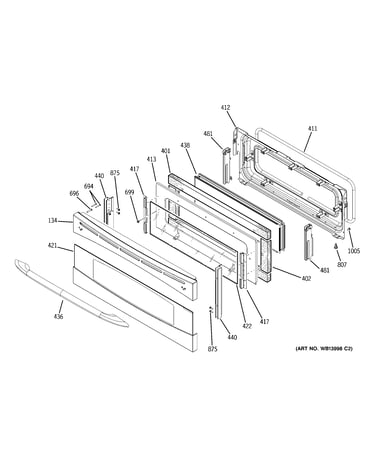

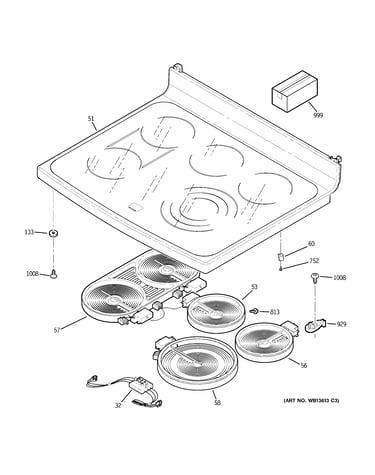

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 158 parts  |
Wall Oven Temperature Sensor WB21T10007
#253

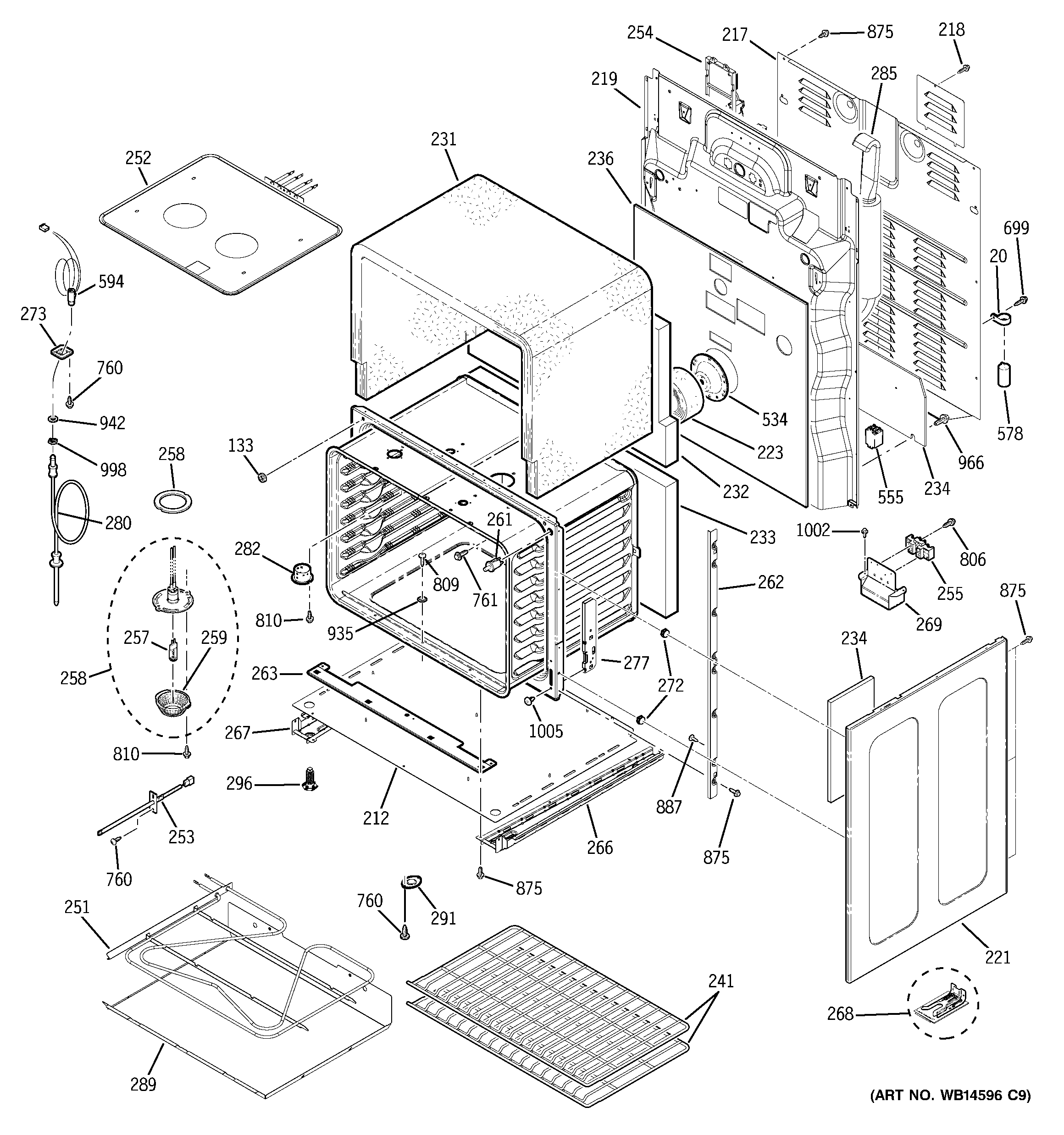

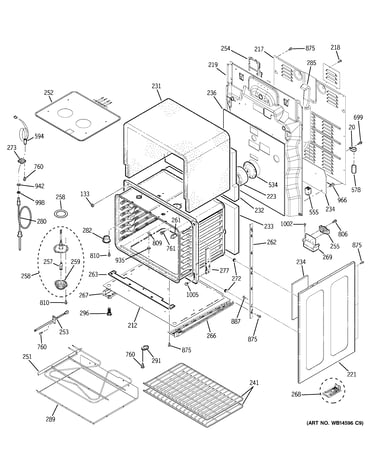

Lower oven diagram

Wall oven temperature sensor

Part #WB21T10007

Replaced by #WB21X22134

?
Manufacturer substitution
This part replaces WB21T10007. Substitute parts can look different from the original.
BEST SELLER
$23.33 |
20% OFF Phone Price : $29.33
In Stock
Wall Oven Temperature Sensor WB23T10015
#453

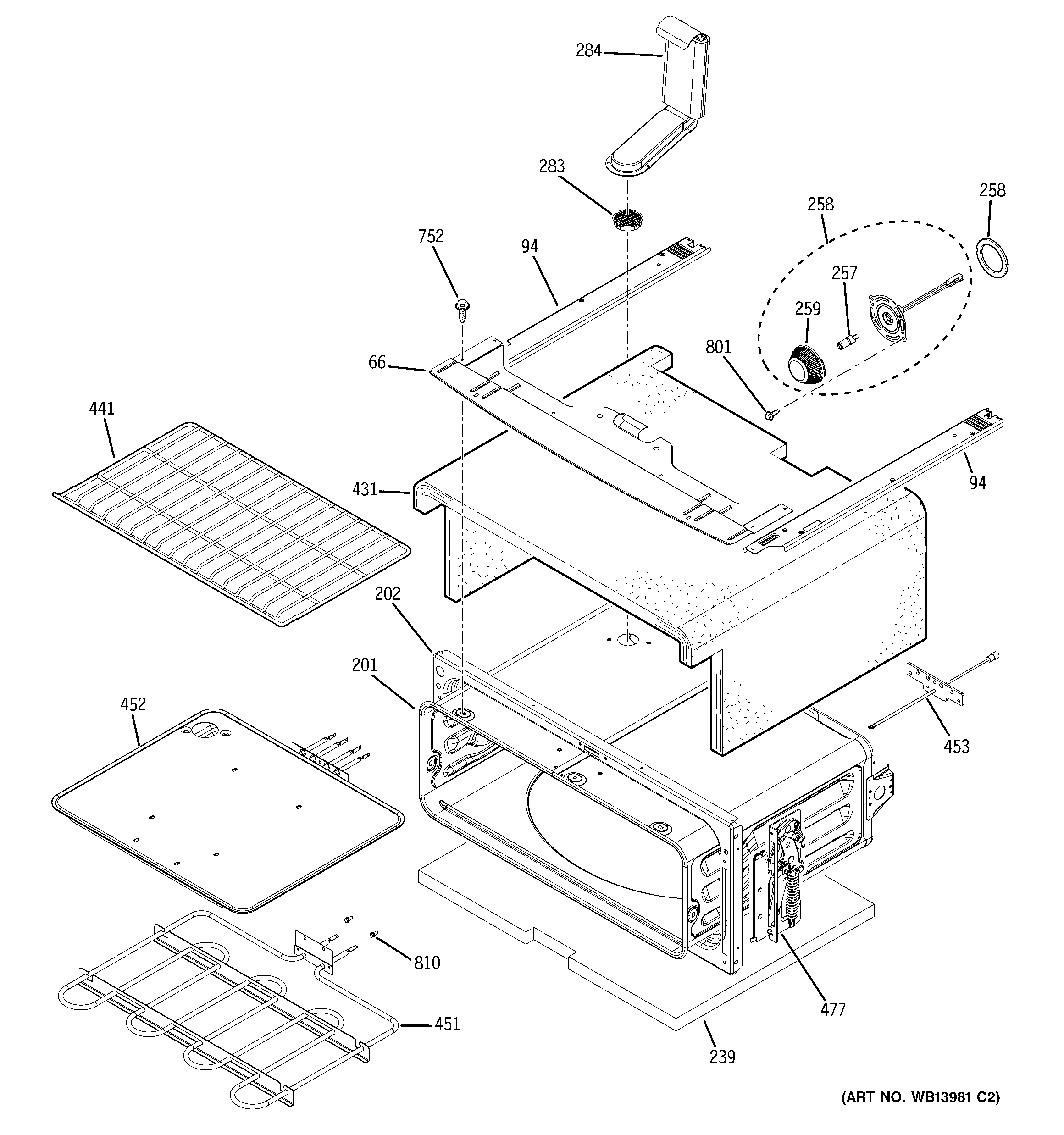

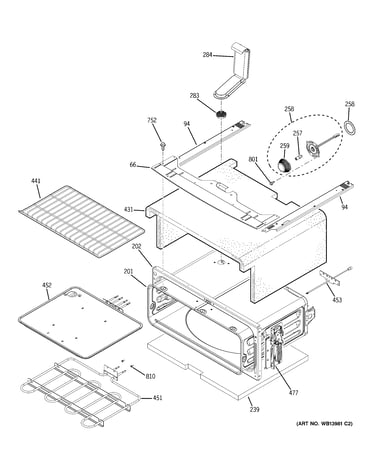

Upper oven diagram

Wall oven temperature sensor

Part #WB23T10015

BEST SELLER
$26.19 |
19% OFF Phone Price : $32.19
In Stock
Kenmore Range Surface Element Control Switch (replaces Wb24k10066, Wb24t10057) WB24T10119
#19

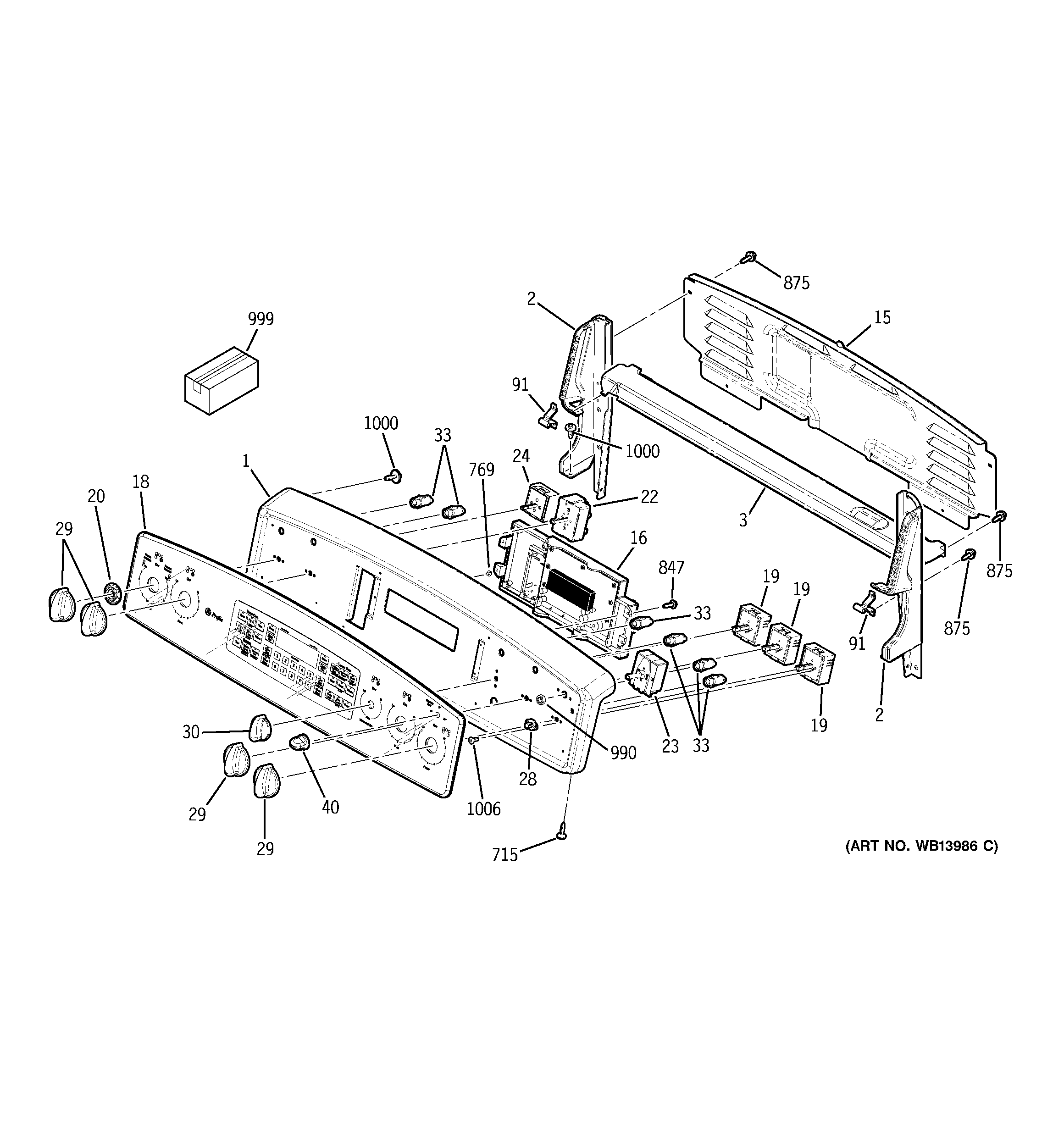

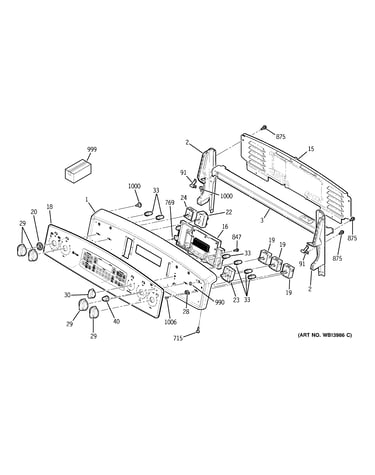

Control panel diagram

Kenmore range surface element control switch (replaces wb24k10066, wb24t10057)

Part #WB24T10119

BEST SELLER
$68.42 |
8% OFF Phone Price : $74.42
In Stock
Range Oven Door Middle Glass (replaces Wb55t10191) WB56T10105
#338

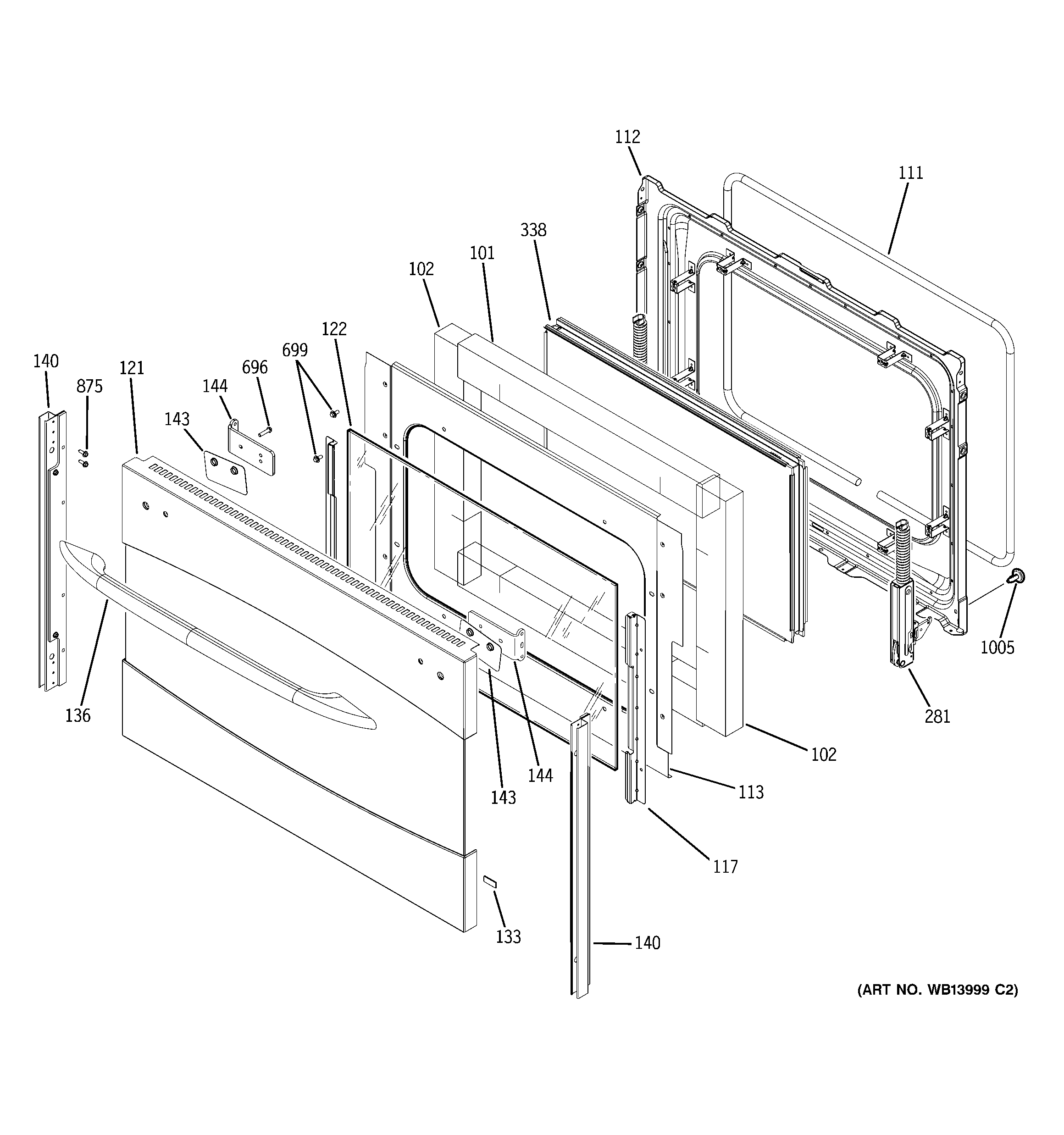

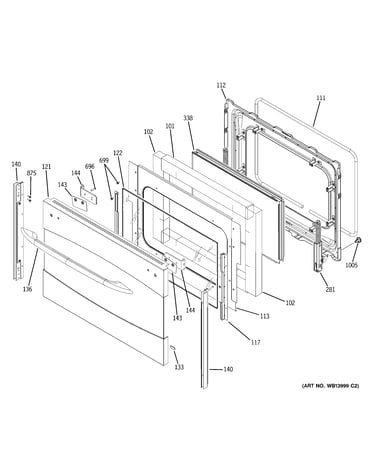

Lower door diagram

Range oven door middle glass (replaces wb55t10191)

Part #WB56T10105

BEST SELLER
$98.87 |
11% OFF Phone Price : $110.87
In Stock
Range Surface Element Control Switch (replaces Wb24t10015, Wb24t10056) WB24T10063
#24

Control panel diagram

Range surface element control switch (replaces wb24t10015, wb24t10056)

Part #WB24T10063

BEST SELLER
$70.83 |
8% OFF Phone Price : $76.83
In Stock
Light Bulb WB08T10007
Light bulb

Part #WB08T10007

Replaced by #WB08T10023

?
Manufacturer substitution
This part replaces WB08T10007. Substitute parts can look different from the original.
This item is not returnable
$12.78 |
14% OFF Phone Price : $14.78
In Stock
Nut WB02T10017
#977

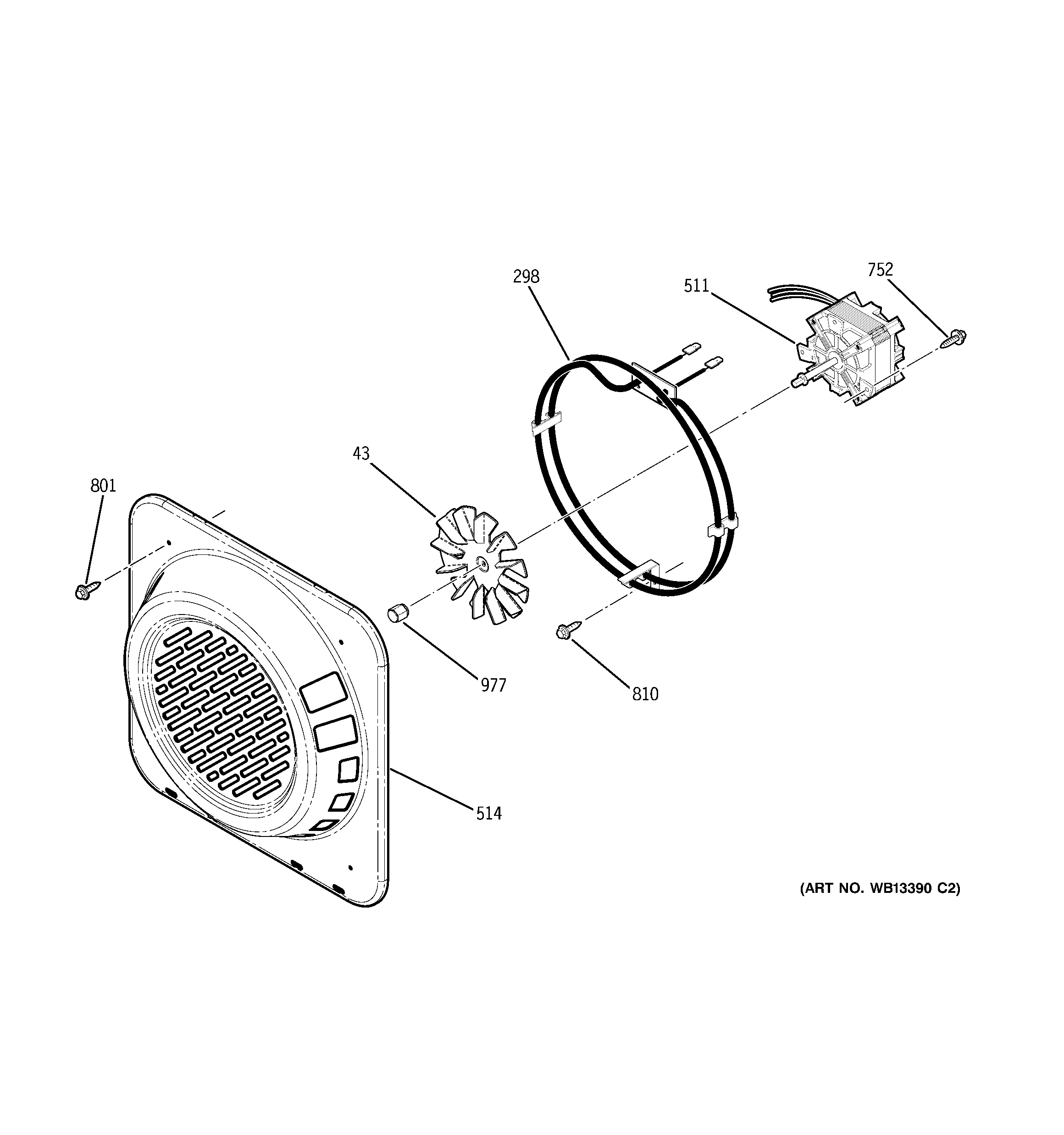

Convection fan diagram

Nut

Part #WB02T10017

This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Range Convection Fan Blade WB02T10289
#43

Convection fan diagram

Range convection fan blade

Part #WB02T10289

This item is not returnable
$18.91 |
10% OFF Phone Price : $20.91
In Stock
Range Surface Burner Knob (replaces Wb03t10221) WB03T10272
#40

Control panel diagram

Range surface burner knob (replaces wb03t10221)

Part #WB03T10272

This item is not returnable
$18.59 |
10% OFF Phone Price : $20.59
In Stock
Wall Oven Convection Fan Motor WB26T10043
#511

Convection fan diagram

Wall oven convection fan motor

Part #WB26T10043

$176.33 |
6% OFF Phone Price : $188.33
In Stock
