Model # PK2.5-1H/P54565-2C Official Amana package unit - pk series
Here are the diagrams and repair parts for Official Amana PK2.5-1H/P54565-2C package unit - pk series, as well as links to manuals and error code tables, if available.
By Schematic

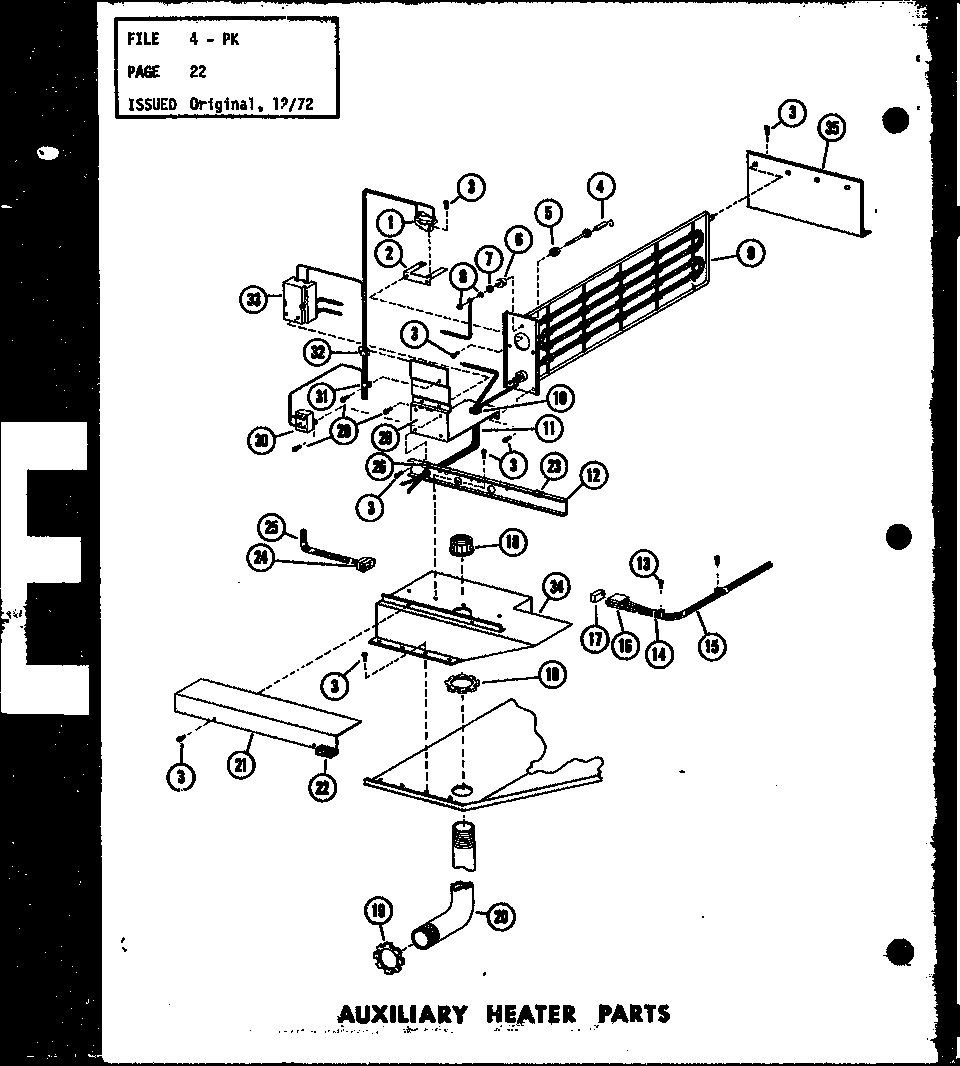

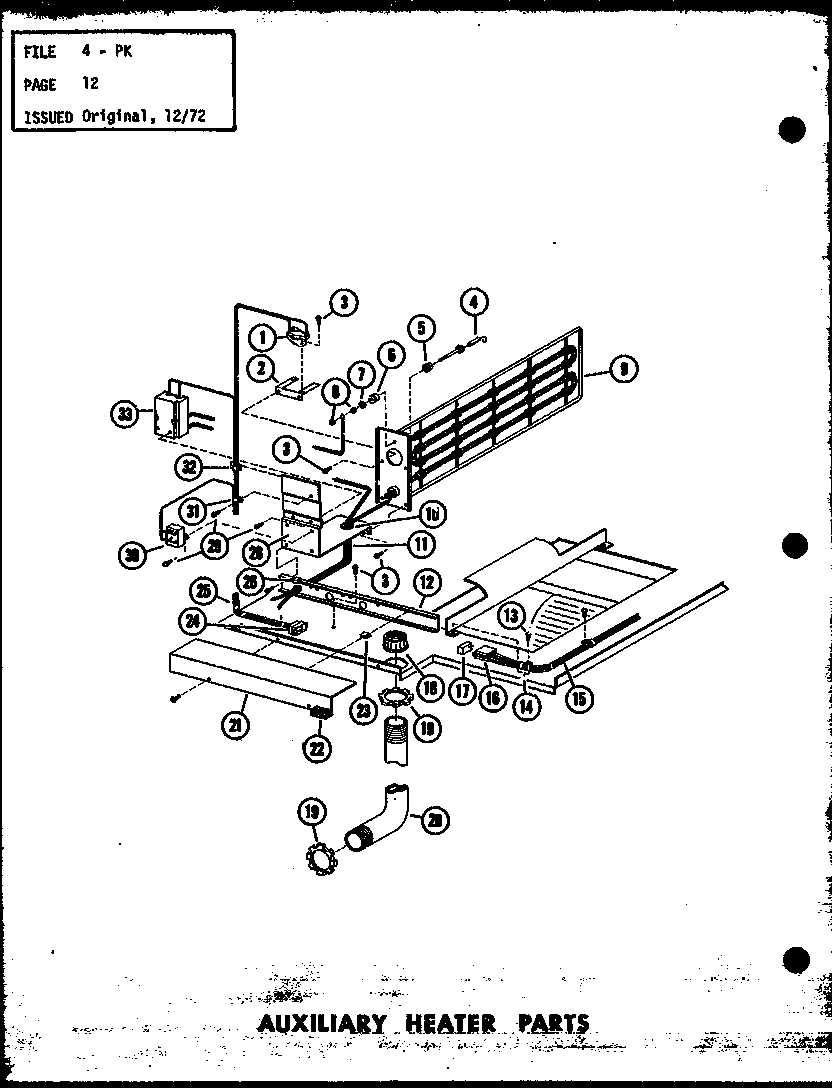

SELECT DIAGRAM

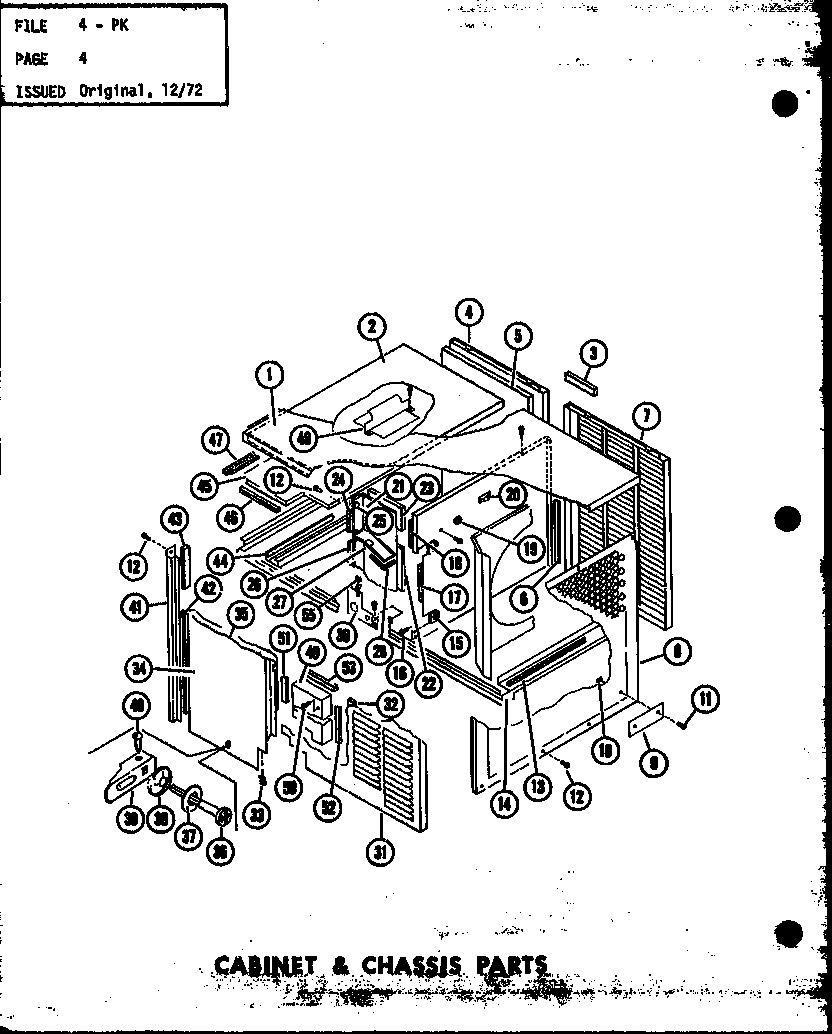

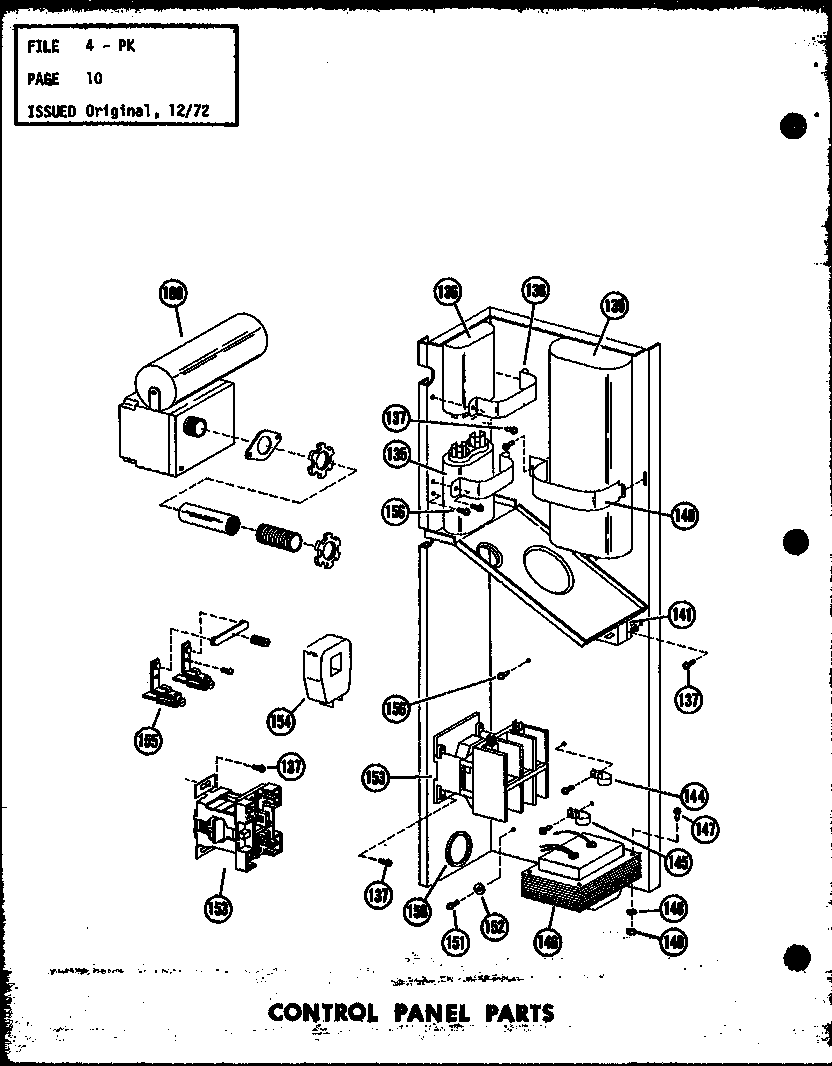

Browse Parts for
PK2.5-1H/P54565-2C Package Unit - PK Series
Screw
Part #M0211317
Replaced by #WP489464
?
Manufacturer substitution
This part replaces M0211317. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Screw
Part #M0211030
Replaced by #R9800670
?
Manufacturer substitution
This part replaces M0211030. Substitute parts can look different from the original.
This item is not returnable
$4.97 |
17% OFF Phone Price : $5.97
In Stock
#108

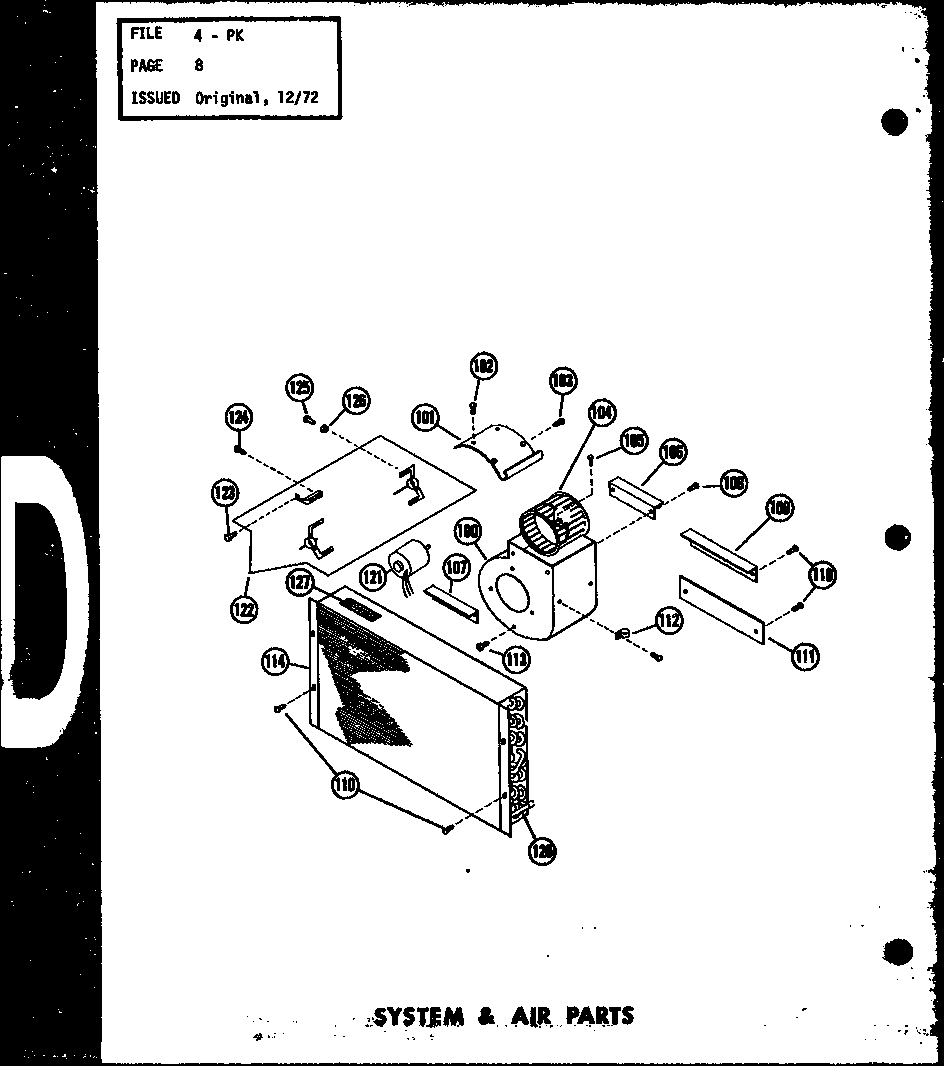

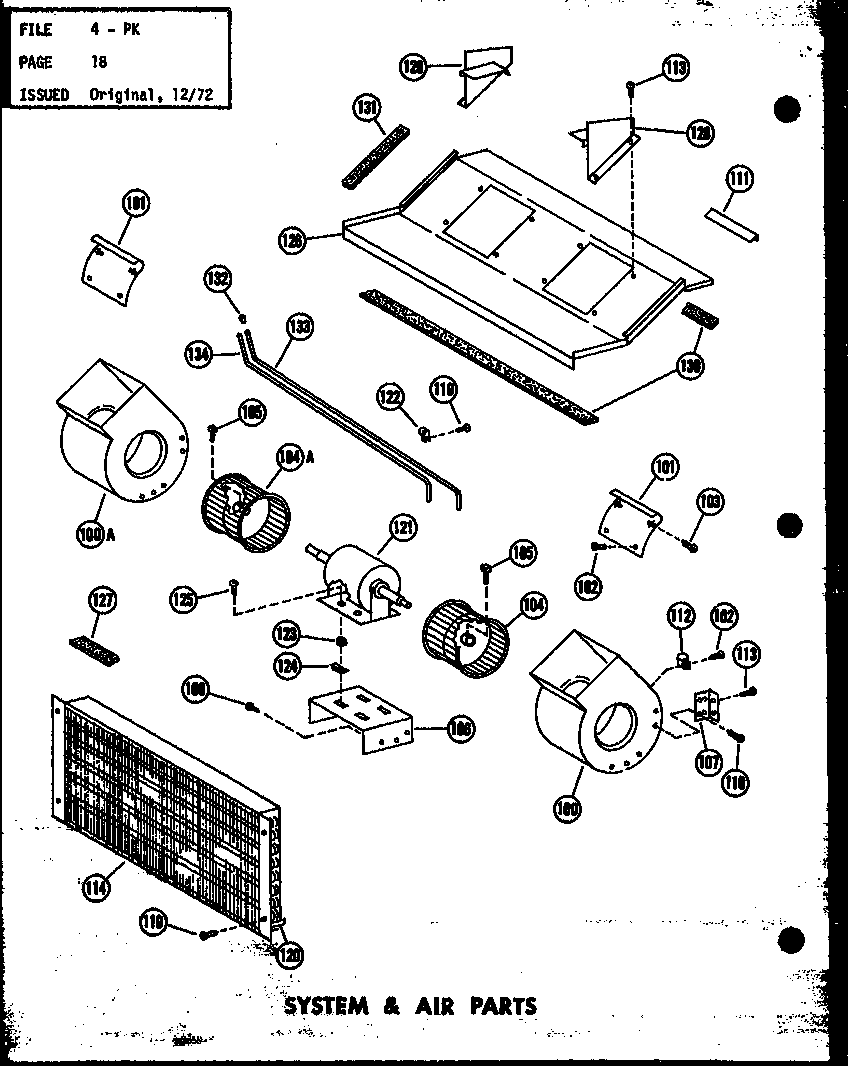

System & air parts (pk2-1h/p54565-1c) (pk2.5-1h/p54565-2c) (pk3-1h/p54565-3c) diagram
Use m0223230
Part #M0211343
Replaced by #R9800670
?
Manufacturer substitution
This part replaces M0211343. Substitute parts can look different from the original.
This item is not returnable
$4.97 |
17% OFF Phone Price : $5.97
In Stock
#126
System & air parts (pk2-1h/p54565-1c) (pk2.5-1h/p54565-2c) (pk3-1h/p54565-3c) diagram
Nut
Part #M0282009
Replaced by #M0282009
?
Manufacturer substitution
This part replaces M0282009. Substitute parts can look different from the original.
$12.49
In Stock
Screw
Part #M0211016
Replaced by #M0211016
?
Manufacturer substitution
This part replaces M0211016. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
#84A

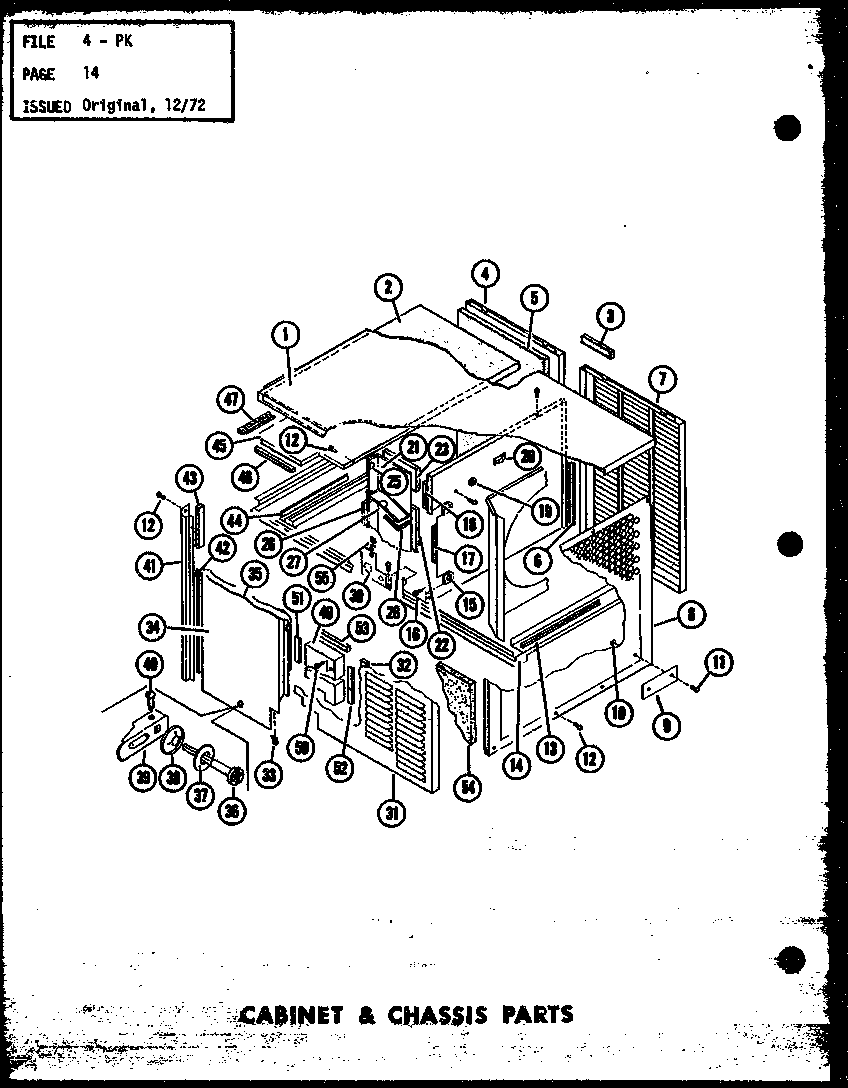

(pk3.5-1j/p54629-9c) (pk4-1j/p54629-1c) (pk4-3j/p54629-2c) (pk5-1j/p54629-3c) (pk5-3j/p54629-4c) diagram
Motor, cond. 230 v, 60 cy, 1/2 h.p., ge 5kcp39hga456s
Part #C5902101
The manufacturer no longer makes this part, and there's no substitute part
#121C
System & air parts (pk2-1h/p54565-1c) (pk2.5-1h/p54565-2c) (pk3-1h/p54565-3c) diagram
Motor, evap. blower, w/ground wire, 1/4 h.p., 230 volt,
Part #M0305902
The manufacturer no longer makes this part, and there's no substitute part
#98A

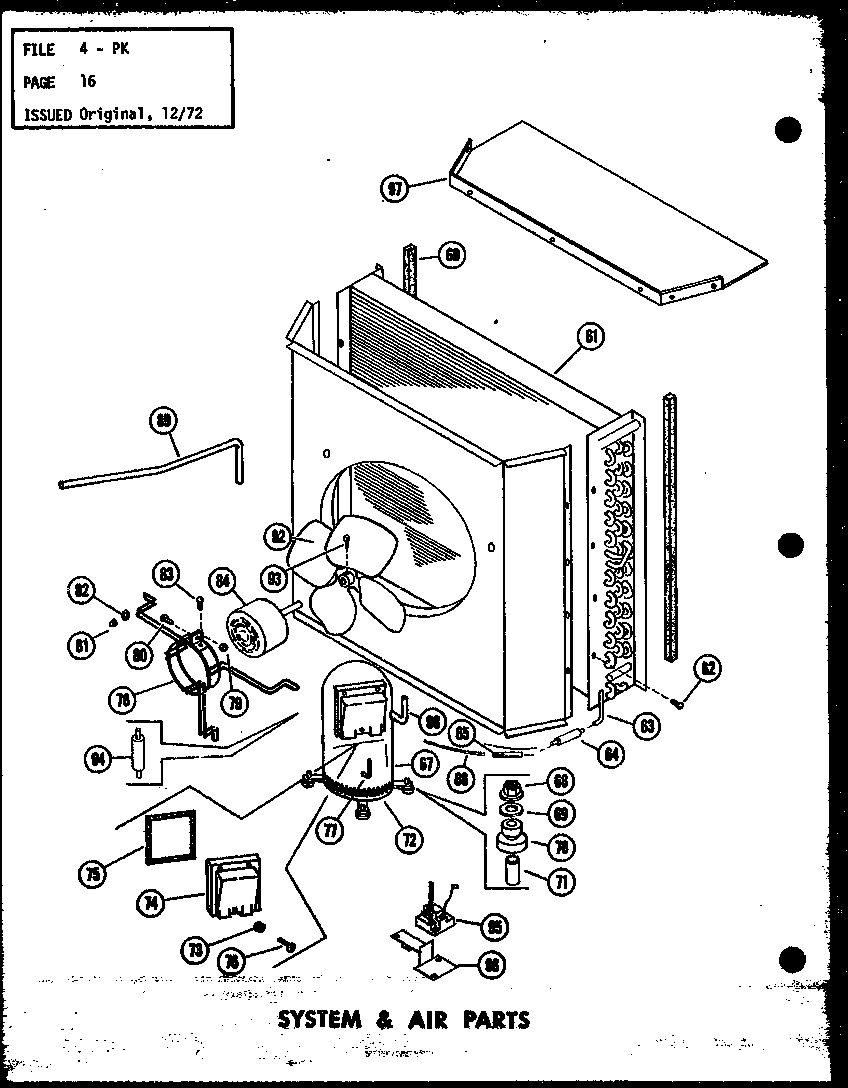

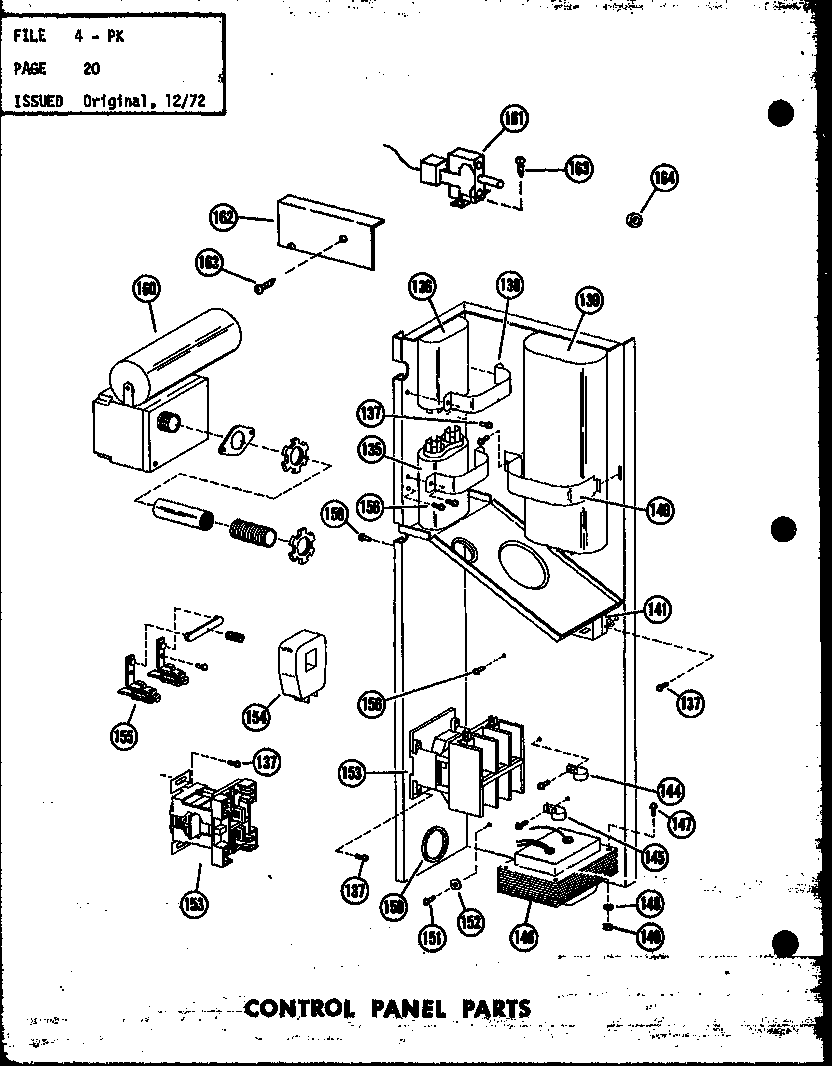

(pk3.5-1j/p54629-9c) (pk4-1j/p54629-1c) (pk4-3j/p54629-2c) (pk5-1j/p54629-3c) (pk5-3j/p54629-4c) diagram
Tube, suction, preformed, evap. coil to comp.
Part #C5869001
The manufacturer no longer makes this part, and there's no substitute part
#67C

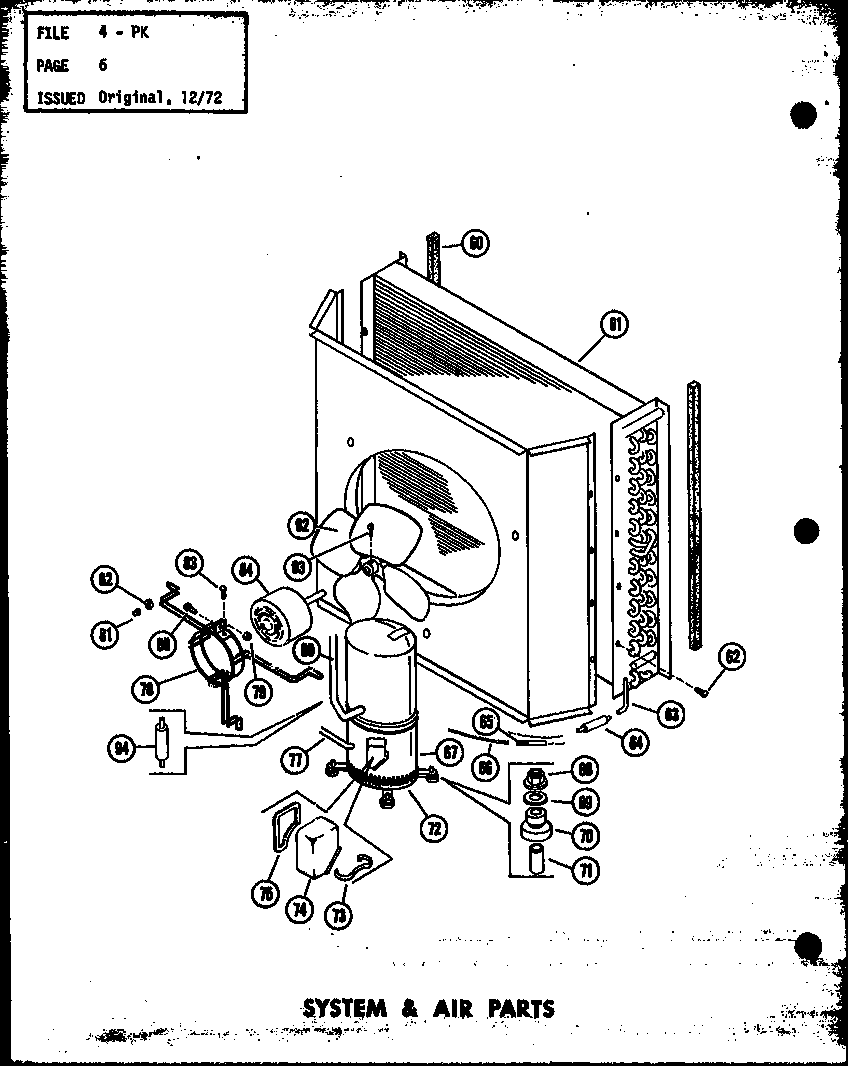

Systems & air parts (pk2-1h/p54565-1c) (pk2.5-1h/p54565-2c) (pk3-1h/p54565-3c) diagram
Comp. 3 h.p. 208-230 v. 60 cy., 10, tecumseh ah301ft-077
Part #M0400001
The manufacturer no longer makes this part, and there's no substitute part
#120
System & air parts (pk2-1h/p54565-1c) (pk2.5-1h/p54565-2c) (pk3-1h/p54565-3c) diagram
Elbow, condenser coil (top and bottom, top only qty. 1)
Part #A4051702
The manufacturer no longer makes this part, and there's no substitute part
