Kenmore
Electric Range

Model # 9119354891 Official Kenmore 30" electric range

Here are the diagrams and repair parts for Official Kenmore 9119354891 30" electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

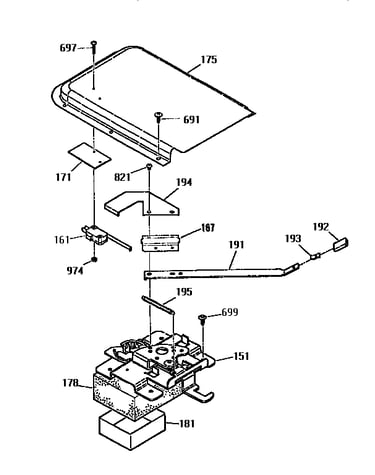

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 155 parts  |
40a15bulb STD372401
#257

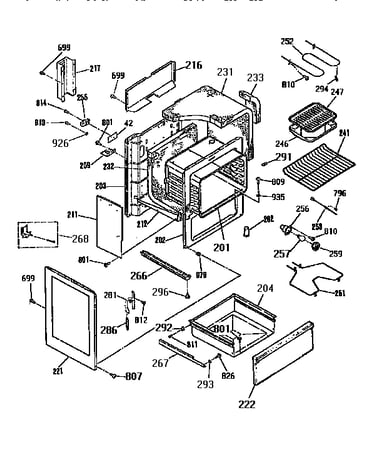

Body section diagram

40a15bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
G.e. Range Bake Element (replaces 325883, 340521, 8029,e) WB44K5012
#251

Body section diagram

G.e. range bake element (replaces 325883, 340521, 8029,e)

Part #WB44K5012

BEST SELLER
$43.25 |
12% OFF Phone Price : $49.25
In Stock
Sensor WB21X5318
#253

Body section diagram

Sensor

Part #WB21X5318

Replaced by #WB21X5301

?
Manufacturer substitution
This part replaces WB21X5318. Substitute parts can look different from the original.
BEST SELLER
$147.17 |
8% OFF Phone Price : $159.17
In Stock
Terminal Block Assembly WB17K5017
#82

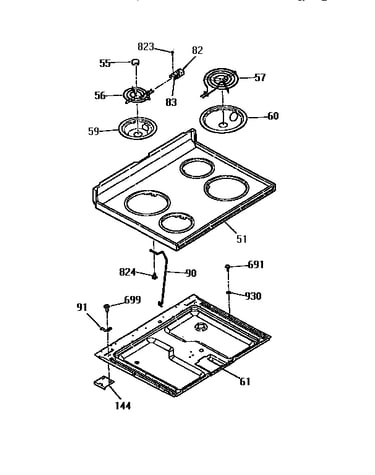

Main top section diagram

Terminal block assembly

Part #WB17K5017

Replaced by #WB17X210

?
Manufacturer substitution
This part replaces WB17K5017. Substitute parts can look different from the original.
BEST SELLER
$22.97 |
21% OFF Phone Price : $28.97
In Stock
Broil Support WB02X9719
#294

Body section diagram

Broil support

Part #WB02X9719

Replaced by #WB2X9719

?
Manufacturer substitution
This part replaces WB02X9719. Substitute parts can look different from the original.
BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Broilunt 240 WB44X0232
#252

Body section diagram

Broilunt 240

Part #WB44X0232

Replaced by #WB44X232

?
Manufacturer substitution
This part replaces WB44X0232. Substitute parts can look different from the original.
BEST SELLER
$58.44 |
9% OFF Phone Price : $64.44
In Stock
Hinge WB14X0103
#281

Body section diagram

Hinge

Part #WB14X0103

Replaced by #WB14X103

?
Manufacturer substitution
This part replaces WB14X0103. Substitute parts can look different from the original.
BEST SELLER
$38.22 |
14% OFF Phone Price : $44.22
In Stock
Range Drip Pan (replaces Wb31k5025e) WB31K5025
#60A

Main top section diagram

Range drip pan (replaces wb31k5025e)

Part #WB31K5025

$22.35 |
21% OFF Phone Price : $28.35
In Stock
Screw WB01X1293
#856

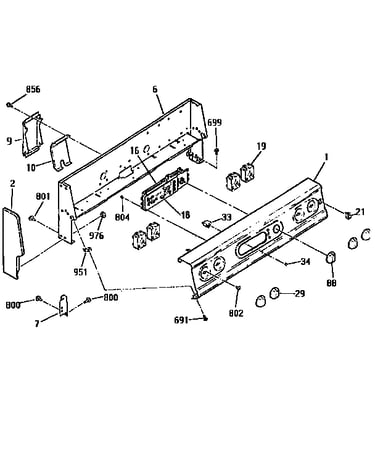

Backguard section diagram

Screw

Part #WB01X1293

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces WB01X1293. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Oven Door Gasket WB02K5319
#132

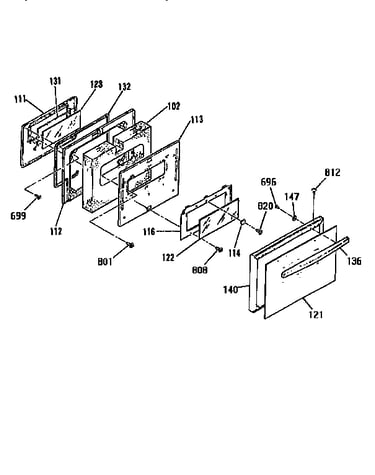

Door section diagram

Oven door gasket

Part #WB02K5319

Replaced by #WB2K5319

?
Manufacturer substitution
This part replaces WB02K5319. Substitute parts can look different from the original.
$109.34 |
10% OFF Phone Price : $121.34
In Stock
