Wagner
Water Pump

Model # 975 Official Wagner piston pump

Here are the diagrams and repair parts for Official Wagner 975 piston pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

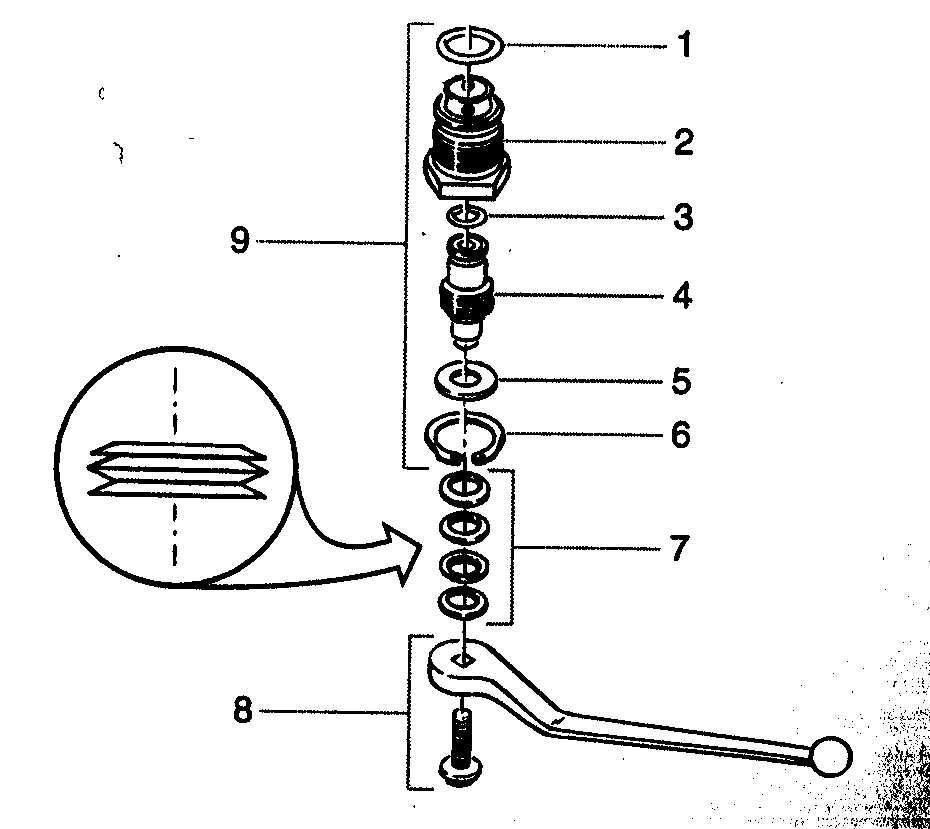

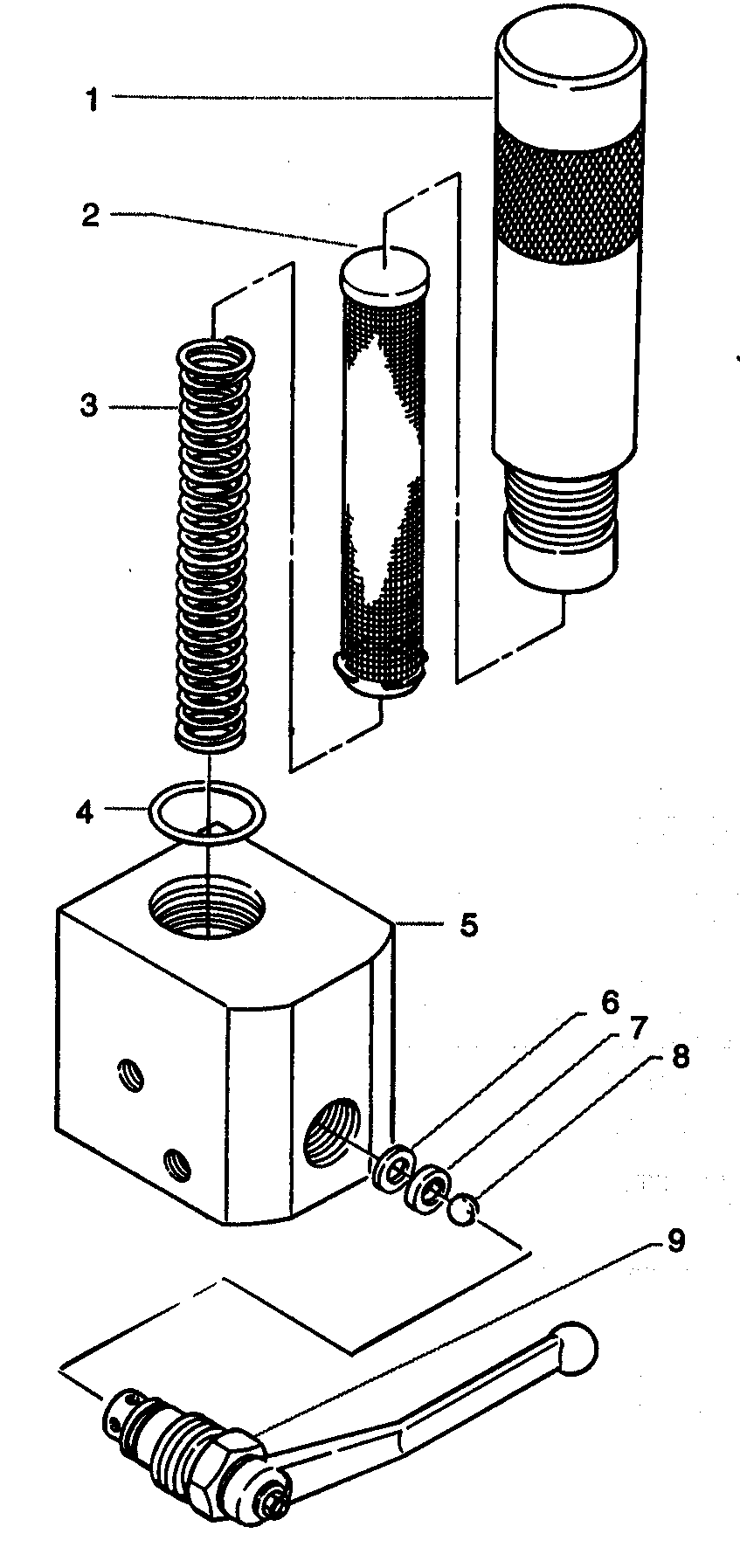

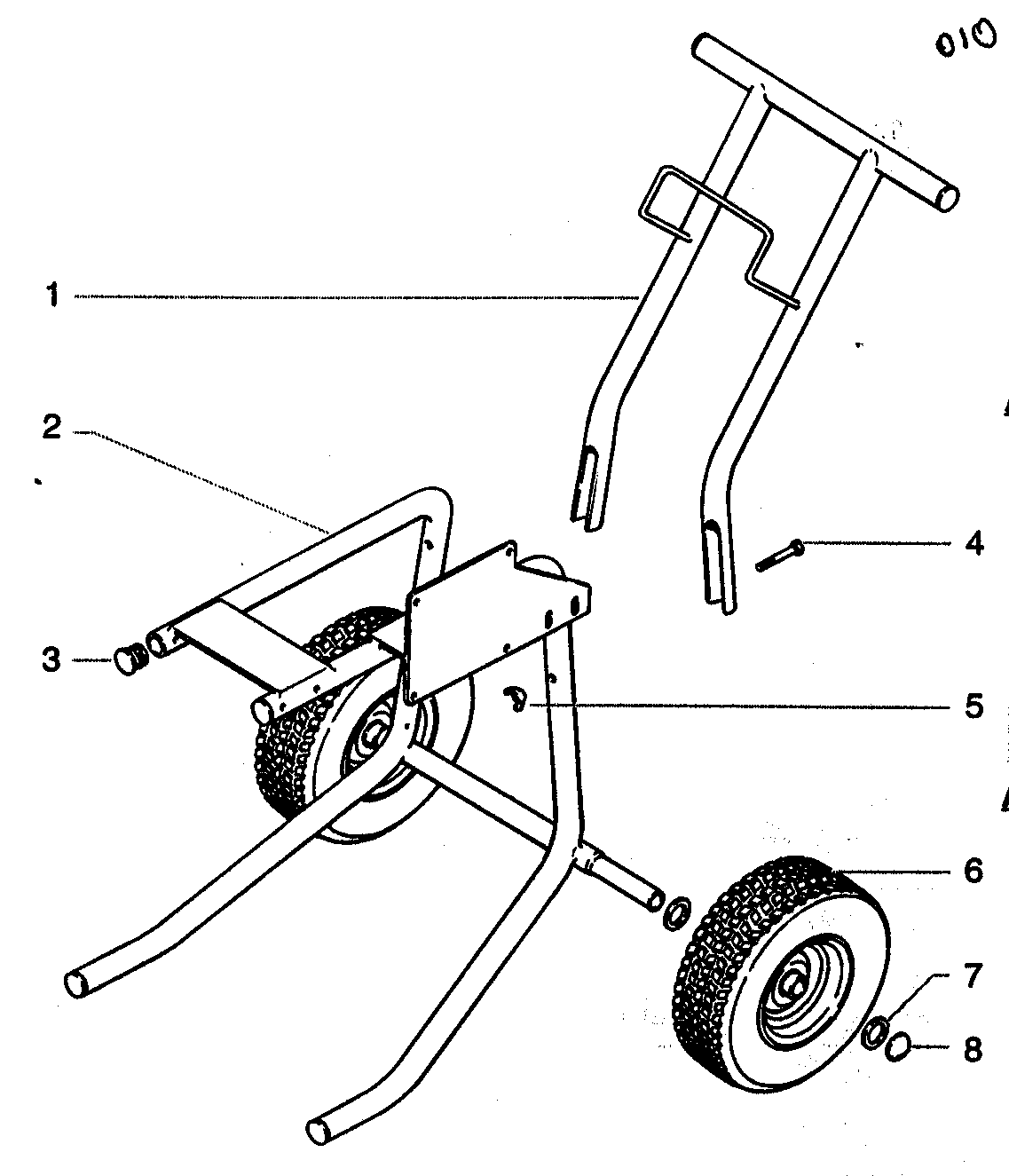

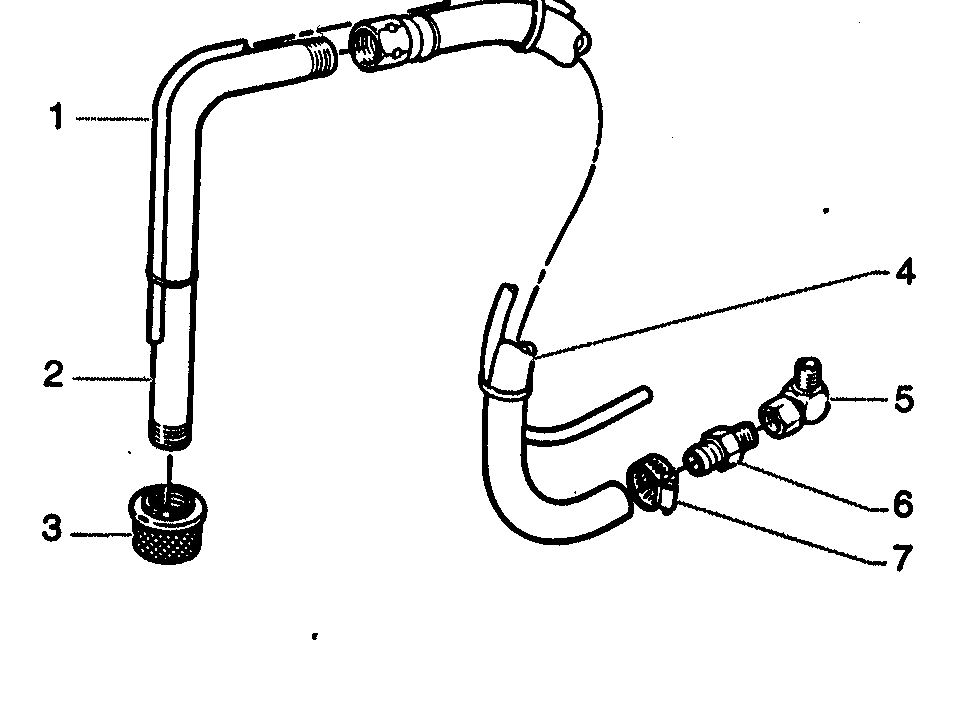

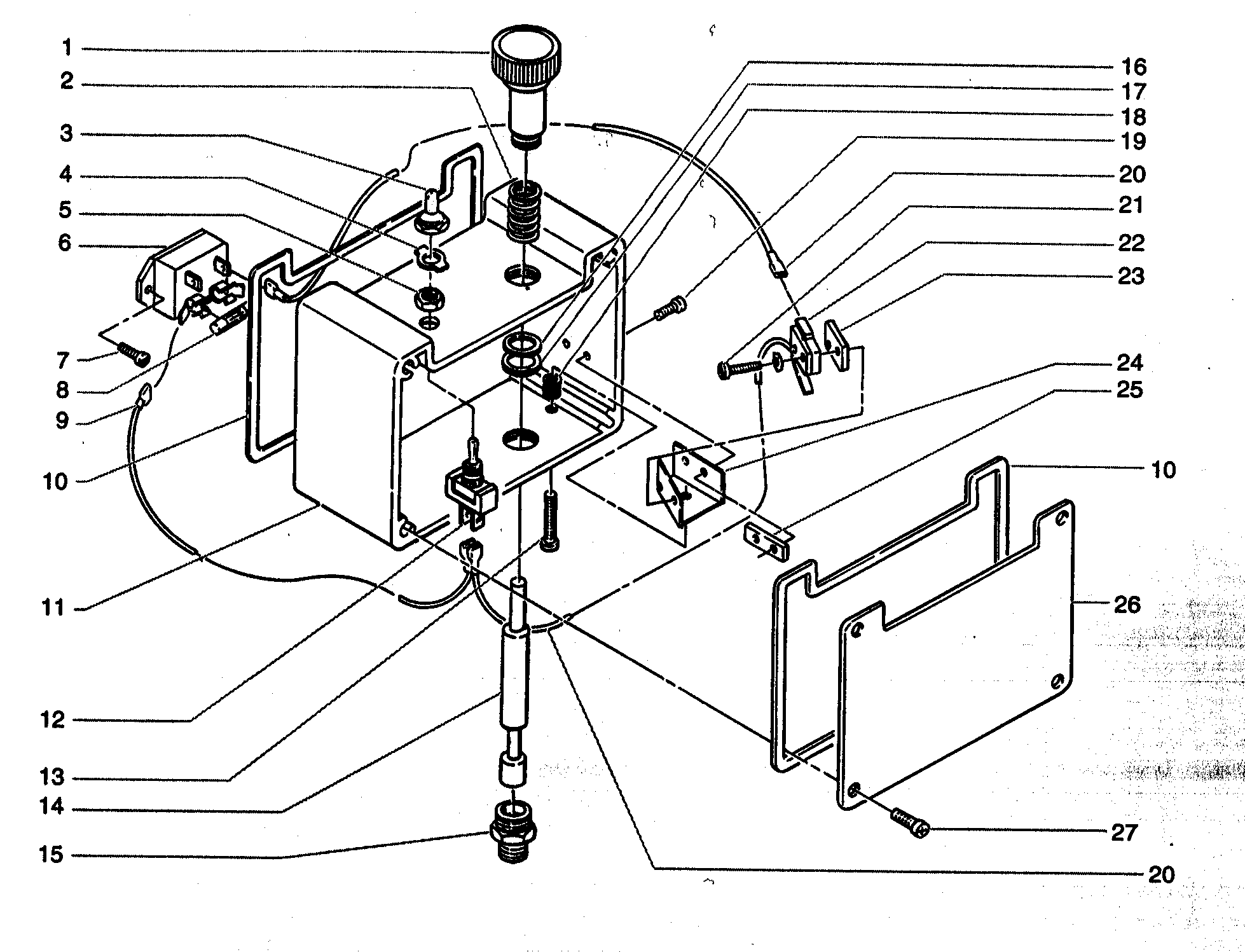

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 187 parts  |
Bolt Rod 13482
#21

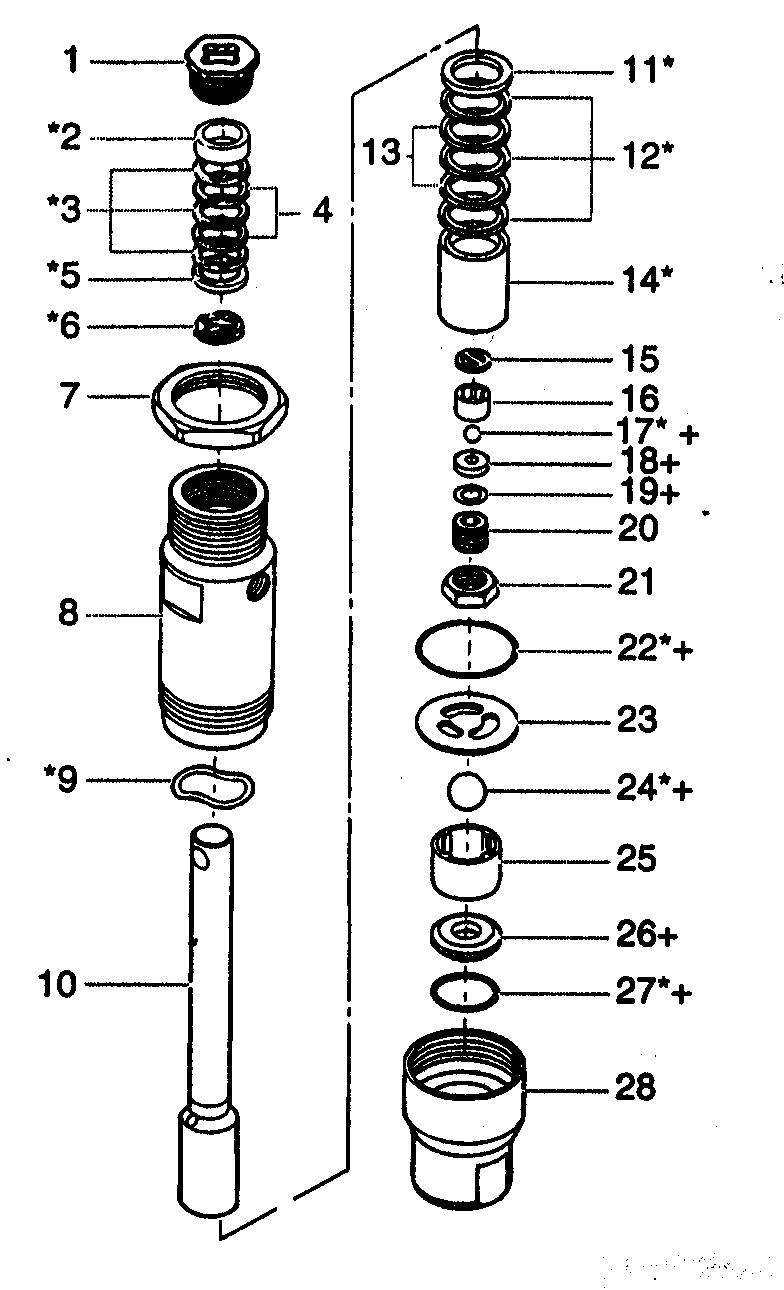

Fluid section assy diagram

Bolt rod

Part #13482

The manufacturer no longer makes this part, and there's no substitute part

Retainer Ring 50431
#1

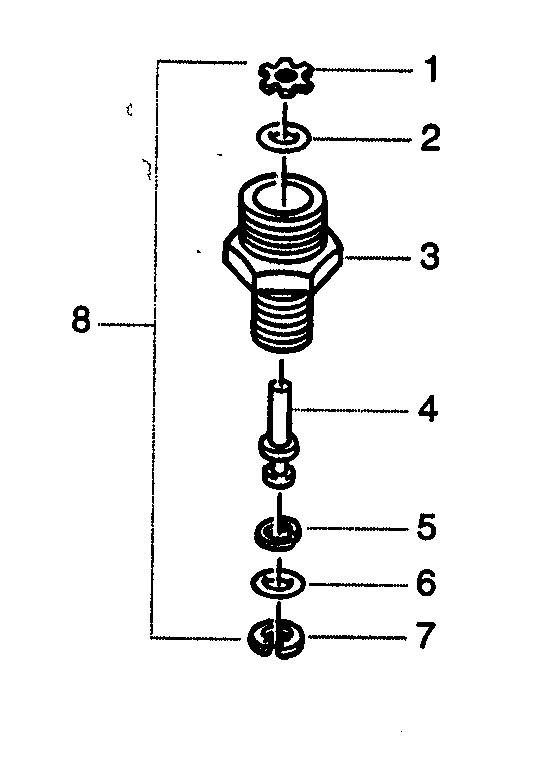

Transducer assy diagram

Retainer ring

Part #50431

The manufacturer no longer makes this part, and there's no substitute part

Brush Cap 01686
#1

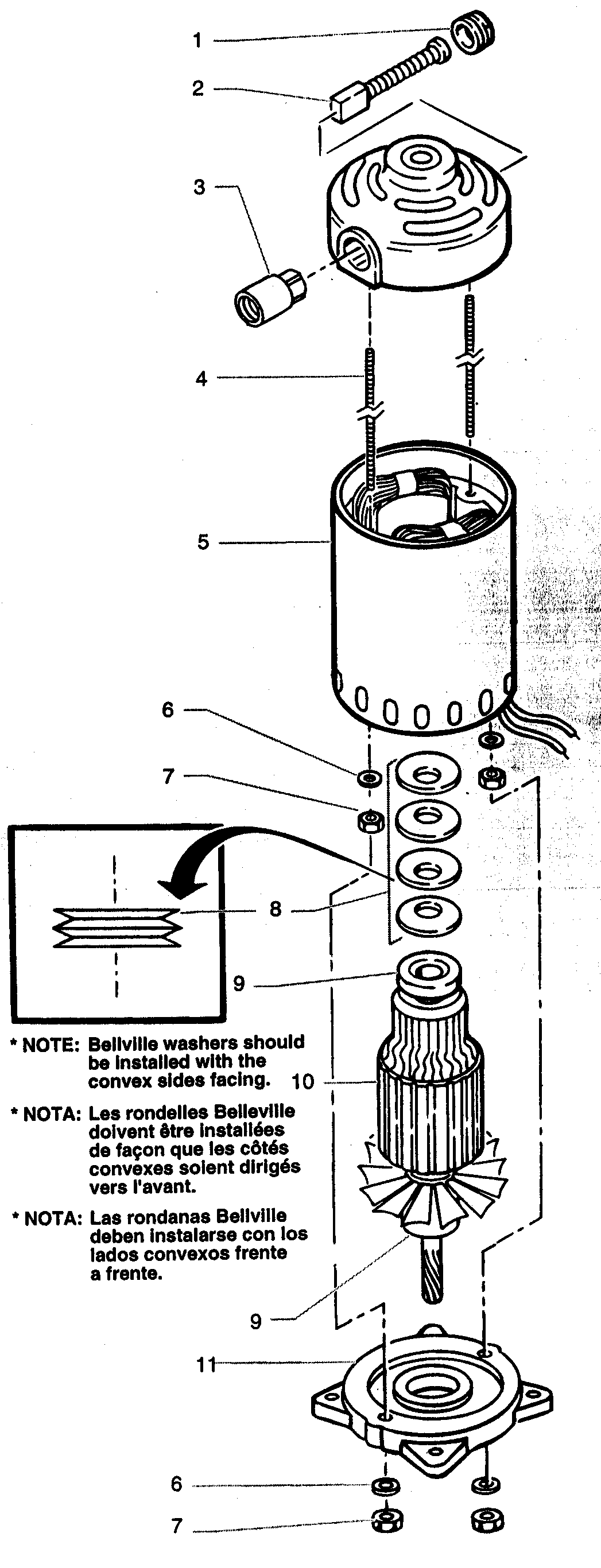

Motor assy diagram

Brush cap

Part #01686

The manufacturer no longer makes this part, and there's no substitute part

Tee Two Gun 3/8" 0088157
#NI

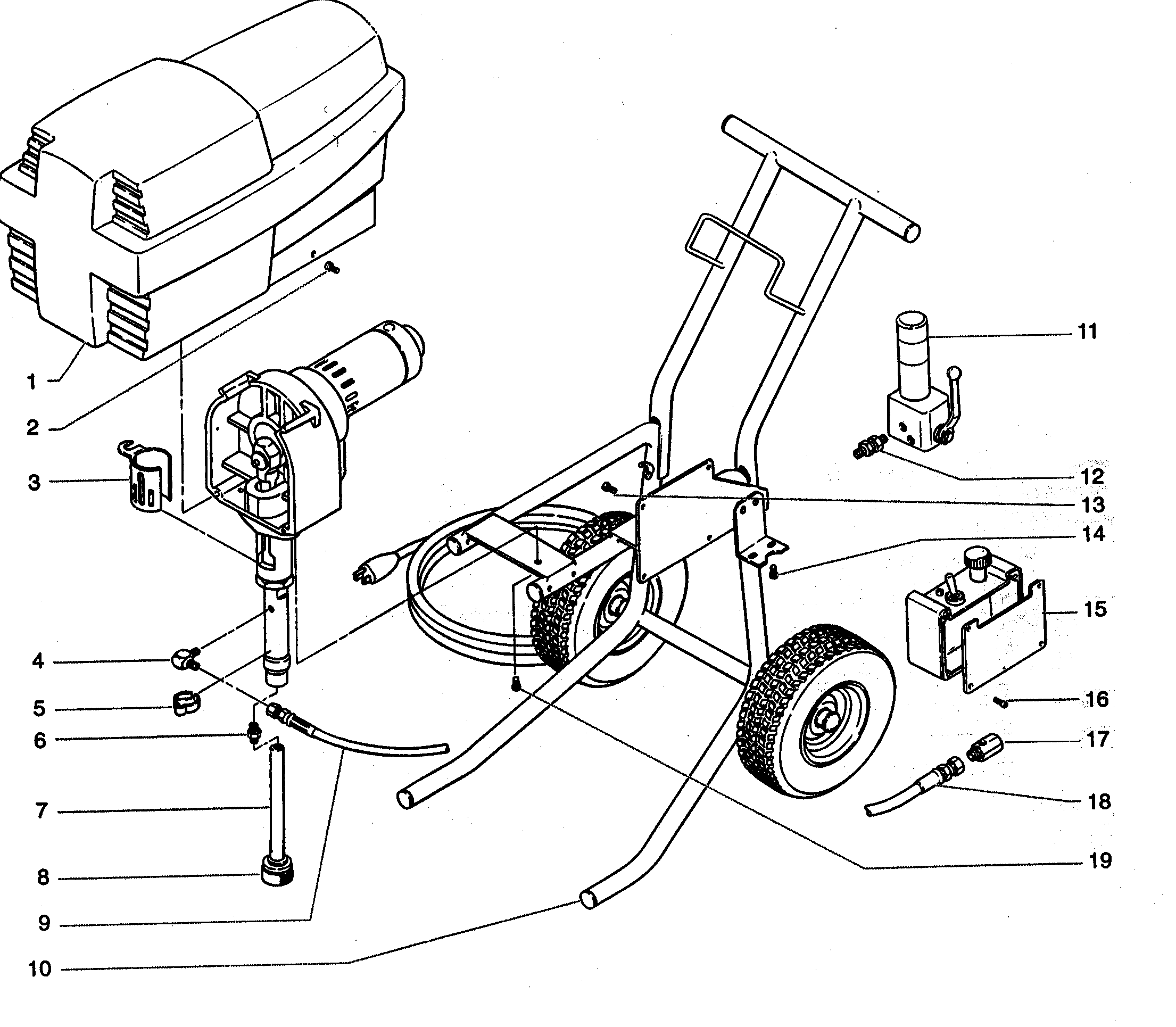

Final assy diagram

Tee two gun 3/8"

Part #0088157

The manufacturer no longer makes this part, and there's no substitute part

Tip Exten As 0153042
#NI

Final assy diagram

Tip exten as

Part #0153042

The manufacturer no longer makes this part, and there's no substitute part

Stud 01783
#4

Motor assy diagram

Stud

Part #01783

The manufacturer no longer makes this part, and there's no substitute part

Crankshaft 19046
#42

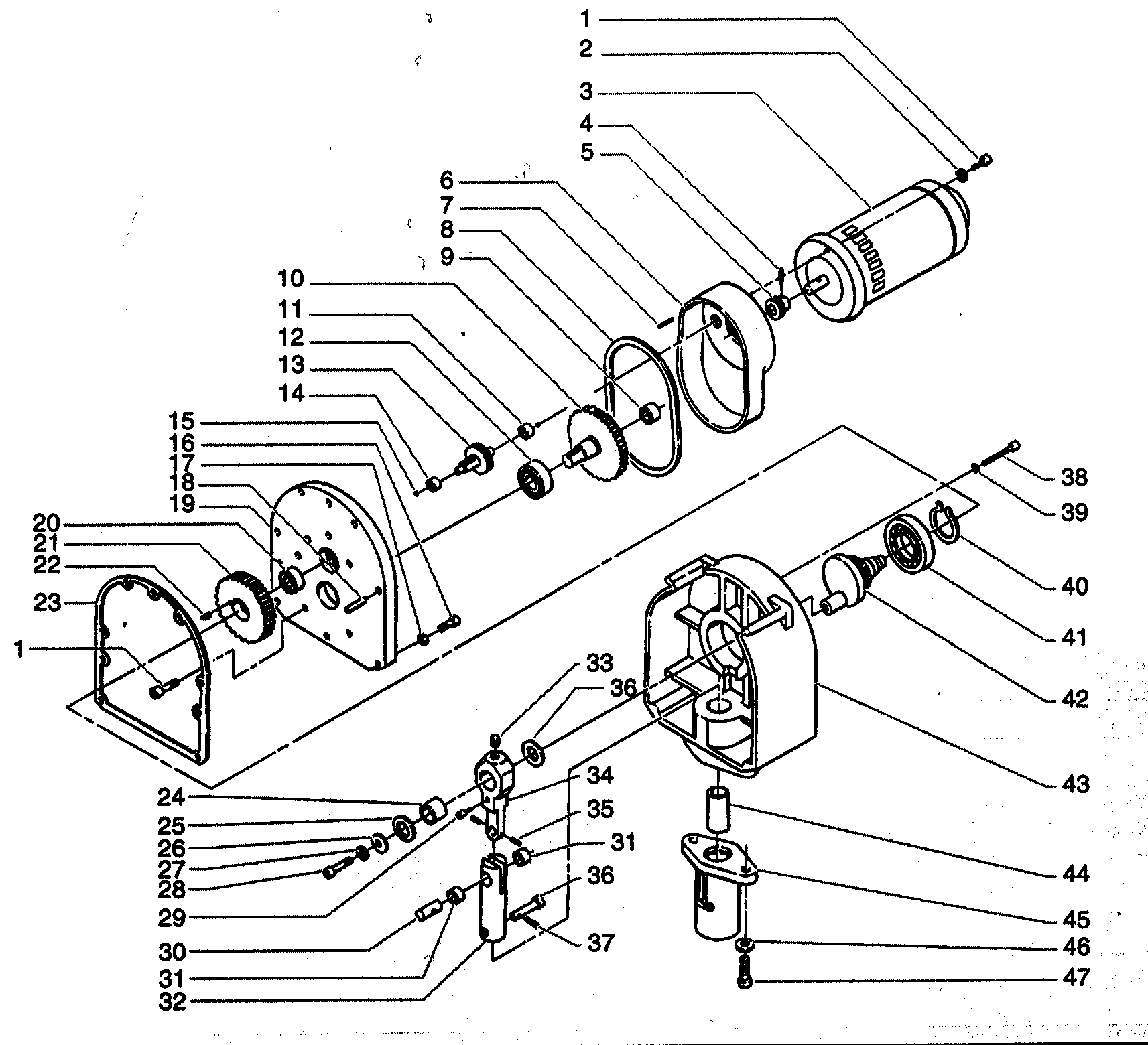

Drive assy diagram

Crankshaft

Part #19046

The manufacturer no longer makes this part, and there's no substitute part

Bolt 51357
#14

Final assy diagram

Bolt

Part #51357

The manufacturer no longer makes this part, and there's no substitute part

Bearing 50962
Bearing

Part #50962

The manufacturer no longer makes this part, and there's no substitute part

Slide Block 19089
#32

Drive assy diagram

Slide block

Part #19089

The manufacturer no longer makes this part, and there's no substitute part
