Model # KDL-40EX400 Official Sony lcd television

Here are the diagrams and repair parts for Official Sony KDL-40EX400 lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Neck 416686801
#5

Stand assy diagram

Neck

Part #416686801

The manufacturer no longer makes this part, and there's no substitute part

Television Screw 258060801
#3

Stand assy diagram

Television screw

Part #258060801

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 183650121
#NI

Stand assy diagram

Power cord

Part #183650121

The manufacturer no longer makes this part, and there's no substitute part

Television Electronic Control Board 185759321
#106

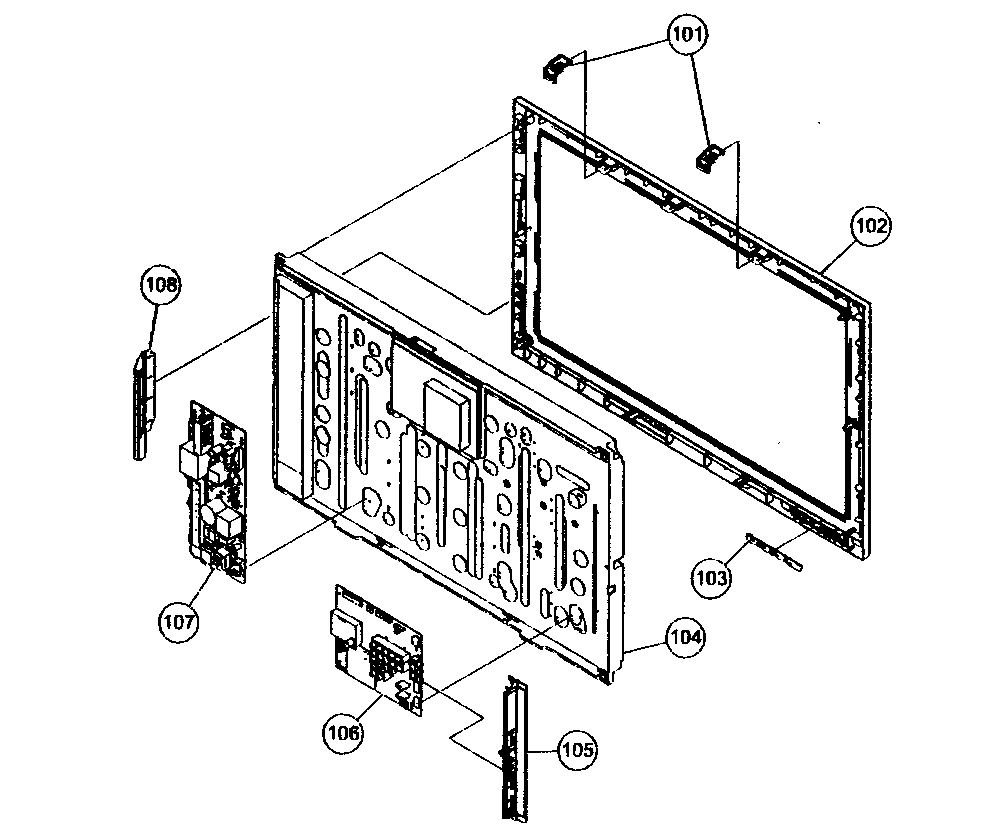

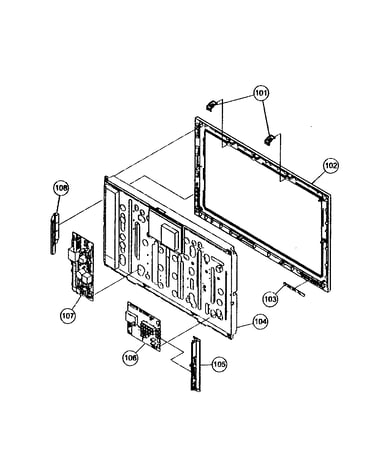

Front assy diagram

Television electronic control board

Part #185759321

The manufacturer no longer makes this part, and there's no substitute part

Bracket 416378801
#52

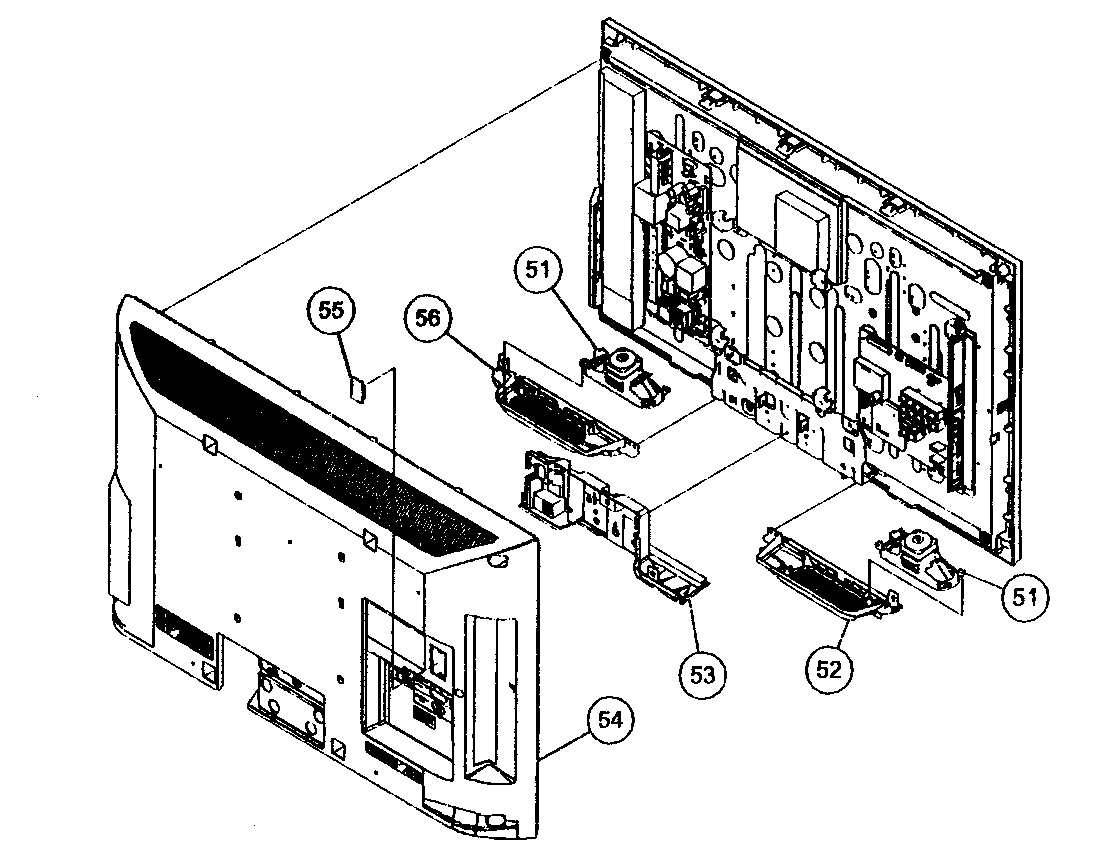

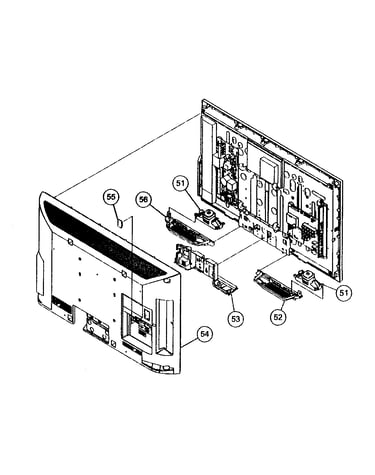

Rear cover diagram

Bracket

Part #416378801

The manufacturer no longer makes this part, and there's no substitute part

Cover X25466841
#54

Rear cover diagram

Cover

Part #X25466841

The manufacturer no longer makes this part, and there's no substitute part

Bracket 416378901
#56

Rear cover diagram

Bracket

Part #416378901

The manufacturer no longer makes this part, and there's no substitute part

Connection Assembly 191006095
#152

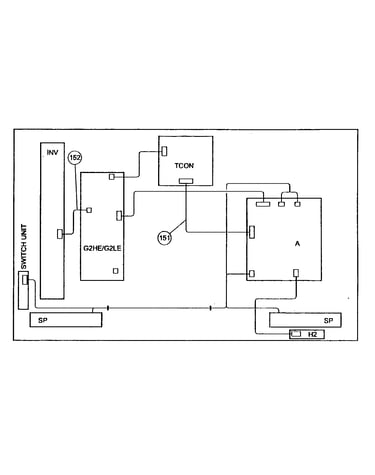

Lcd panel diagram

Connection assembly

Part #191006095

The manufacturer no longer makes this part, and there's no substitute part

Neck Cover 416687101
#4

Stand assy diagram

Neck cover

Part #416687101

The manufacturer no longer makes this part, and there's no substitute part

Remote Control 148782711
#NI

Stand assy diagram

Remote control

Part #148782711

The manufacturer no longer makes this part, and there's no substitute part
