Model # 5803183-4 Official Craftsman alternator

Here are the diagrams and repair parts for Official Craftsman 5803183-4 alternator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Cap Screw 24823
#20

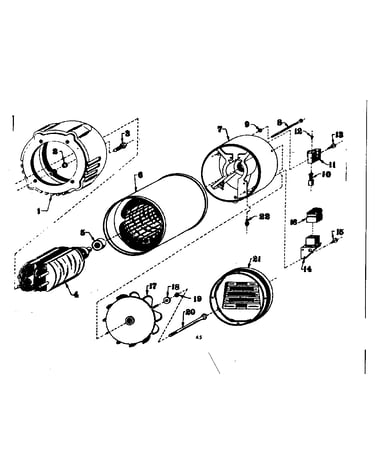

Stator assembly diagram

Cap screw

Part #24823

Replaced by #24823GS

?
Manufacturer substitution
This part replaces 24823. Substitute parts can look different from the original.
$26.13
In Stock
Washer 22145
#35

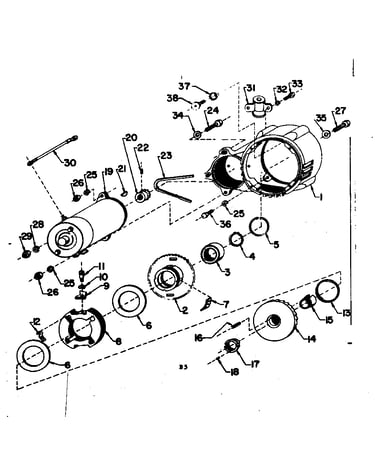

Starter diagram

Washer

Part #22145

Replaced by #STD551025

?
Manufacturer substitution
This part replaces 22145. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Cap Screw 22287
#13

Muffler assembly diagram

Cap screw

Part #22287

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 26772
#9

Muffler assembly diagram

Lock nut

Part #26772

Replaced by #691808

?
Manufacturer substitution
This part replaces 26772. Substitute parts can look different from the original.
This item is not returnable
$14.34
In Stock
Brush Assembly A-24044-A
#10

Stator assembly diagram

Brush assembly

Part #A-24044-A

The manufacturer no longer makes this part, and there's no substitute part

Carrier 27213
#7

Stator assembly diagram

Carrier

Part #27213

The manufacturer no longer makes this part, and there's no substitute part

Housing 25132
#1

Stator assembly diagram

Housing

Part #25132

The manufacturer no longer makes this part, and there's no substitute part

Screw 24489
Screw

Part #24489

The manufacturer no longer makes this part, and there's no substitute part

Pin 25258
#9

Starter diagram

Pin

Part #25258

The manufacturer no longer makes this part, and there's no substitute part

Cont Lever 26761
#12

Muffler assembly diagram

Cont lever

Part #26761

The manufacturer no longer makes this part, and there's no substitute part
