Model # LC590LXD0 Official White-Westinghouse 24" top-loading washer - lw31289040

Here are the diagrams and repair parts for Official White-Westinghouse LC590LXD0 24" top-loading washer - lw31289040, as well as links to manuals and error code tables, if available.

By Schematic
By Part

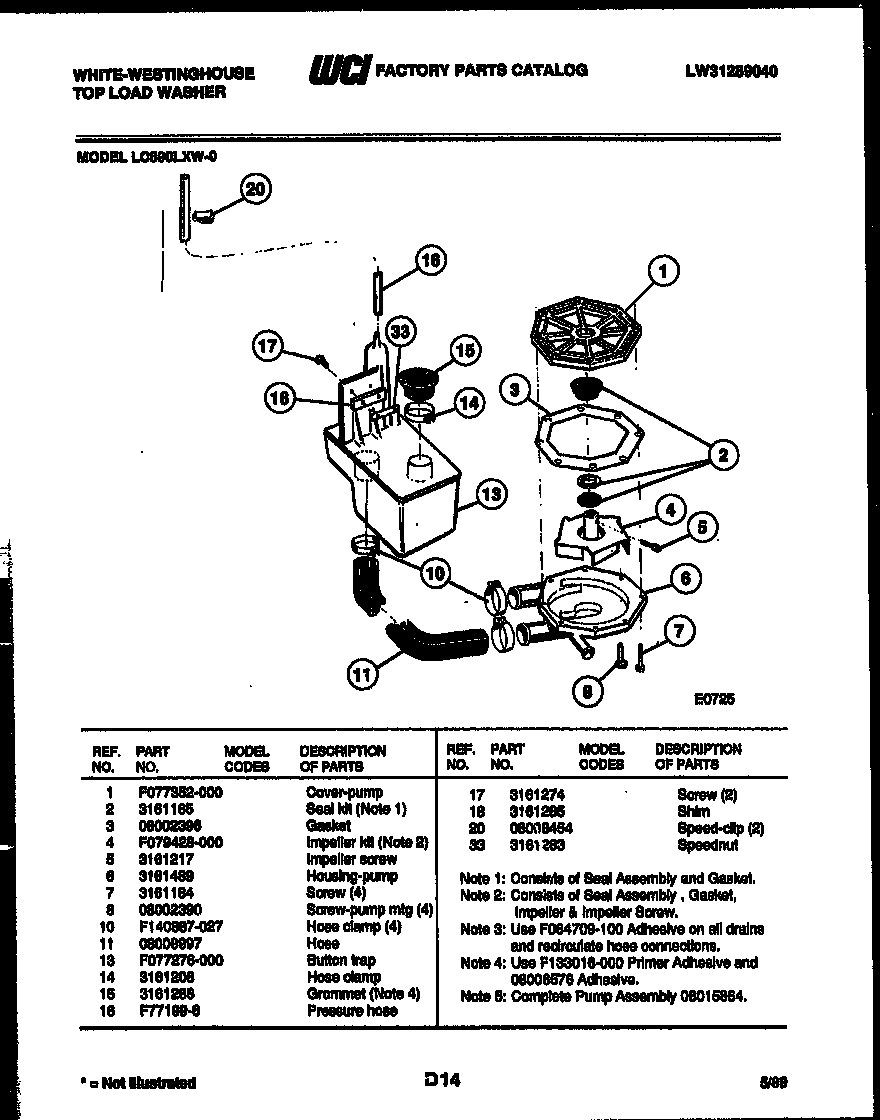

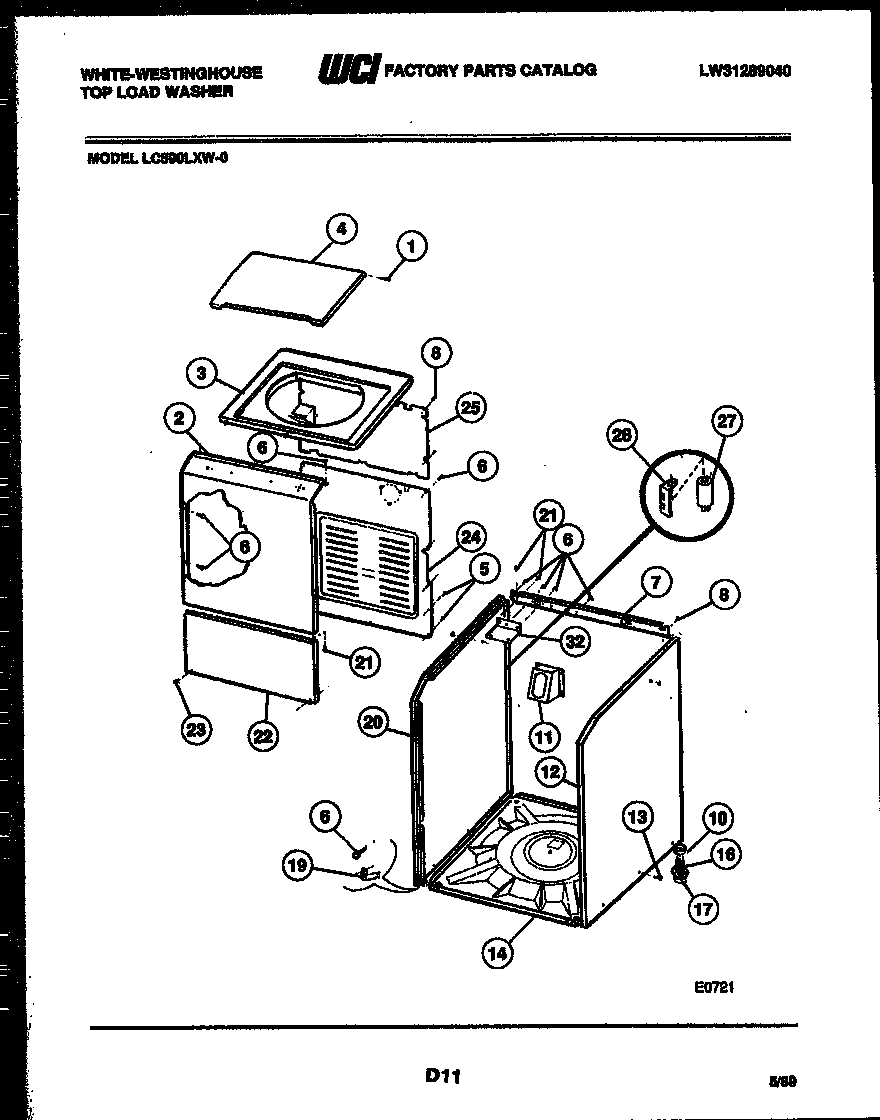

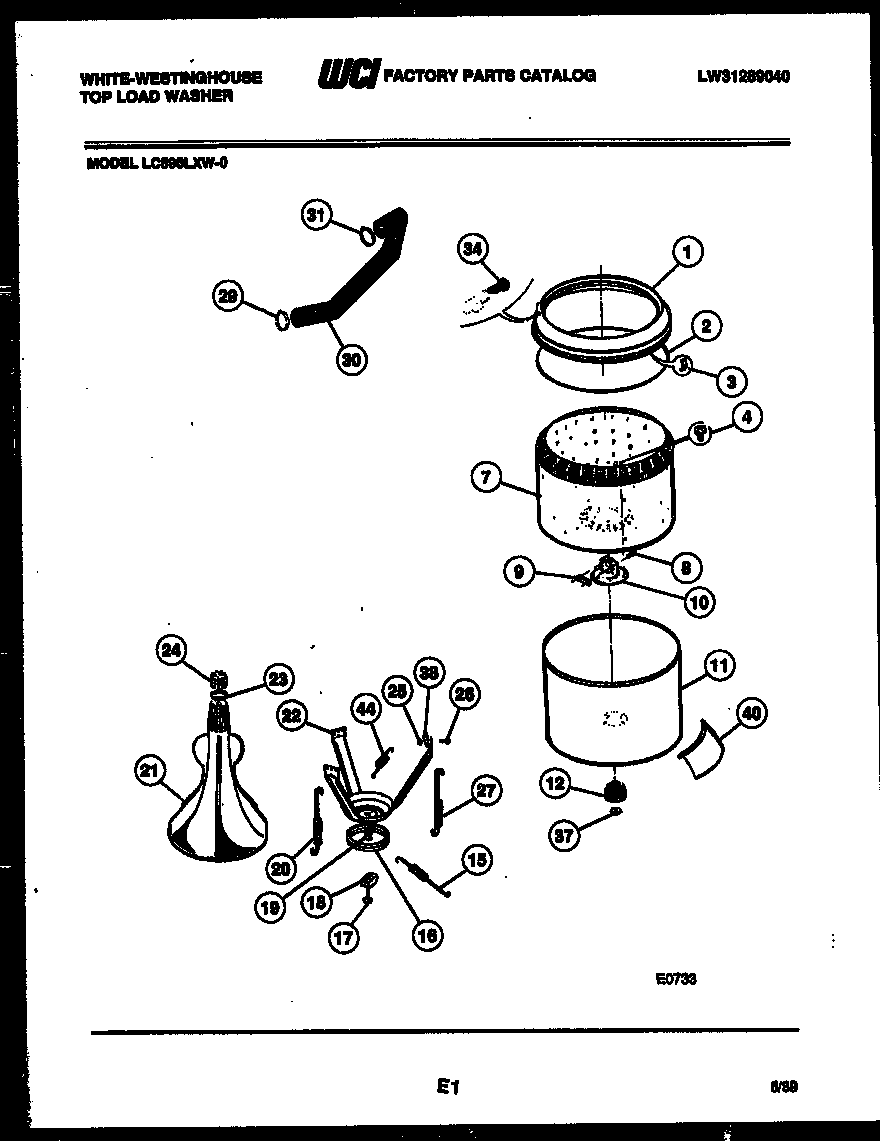

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
LC590LXD0 24" Top-Loading Washer - LW31289040
Screw 3161456
#34

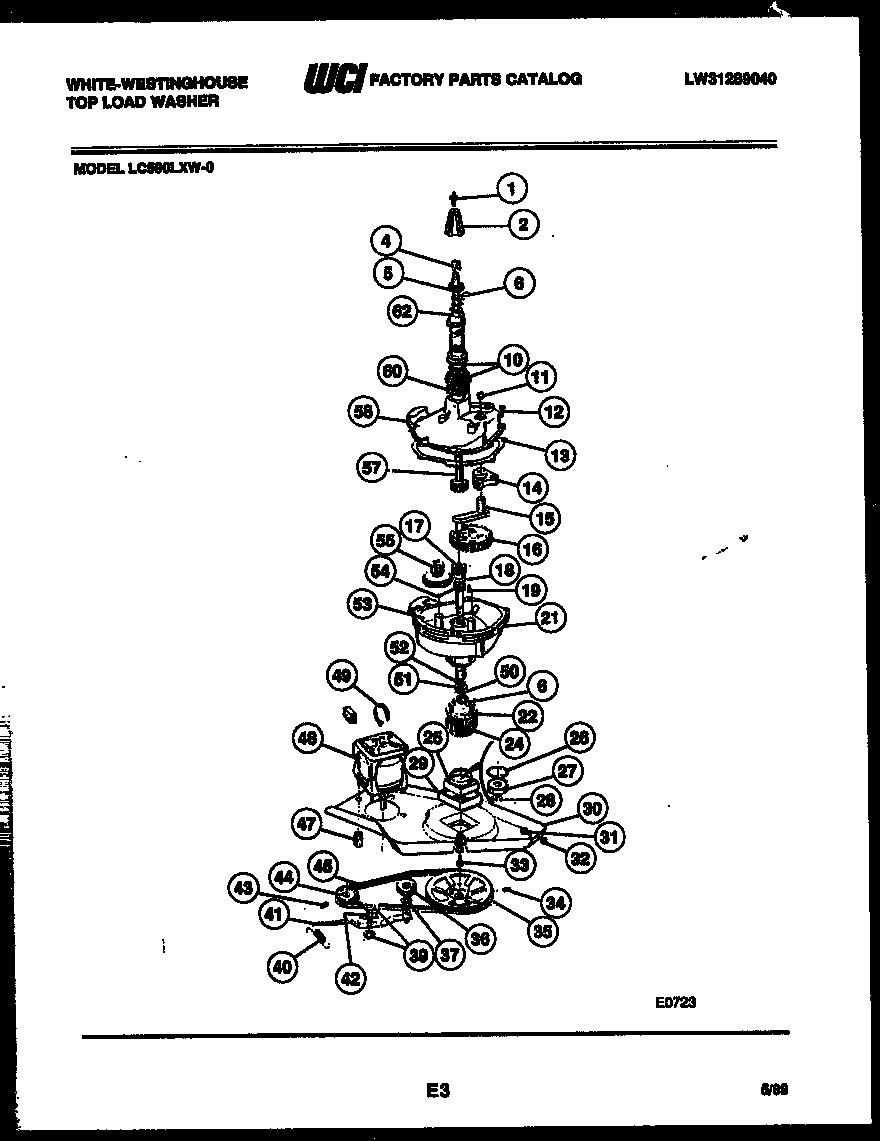

Transmission parts diagram

Screw

Part #3161456

Replaced by #5303270023

?
Manufacturer substitution
This part replaces 3161456. Substitute parts can look different from the original.
In Stock
Seal 3161173
#52

Transmission parts diagram

Seal

Part #3161173

Replaced by #5303161173

?
Manufacturer substitution
This part replaces 3161173. Substitute parts can look different from the original.
In Stock
Seal 3161307
#5

Transmission parts diagram

Seal

Part #3161307

Replaced by #5303161307

?
Manufacturer substitution
This part replaces 3161307. Substitute parts can look different from the original.
$19.44
9% OFF Phone Price : $21.44
In Stock
Pulley 3161159
#36

Transmission parts diagram

Pulley

Part #3161159

Replaced by #5304527822

?
Manufacturer substitution
This part replaces 3161159. Substitute parts can look different from the original.
In Stock
Clip 08008454
Clip

Part #08008454

This item is not returnable
In Stock
Screw 08004660
Screw

Part #08004660

This item is not returnable
In Stock
Clip 08004657
#32

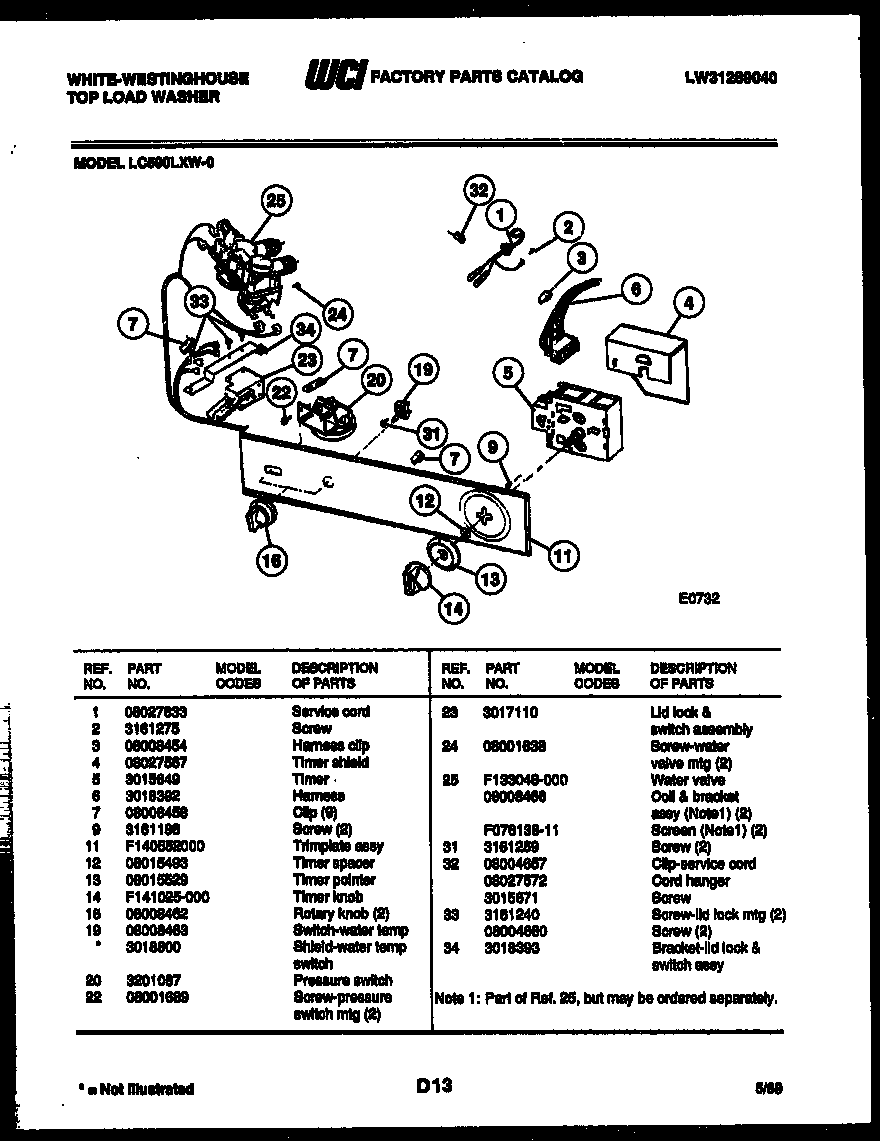

Console and control parts diagram

Clip

Part #08004657

This item is not returnable
In Stock
Gibson Hose 3204664
#1

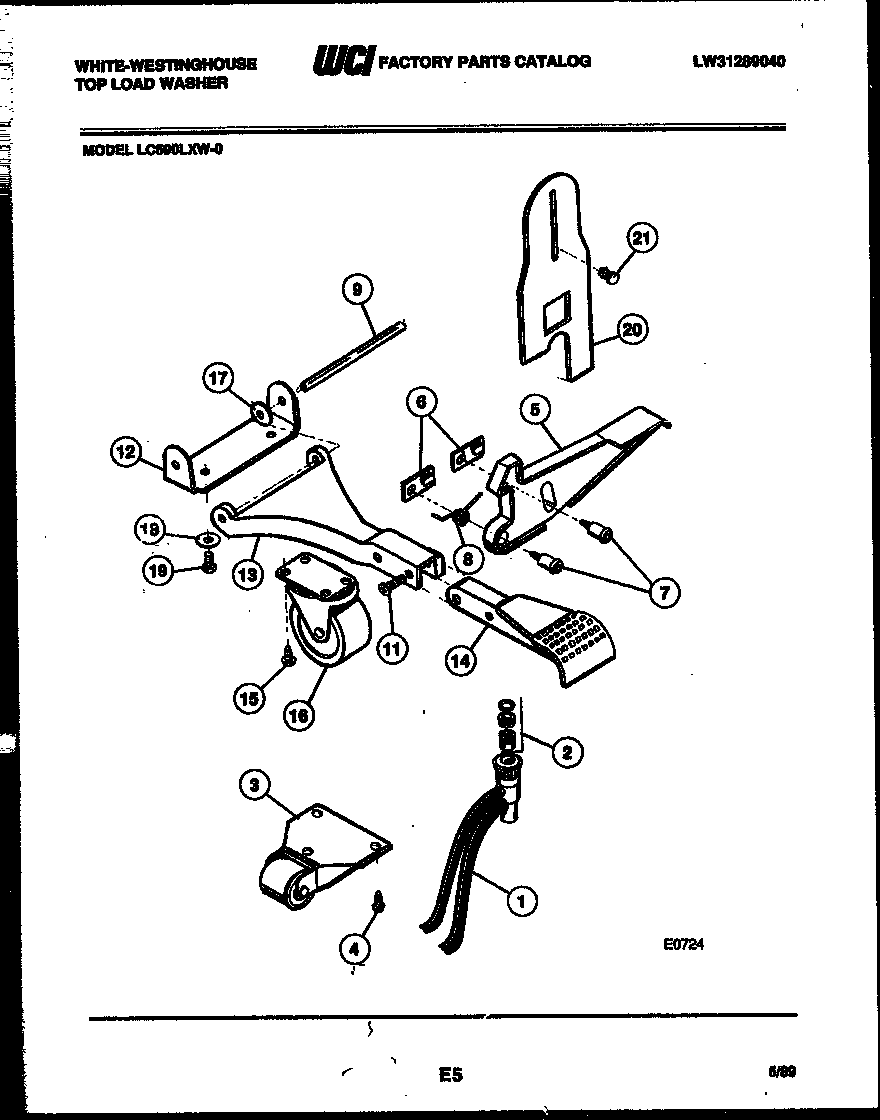

Portable washer components diagram

Gibson hose

Part #3204664

In Stock
Screw 3015671
Screw

Part #3015671

Replaced by #5303015671

?
Manufacturer substitution
This part replaces 3015671. Substitute parts can look different from the original.
This item is not returnable
In Stock
Strap 3161300
#49

Transmission parts diagram

Strap

Part #3161300

Replaced by #5303161300

?
Manufacturer substitution
This part replaces 3161300. Substitute parts can look different from the original.
This item is not returnable
In Stock
