Carrier
Heating & Cooling Combined Unit

Model # 48SD030060300 Official Carrier package unit

Here are the diagrams and repair parts for Official Carrier 48SD030060300 package unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Contactor HN51KB024
#NI

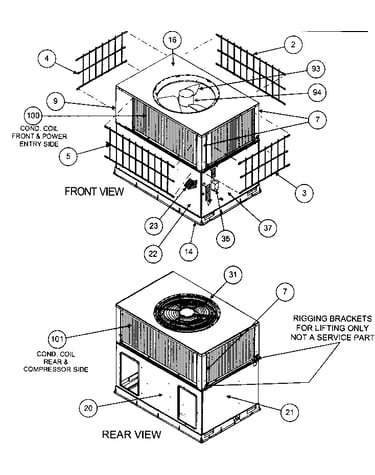

Front view/rear view diagram

Contactor

Part #HN51KB024

Replaced by #90-244

?
Manufacturer substitution
This part replaces HN51KB024. Substitute parts can look different from the original.
BEST SELLER
$26.61 |
18% OFF Phone Price : $32.61
In Stock
Central Air Conditioner Heat Exchanger 48GS660002
#NI

Front view/rear view diagram

Central air conditioner heat exchanger

Part #48GS660002

$659.08
In Stock
Central Air Conditioner Condenser Fan Motor HC35GE235
#94

Front view/rear view diagram

Central air conditioner condenser fan motor

Part #HC35GE235

$531.10
In Stock
Temp Swtch HH18HA211
#NI

Front view/rear view diagram

Temp swtch

Part #HH18HA211

$27.49
In Stock
Bolt AA06BS228
#NI

Front view/rear view diagram

Bolt

Part #AA06BS228

This item is not returnable
$3.94
In Stock
Sensor 48GS400192
#NI

Front view/rear view diagram

Sensor

Part #48GS400192

$26.54
In Stock
Plug Assembly HY07MP261
#NI

Front view/rear view diagram

Plug assembly

Part #HY07MP261

$108.12
In Stock
Partition 48GS500006
#NI

Front view/rear view diagram

Partition

Part #48GS500006

$219.64
In Stock
Furnace Heat Exchanger Cover 48GS400108
#NI

Front view/rear view diagram

Furnace heat exchanger cover

Part #48GS400108

$325.53 |
$12.00 OFF Phone Price : $337.53
In Stock
Condenser Coil 50SD400041
#101

Front view/rear view diagram

Condenser coil

Part #50SD400041

$1376.00
In Stock
