Model # 56210064 Official Craftsman 19" gas rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 56210064 19" gas rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 15 parts  |

Nut 5534
#5

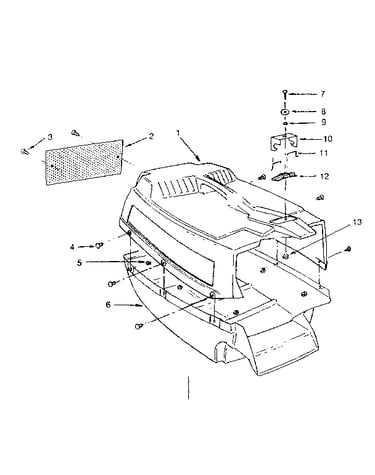

Replacement parts diagram

Nut

Part #5534

The manufacturer no longer makes this part, and there's no substitute part

Screw 500691
#4

Replacement parts diagram

Screw

Part #500691

The manufacturer no longer makes this part, and there's no substitute part

Screw 500608
#3

Replacement parts diagram

Screw

Part #500608

The manufacturer no longer makes this part, and there's no substitute part

Nut 500695
#13

Replacement parts diagram

Nut

Part #500695

The manufacturer no longer makes this part, and there's no substitute part

Comp Grs Ctc 500385-1

#NI

All parts diagram

Comp grs ctc

Part #500385-1

The manufacturer no longer makes this part, and there's no substitute part

Catcher 500387-1
#1

Replacement parts diagram

Catcher

Part #500387-1

The manufacturer no longer makes this part, and there's no substitute part

Latch Spring 95158-1
#11

Replacement parts diagram

Latch spring

Part #95158-1

The manufacturer no longer makes this part, and there's no substitute part

Bracket Kit 500822

#NI

All parts diagram

Bracket kit

Part #500822

The manufacturer no longer makes this part, and there's no substitute part

Latch 500628
#10

Replacement parts diagram

Latch

Part #500628

The manufacturer no longer makes this part, and there's no substitute part

Latch 500560
#12

Replacement parts diagram

Latch

Part #500560

The manufacturer no longer makes this part, and there's no substitute part
