Homelite
Gas Line Trimmer

Model # UT20811 Official Homelite gas line trimmer

Here are the diagrams and repair parts for Official Homelite UT20811 gas line trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

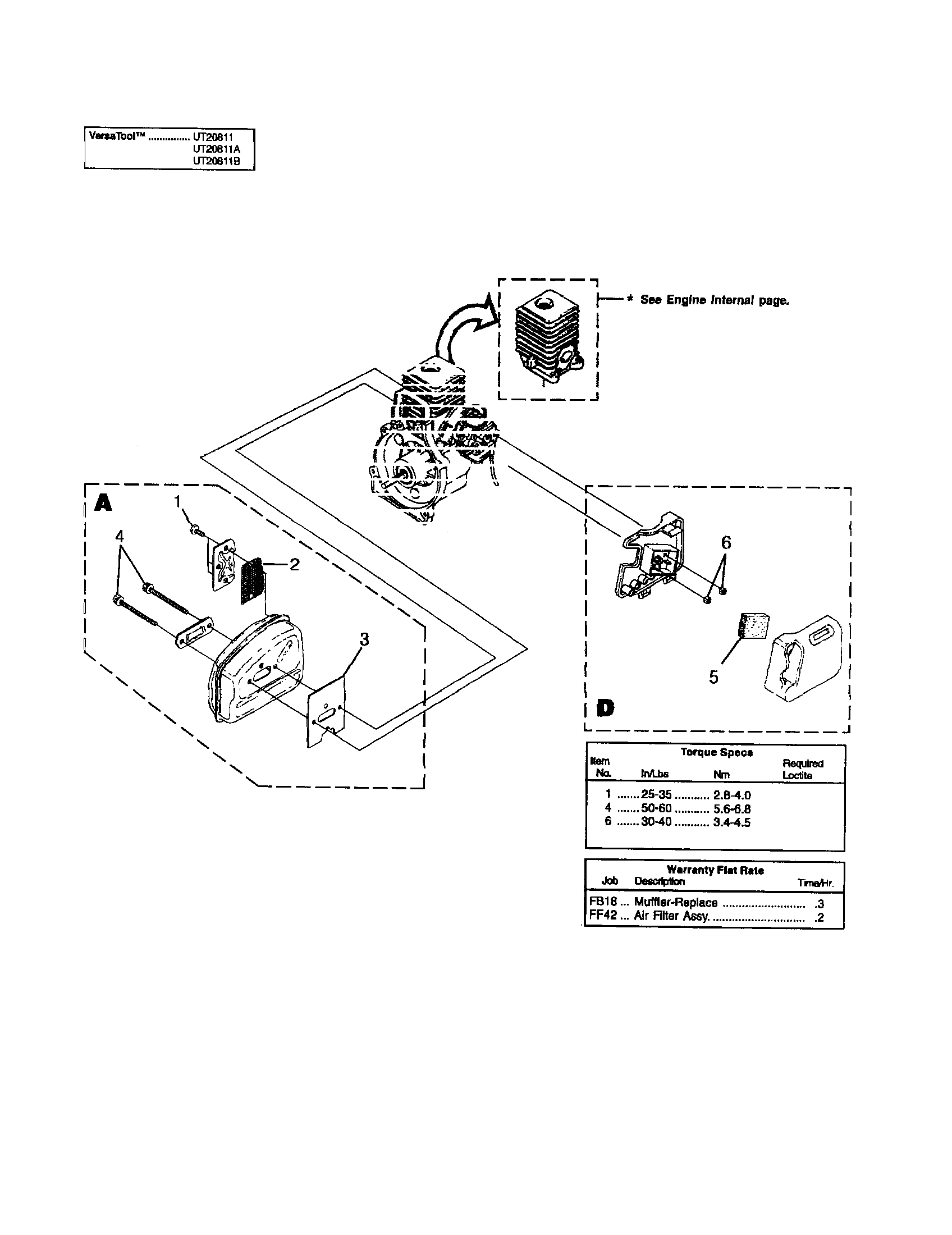

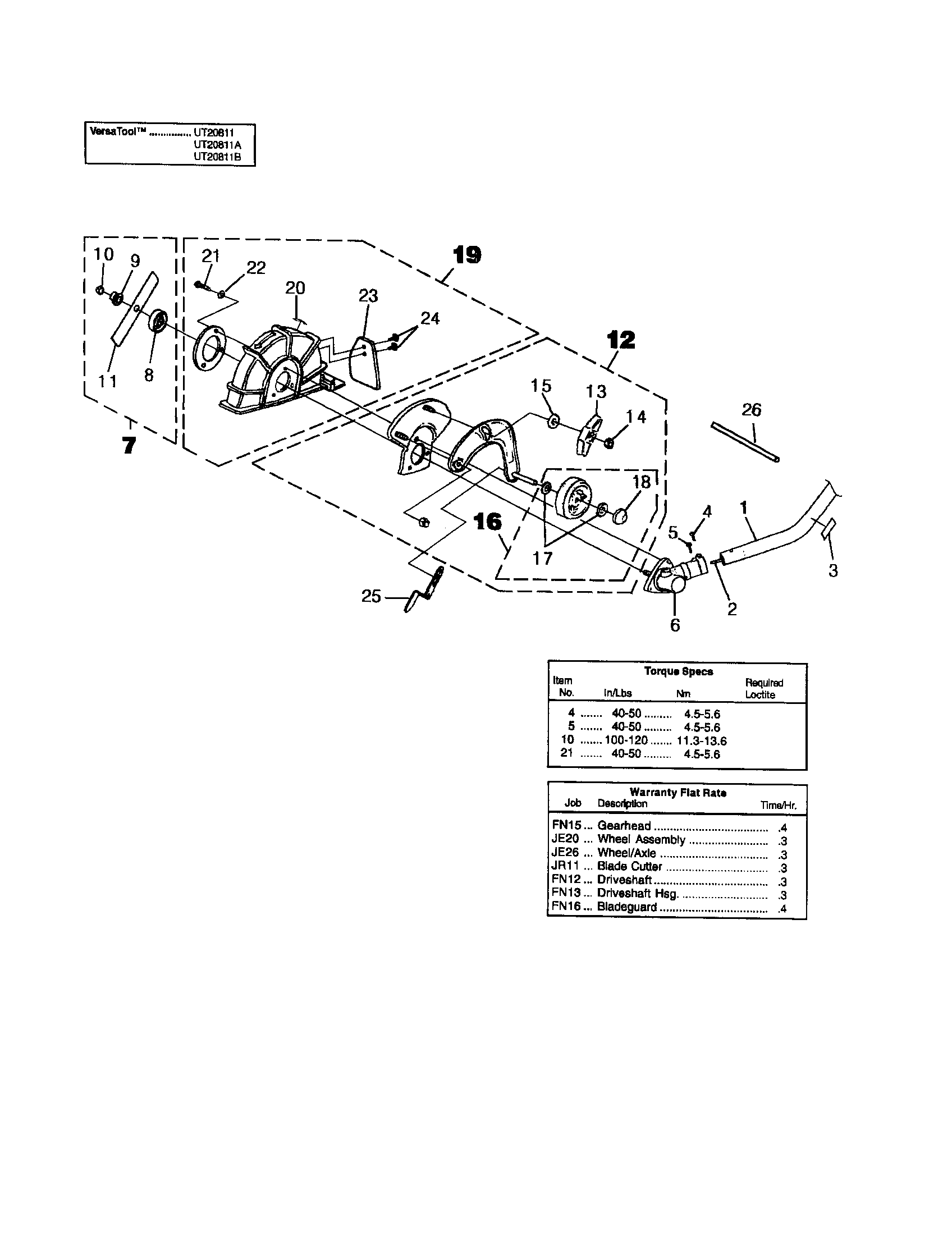

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 165 parts  |
Screw UP04140
#4

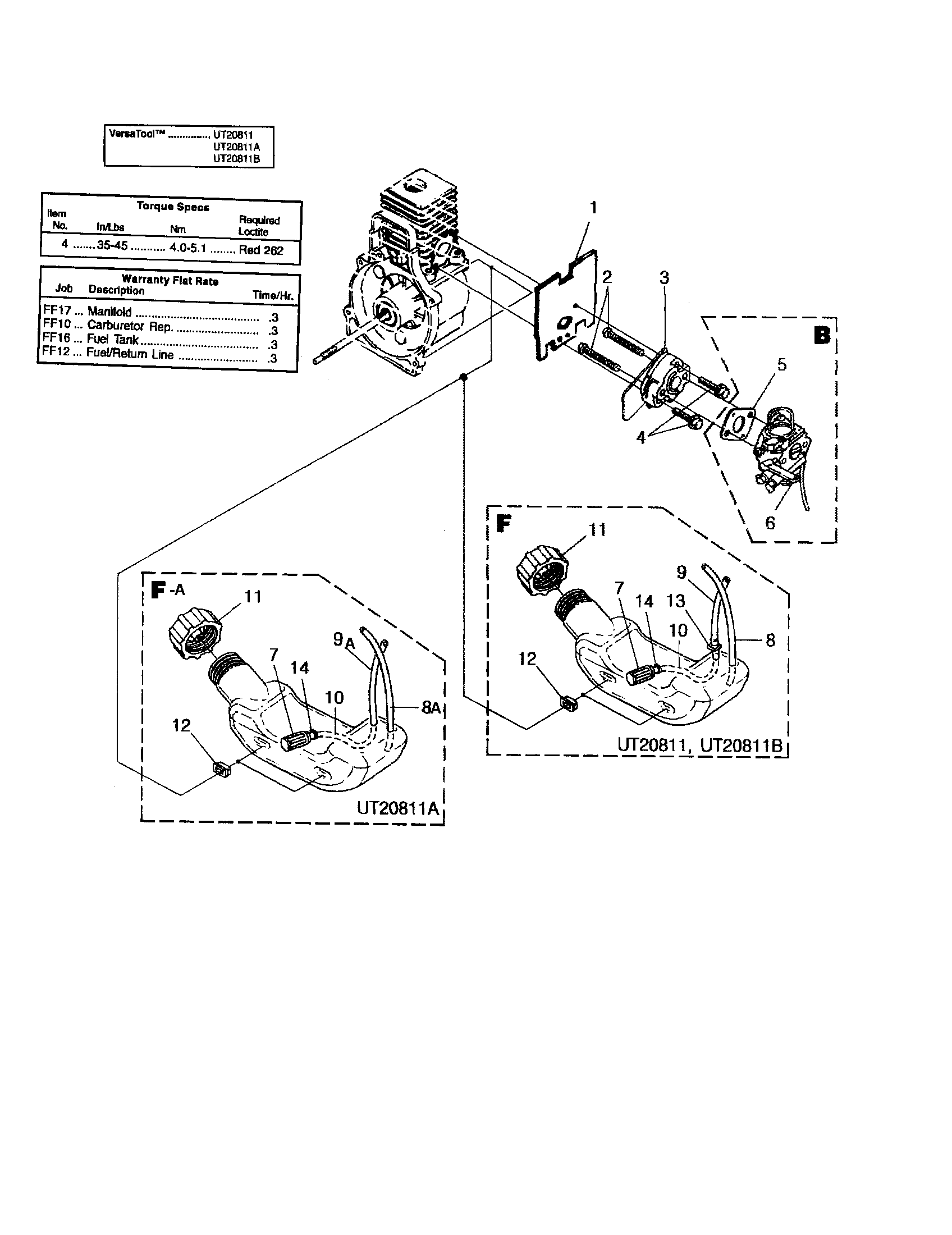

Carburetor/fuel tank diagram

Screw

Part #UP04140

The manufacturer no longer makes this part, and there's no substitute part

Arbor Shaft UP04699
#9

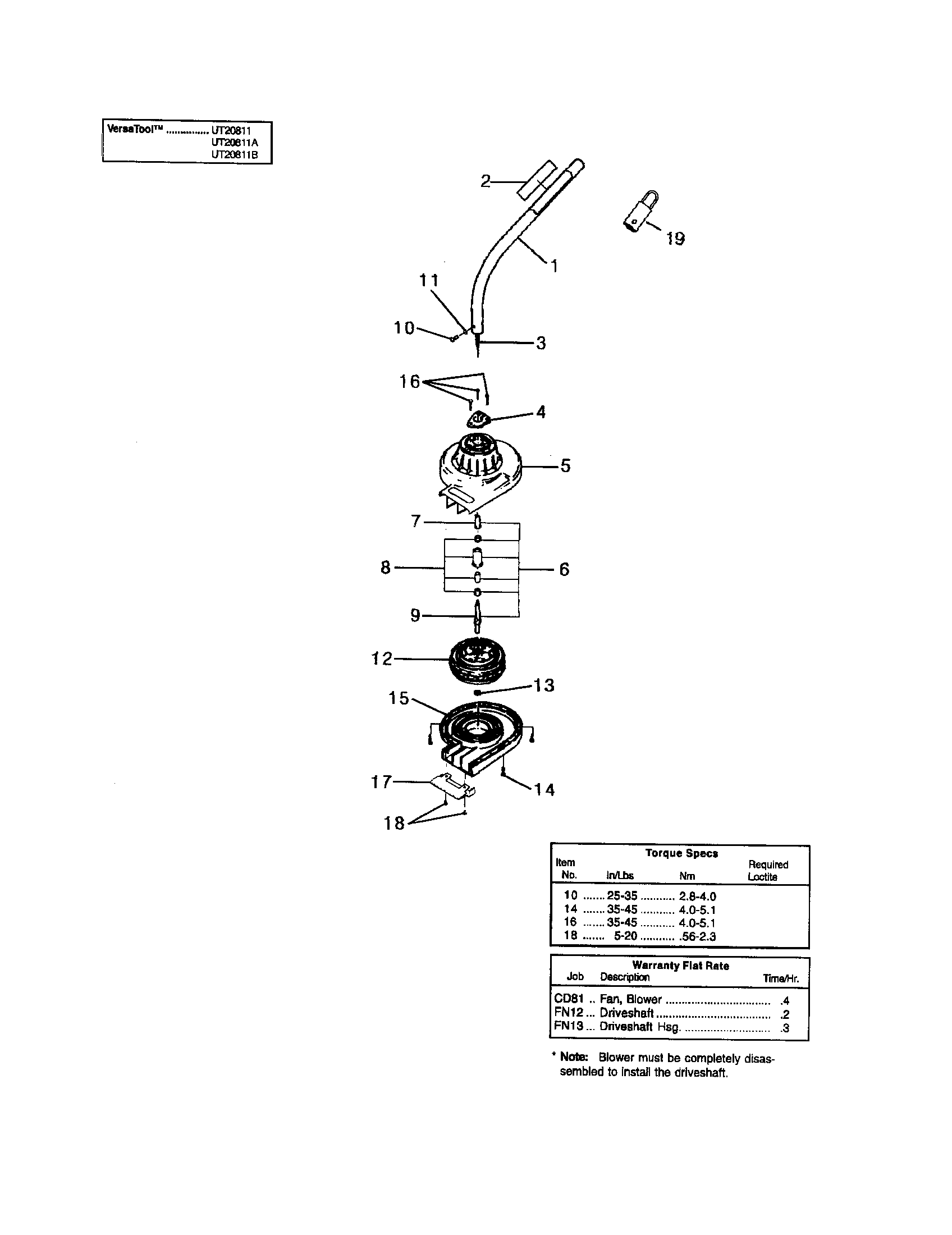

Blower attachment diagram

Arbor shaft

Part #UP04699

The manufacturer no longer makes this part, and there's no substitute part

Svcknob Kt UP05137
Svcknob kt

Part #UP05137

The manufacturer no longer makes this part, and there's no substitute part

Hex Head M UP04159
#20

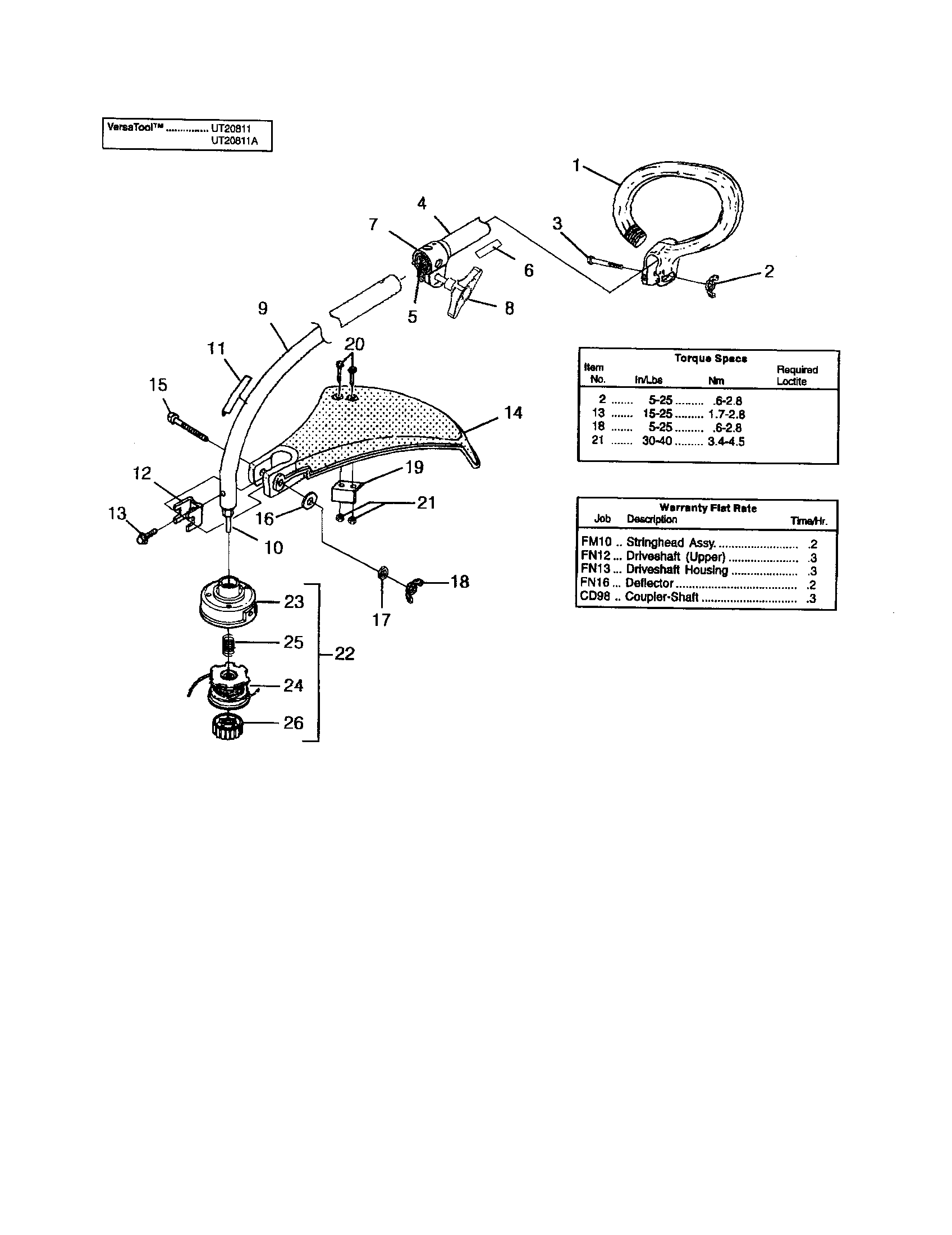

Shaft/deflector (ut2081/811a) diagram

Hex head m

Part #UP04159

The manufacturer no longer makes this part, and there's no substitute part

Momentary Switch UP05271
#27

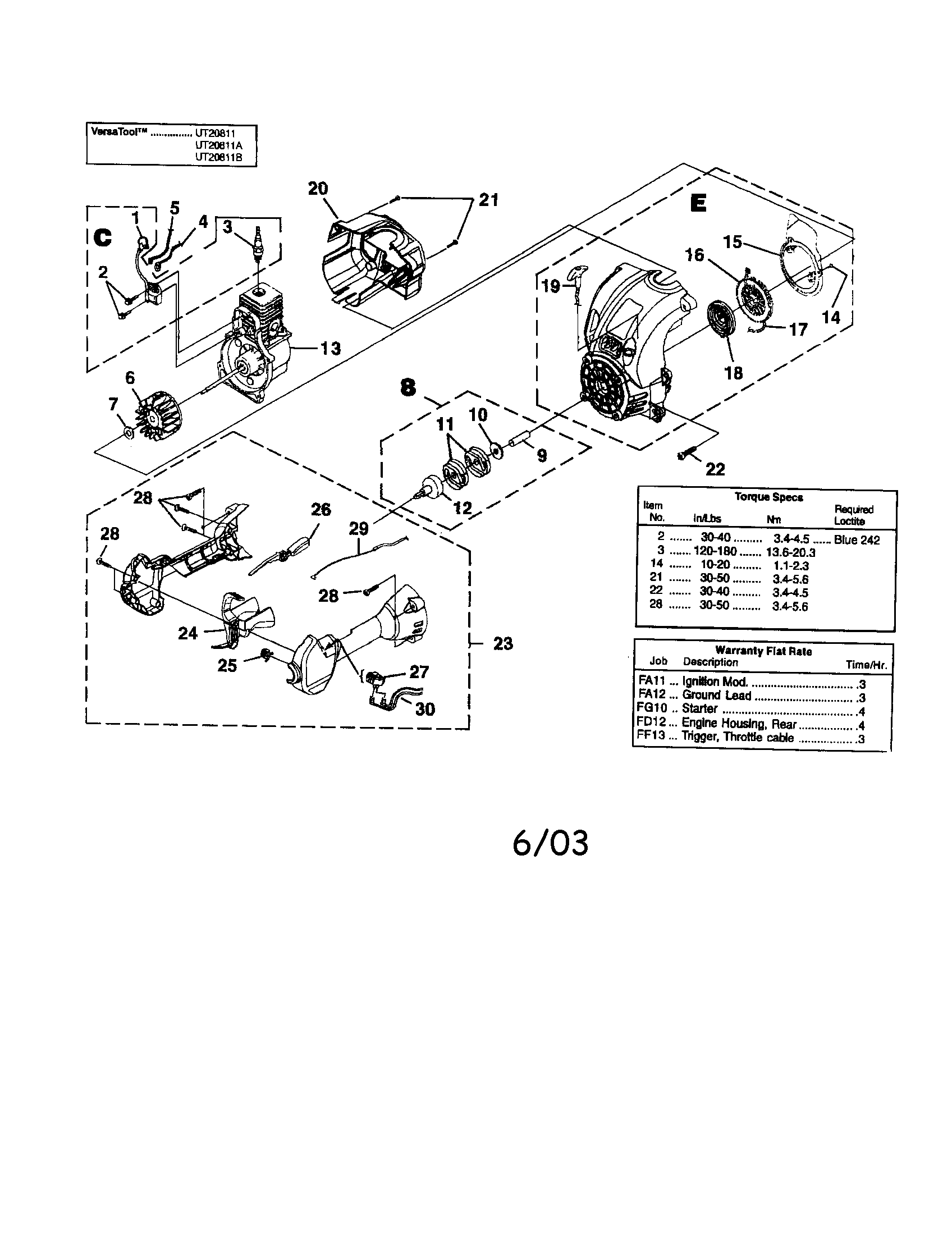

Ignition/rotor/starter/clutch diagram

Momentary switch

Part #UP05271

The manufacturer no longer makes this part, and there's no substitute part

Spool & St UP06908
#17

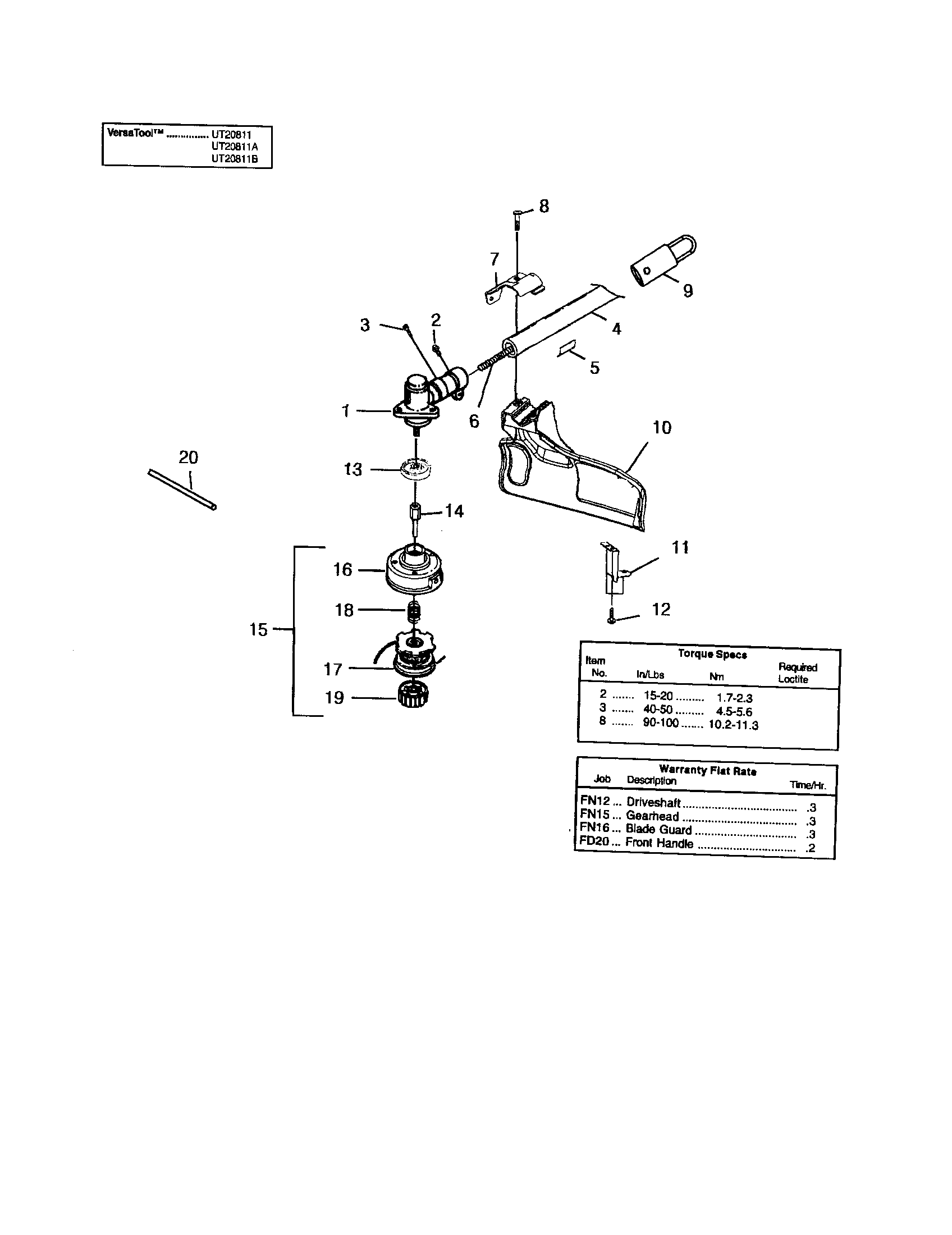

Trimmer attachment diagram

Spool & st

Part #UP06908

The manufacturer no longer makes this part, and there's no substitute part

Cylinder UP06940
#4

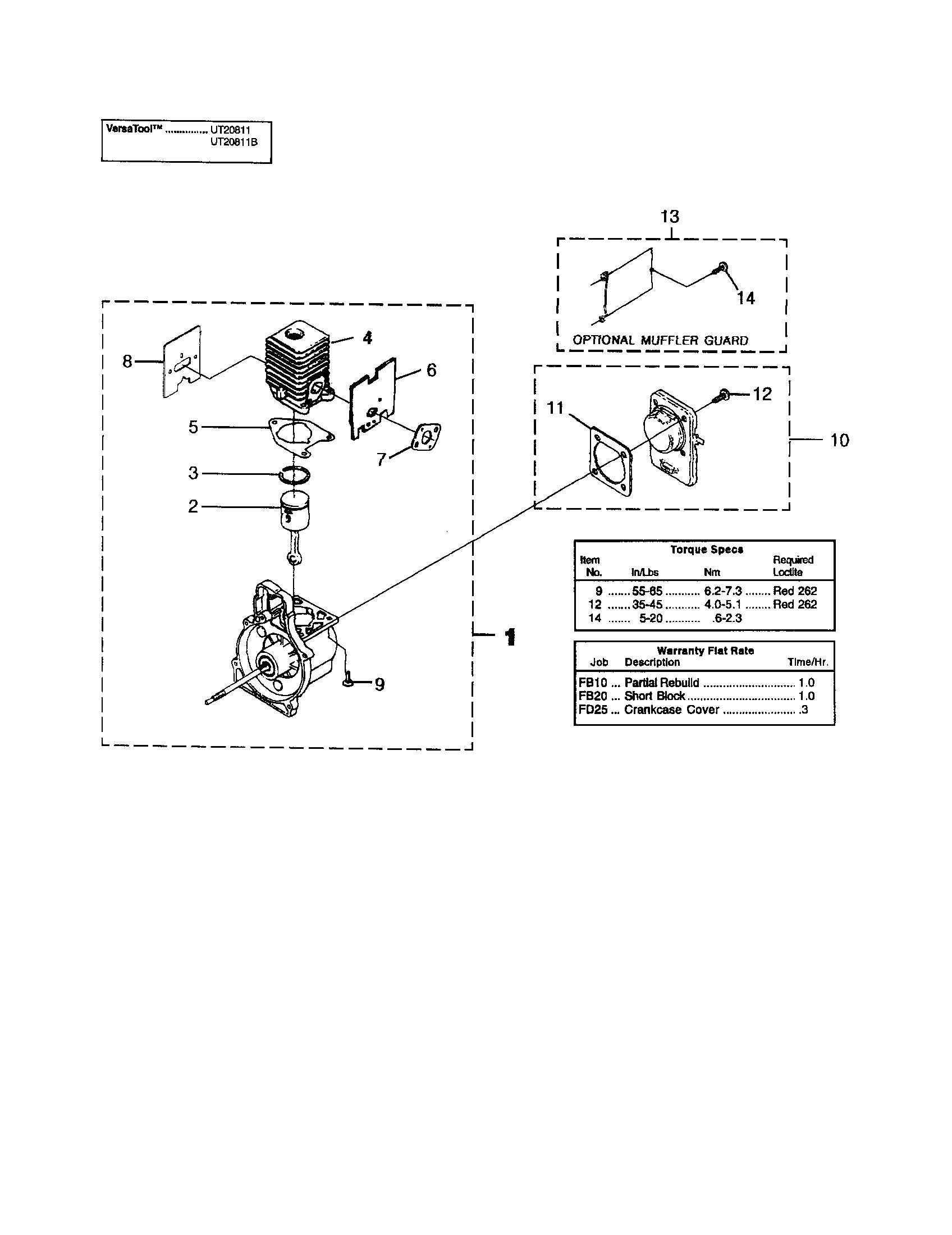

Engine internal (ut20811a) diagram

Cylinder

Part #UP06940

The manufacturer no longer makes this part, and there's no substitute part

Rotor UP03009
#6

Ignition/rotor/starter/clutch diagram

Rotor

Part #UP03009

The manufacturer no longer makes this part, and there's no substitute part

Shaft Assembly UP03851
#9

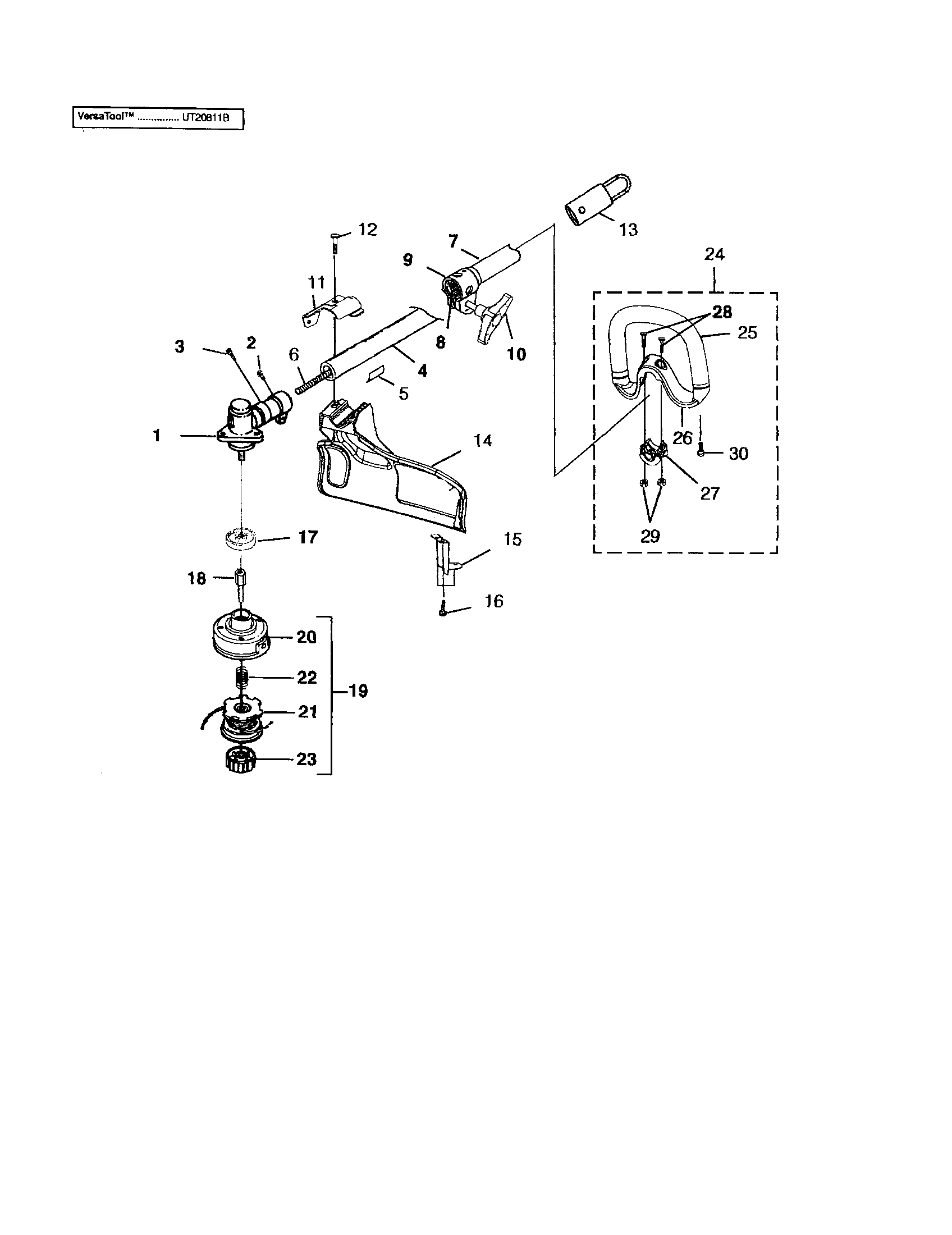

Shaft/deflector (ut2081/811a) diagram

Shaft assembly

Part #UP03851

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Blower Housing UP06874
#5

Blower attachment diagram

Line trimmer blower housing

Part #UP06874

The manufacturer no longer makes this part, and there's no substitute part
