Model # 620694300 Official Kenmore big fryer deep fryer
Here are the diagrams and repair parts for Official Kenmore 620694300 big fryer deep fryer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for
620694300 Big Fryer Deep Fryer
#7

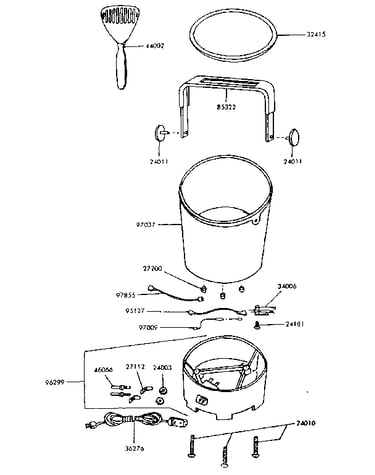

Replacement parts diagram
Cover
Part #32415
The manufacturer no longer makes this part, and there's no substitute part
#9
Replacement parts diagram
Cord set
Part #36276
The manufacturer no longer makes this part, and there's no substitute part
#10
Replacement parts diagram
Lifter
Part #44002
The manufacturer no longer makes this part, and there's no substitute part
#2
Replacement parts diagram
Screw
Part #24010
The manufacturer no longer makes this part, and there's no substitute part
#13
Replacement parts diagram
Handle
Part #85322
The manufacturer no longer makes this part, and there's no substitute part
#4
Replacement parts diagram
Screw
Part #24181
The manufacturer no longer makes this part, and there's no substitute part
#15
Replacement parts diagram
Base assembly
Part #96299
The manufacturer no longer makes this part, and there's no substitute part
#16
Replacement parts diagram
Thrml cutoff
Part #97009
The manufacturer no longer makes this part, and there's no substitute part
#14
Replacement parts diagram
Wire assembly
Part #95127
The manufacturer no longer makes this part, and there's no substitute part
#11
Replacement parts diagram
Terminal pin
Part #46066
The manufacturer no longer makes this part, and there's no substitute part
