GE
Top-Mount Refrigerator

Model # TBG25PAXGRWW Official GE refrigerator - x series

Here are the diagrams and repair parts for Official GE TBG25PAXGRWW refrigerator - x series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

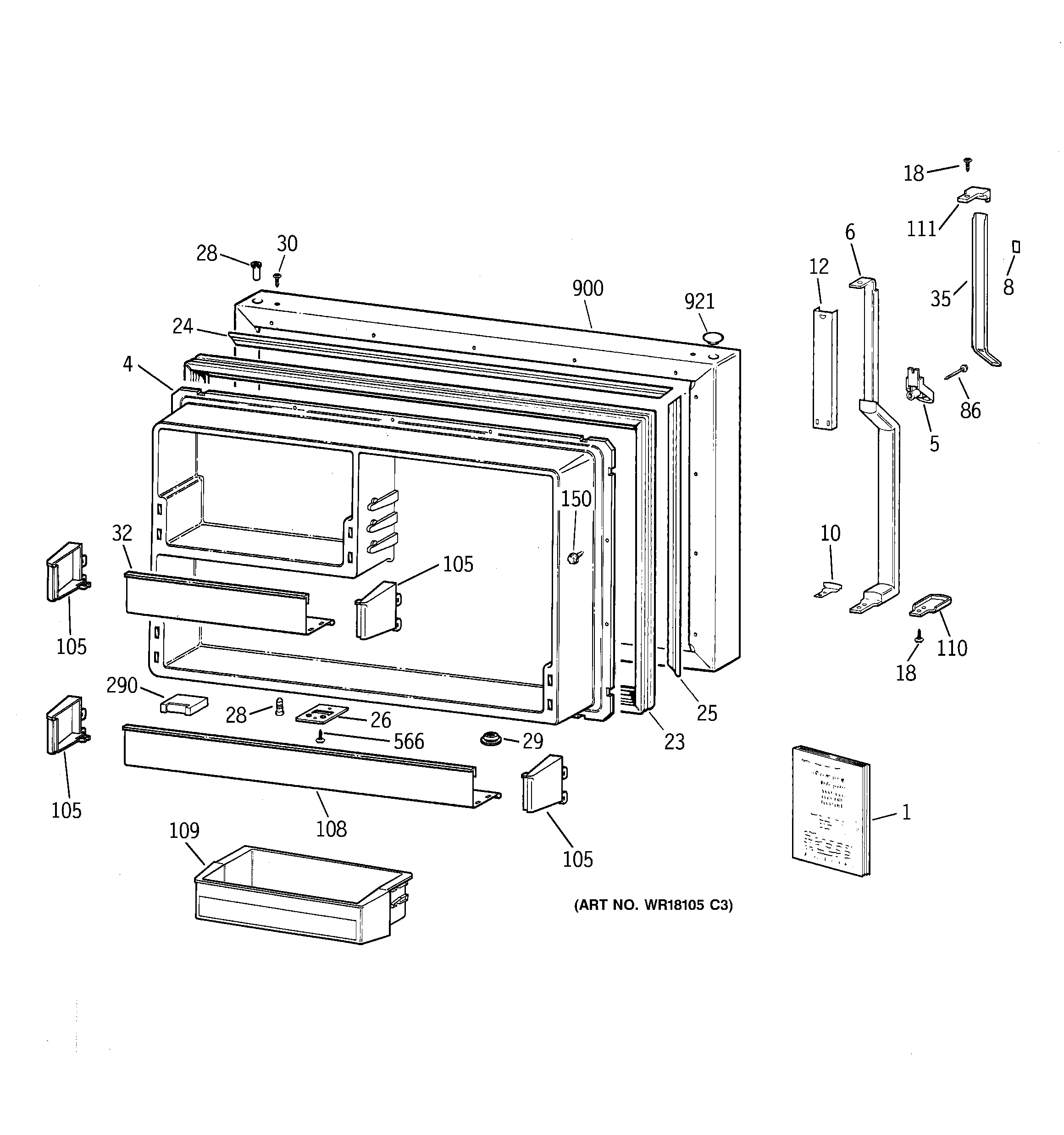

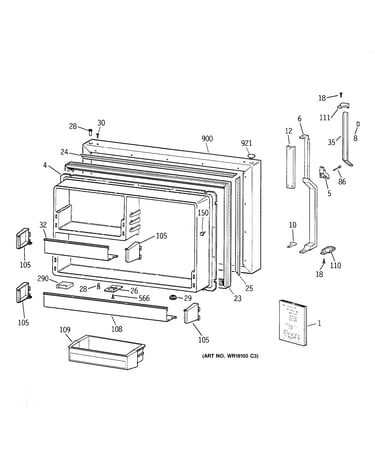

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 216 parts  |
Dryer Filter WR86X0096
#740

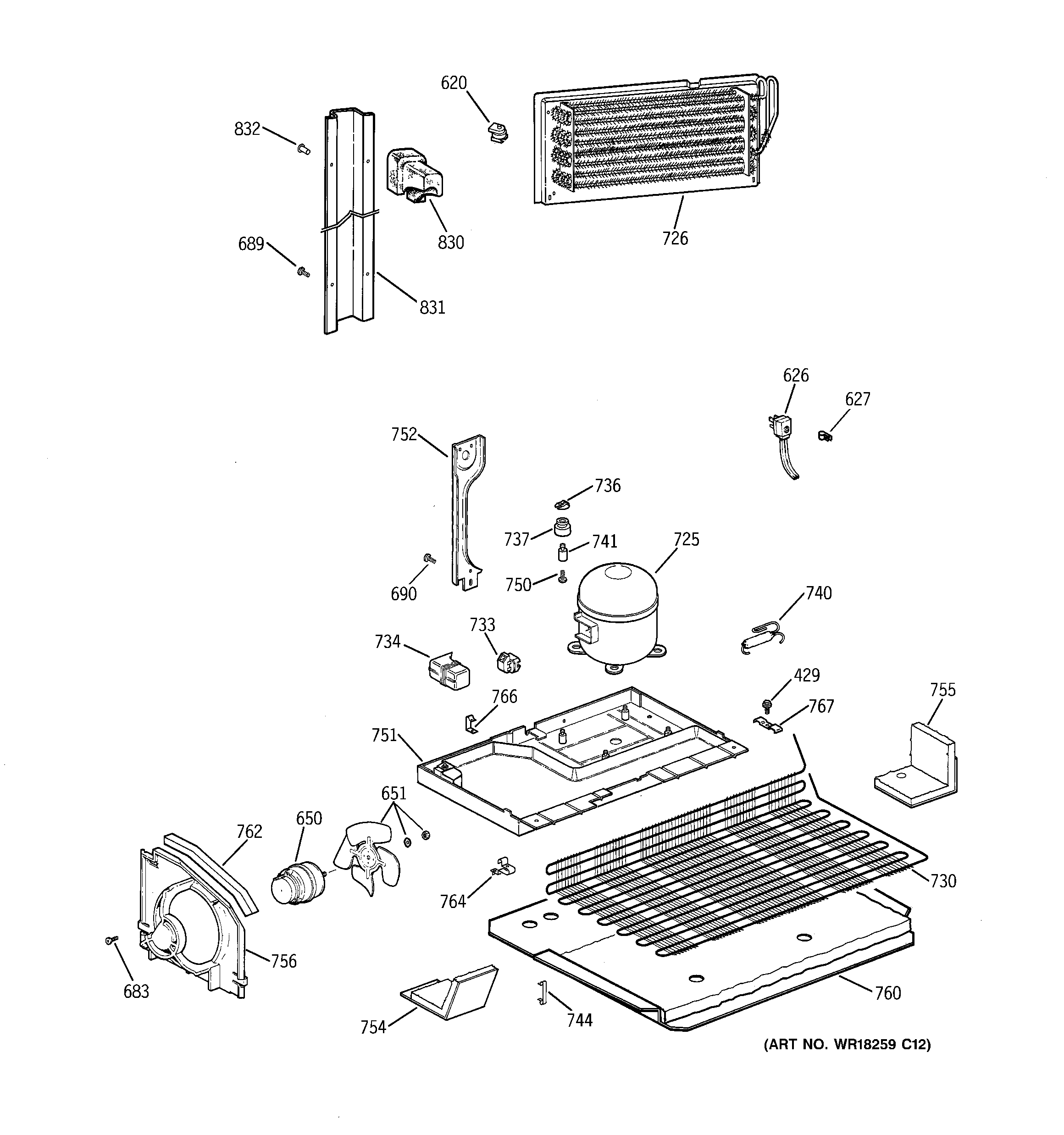

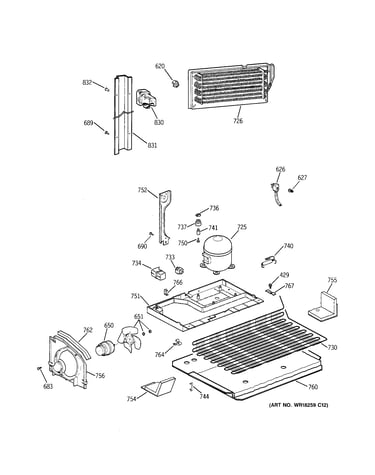

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Defrost Thermostat WR50X0131
#620

Unit parts diagram

Refrigerator defrost thermostat

Part #WR50X0131

Replaced by #WR50X10010

?
Manufacturer substitution
This part replaces WR50X0131. Substitute parts can look different from the original.
This item is not returnable
$22.85 |
21% OFF Phone Price : $28.85
In Stock
Ring/fan Bld WR02X3198
#613

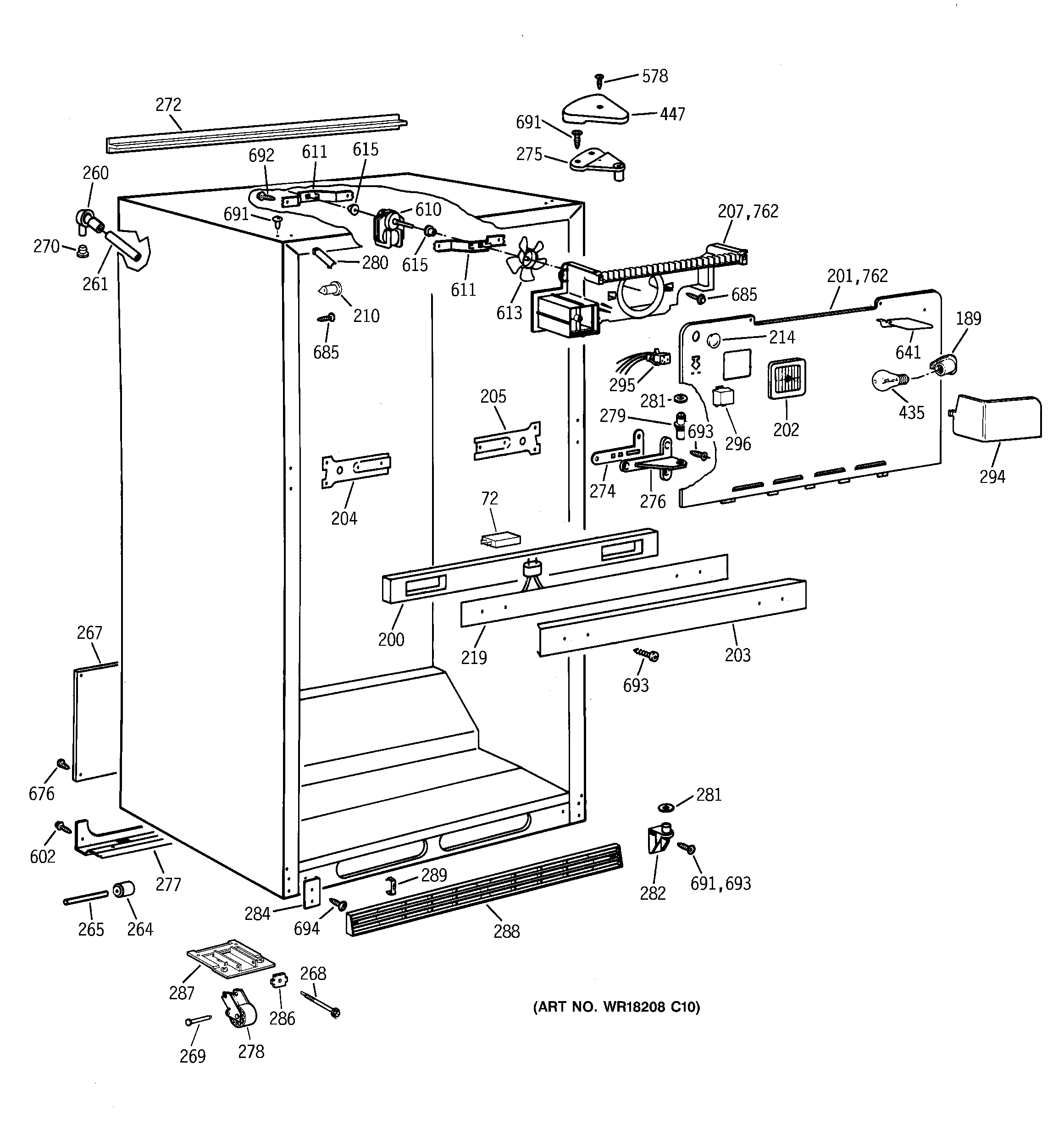

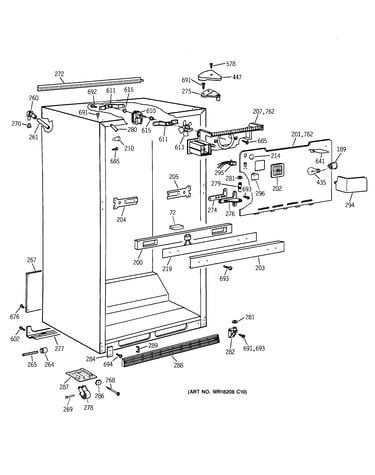

Cabinet parts diagram

Ring/fan bld

Part #WR02X3198

Replaced by #WR60X114

?
Manufacturer substitution
This part replaces WR02X3198. Substitute parts can look different from the original.
This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
Refrigerator Screw WR01X1728
Refrigerator screw

Part #WR01X1728

Replaced by #WR01X10590

?
Manufacturer substitution
This part replaces WR01X1728. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Refrigerator Screw WR01X1762
#257

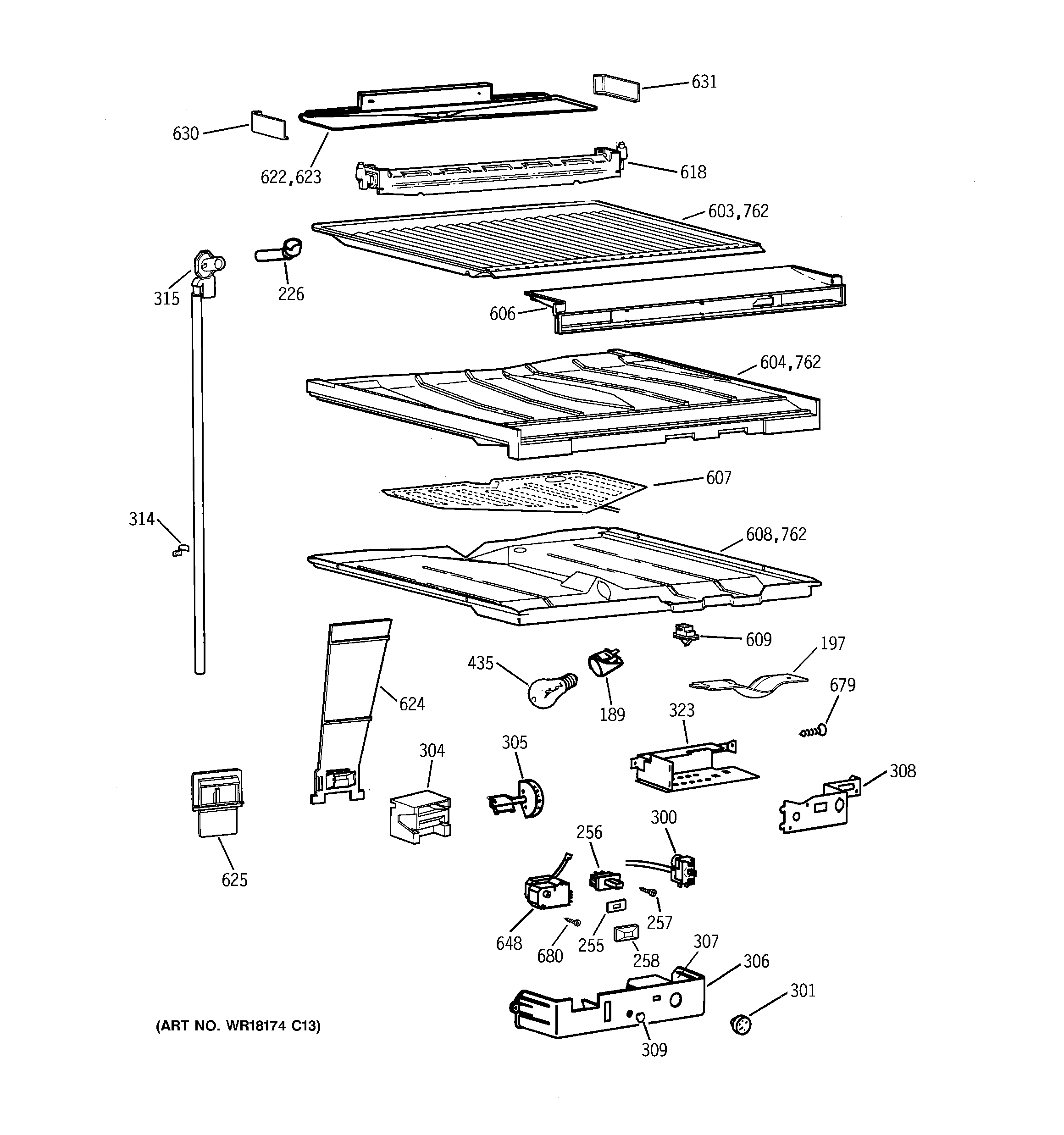

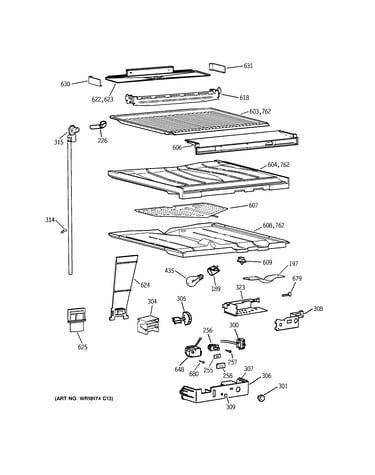

Compartment separator parts diagram

Refrigerator screw

Part #WR01X1762

Replaced by #WZ5X158D

?
Manufacturer substitution
This part replaces WR01X1762. Substitute parts can look different from the original.
$34.63 |
15% OFF Phone Price : $40.63
In Stock
Ground Screw WR01X1466
#690

Unit parts diagram

Ground screw

Part #WR01X1466

Replaced by #WZ5X158D

?
Manufacturer substitution
This part replaces WR01X1466. Substitute parts can look different from the original.
$34.63 |
15% OFF Phone Price : $40.63
In Stock
Refrigerator Egg Bin (replaces Wr02x5802, Wr2x5802, Wr2x6073, Wr32x10089, Wr32x1243) WR32X1435
#216

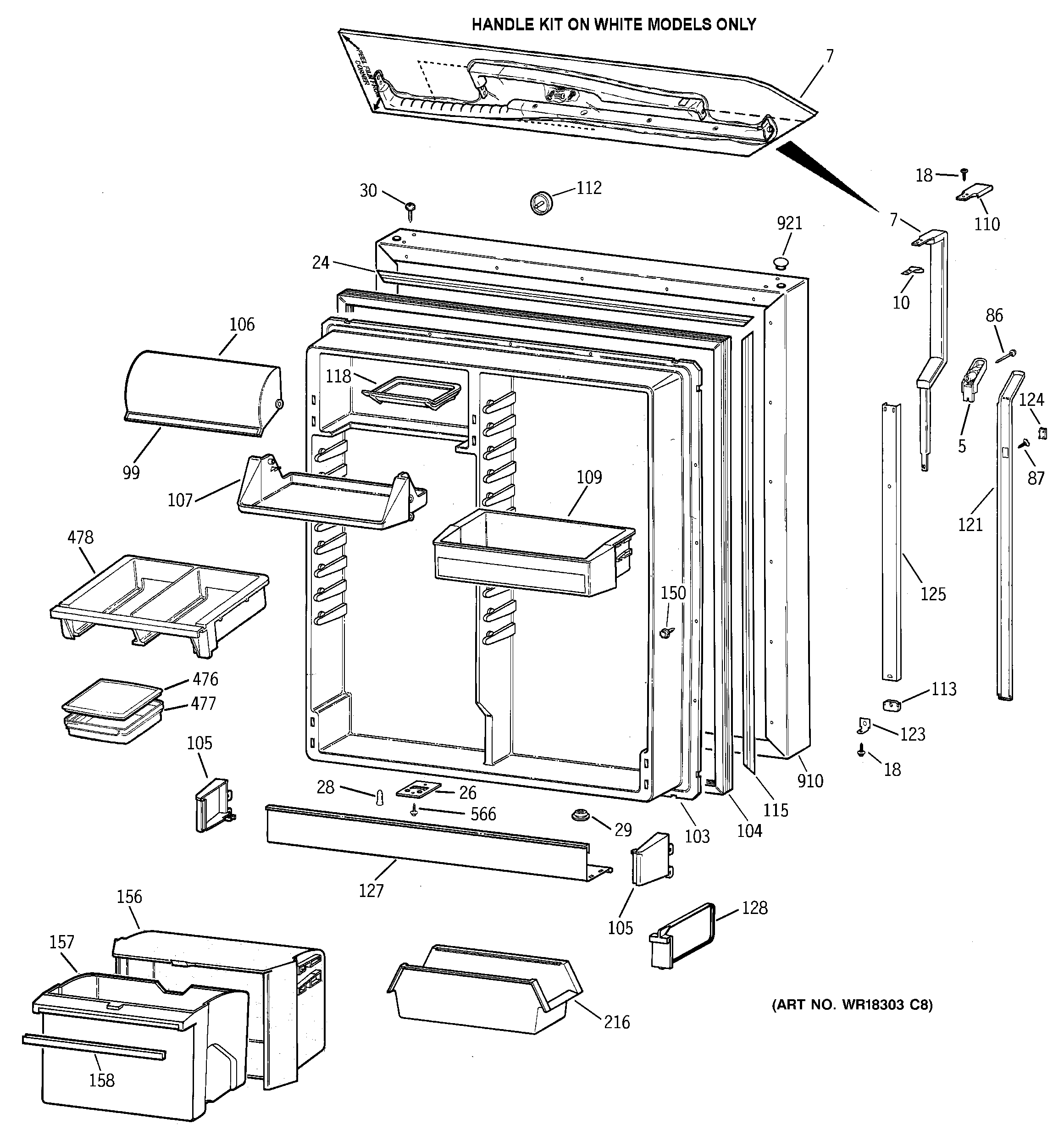

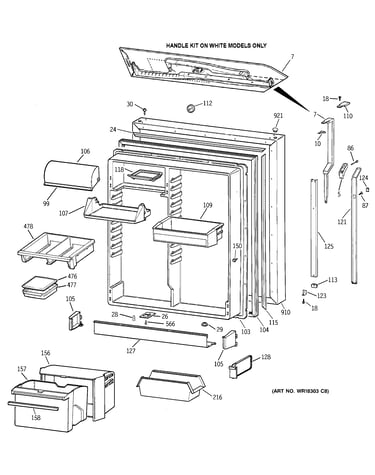

Fresh food door diagram

Refrigerator egg bin (replaces wr02x5802, wr2x5802, wr2x6073, wr32x10089, wr32x1243)

Part #WR32X1435

$25.91 |
19% OFF Phone Price : $31.91
In Stock
Refrigerator Screw WR01X1726
Refrigerator screw

Part #WR01X1726

Replaced by #WR1X1726D

?
Manufacturer substitution
This part replaces WR01X1726. Substitute parts can look different from the original.
This item is not returnable
$23.67 |
20% OFF Phone Price : $29.67
In Stock
Refrigerator Screw WZ04X0263
#676

Cabinet parts diagram

Refrigerator screw

Part #WZ04X0263

Replaced by #WD2X5166

?
Manufacturer substitution
This part replaces WZ04X0263. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock

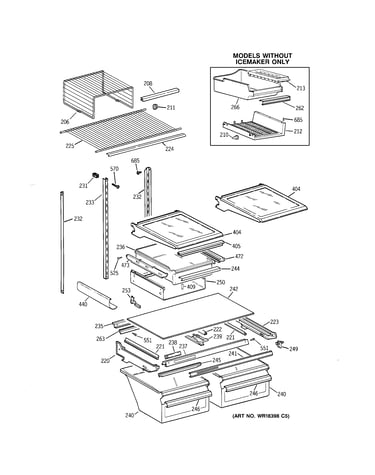

Refrigerator Ice Tray WR30X0311
#213

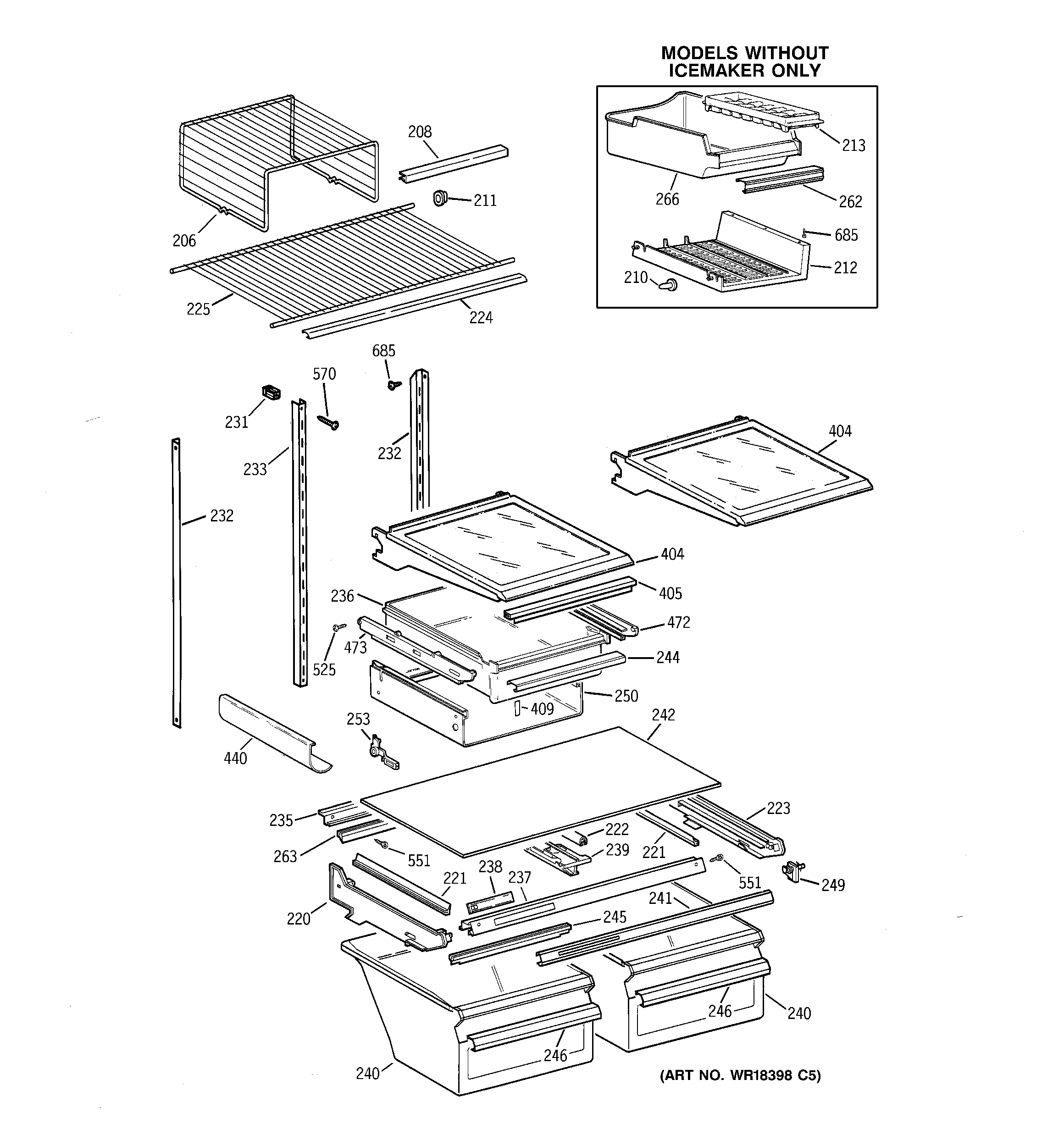

Shelf parts diagram

Refrigerator ice tray

Part #WR30X0311

Replaced by #WR30X311

?
Manufacturer substitution
This part replaces WR30X0311. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
