Wine & Beverage Cooler

Model # JUGFR242HM01 Official Jenn-Air under counter beverage center

Here are the diagrams and repair parts for Official Jenn-Air JUGFR242HM01 under counter beverage center, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
JUGFR242HM01 UNDER COUNTER BEVERAGE CENTER
Side Cover W11360590
#14

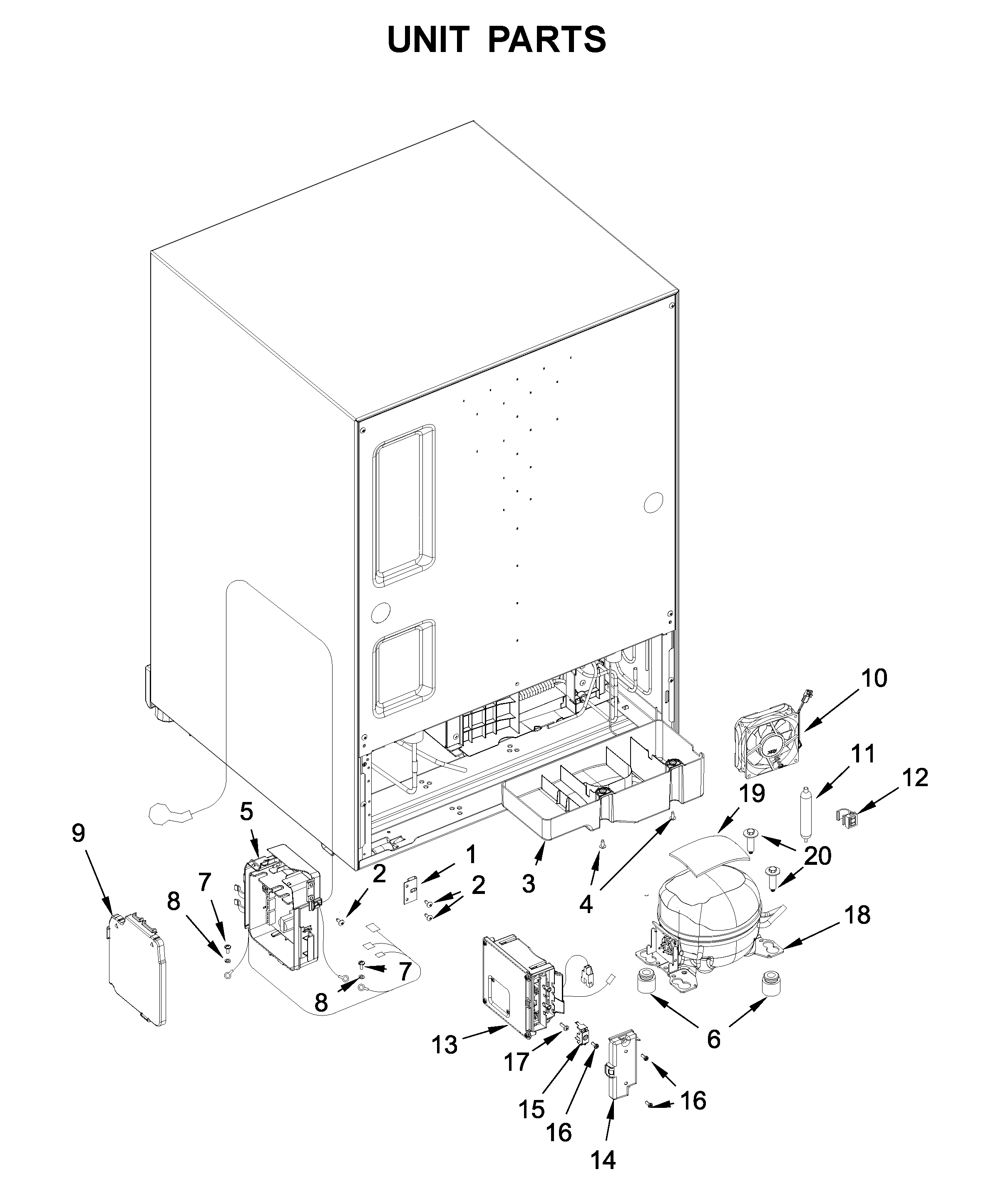

Unit parts diagram

Side cover

Part #W11360590

$42.98
In Stock
Assembly, Glass Tray W11407979
#12

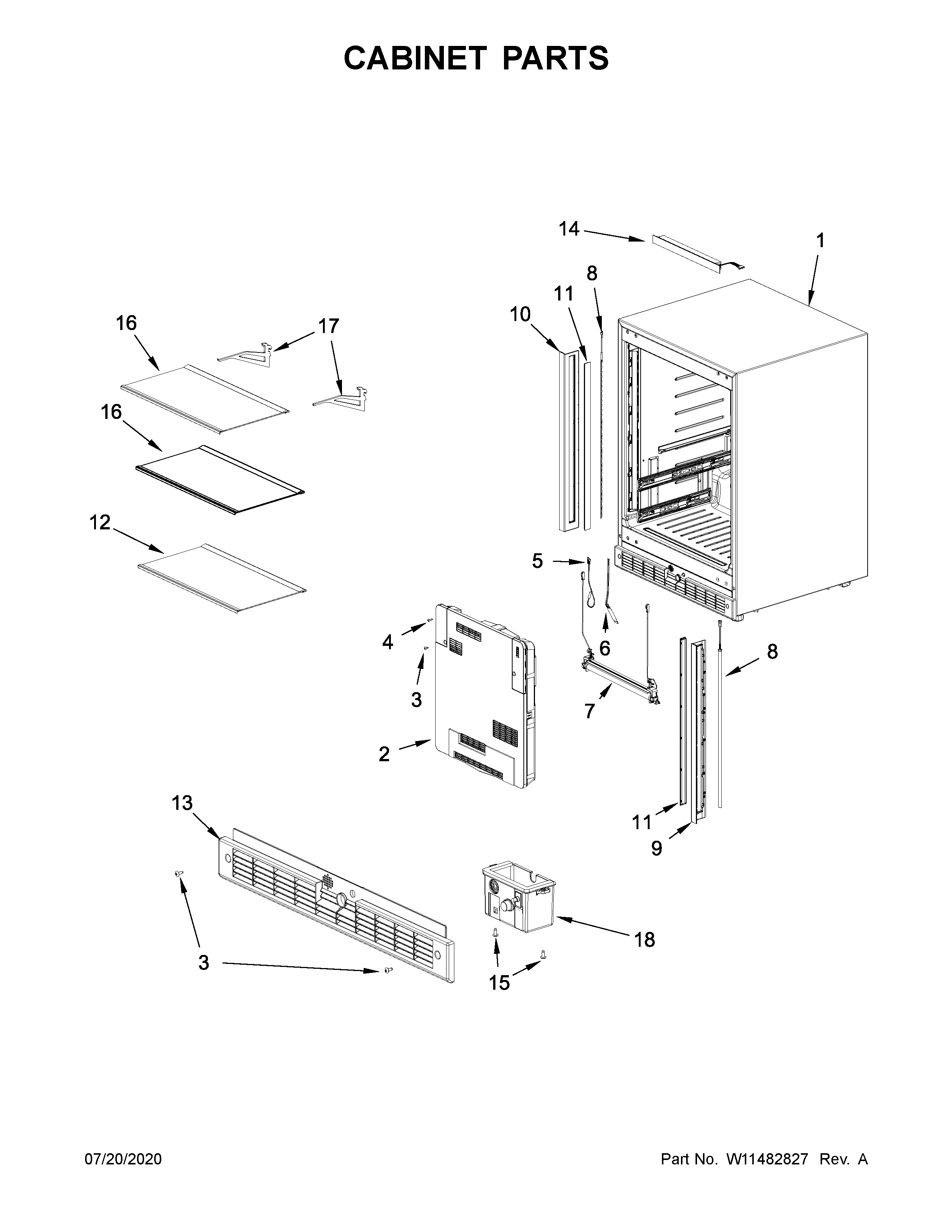

Cabinet parts diagram

Assembly, glass tray

Part #W11407979

$51.89
In Stock
Sash Gasket W11360666
#7

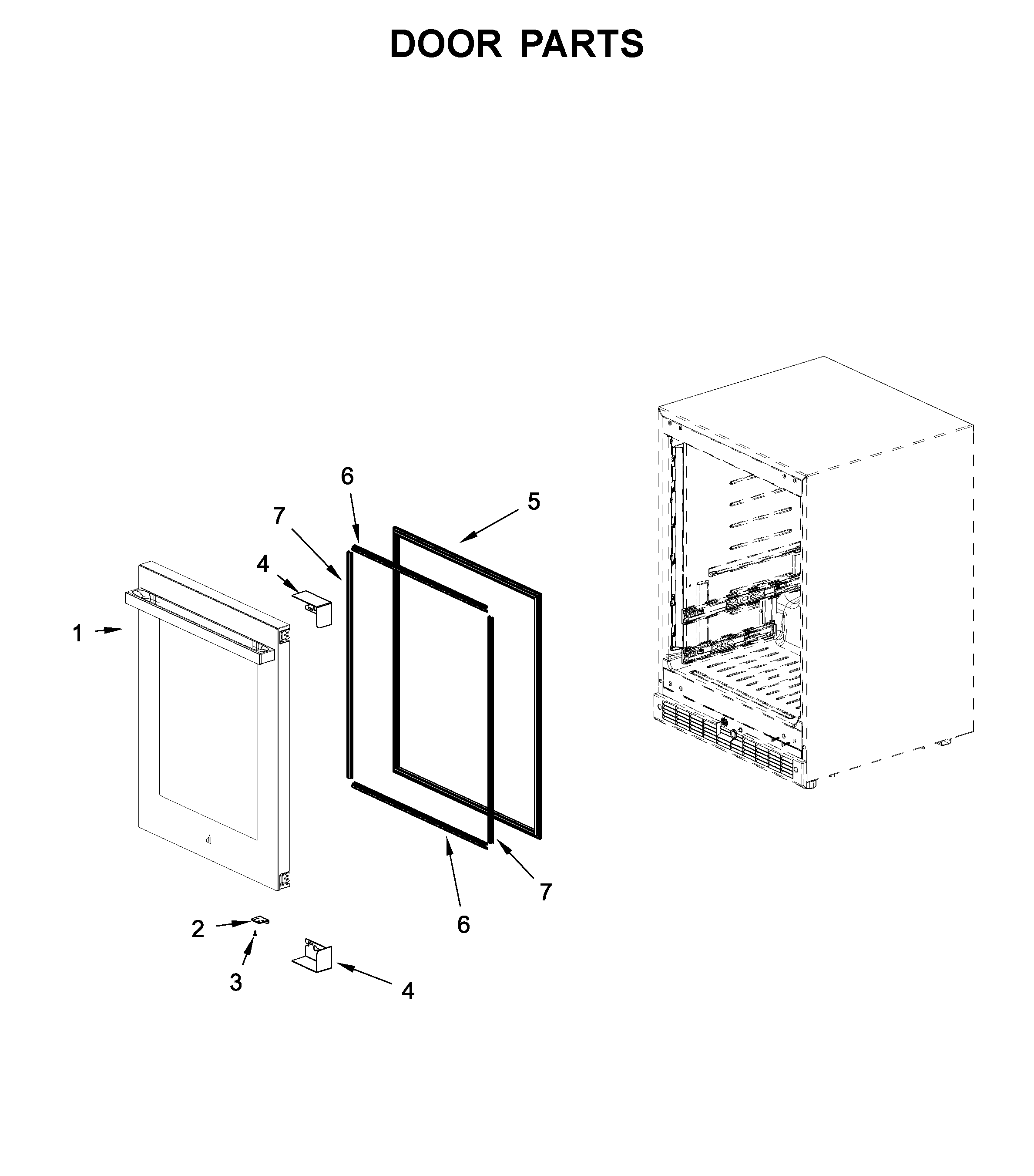

Door parts diagram

Sash gasket

Part #W11360666

$121.47
In Stock
Assembly, Control W11424751
#14

Cabinet parts diagram

Assembly, control

Part #W11424751

$267.51
In Stock
Box Sw As W11359433
#18

Cabinet parts diagram

Box sw as

Part #W11359433

$101.18
In Stock
Sash Gasket W11360665
#6

Door parts diagram

Sash gasket

Part #W11360665

$121.47
In Stock
Fan Motor As W11360536
#10

Unit parts diagram

Fan motor as

Part #W11360536

$89.16
In Stock
Push Plate S W11360703
#2

Door parts diagram

Push plate s

Part #W11360703

$17.18
In Stock
Screw, Custom Overlay Door (m4 X 30) W11415674
#NI

Door parts diagram

Screw, custom overlay door (m4 x 30)

Part #W11415674

$14.77
In Stock
Whirlpool Defrost Hold W11359416
#7

Cabinet parts diagram

Whirlpool defrost hold

Part #W11359416

$78.93
In Stock
