Kenmore
Canister Vacuum

Model # 1162532080 Official Kenmore vacuum cleaner hose & attachment parts

Here are the diagrams and repair parts for Official Kenmore 1162532080 vacuum cleaner hose & attachment parts, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |

Motor Mount 744426
#10

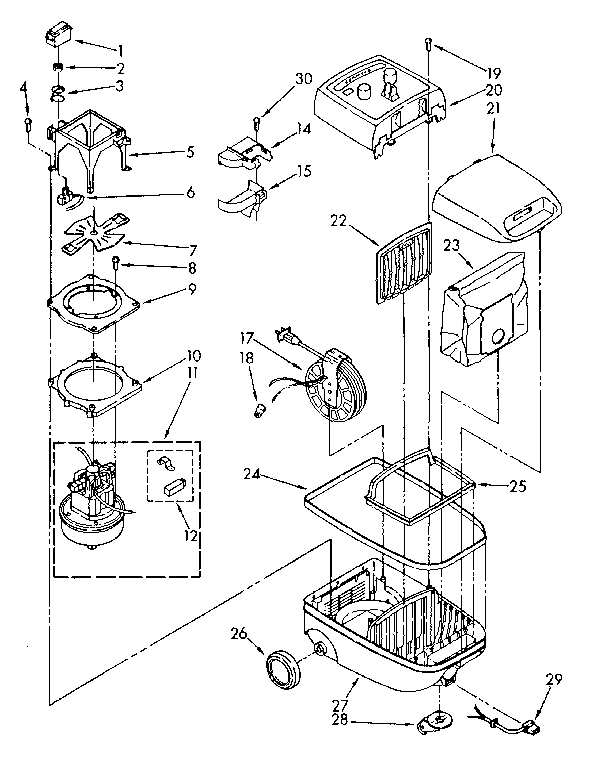

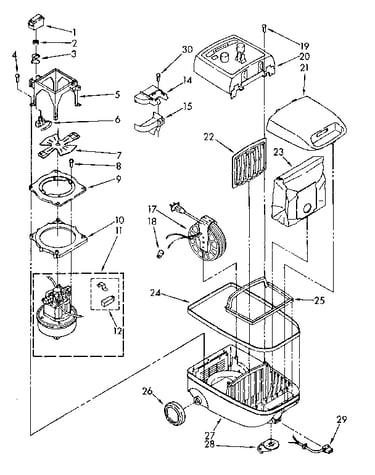

Base assembly diagram

Motor mount

Part #744426

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter (white) 744444
#22

Base assembly diagram

Vacuum filter (white)

Part #744444

The manufacturer no longer makes this part, and there's no substitute part

Screw 681697
#8

Base assembly diagram

Screw

Part #681697

The manufacturer no longer makes this part, and there's no substitute part

(not Serviced, Use Old ) Screw, Motor  Brush N/P
(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Seal 744354
#25

Base assembly diagram

Seal

Part #744354

The manufacturer no longer makes this part, and there's no substitute part

Cover 746136
#20

Base assembly diagram

Cover

Part #746136

The manufacturer no longer makes this part, and there's no substitute part

Hose 743823
#1

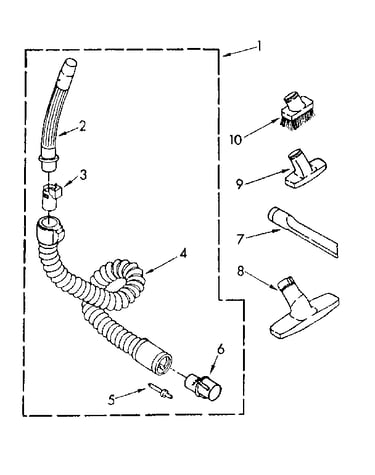

Hose and attachment parts diagram

Hose

Part #743823

The manufacturer no longer makes this part, and there's no substitute part

Contact Pin 744330
#5

Hose and attachment parts diagram

Contact pin

Part #744330

The manufacturer no longer makes this part, and there's no substitute part

Frame 744342
#5

Base assembly diagram

Frame

Part #744342

The manufacturer no longer makes this part, and there's no substitute part

Reel 700884
#17

Base assembly diagram

Reel

Part #700884

The manufacturer no longer makes this part, and there's no substitute part
