Craftsman
Gas Walk-Behind Mower

Model # 917327131 Official Craftsman 20" rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 917327131 20" rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Walk-behind Lawn Mower Selector Knob 87877
Walk-behind lawn mower selector knob

Part #87877

Replaced by #532087877

?
Manufacturer substitution
This part replaces 87877. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Pinion 750003
#27

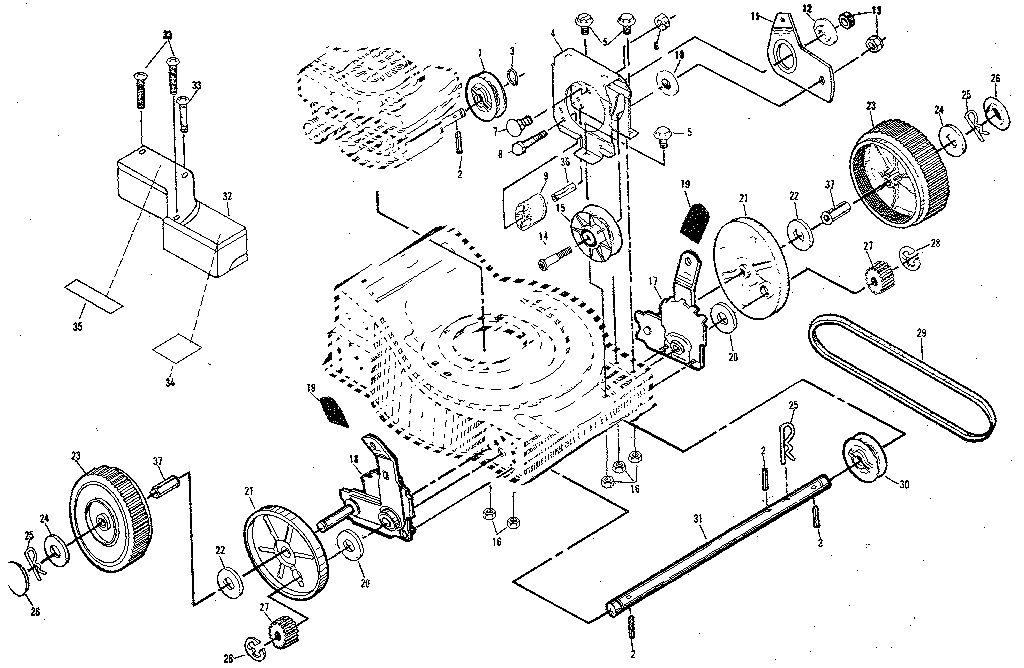

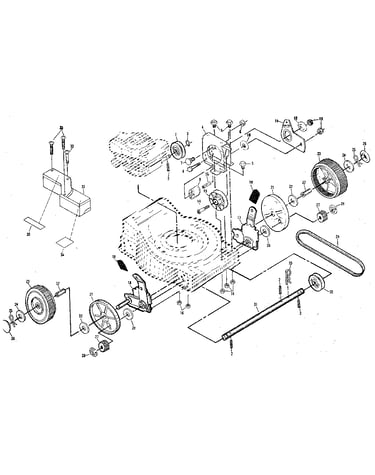

Wheel assembly diagram

Pinion

Part #750003

Replaced by #532403849

?
Manufacturer substitution
This part replaces 750003. Substitute parts can look different from the original.
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Selctr Sprng 84888
#38

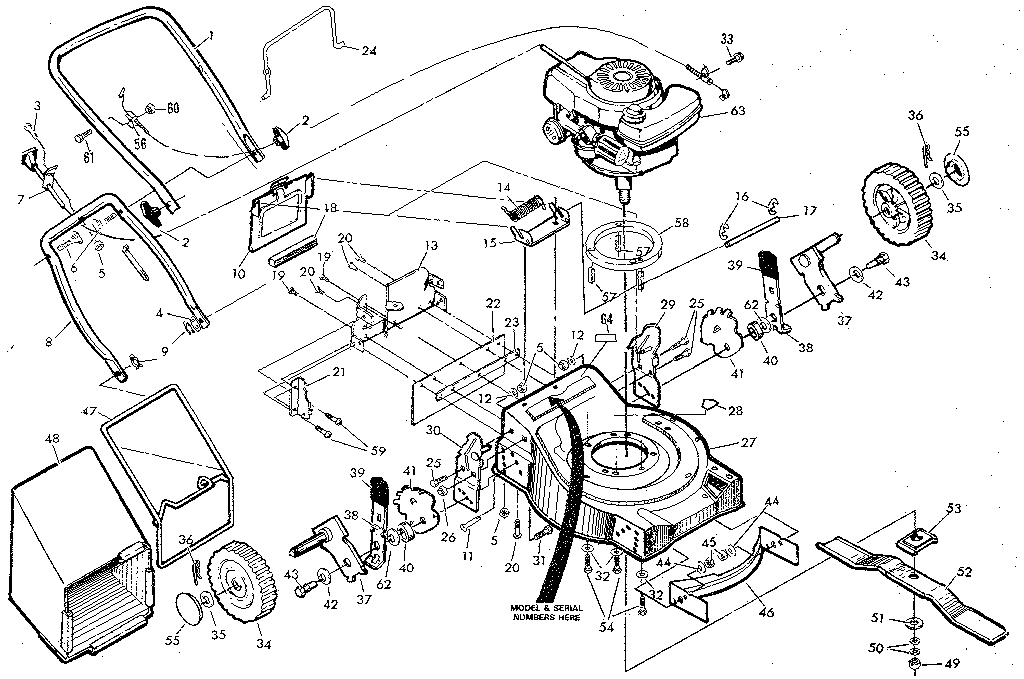

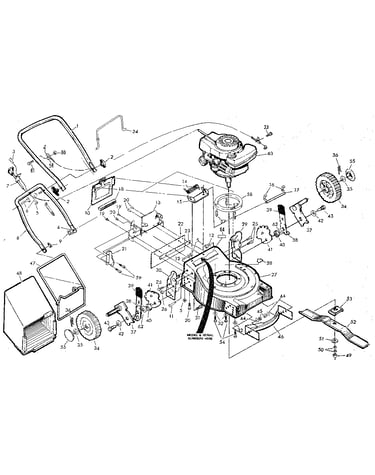

Main frame diagram

Selctr sprng

Part #84888

Replaced by #532401621

?
Manufacturer substitution
This part replaces 84888. Substitute parts can look different from the original.
$8.54
In Stock
American Yard Products Lawn & Garden Equipment Washer (replaces 532088343, 532088348, 5320883-48, 532-088348, 532088384) 88348
#62

Main frame diagram

American yard products lawn & garden equipment washer (replaces 532088343, 532088348, 5320883-48, 532-088348, 532088384)

Part #88348

Replaced by #532088348

?
Manufacturer substitution
This part replaces 88348. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Handle Knob 63688
#2

Main frame diagram

Handle knob

Part #63688

Replaced by #532183724

?
Manufacturer substitution
This part replaces 63688. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Bolt 58714
#6

Main frame diagram

Bolt

Part #58714

Replaced by #532183724

?
Manufacturer substitution
This part replaces 58714. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Lawn Mower Shoulder Bolt 88517
#14

Wheel assembly diagram

Lawn mower shoulder bolt

Part #88517

Replaced by #582944801

?
Manufacturer substitution
This part replaces 88517. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Lawn Mower Retainer Clip, 4-pack 55015
Lawn mower retainer clip, 4-pack

Part #55015

Replaced by #582934801

?
Manufacturer substitution
This part replaces 55015. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Lawn Mower Washer 88118
#20

Wheel assembly diagram

Lawn mower washer

Part #88118

Replaced by #532088118

?
Manufacturer substitution
This part replaces 88118. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Washer 62335
#42

Main frame diagram

Washer

Part #62335

Replaced by #532062335

?
Manufacturer substitution
This part replaces 62335. Substitute parts can look different from the original.
$13.69
In Stock
