Frigidaire
Top-Mount Refrigerator

Model # FRT18LN5BQ0 Official Frigidaire refrigerator

Here are the diagrams and repair parts for Official Frigidaire FRT18LN5BQ0 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 188 parts  |
Ice Maker Mold 5303320545
#17

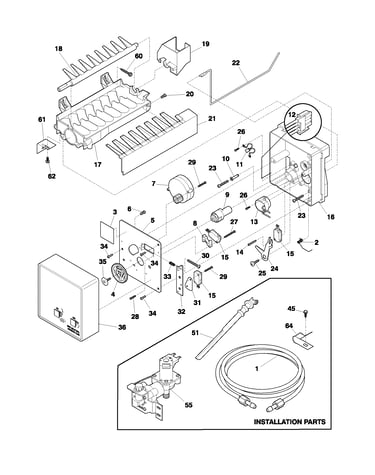

Ice maker diagram

Ice maker mold

Part #5303320545

Replaced by #241798231

?
Manufacturer substitution
This part replaces 5303320545. Substitute parts can look different from the original.
BEST SELLER
$153.02 |
7% OFF Phone Price : $165.02
In Stock
Refrigerator Filter Drier 218944001
#4

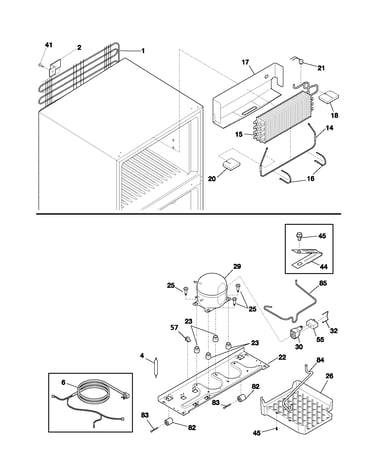

System diagram

Refrigerator filter drier

Part #218944001

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218944001. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Crisper Drawer (240337103) - Refrigerator Storage Component By Frigidaire 240337103
#26

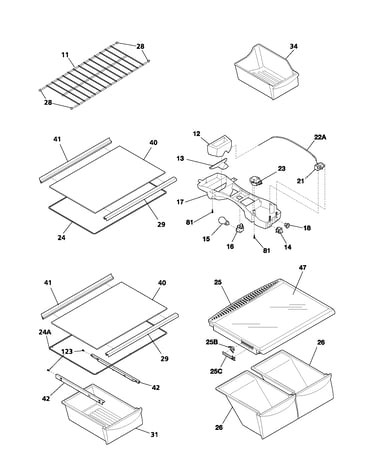

Shelves diagram

Crisper drawer (240337103) - refrigerator storage component by frigidaire

Part #240337103

BEST SELLER
$112.25 |
10% OFF Phone Price : $124.25
In Stock
Refrigerator Door Gallon Bin 240338001
#48B

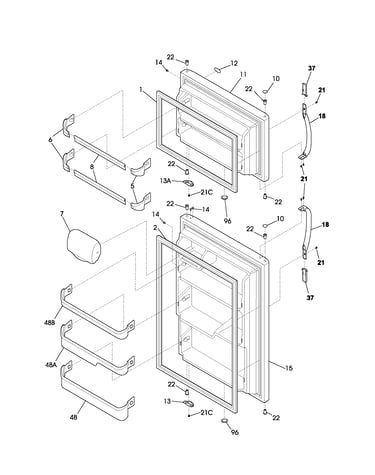

Doors diagram

Refrigerator door gallon bin

Part #240338001

BEST SELLER
$42.36 |
12% OFF Phone Price : $48.36
In Stock
Gasket-wh 240514606
#2

Doors diagram

Gasket-wh

Part #240514606

Replaced by #241872513

?
Manufacturer substitution
This part replaces 240514606. Substitute parts can look different from the original.
BEST SELLER
$100.58 |
11% OFF Phone Price : $112.58
In Stock
Refrigerator Drawer Hanger, Right (replaces 240460501) 240530701
#42

Shelves diagram

Refrigerator drawer hanger, right (replaces 240460501)

Part #240530701

BEST SELLER
$48.43 |
11% OFF Phone Price : $54.43
In Stock
Refrigerator Door Bin 240337901
#48A

Doors diagram

Refrigerator door bin

Part #240337901

BEST SELLER
$44.16 |
12% OFF Phone Price : $50.16
In Stock
Refrigerator Temperature Control Thermostat 5304421256
#21

Shelves diagram

Refrigerator temperature control thermostat

Part #5304421256

Replaced by #241537103

?
Manufacturer substitution
This part replaces 5304421256. Substitute parts can look different from the original.
BEST SELLER
$81.31 |
7% OFF Phone Price : $87.31
In Stock
Evaporator Motor 240369701
#13

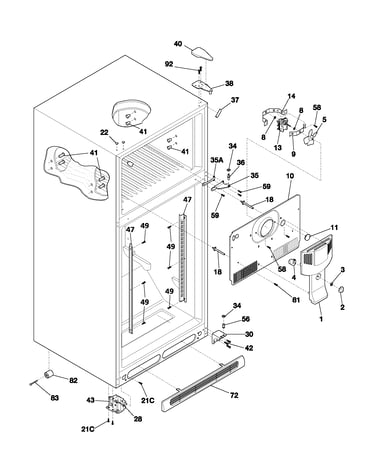

Cabinet diagram

Evaporator motor

Part #240369701

Replaced by #5303918549

?
Manufacturer substitution
This part replaces 240369701. Substitute parts can look different from the original.
BEST SELLER
$71.31 |
8% OFF Phone Price : $77.31
In Stock
Refrigerator Door Bin (replaces 240338104) 240338101
#48

Doors diagram

Refrigerator door bin (replaces 240338104)

Part #240338101

BEST SELLER
$49.71 |
11% OFF Phone Price : $55.71
In Stock
