Model # PDW8612J03SS Official GE dishwasher

Here are the diagrams and repair parts for Official GE PDW8612J03SS dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

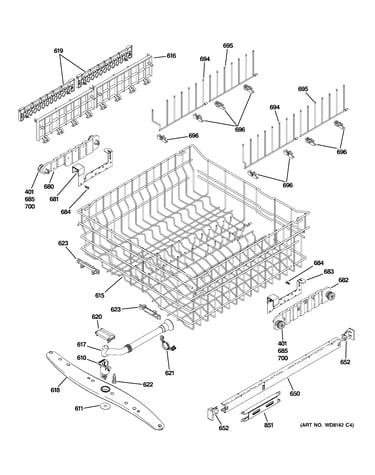

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 156 parts  |
Recess Sprng WR02X10585
#801

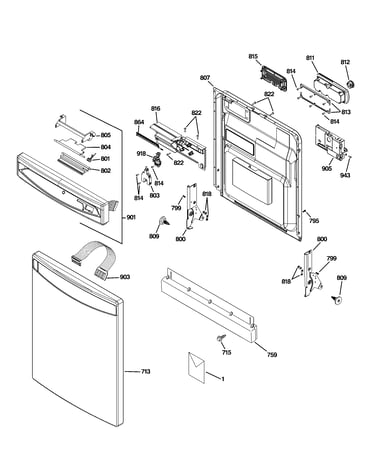

Escutcheon & door assembly diagram

Recess sprng

Part #WR02X10585

Replaced by #WR02X10585

?
Manufacturer substitution
This part replaces WR02X10585. Substitute parts can look different from the original.
BEST SELLER
$7.91 |
11% OFF Phone Price : $8.91
In Stock
Dishwasher Drain Hose (replaces Wd24x10003) WD24X10014
#462

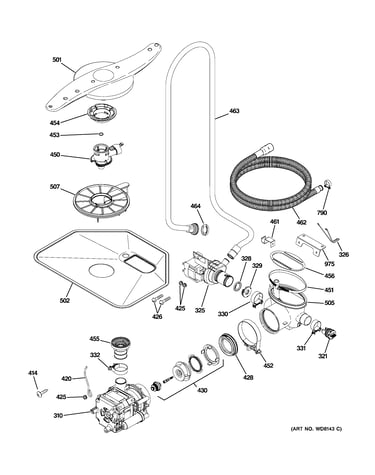

Motor-pump mechanism diagram

Dishwasher drain hose (replaces wd24x10003)

Part #WD24X10014

BEST SELLER
$30.06 |
17% OFF Phone Price : $36.06
In Stock
Dishwasher Tub Gasket WD08X10032
#843

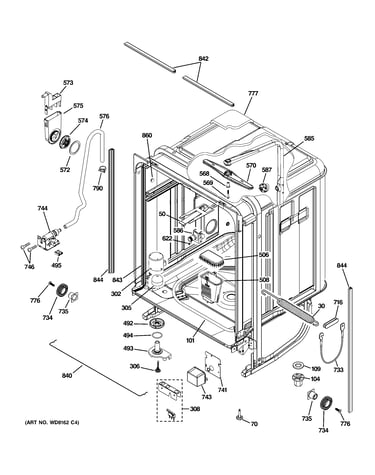

Body parts diagram

Dishwasher tub gasket

Part #WD08X10032

BEST SELLER
$32.09 |
16% OFF Phone Price : $38.09
In Stock
Basket Handle WD28X10108
#764

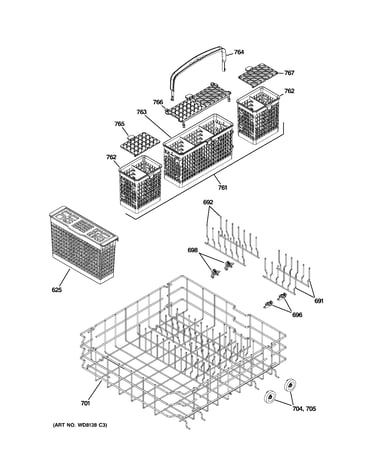

Lower rack assembly diagram

Basket handle

Part #WD28X10108

Replaced by #WD28X24469

?
Manufacturer substitution
This part replaces WD28X10108. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$30.00 |
17% OFF Phone Price : $36.00
In Stock
Dishwasher Silverware Basket WD28X10109
#761

Lower rack assembly diagram

Dishwasher silverware basket

Part #WD28X10109

Replaced by #WD28X24469

?
Manufacturer substitution
This part replaces WD28X10109. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$30.00 |
17% OFF Phone Price : $36.00
In Stock
Dishwasher Silverware Basket WD28X10107
#762

Lower rack assembly diagram

Dishwasher silverware basket

Part #WD28X10107

Replaced by #WD28X24469

?
Manufacturer substitution
This part replaces WD28X10107. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$30.00 |
17% OFF Phone Price : $36.00
In Stock
Dishwasher Silverware Basket WD28X10106
#763

Lower rack assembly diagram

Dishwasher silverware basket

Part #WD28X10106

Replaced by #WD28X24469

?
Manufacturer substitution
This part replaces WD28X10106. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$30.00 |
17% OFF Phone Price : $36.00
In Stock
Dishwasher Sump Inlet WD18X10026
#505

Motor-pump mechanism diagram

Dishwasher sump inlet

Part #WD18X10026

$29.40 |
17% OFF Phone Price : $35.40
In Stock
Low Roll Rack WD28X10121
#701

Lower rack assembly diagram

Low roll rack

Part #WD28X10121

Replaced by #WD28X25960

?
Manufacturer substitution
This part replaces WD28X10121. Substitute parts can look different from the original.
$157.66 |
7% OFF Phone Price : $169.66
In Stock
Flood Switch WD21X10168
#308

Body parts diagram

Flood switch

Part #WD21X10168

Replaced by #WD12X10151

?
Manufacturer substitution
This part replaces WD21X10168. Substitute parts can look different from the original.
$77.13 |
7% OFF Phone Price : $83.13
In Stock
