Model # KCDB250S0 Official KitchenAid garbage disposal

Here are the diagrams and repair parts for Official KitchenAid KCDB250S0 garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |
Screw, Backup 4211305
#6

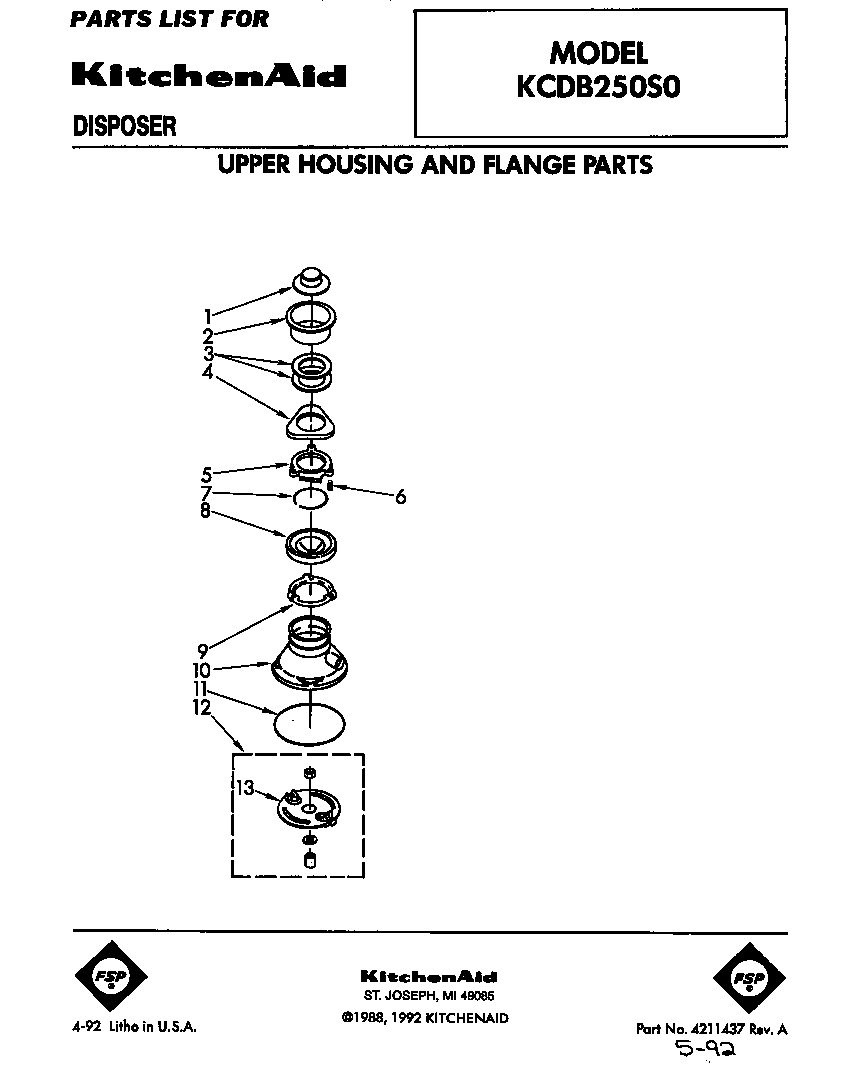

Upper housing and flange diagram

Screw, backup

Part #4211305

The manufacturer no longer makes this part, and there's no substitute part

Container, Body Assembly 4211309
#10

Upper housing and flange diagram

Container, body assembly

Part #4211309

The manufacturer no longer makes this part, and there's no substitute part

Overload Protector 4211325
#9

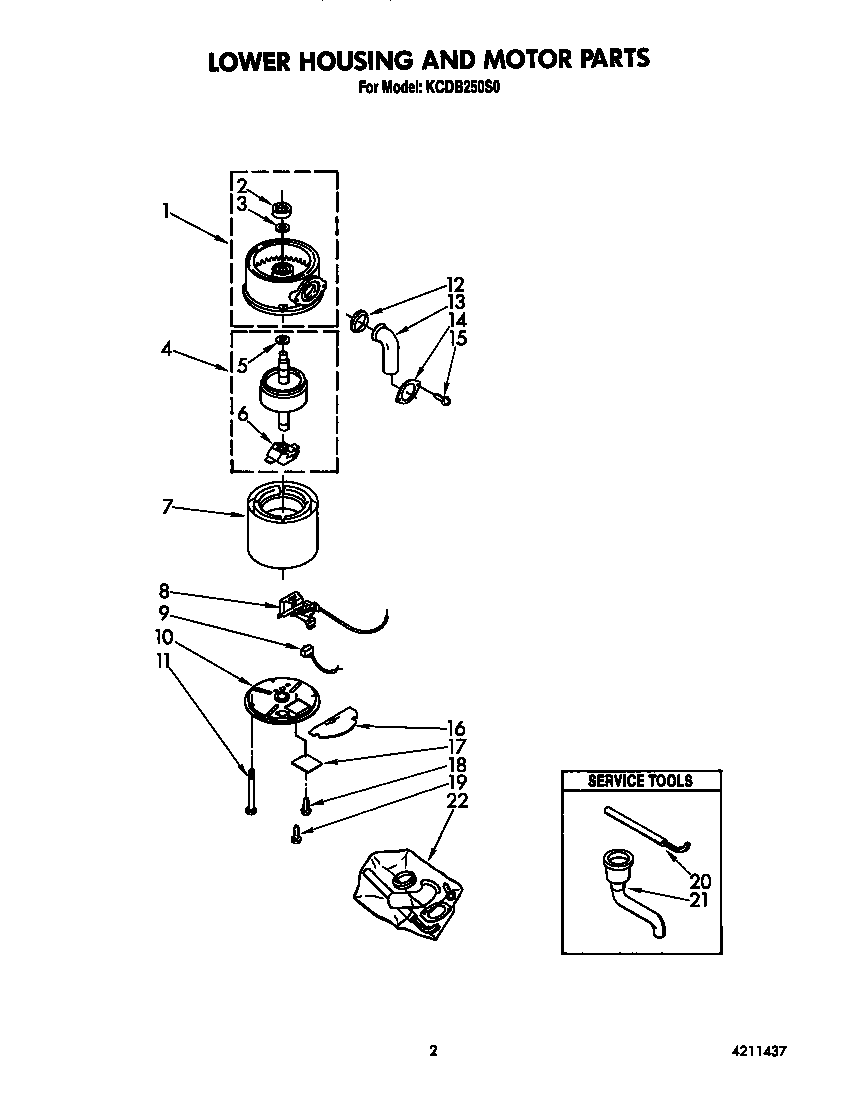

Lower housing and motor diagram

Overload protector

Part #4211325

The manufacturer no longer makes this part, and there's no substitute part

End Bell Assembly, Upper 4211313
#1

Lower housing and motor diagram

End bell assembly, upper

Part #4211313

The manufacturer no longer makes this part, and there's no substitute part

Flange, Tailpipe 4211318
#14

Lower housing and motor diagram

Flange, tailpipe

Part #4211318

The manufacturer no longer makes this part, and there's no substitute part

Emergency, Wrench Assembly 4211397
#20

Lower housing and motor diagram

Emergency, wrench assembly

Part #4211397

The manufacturer no longer makes this part, and there's no substitute part

Ground Screw 4211330
#19

Lower housing and motor diagram

Ground screw

Part #4211330

The manufacturer no longer makes this part, and there's no substitute part

Thrust Washer 4211315
#3

Lower housing and motor diagram

Thrust washer

Part #4211315

The manufacturer no longer makes this part, and there's no substitute part

Kit, Sleeve & Seal (includes Plug, Nut, Washer, Slinger,and Sleeve) 4211311
#12

Upper housing and flange diagram

Kit, sleeve & seal (includes plug, nut, washer, slinger,and sleeve)

Part #4211311

The manufacturer no longer makes this part, and there's no substitute part

Adapter, Sink 4211396
#21

Lower housing and motor diagram

Adapter, sink

Part #4211396

The manufacturer no longer makes this part, and there's no substitute part
