Electric Cooktop

Model # JP930AA1AA Official GE cooktop

Here are the diagrams and repair parts for Official GE JP930AA1AA cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Control Element WB23M0008
#19

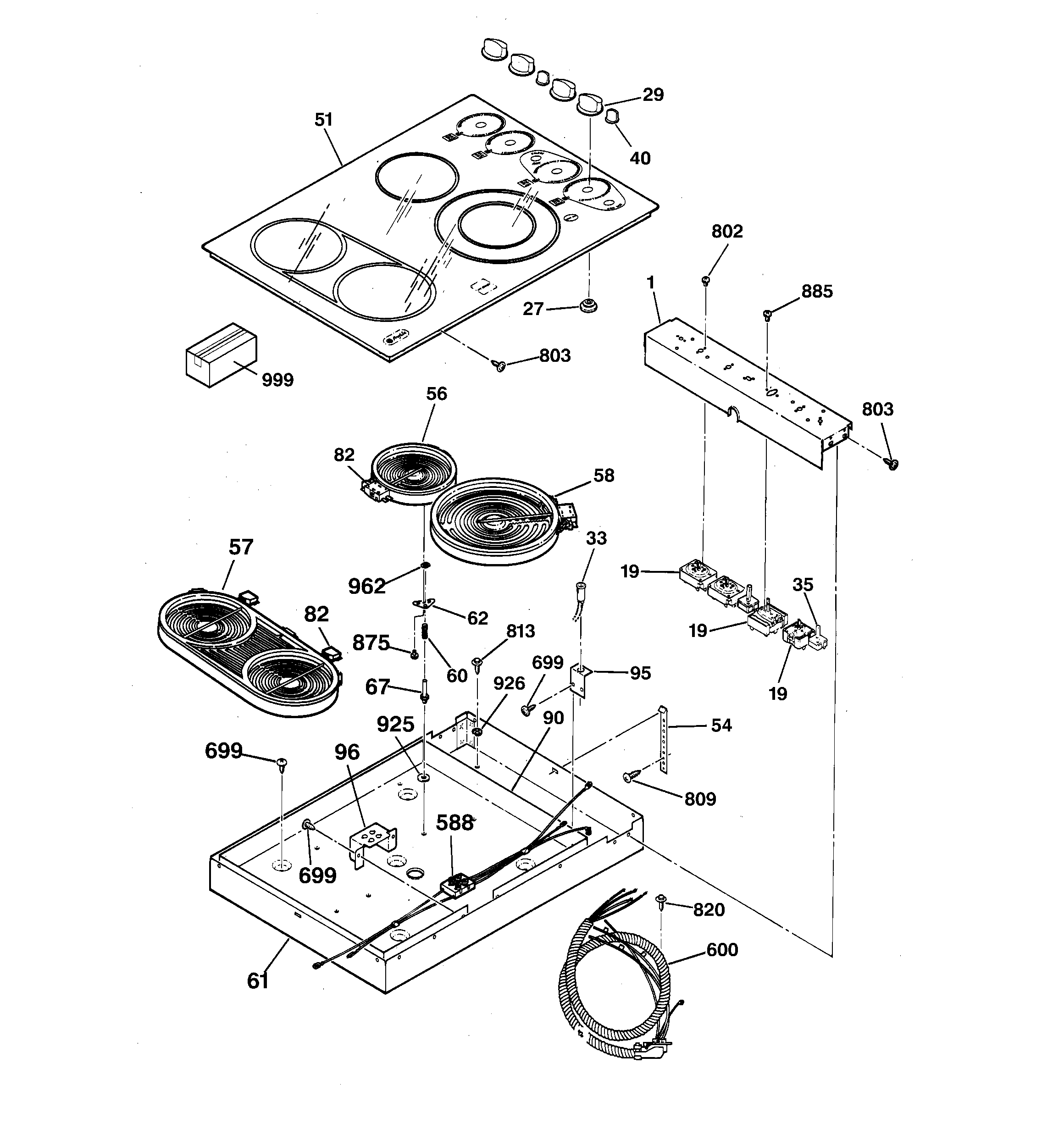

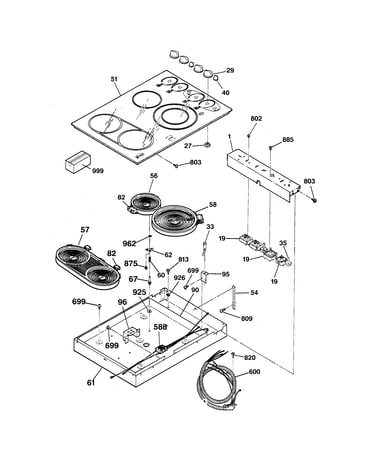

Cooktop diagram

Control element

Part #WB23M0008

Replaced by #WB23M8

?
Manufacturer substitution
This part replaces WB23M0008. Substitute parts can look different from the original.
BEST SELLER
$42.11 |
12% OFF Phone Price : $48.11
In Stock
Cooktop Selector Knob WB03T10035
#40

Cooktop diagram

Cooktop selector knob

Part #WB03T10035

Replaced by #WB03T10035

?
Manufacturer substitution
This part replaces WB03T10035. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.69 |
12% OFF Phone Price : $8.69
In Stock
Cooktop Element Control Switch, 3,000-watt WB23K5052
#19

Cooktop diagram

Cooktop element control switch, 3,000-watt

Part #WB23K5052

Replaced by #WB24X29364

?
Manufacturer substitution
This part replaces WB23K5052. Substitute parts can look different from the original.
BEST SELLER
$69.51 |
8% OFF Phone Price : $75.51
In Stock
Selector Switch WB24X0449
#35

Cooktop diagram

Selector switch

Part #WB24X0449

Replaced by #WB24X449

?
Manufacturer substitution
This part replaces WB24X0449. Substitute parts can look different from the original.
$71.47 |
8% OFF Phone Price : $77.47
In Stock
Screw WB01K5150
#699

Cooktop diagram

Screw

Part #WB01K5150

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01K5150. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Screw WH02X0930
#875

Cooktop diagram

Screw

Part #WH02X0930

Replaced by #WH2X930

?
Manufacturer substitution
This part replaces WH02X0930. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WH02X0930
#875

Cooktop diagram

Screw

Part #WH02X0930

Replaced by #WH2X930

?
Manufacturer substitution
This part replaces WH02X0930. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Brkt Hold Dn WB02K5328
#54

Cooktop diagram

Brkt hold dn

Part #WB02K5328

Replaced by #WB2K5328

?
Manufacturer substitution
This part replaces WB02K5328. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Screw WB01X1261
#813

Cooktop diagram

Screw

Part #WB01X1261

Replaced by #WB1X1261

?
Manufacturer substitution
This part replaces WB01X1261. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WB01X1137
#809

Cooktop diagram

Screw

Part #WB01X1137

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces WB01X1137. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
