Model # 229965520-1980 Official Kenmore boiler storage tank
Here are the diagrams and repair parts for Official Kenmore 229965520-1980 boiler storage tank, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
229965520-1980 Boiler Storage Tank
#12
Boiler controls and piping diagram
Draft blower
Part #433-00-511
Replaced by #2272156
?
Manufacturer substitution
This part replaces 433-00-511. Substitute parts can look different from the original.
$441.90 |
$12.00 OFF Phone Price : $453.90
In Stock
#13
Boiler controls and piping diagram
Boiler pressure switch (replaces 146-55-002-60, 14655006)
Part #146-55-006
The manufacturer no longer makes this part, and there's no substitute part
#11A
Boiler controls and piping diagram
Control lp
Part #146-62-071
Replaced by #BG1600M51EF-1AA
?
Manufacturer substitution
This part replaces 146-62-071. Substitute parts can look different from the original.
$191.94 |
6% OFF Phone Price : $203.94
In Stock
#7A
Boiler controls and piping diagram
Circulator
Part #146-26-045
Replaced by #103251
?
Manufacturer substitution
This part replaces 146-26-045. Substitute parts can look different from the original.
$224.79 |
5% OFF Phone Price : $236.79
In Stock
#1

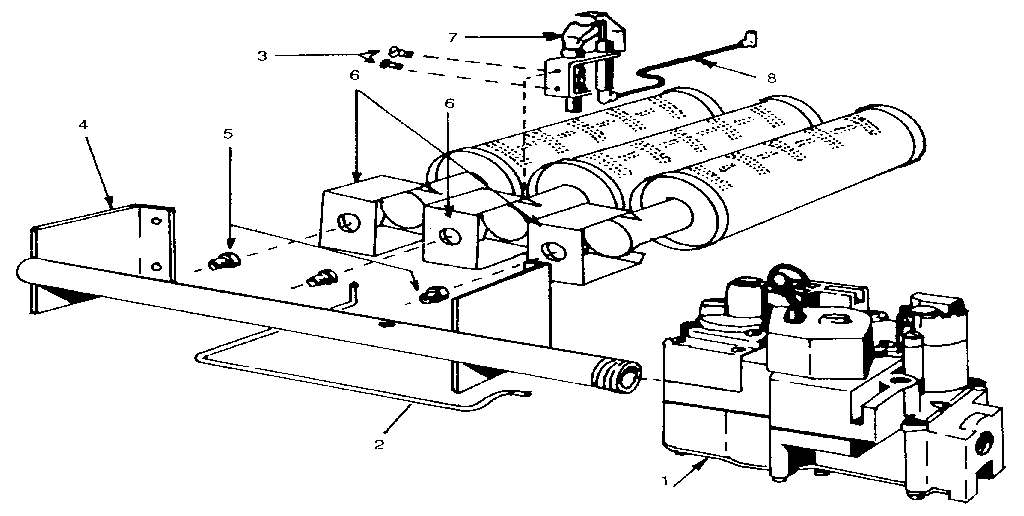

Natural gas burners & manifold diagram
Gas valve
Part #146-62-052
The manufacturer no longer makes this part, and there's no substitute part
#6
Boiler controls and piping diagram
Limit control
Part #146-62-016
Replaced by #240009863
?
Manufacturer substitution
This part replaces 146-62-016. Substitute parts can look different from the original.
$599.77
In Stock
#1
Boiler controls and piping diagram
Relief valve
Part #146-22-011
Replaced by #10-408-05
?
Manufacturer substitution
This part replaces 146-22-011. Substitute parts can look different from the original.
$44.77 |
12% OFF Phone Price : $50.77
In Stock
#8
Natural gas burners & manifold diagram
Ignitn cable
Part #146-62-074
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Boiler burner roll-out limit switch (replaces 146-29-002-60)
Part #146-29-002
The manufacturer no longer makes this part, and there's no substitute part
#13A
Boiler controls and piping diagram
Press switch
Part #146-55-005
The manufacturer no longer makes this part, and there's no substitute part
